Description

The strongest direct power yet! 1400oz of Torque at 16.8v!

SPECIFICATIONS:

  • High Torque High Speed Brushless SERVO or WINCH
  • Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK V2 (Sold separately) and Software.
  • BUILT IN PREPROGRAMMED WINCH CONTROLLER
  • SUBMARINE WATERPROOF: 7 Point Seals w/ HEAT SINK
  • Military Grade Construction
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control
  • 4 Pole Brushless Motor
  • Voltage: 10V - 16.8V
  • Internal: Steel Gears / All CNC Aluminum Casing
  • Bearing Type: 4 Ball Bearings / Weight: 3.19oz / 90gm

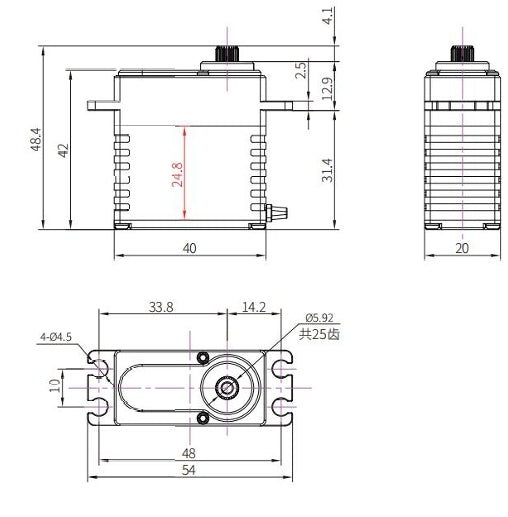

  • Dimension: 1.57 x .79 x 1.5 (LWH) / 40x20x42mm
  • Torque: 1140oz @ 12.6v/ 1223oz @14.4v / 1400oz @16.8v
  • 82KG@12.6v / 88KG@14.4v / 101KG@16.8v
  • Speed: .15sec @ 12.6v / .13sec @ 14.4v / .11sec @ 16.8v
  • Spline: 25T
  • Dead Band Width: 2¦Ìs
  • Unload Current:
  • 320mA@10.0V
     380mA@11.1V
     480mA@12.6V
     530mA@14.4V
     630mA@16.8V
  • Load Current:
  • 3200mA@10.0V
     3600mA@11.1V
     4200mA@12.6V
     4400mA@14.4V
     4800mA@16.8V
Read More
Additional Information
Vendor: REEFS RC
SKU: REEFS246
Barcode: 602024524687
Availability: In Stock
Product Type: Electronics
Weight: 0.5 lb
