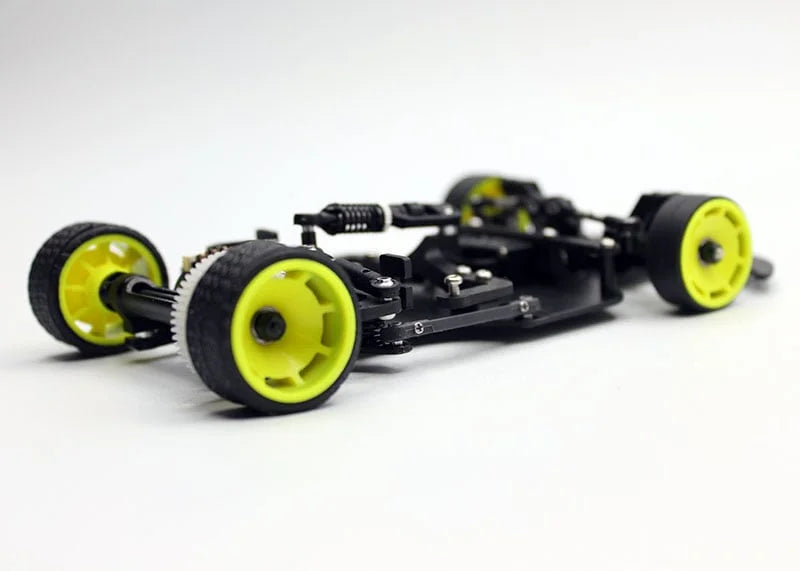

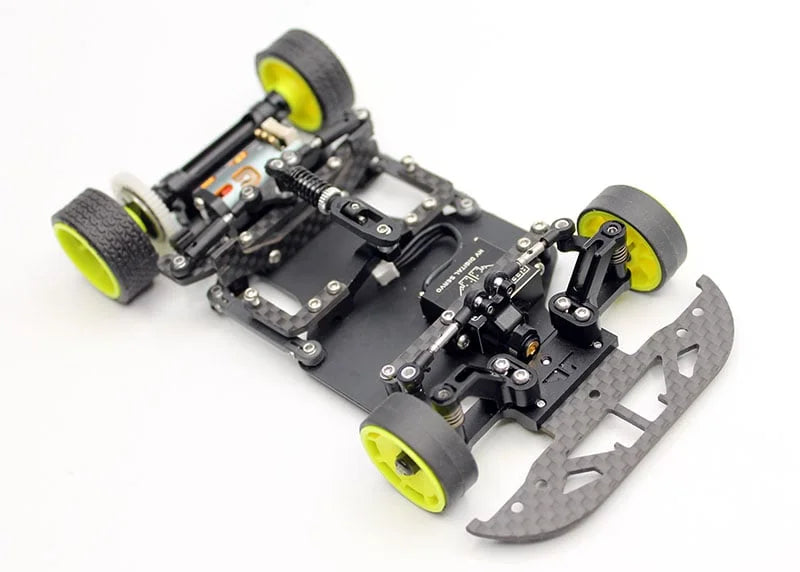

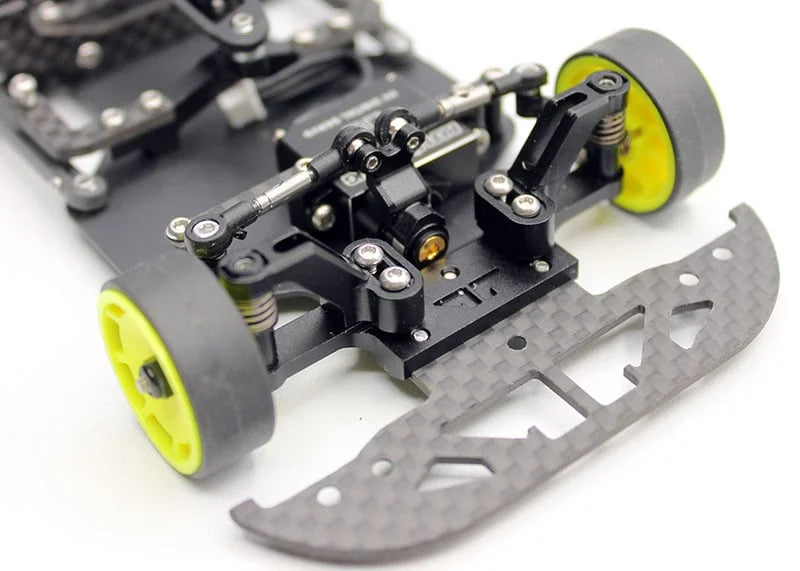

REFLEX RACING RX28K 1/28TH SCALE 2WD KIT - GEN 2

RX28K-KITG2 (KISS Front End)

ALL NEW GEN 2 Kits build on the foundation of our Super Successful, Super Fast RX28.

• Updated Lower Bulkhead with Locating Pins
• Updated Pivot Balls and Kingpins don't require polishing and have far less slop

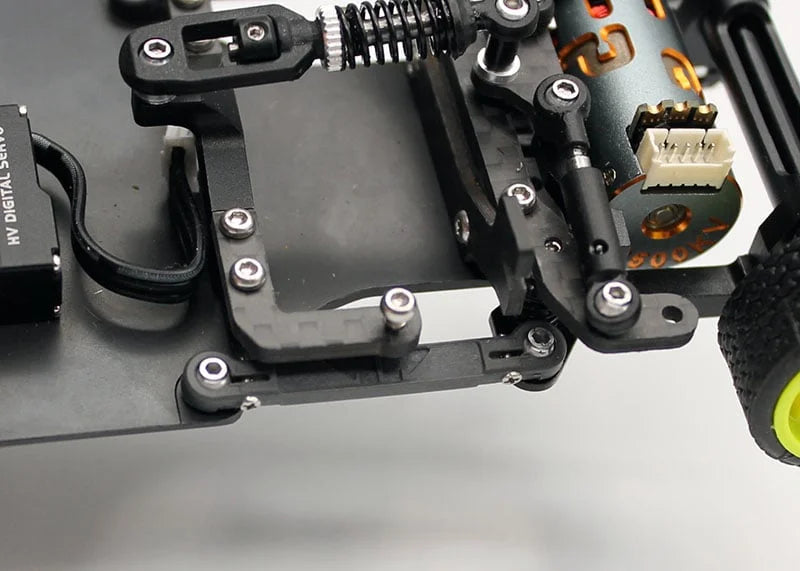

• Molded U Shaped Side Links for more durability and extra clearance around battery Area
• Molded Center Pivot for more Durability

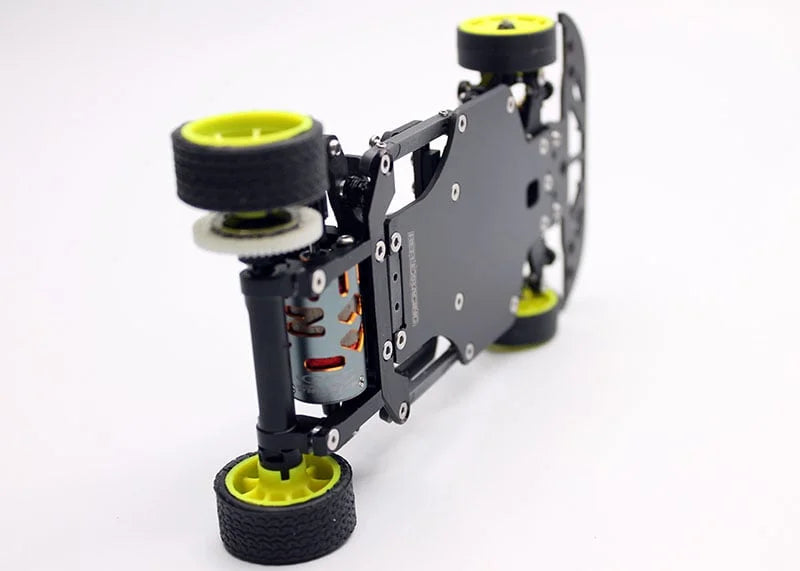

• 30g Stainless Steel Chassis with Hard Coating for more durability, quality and performance vs brass

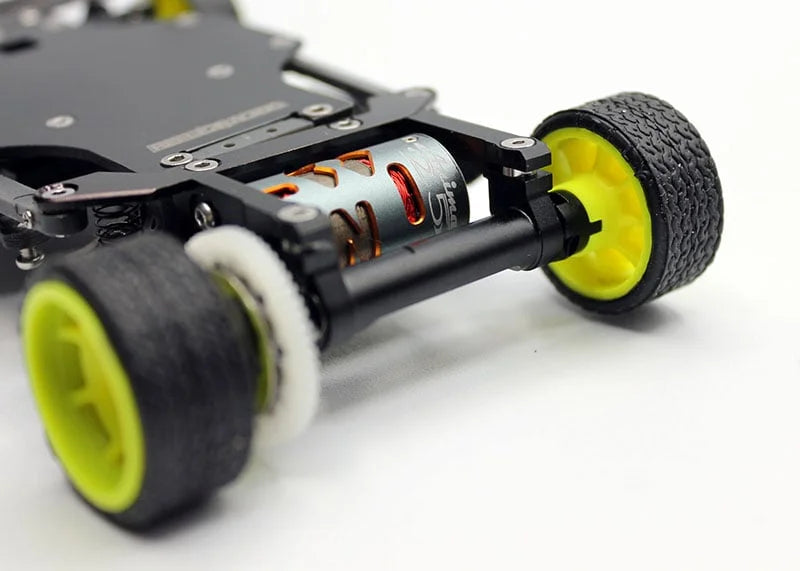

• All New Ultra Low CG Motor Mount for increased corner speed, lighter weight and more precise ride height adjustment. Also allows virtually any motor in the industry to be a drop in to the mounting position. Allows gear adjustment from 9T-17T Pinions.
• Newly Released V2 Differential with thrust bearing and aluminum dust cover compatible spur gear.
• Revised hardware throughout.
• Reflex Racing Speed Wheels Included

Dimensions:

• 98mm Wheelbase
• 145g-170g weight RTR Depending on body and Electronics
• 69mm to 78mm Rear Track Width
• 72mm to 75mm Front Track Width

Required to Complete this Kit:

• Body and either front clip or front bumper (note: if using a hardbody, glue the L-shaped side-clips to the ridges just forward of the standard placement, shown in pictures and manual)
• Wheels and Tires (note: the front track width of the RX28 is wider than that of the MR03W so please use front wheels with 2mm lower offset)
• Motor
• ESC
• Receiver
• Servo (Please note, the provided servo horn is designed to work with the AGFC A06CLS sized Spline, the Atomic Servo is a little bit of a tight fit but works, and the GL the PN Anima Servos will fit as well)
• LiPo Battery

NOTE: When Mounting Hard Plastic bodies, you will need to mount the ridges forward on the side clips.
