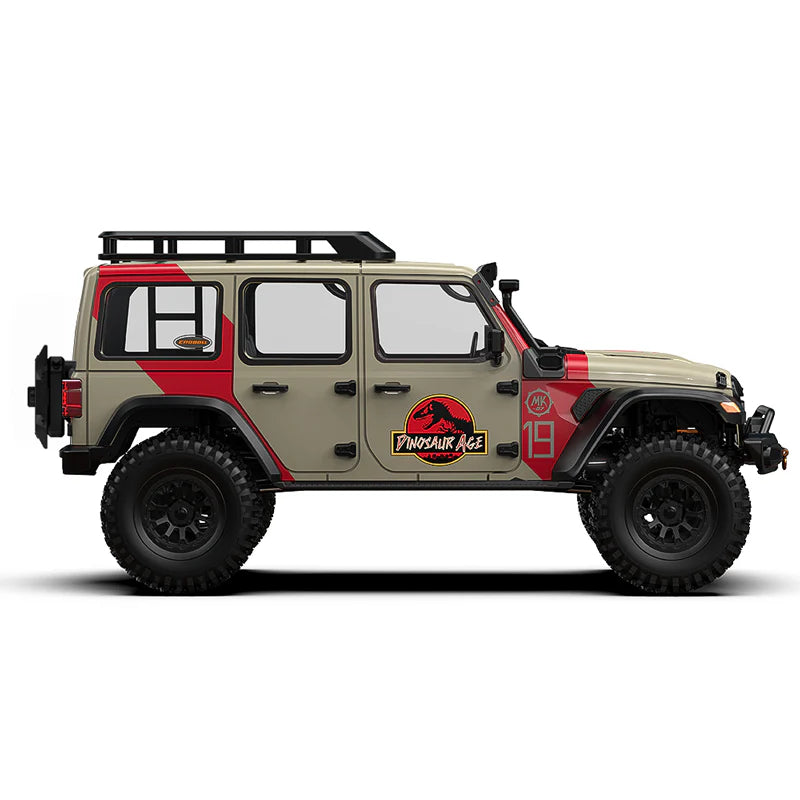

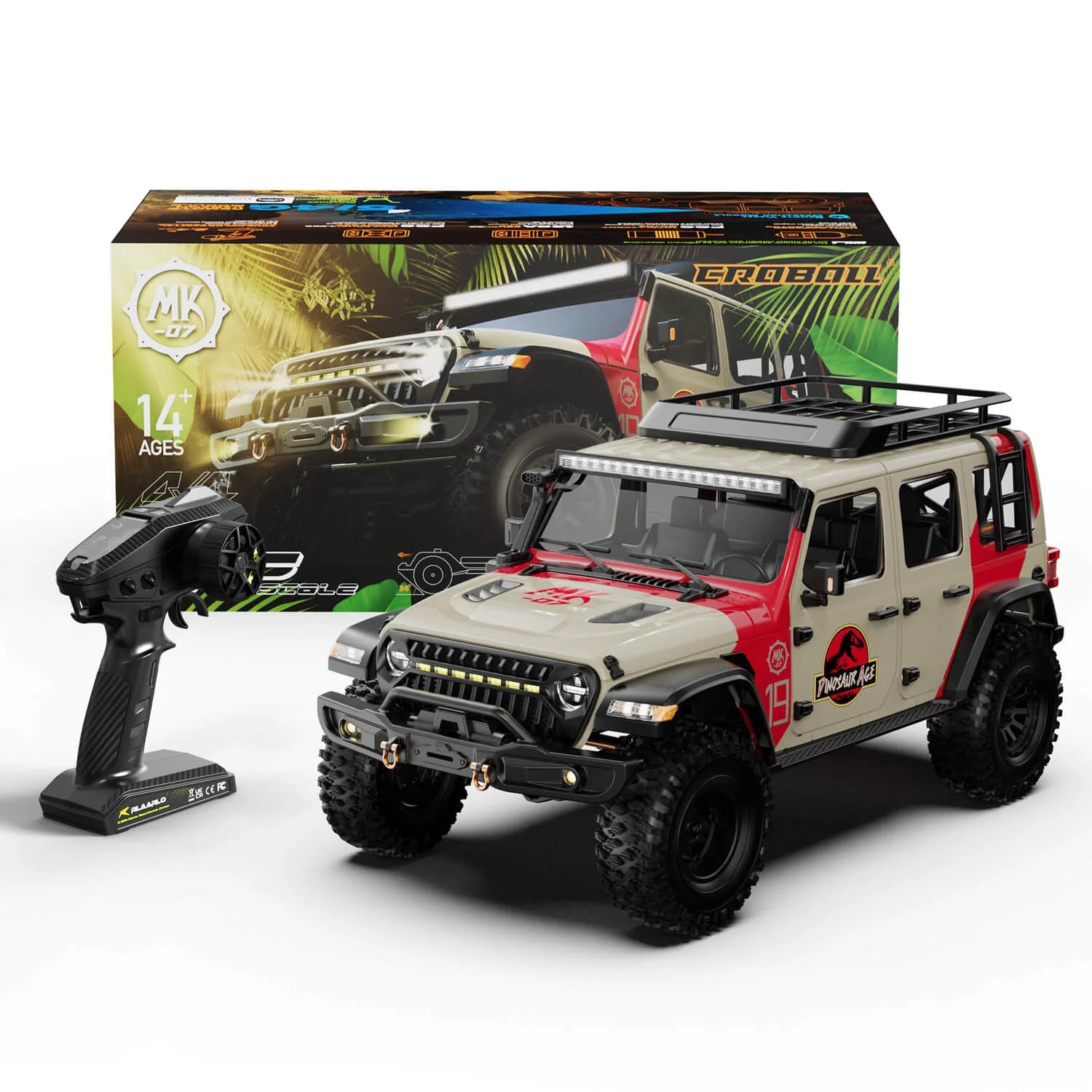

- This version is painstakingly painted by specialized craftsmen, who hand-apply the decorative parts and are committed to achieving the best possible visual effect in every detail. Their delicate use of pigments and the precision with which they apply the decorative parts make the overall appearance even more striking and add to the vehicle's unique charm
- MK-07 is a top-of-the-line model for off-road enthusiasts, offering an authentic and exciting off-road experience that brings unrivaled fun to off-road enthusiasts
-
Equipped with a 4282 high-torque 2600KV magnetic encoding FOC sensored motor, featuring a high-speed digital sensor that requires no calibration, the motor is plug-and-play. The sensor supports hot-swapping with strong anti-interference and high signal quality.
-
The FOC ESC supports 2-4S batteries with a continuous current of 140A, utilizing vector control technology. Compared to square wave ESCs, it saves 5%-20% energy, providing longer run times for climbing adventures. The acceleration and deceleration performance of the FOC ESC is over twice as fast as square wave models.
-
The high-torque motor meets the needs of most large-scale crawlers on the market. Its low-speed linear torque compensation allows the vehicle to easily overcome obstacles while maintaining perfect balance. The vehicle excels not only in climbing scenarios but also in sand running and drift, offering users an ultimate control experience.
Note:
- Battery and Charger Sold Separately
-
The battery plug of MK-07 is XT60 connector, customers need to buy batteries by themselves
FRONT AND REAR DIFFERENTIAL DESIGN

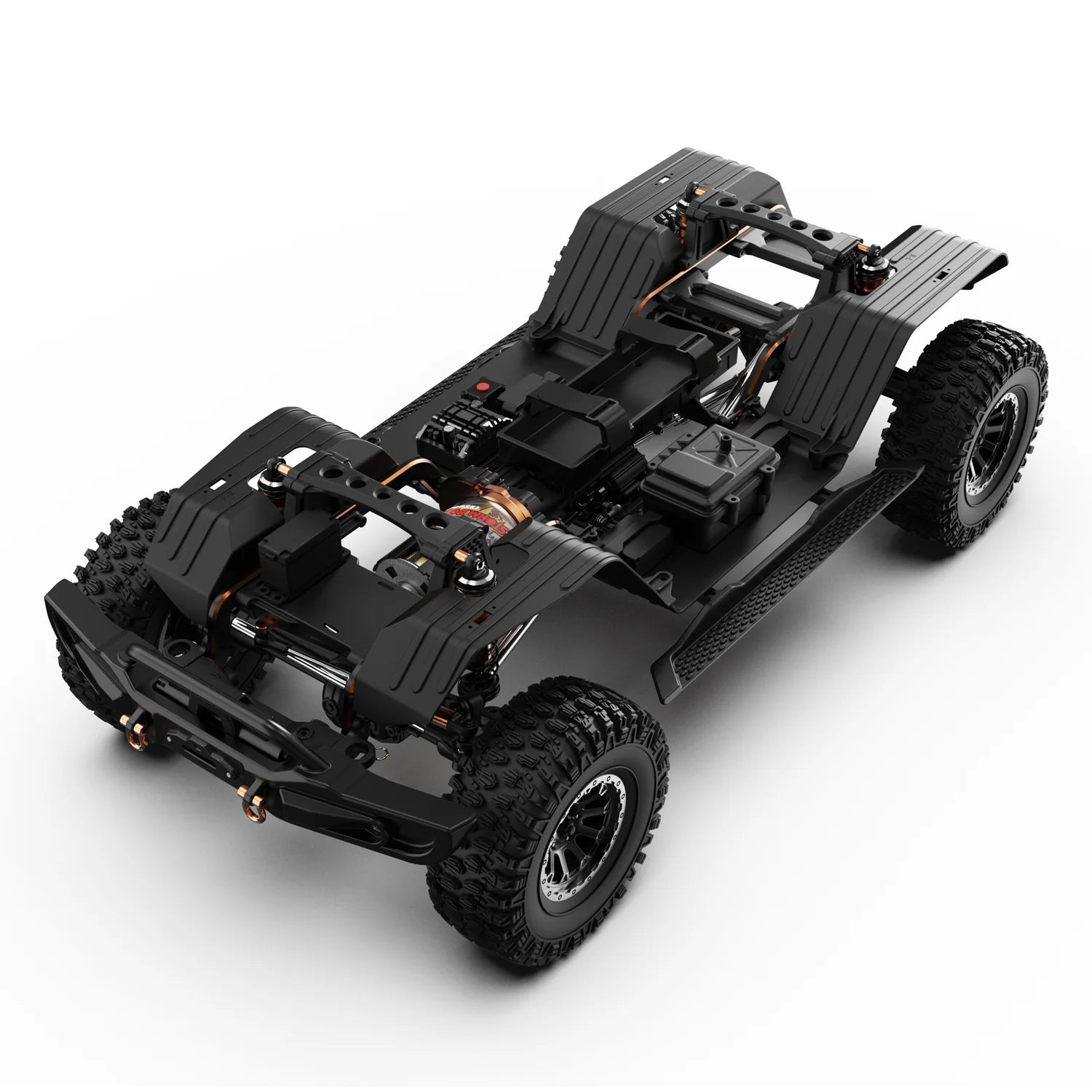

CNC 6mm Aluminum Alloy Chassis Rails
Treated with a high-gloss coating not only enhance the ruggedness of the car but also add to the overall aesthetics of the vehicle
3 Link Panhard Steering Link System
Drive train design reduces the lateral swing between the chassis plates (body) and the rear axle, making the car more stable on bumpy roads and more stable when driving straight
Aluminum Scale Shocks
Extra-long 120mm all-metal hydraulic shock absorbers, with a maximum shock absorption stroke of 37mm provide smooth dampening of the vehicle even on rougher surfaces
Molded Inner Fenders
High-strength integrated nylon mudguard and inner fenders include locations to install rock lights by the user easily
Battery Tray
MK-07's main battery tray holds a full-length 5000mAh 3-cell LiPo for extended runtime. Bundled battery straps to accommodate batteries of different heights
Front and Rear Differential Design
When the terrain becomes more challenging, locking the rear differential or locking the front differential will allow the tires to obtain better power distribution and allow the vehicle clear the obstacle easier.
High Steering and Drag Links
The steering linkage and traction linkage are mounted high on the door axle, elevating them to prevent possible damage. This allows the MK-07 to attack obstacles head-on, thus reducing the risk of the steering linkage hitting rocks.
8MM Stainless Steel Suspension Rods
The entire vehicle suspension link rods uses thickened 8mm stainless steel to make the chassis more robust.
Twin Friction Plate Slipper Clutch
A slipper clutch design provides additional protection for the crawler under extreme conditions. This helps prevent any possible damage to the gears and the motor.
Sealed Ball Bearings
The whole vehicle uses rubber-sealed dustproof high-speed bearings which reduce penetration from mud and sand and allow for a more fluid operation.
Approach and Exit Angle Of The Vehicle
The MK-07 features a 58° out-of-the-box approach angle for climbing walls and hills. 54° rear approach angle provides extreme performance even in the deepest ruts.
High Ground Clearance
The MK-07 has a center ground clearance of up to 90mm, which brings a more realistic off-road experience without fear of any complicated environment.
45° Steering Angle
The MK-07 has a self-adjusting steering angle of up to 45°, which makes it easy to maneuver around even the tightest corners.
Driveshafts and Suspension Links
The MK-07 portal axle design raises the driveshaft to improve axle geometry and reduce driveshaft angles.Higher driveshafts and suspension links go over obstacles, reducing wear and smoothing the ride over bumpy roads.
Front Motor Design
The motor front mount design moves the weight bias forward, allowing you to climb obstacles with better traction.
Simulation Design
Its body-mounted door handles, mirrors, fenders, and simulated windshield wipers work together to create an extremely realistic appearance.
Extensive Lighting Systems
Front lights with daytime running, low and high beams, roof light (light bar) and turn signal lights, grille and top panel lights.
Simulated Bumper
The simulated design bumper fitted to the front vehicle is robust and functional, complete with tow hooks, metal grain and other details to give it a more realistic appearance.
Simulation Design Big Tire
MK-07 tire diameter of 145mm, tire width of 58mm to bring model players more realistic off-road experience, with the ability to challenge the complex road conditions.
Integrated Mirrors and Wiper Blades
The unique windshield and integrated mirrors and wiper blades have been rebuilt as injection-molded parts to provide a more realistic visual experience when mounted on the car.
Rich Lighting Effects
The whole car is equipped with a number of lighting effects, enthusiasts can set the lighting display effects according to the use of the scene, simulating the real driving environment.
5280 High-Power Brushed Motor
Supports up to 3S Lipo Battery (3 Cell)
Neodymium Iron Boron Strong Magnetic Magnet
High Torque 5280 brushed Motor
Capable of pulling a 1-2 tonne vehicle across a horizontal surface
140A Brushed ESC
140A Continuous output
Ultra-low-speed linear control
40KG Waterproof Steering-Servo
40KG high-torque waterproof steering servo provides strong power output and reliable waterproof performance, ensuring stability and durability in a variety of extreme conditions.
8-Channel Radio System
Featuring a 2,4g 8-channel color screen remote control that can be adjusted to fit your usage habits, such as using the transmitter to set the MK-07's speed, then using the multi-function knob to fine-tune the speed to be faster or slower to match your pace. A handle-mounted switch selects high or low gear to suit the terrain, while a separate toggle switch engages or disengages the locking differential, all on the fly.
Product Specifications
- Scale:1/7 Scale
- Length:700 mm
- Width:325mm
- Height:340mm
- Wheelbase:439 mm
- Weight:7 kg
- Top Speed:6-12km/h
- Car body:1.5mmPC
- Range:350 m
- Transmitter :
Brushless —2.4GHz 10-Channel Transmitter
Brushed —2.4GHz Color screen 8-channel remote control - Battery Size:164*49mm
- Light System:Full car linkage lighting
- Drivetrain:4WD
- Spur Gear:Metal
- Drive System:Four-Wheel Drive with Differential Lock
- Differential Type: Steel
- ESC:
Brushless —140A Independent Brushless ESC（Support app parameter tuning）
Brushed —140A Brushed ESC - Input Voltage: 2-4S Li-ion
- Motor Type:
Brushless —4282-2600KV Brushless Motor
Brushed —Brush Motor5280 12500 revolutions per minute - Motor Gear Type: Steel
- Steering Servo Machine: 40kg Servo （Waterproof）
- Servo Pinion Type: Metal
- Shock Type:Adjustable Metal Oil-Filled Shock Absorber
- Chassis:6mm Thick High-Strength CNC Beam
Note: Some parameters may differ between versions.
| Vendor: | Rlaarlo |
| SKU: | MK07J-BS |
| Availability: | In Stock |
| Product Type: | Car Kits |
| Weight: | 36.0 lb |
