SAB ilGoblin 700 Raw with Xnova Motor4525 - 530KV and HobbyWing 180A HV SBEC V5 ESC Combo

SAB ilGoblin 700 Raw with Xnova Motor4525 - 530KV and HobbyWing 180A HV SBEC V5 ESC Combo

Vendor: SAB Heli Division
|
SKU: SG763-CB1
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Price Match Guarantee
$1,851.78
$1,851.78
The order quantity exceeds the stock!
SAB ilGoblin 700 Raw with Xnova Motor4525 - 530KV and HobbyWing 180A HV SBEC V5 ESC Combo

SAB ilGoblin 700 Raw with Xnova Motor4525 - 530KV and HobbyWing 180A HV SBEC V5 ESC Combo

$1,851.78
SAB ilGoblin 700 Raw with Xnova Motor4525 - 530KV and HobbyWing 180A HV SBEC V5 ESC Combo

SAB ilGoblin 700 Raw with Xnova Motor4525 - 530KV and HobbyWing 180A HV SBEC V5 ESC Combo

$1,851.78

Related Products

Description

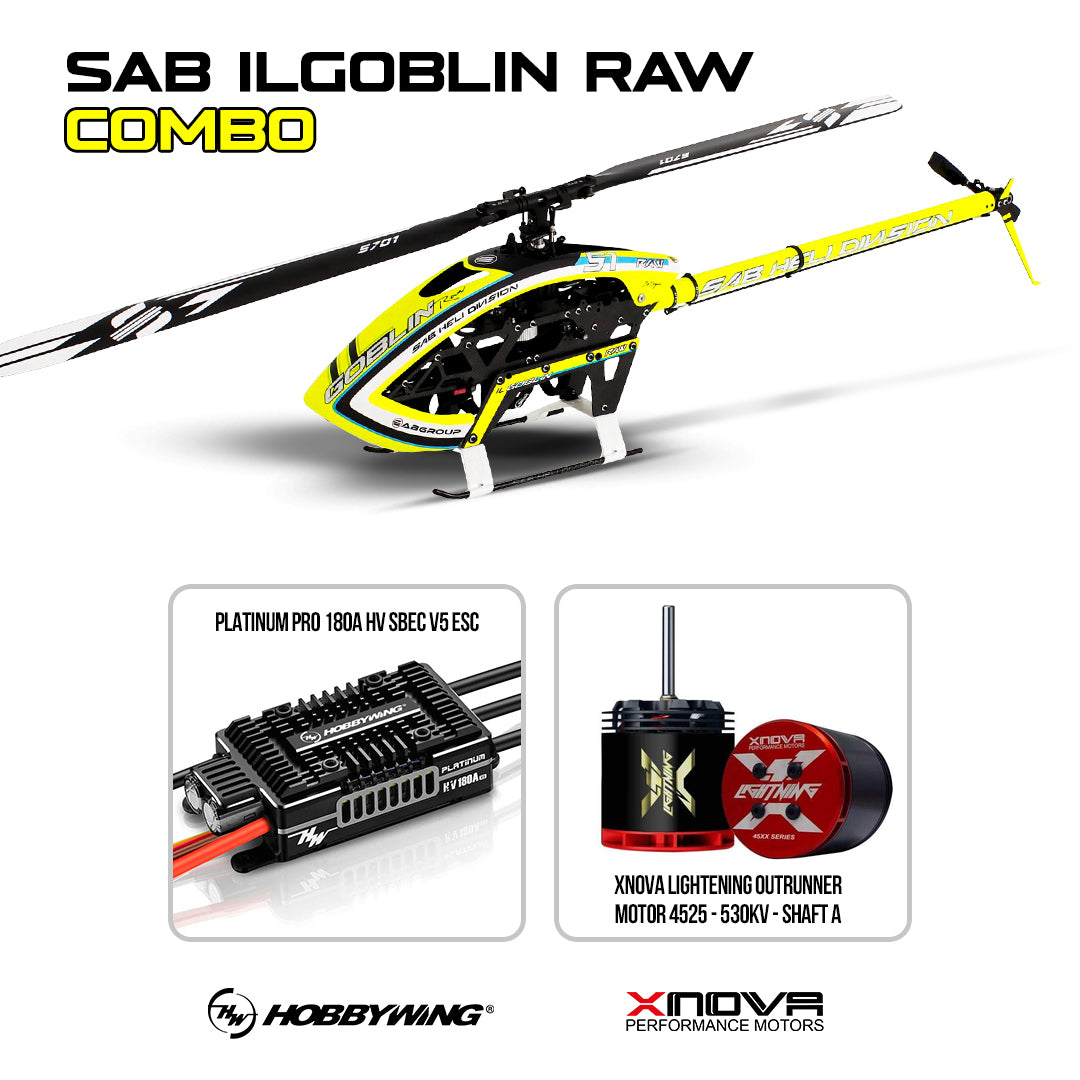

Package included:

1 x  IlGoblin Raw (SG763)

1 x HobbyWing Platinum PRO 180A HV SBEC V5 ESC

1 x Xnova Lightening Outrunner Motor 4525 - 530KV For RC Helicopter Shaft A



IlGoblin Raw (SG763)

ILGoblin RAW is a simpler version of the PRO with an aluminum tail boom, this version will have the same main components of the ilGOBLIN PRO.


Specifications:

AIRFRAME weight: 2122 gr (no blades, no battery, no electronics)

Main rotor diameter: 1576 mm (with 700 mm main blades)

Main blade length: 650 to 730 mm

Tail rotor diameter: 292 mm (with 110 mm tail blades)

Tail blade length: 105 to 115 mm

Cyclic Servos: Standard size 40 mm

Tail Servo: Standard size 40 mm

Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)

Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)

Main shaft: 15 mm, Tail shaft: 8 mm

Aluminum tail boom

Typical motor: 12S, 480/560 KV

Battery room: 50x60x300 mm



KIT Includes:

•             21T motor pulley (other pulley sizes available).

•             1 battery tray with straps.

•             S701 (700 mm main blades)

•             S105 (105 mm tail blades)





Read More
Additional Information
Vendor: SAB Heli Division
SKU: SG763-CB1
Barcode: SG763-CB1
Availability: Out Of Stock
Product Type: Heli Kits
Weight: 25.0 lb
