Product Description
We introduce the fifth generation of Scorpion's renowned and award winning "HK - Series" motors. The Scorpion "HK5 - Series"
The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.
The HK5-3220-1095kv is designed primarily for 400mm - 450mm blade size helicopters, such as the Align TB40 running on 6s, or other UAV or application which require up to 2200w of power.
Specifications
| Motor Kv | 955KV RPM/Volt |
| Weight | 198g Grams ( 7.0oz) |
| Motor Body Dimensions | 40.95mm x 45.98mm (1.61" x 1.81") |

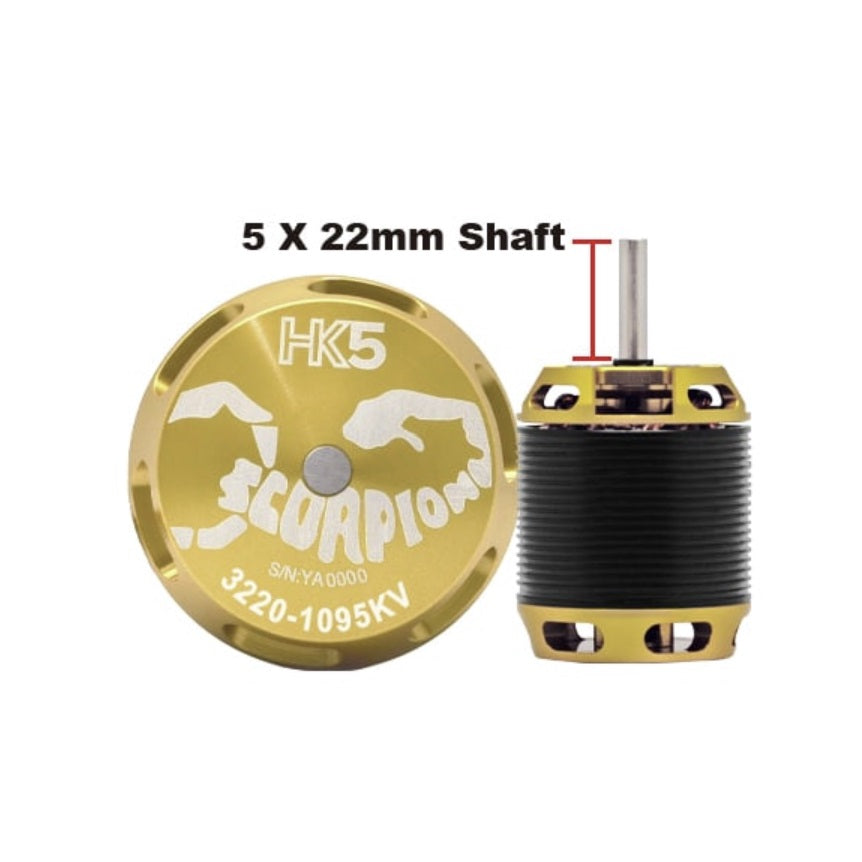

| External Shaft Dimensions | 4.98mm x 22mm (0.235" x 1.26") |
| Continuous Current | 75 Amps |
| Continuous Power | 1665 Watts |
| Peak Current | 100A (2 seconds) |
| Peak Power | 2220 Watts (2 seconds) |
| Max Lipo Cell* | 6s |
| Stator Diameter | 32 mm (1.57 in) |
| Stator Thickness | 20 mm (0.79 in) |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 10 |
| Motor Wind | 5 Turn Delta |
| Motor Wire | 1.15mm |
| *Higher Cell Count possible with appropriate gear ratio adjustment | |
Included in the Box

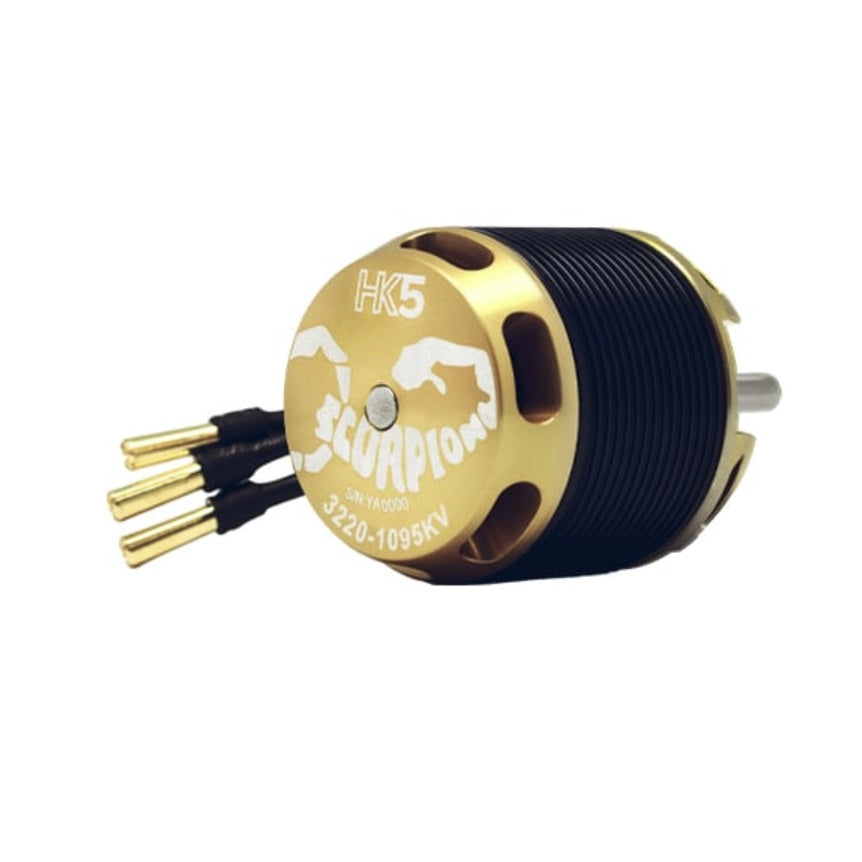

1 x HK5-3220 BLDC Motor
3 x Female 4mm Connectors
3 x Heat Shrink
1 x Hardware / Accessory Pack
Weight including packaging
100g
| Vendor: | Scorpion Power Systems |
| SKU: | HK5_3220_1095 |
| Barcode: | 4897086987822 |
| Availability: | Out Of Stock |
| Product Type: | Heli Motors |
| Weight: | 2.0 lb |
