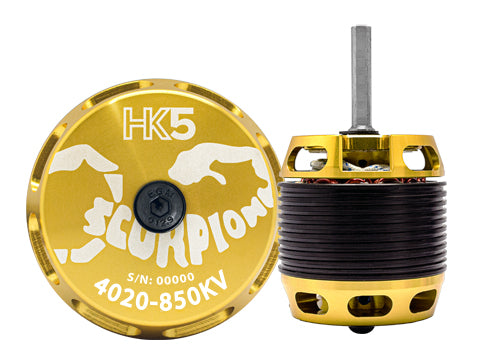

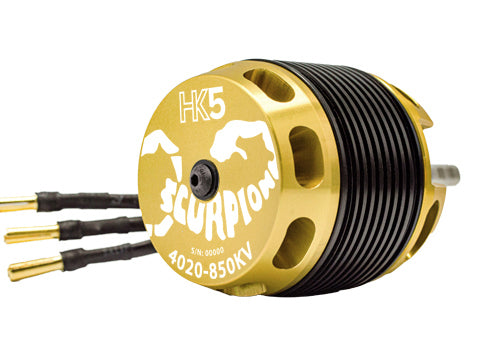

Scorpion HK5-4020-850KV Brushless Motor
Product Description
We introduce the fifth generation of Scorpion's renowned and award winning "HK - Series" motors. The Scorpion "HK5 - Series"
The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.
The HK5-4020-850kv is designed primarily for the SAB RAW 500 helicopter based on the guidelines set forth by SAB Factory directly.
Specifications
| Motor Kv | 850KV RPM/Volt |
| Weight | 325.6g Grams ( 11.48oz) |
| Motor Body Dimensions | 49.5mm x 52.00mm (1.95" x 2.05") |
| External Shaft Dimensions | 5.98mm x 32mm (0.235" x 1.26") |
| Continuous Current | 85 Amps |
| Continuous Power | 1900 Watts |
| Peak Current | 120A (2 seconds) |
| Peak Power | 2664 Watts (2 seconds) |
| Max Lipo Cell* | 6s |
| Stator Diameter | 40 mm (1.57 in) |
| Stator Thickness | 20 mm (0.79 in) |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 10 |
| Motor Wind | 5+5 Turn Delta |
| Motor Wire | 1.4mm |
| *Higher Cell Count possible with appropriate gear ratio adjustment | |

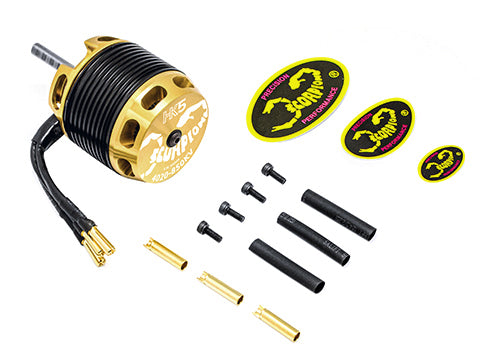

Included in the Box
1 x HK5-4020 BLDC Motor
3 x Female 4mm Connectors
3 x Heat Shrink
1 x Hardware / Accessory Pack
Weight including packaging
1g
