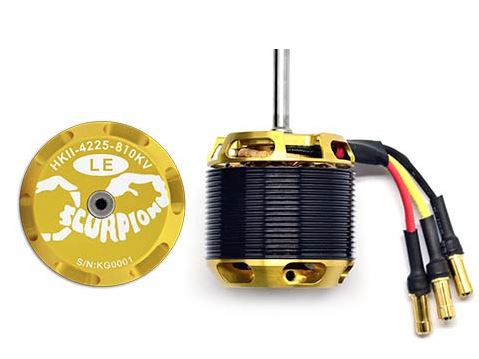

Scorpion HKII-4225-810kv Limited Edition (6mm 32mm)
){kind=link}
Product Description

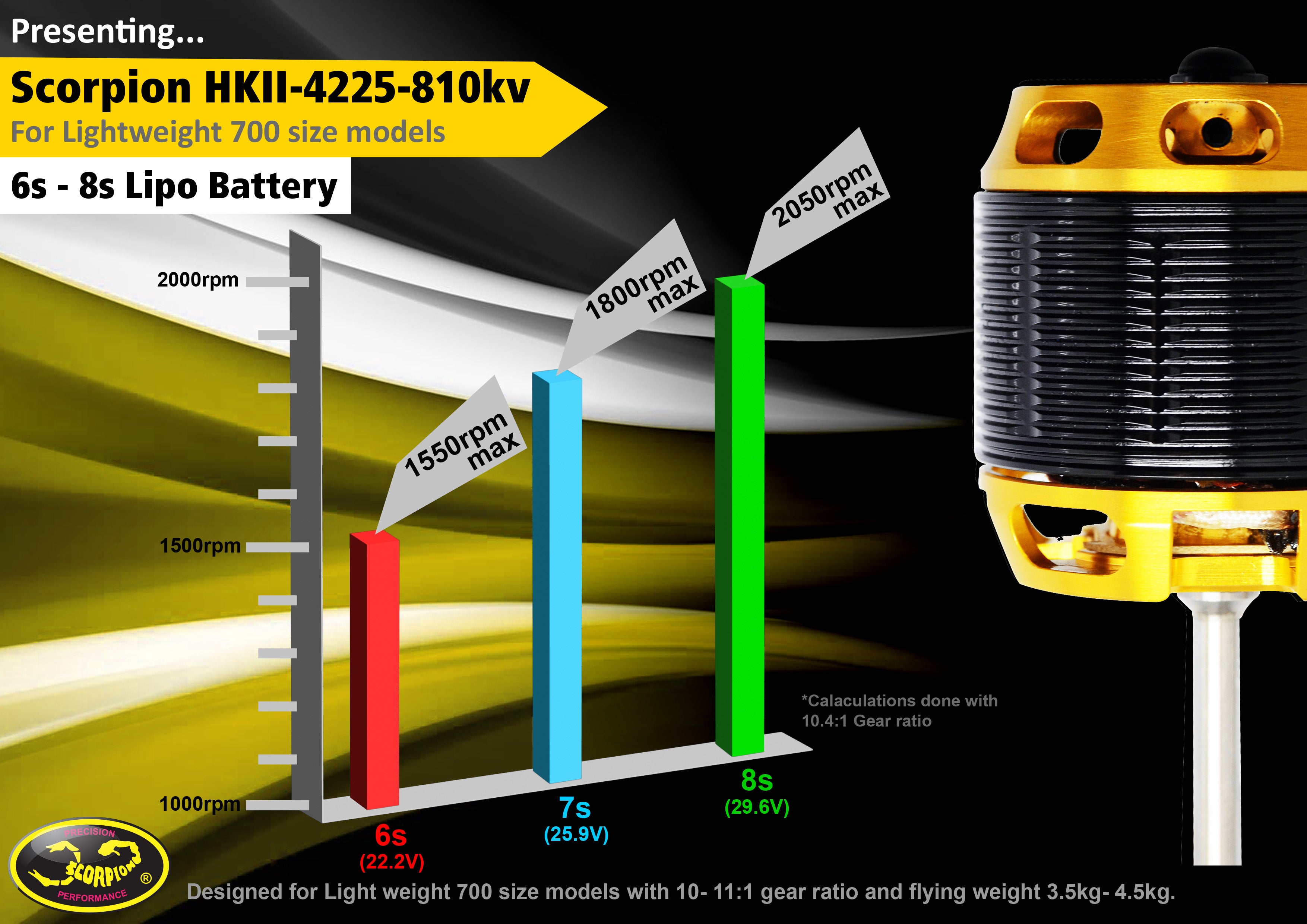

With the trend of ultra light weight 700 size models running 6-8s batteries on the rise, the market called for a light weight, powerful, but not battery puffing motor. So Scorpion created the HKII-4225-810kv motor for a Limited Edition run! Sized directly between our proven HKIV-4025 and HKII-4525 motors in terms of weight and power, and LIGHTER yet MORE powerful then our competitors 4030 motors, this motor represents the most technologically advanced power source ever offered for an electric helicopter.
Scorpion Competition Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Plated to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are rated for operation at 200 degrees C (392 F), making a motor that is virtually impossible to burn up in normal use.
Scorpion Motors are built to last, and are backed with a 1-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 1-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.
For the best overall combination of quality, performance, and value, use Scorpion Motors in your helicopter!
*This motor is using 30mm bolt spacing on the mounting
Specifications
| Stator Diameter | 42 mm (1.65 in) |
| Stator Thickness | 25 mm (0.98 in) |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 10 |
| Motor Wire | 1 Strand / 1.6mm |
| Motor Kv | 810KV RPM/Volt |
| No-Load Current (Io/10V) | 3.60 Amps |
| Motor Resistance (RM) | 0.009 Ohm |
| Max Continuous Current | 115A |
| Max Continuous Power | 3404 Watts |
| Weight | 393 Grams (13.77 oz) |
| Outside Diameter | 52.3 mm (2.06 in) |
| Shaft Diameter | 5.98 mm (0.24 in) |
| Body Length | 51.50 mm (2.03 in) |
| Overall Shaft Length | 85.5 mm (3.37 in) |
| Max Lipo Cell | 8s |
| Max Peak Current | 170 Amps (5 seconds) |
| Max Peak Power | 5032 Watts (5 seconds) |
| Motor Timing | 5deg |
| Drive Frequency | 8kHz |
Included in the Box
1 x HKII-4225-810kv Motor
3 x 4mm AMASS Female Bullet Connectors
3 x Heat Shrink
4 x M4 Mounting Bolts
3 x Scorpion Stickers
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
HKII-4225-810-LE |
| Weight: |
2.0 lb |
Product Spare Parts
Customer Reviews
Standard Scorpion high quality motor. Works great in my 7s Dnamic. Wish they would make a 730ish KV version to better pair with low head speed and 8s.

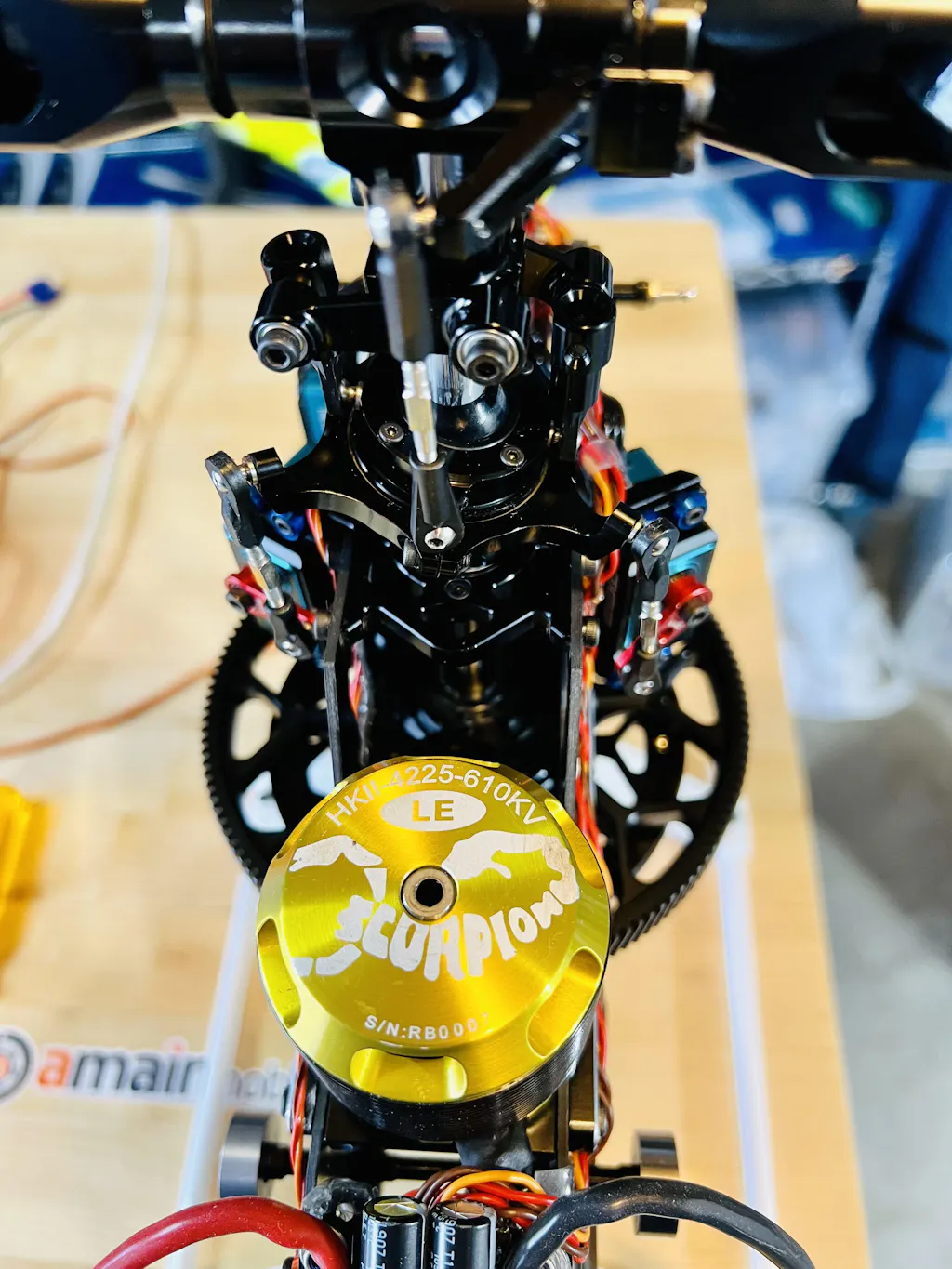

I am using this motor successfully on my 8S light weight 700 size Tron Dnamic helicopter.
This new 4225 motor is for my SAB 700 yellow and black it will be in my March build
Great 8s motor for a light 700 class heli. Fast shipping as always from Heli-Direct
Customer Reviews
Standard Scorpion high quality motor. Works great in my 7s Dnamic. Wish they would make a 730ish KV version to better pair with low head speed and 8s.
I am using this motor successfully on my 8S light weight 700 size Tron Dnamic helicopter.
This new 4225 motor is for my SAB 700 yellow and black it will be in my March build
Great 8s motor for a light 700 class heli. Fast shipping as always from Heli-Direct
