SkyRC CG Gauge CGG-020 - Aircraft (Fixed Wing / Airplane)

SkyRC
|
SK-500039-02
You will earn 230.99 points for buying this product
Price Match Guarantee
$230.99 $0.00( / )
CG Gauge Whether for a real full-scale airplane or model aircraft, the center of gravity is the paramount one among all the parameters. The center of gravity in an incorrect position will result in a lousy control experience and even catastrophic results. The SkyRC CG Gauge, which professionally measures the...

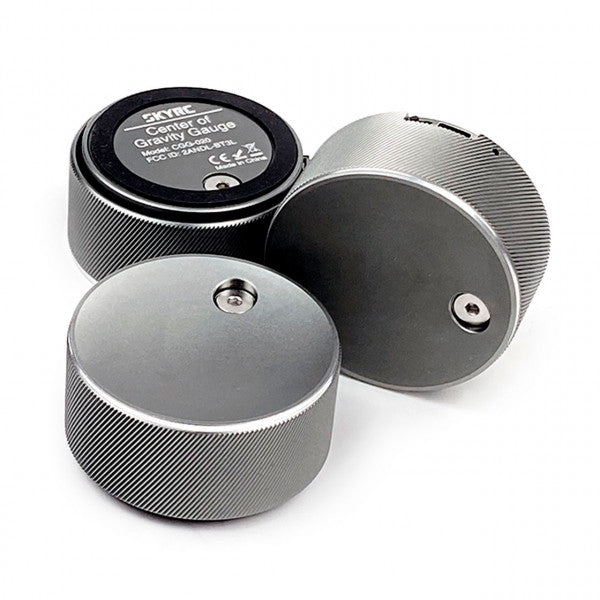

CG Gauge

Whether for a real full-scale airplane or model aircraft, the center of gravity is the paramount one among all the parameters. The center of gravity in an incorrect position will result in a lousy control experience and even catastrophic results.

The SkyRC CG Gauge, which professionally measures the weight, the center of gravity for fixed-wing aircrafts with a maximum load of 20kg, comes as a solution to RC pilots!

The unit consists of three weighing modules, which are wirelessly controlled via Bluetooth. The maximum load for a single module is 20kg. With the RC Gears app, pilots can get started to measure the real-time measuring data after unboxing.

SPECIFICATIONS

CG Gauge

Dimension: D66*33mm
Weight: ≈160g
Working Voltage: 3.4-4.2V
Working Current: ＜15mA
Interface: Type C
Input Voltage: 5V
Input Current: 200-300mA
Low-voltage Protection: ＜3.4V (Flashes Red)
Load: max. 20kg/module
Accuracy: ±3g (Measuring)
Accuracy: 1g/0.01oz (Display)
Working Temperature: 0℃-50℃
Working Humidity: 5%-90% (No Condensation)
Storage Temperature: -10℃-50℃
Storage Humidity: 1%-75% (No Condensation)



Type:

Hand Tools
Vendor:

SkyRC
SKU:

SK-500039-02
Weight:

2.0 lb

Product Spare Parts

Customer Reviews

Based on 8 reviews
100%
(8)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Richard K.
SkyRC CG Gauge

Excellent product to balance airplanes. I’ve used it on 90mm Ducted Fans. Very useful to find exact placement of flight battery pack since small movements have large effect. Connects easily to my iPad without tangle of cables used on a different product. It does not work for me with latest iPhone 16 Pro and IOS 18.1. SkyRC is aware of issue and will likely soon have a fix. Works well on previous iPhone and iPad versions.

B
Black A.D.&.E.(.
SKY RC CG Gauge

Awesome product, easy to use! I should have had one of these a long time ago!

T
T.g.
No wires, great

Great and easy to use. I had been using cheap postal scales and a spread sheet. but treated my self to these. A few years ago I use a rope system hanging from the sealing of my garage. Went to ge my wife to show her and the rope broke. Did a lot of damage to my Eurosport. I feel like I am in the big leagues now, Yea sure you got to measure a little. but it sure is easier.

T
Thad A.
Learning

I like it but wish I did not have to measure thre center gravity

R
R.B.
Skyrc Cg system

Very easy to use. I really like the graphical interface. You can name and store 6 models. The naming function does not work with iOS maybe Android?

T
Thad A.
They are neat but did not realize I had to do measuring

I like it but the measuring part is a pain because it will say my cg is totally different than factory. Sure it’s my own human error

M
Maciek K.
Works well

It works. It is well made. The only downside is that you cannot name models. Everything is named Model 1, Model 2, ..., Model 15. You cannot rename Model 1 to PT-17 for example. I would recommend.

W
Wayne M.
SkyRc C.G. System

Seems well made and easy to use with their app. Best thing is no wires connected to the scales!
