Whether for a real full-scale airplane or model aircraft, the center of gravity is the paramount one among all the parameters. The center of gravity in an incorrect position will result in a lousy control experience and even catastrophic results.

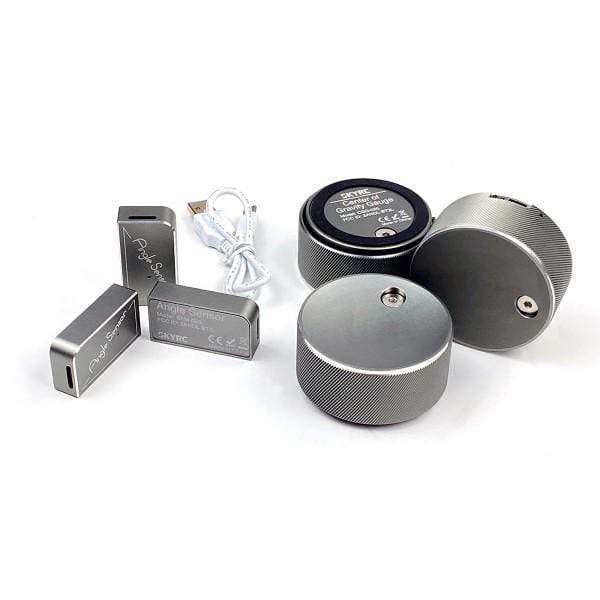

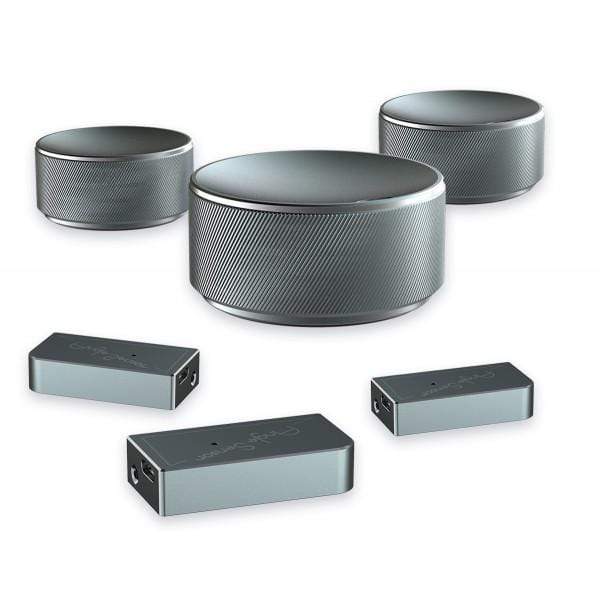

The SkyRC CG Gauge, which professionally measures the weight, the center of gravity for fixed-wing aircrafts with a maximum load of 20kg, comes as a solution to RC pilots!
The unit consists of three weighing modules, which are wirelessly controlled via Bluetooth. The maximum load for a single module is 20kg. With the RC Gears app, pilots can get started to measure the real-time measuring data after unboxing.
Surface angle adjustment for a model aircraft is the top priority, including the maximum value of the rudder, mixing control surface value of relative angle, and differential angle value of the aileron.
Mechanical measuring is the typical method to get the testing data but with low efficiency and significant deviation. In this way, the relative angle's value cannot be measured. SkyRC Angle Gauge comes as a solution.
The unit consists of three sensing modules, which are wirelessly controlled via Bluetooth. With the RC Gears app, pilots can get started to measure the real-time measuring data after unboxing.
Dimension: D66*33mm
Weight: ā160g
Working Voltage: 3.4-4.2V
Working Current: ļ¼15mA
Interface: Type C
Input Voltage: 5V
Input Current: 200-300mA
Low-voltage Protection: ļ¼3.4V (Flashes Red)
Load: max. 20kg/module
Accuracy: Ā±3g (Measuring)
Accuracy: 1g/0.01oz (Display)
Working Temperature: 0ā-50ā
Working Humidity: 5%-90% (No Condensation)
Storage Temperature: -10ā-50ā
Storage Humidity: 1%-75% (No Condensation)
Working Voltage: 3.4-4.2V
Working Current: ļ¼10mA
Interface: Type C
Input Voltage: 5V
Input Current: 200-300mA
Low-voltage Protection: ļ¼3.4V (Flashes Red)
Measuring Accuracy: Ā±0.1Ā°
Throw Angle: Ā±0.1mm
Working Temperature: 0ā-50ā
Working Humidity: 5%-90% (No Condensation)
Storage Temperature: -10ā-50ā
Storage Humidity: 1%-75% (No Condensation)Ā
| Vendor: | SkyRC |
| SKU: | SK-500039-01 |
| Barcode: | 6930460006998 |
| Availability: | Out Of Stock |
| Product Type: | Hand Tools |
| Weight: | 2.0 lb |
App downloaded and worked perfectly and everything connected and worked great! Just used the angel sensors last night. They allow you to set the angle within a tenth of a degree. Is it that important you ask? I don't think it is but it sure is nice knowing it's perfect. Great product!
Now that I know how to use these, they are fantastic. Measures very accurate weight, control throws and CG. These are going to be very helpful with all my future (and present) projects. Instructions didn't really make sense at first. Airplane use is under CG fyi.
Excellent
These work absolutely amazing, not only do the angle meters work great. But they also have the throw measurements in in or mm! Only downfall was one of my scales was reading backwards out of the box, I recalibrate them with a 2000g weight and they were fine after.
Cg and angle guage works great! Has more features than I expected, very happy
The scales and CG meter worked perfectly, Have not tried the angle meter yet. Very happy with the product and quick service from Helli Direct
Precise CG and angle meter in a well CNC package. Iām impressed.
Best RC tool that I have purchased in a long time. I am glad that I purchased the CG meter along with the angle gauge.
