Spektrum SRXL2 DSMX Remote Serial Receiver With Telemetry
Features
- SRXL2 Technology
- Low Noise Amplifier - Helps Reduce Interference and Produce Extended Control Link Range
- Small, Lightweight and Perfect for Heli, Multi-Rotor and FPV Enthusiasts
- Wide Voltage Input Range (3.3v -8.4v)
- Full Range Telemetry
- Dual Diversity Antennas
- Bind Button for Easy Binding - No Plug Required
Overview

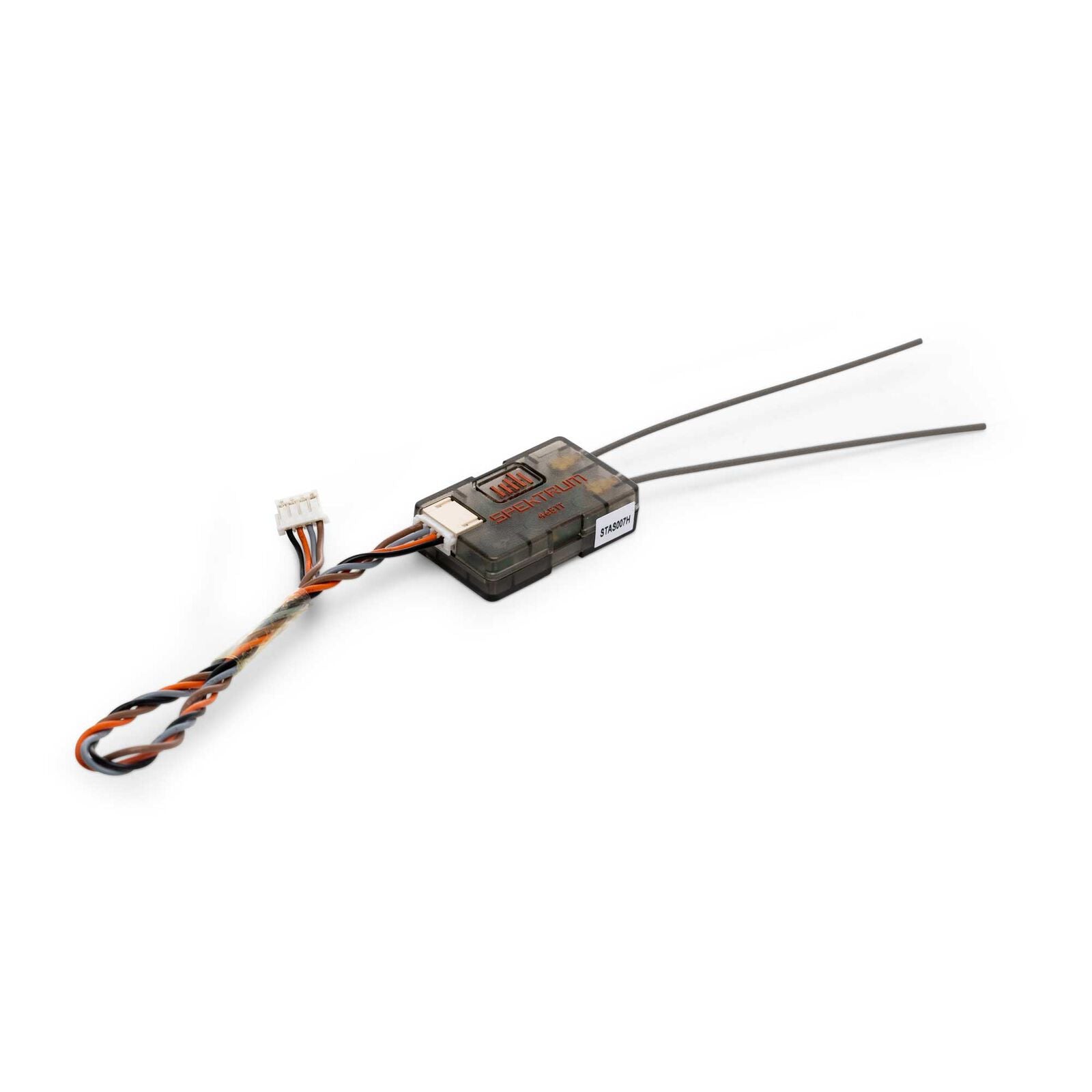

The SPM4651T DSMX SRXL2 Serial Micro Receiver takes the original SPM4649T receiver and adds more value, functionality, longer control and telemetry link range. The SPM4651T uses our feature-rich SRXL2 protocol to give pilots a blazing fast serial data connection with up to 20 channels. SRXL2 is a powerful and open source communication protocol developed by Spektrum. It greatly improves bi-directional communication between the radio system and flight controller for added telemetry functionality and flight control configuration right from the pilots Spektrum Transmitter*, all over one signal wire.
The SPM4651T is small, lightweight, and ideal for Heli, Multi-Rotor and FPV Enthusiasts. It also features a simple bind button so pilots no longer need to carry a separate receiver or bind plug to bind. Dual antennas provide receiver diversity for solid signal and the long coax antennas help to provide maximum signal strength in all orientations for challenging installations where carbon fiber, metal and batteries shield the antenna. And with Spektrum DSMX 2.4GHz RF protocol the Spektrum SRXL2 Serial Telemetry Receiver provides remarkable range and interference free performance.
Specs
| Antenna Length: | 3.9" (100mm) |
| Band: | 2.4GHz |
| Bind Method: | Bind Button |
| Channels: | 20 |
| Failsafe: | No |
| Governor: | No |
| Height: | 0.31" (7.8mm) |
| Input Voltage: | 4.0 - 8.4V |
| Length: | 1.1" (28.8mm),Length of antenna 3.9" (100mm) |
| Modulation: | DSMX/DSM2 |
| Number of Receivers: | One |
| Range: | Full |
| Rev Limiter: | No |
| Telemetry: | Integrated |
| Type: | Serial Telemetry Receiver |
| Water-Resistant: | No |
| Weight: | 0.14oz (4g) |
| Width: | 0.71" (18mm) |
Product Spare Parts
Customer Reviews
Super compact, perfect match for my IX14
I bought two of these. The first worked great connected to a Spirit GT on my Tron. I just installed the last one on on my Kraken, connected to another Spirit GT, and it is bad. It binds up, but doesn't respond to the Tx. Replaced it with an old DSMX sat and everything works. Things happen. This is the first time that I've ever had anything bad from Spektrum, so it is what it is. Hopefully I can get it replaced.
Great product good price

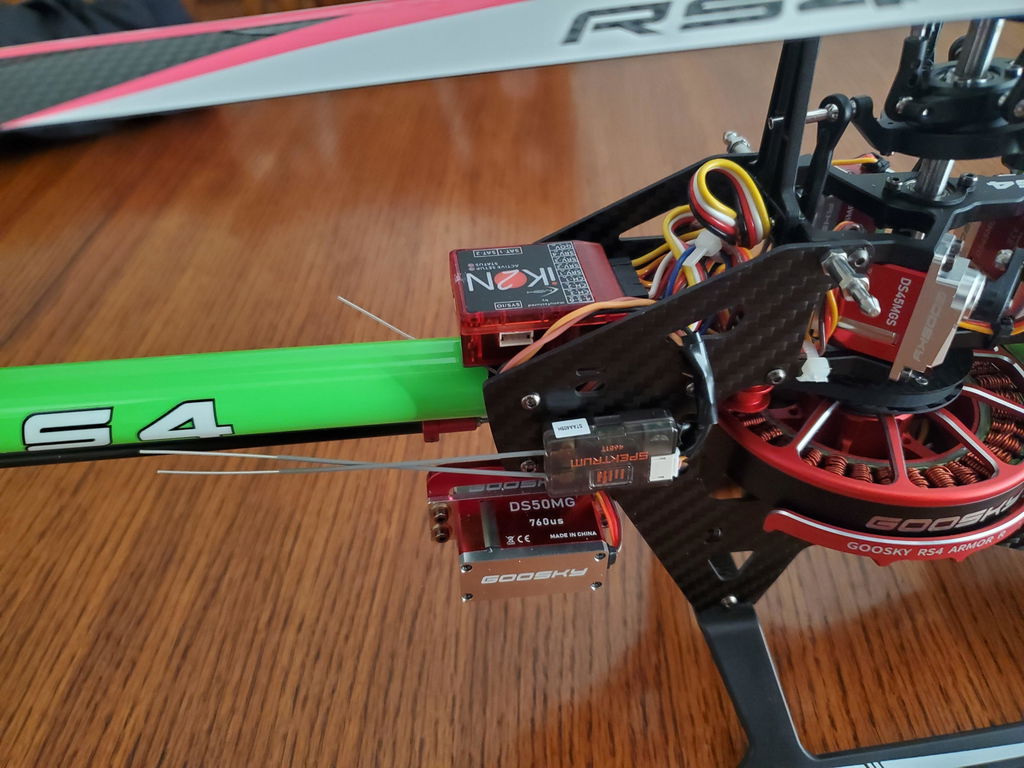

Works well with ikon2 FBL and since use radio master it binds with no issue
Very good quality receivers
Works perfect would by again thank you HD
Can't go wrong with a spektrum receiver
Perfect delivery and product
I can't say much about it because I haven't had the chance to use it yet. However, it does look good.
Works very well on my helicopters
