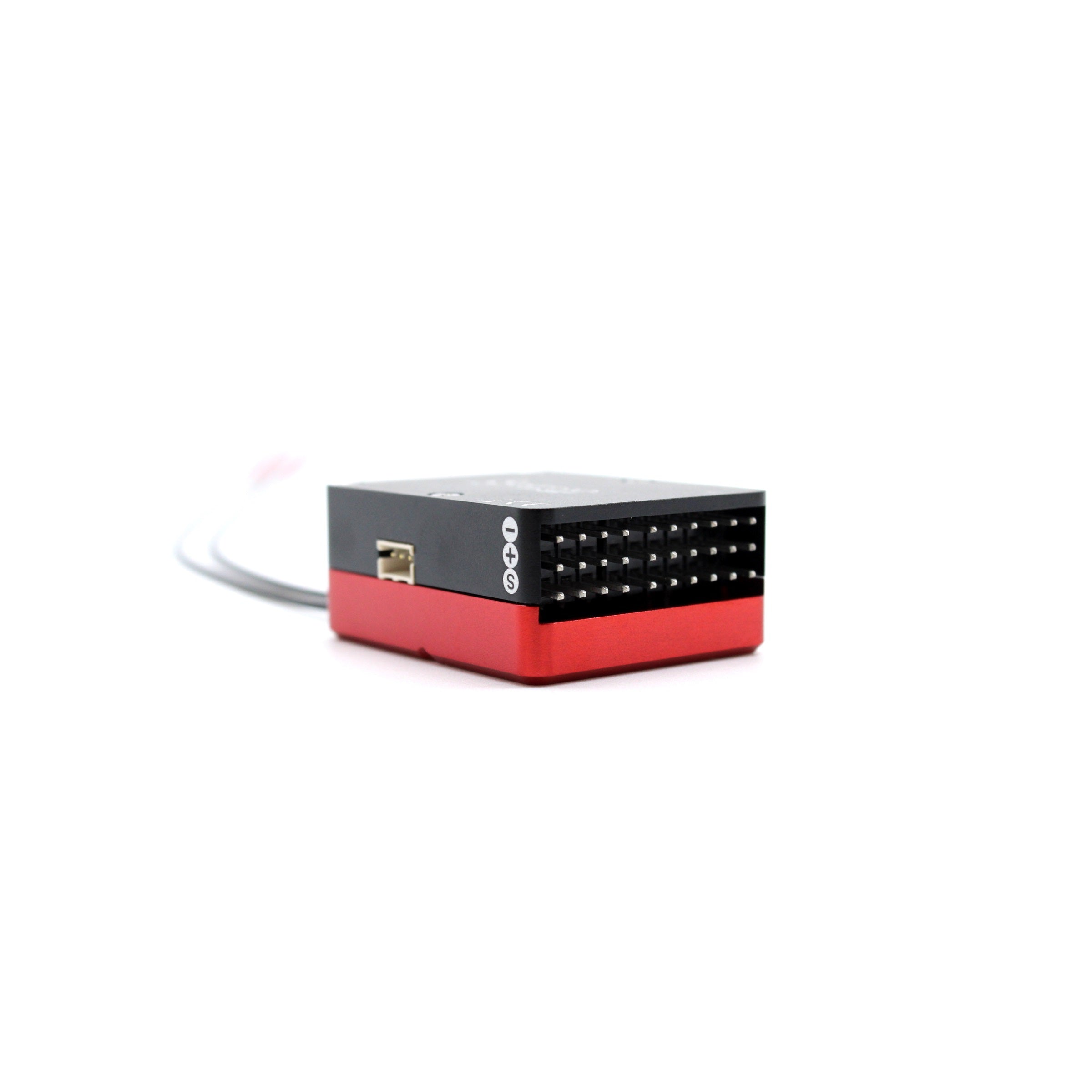

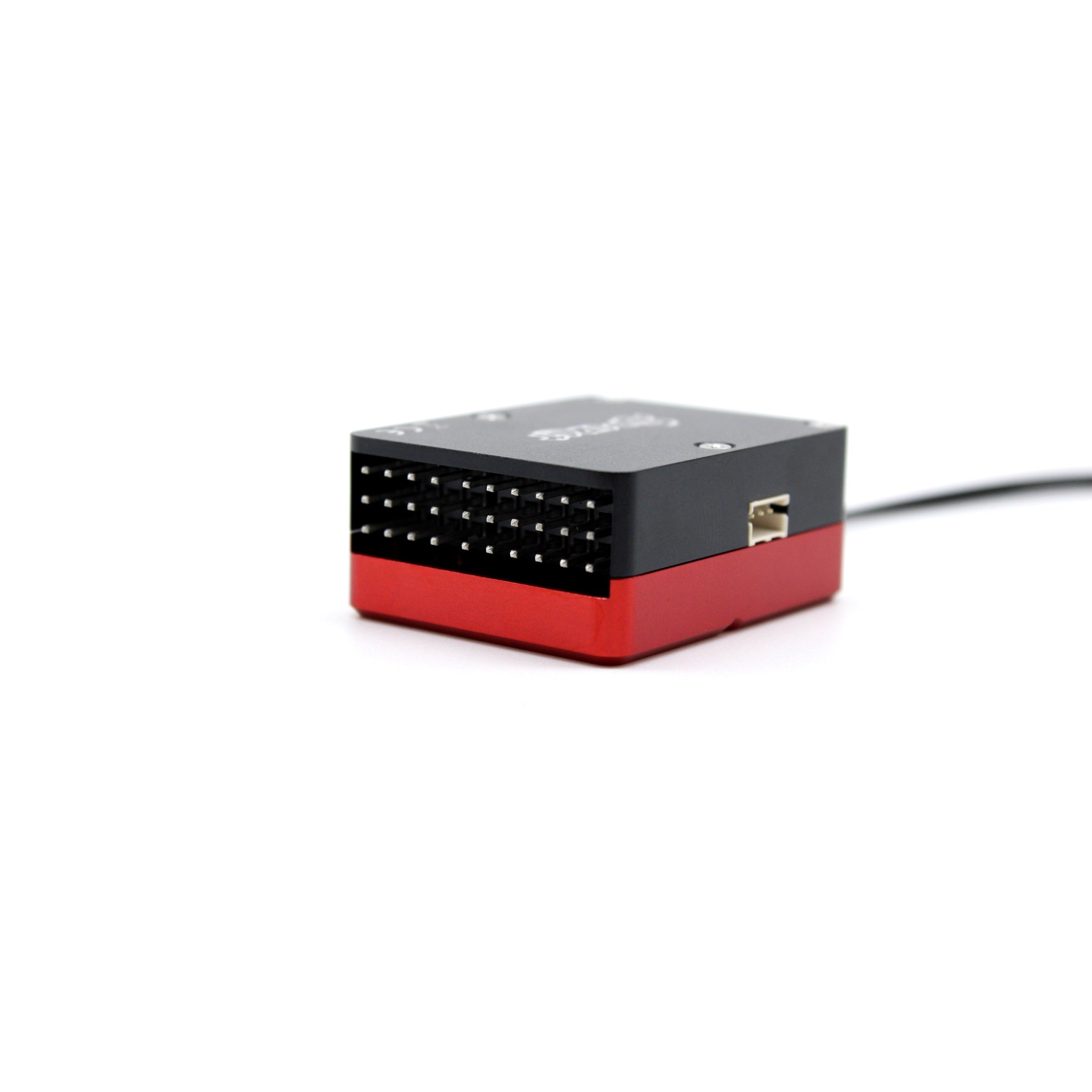

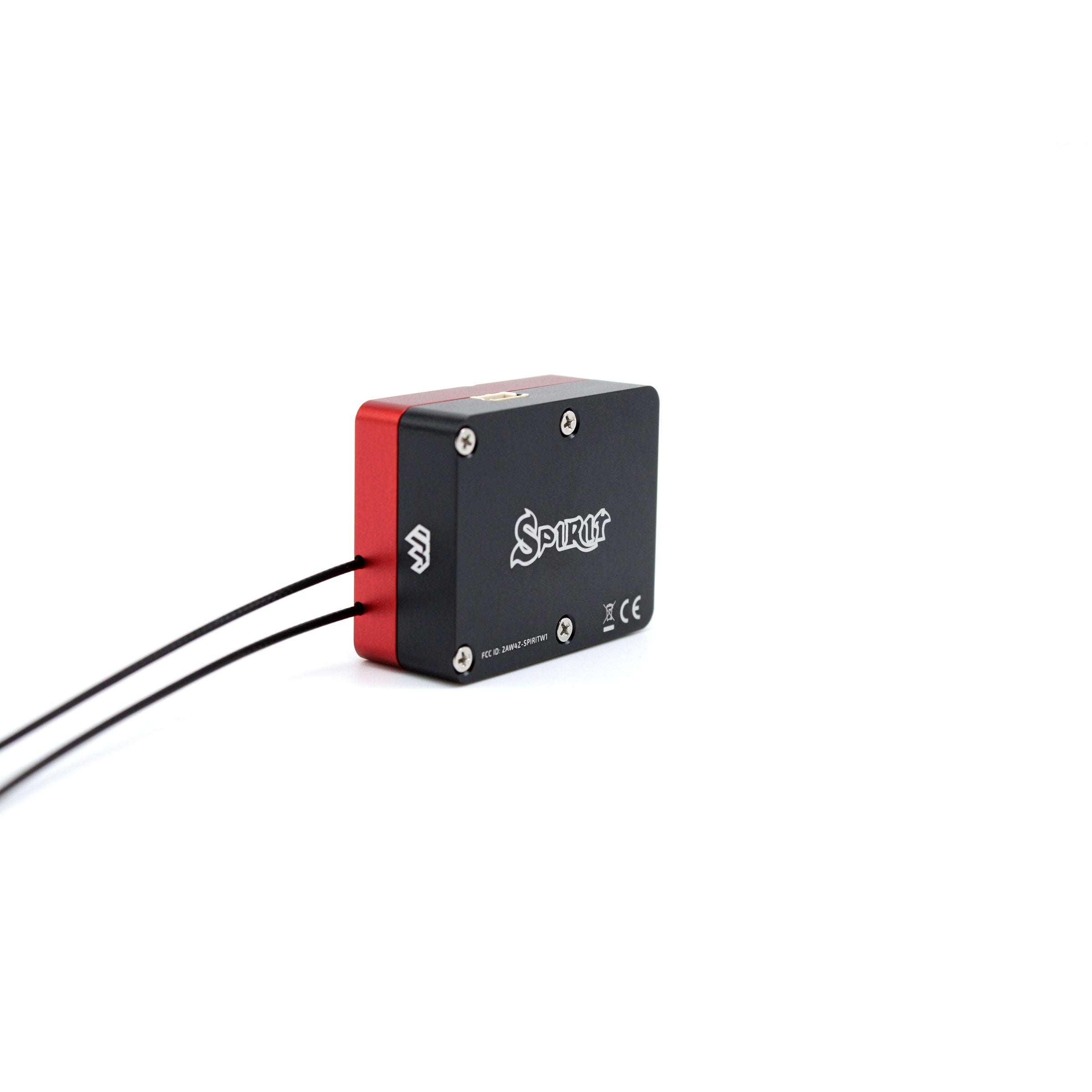

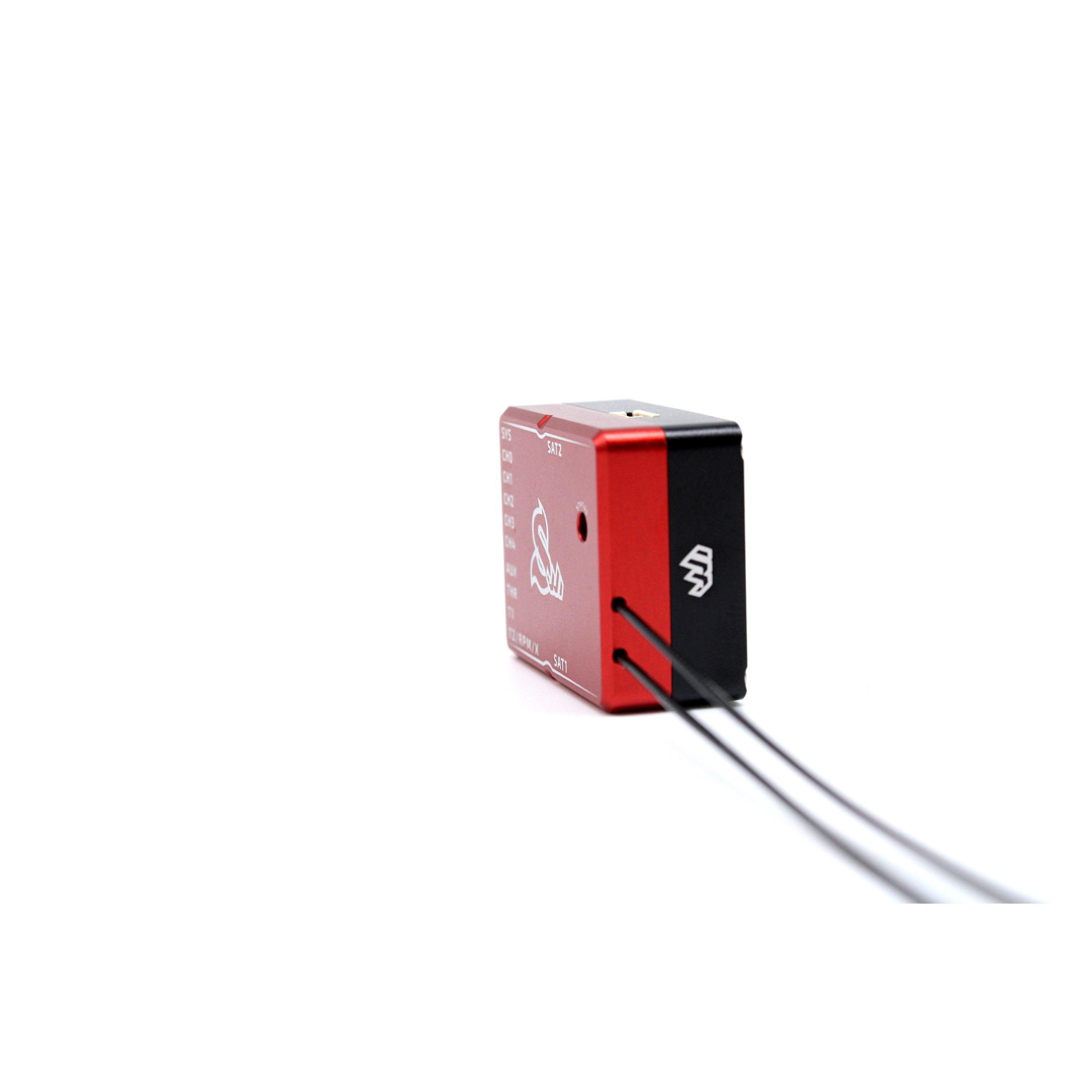

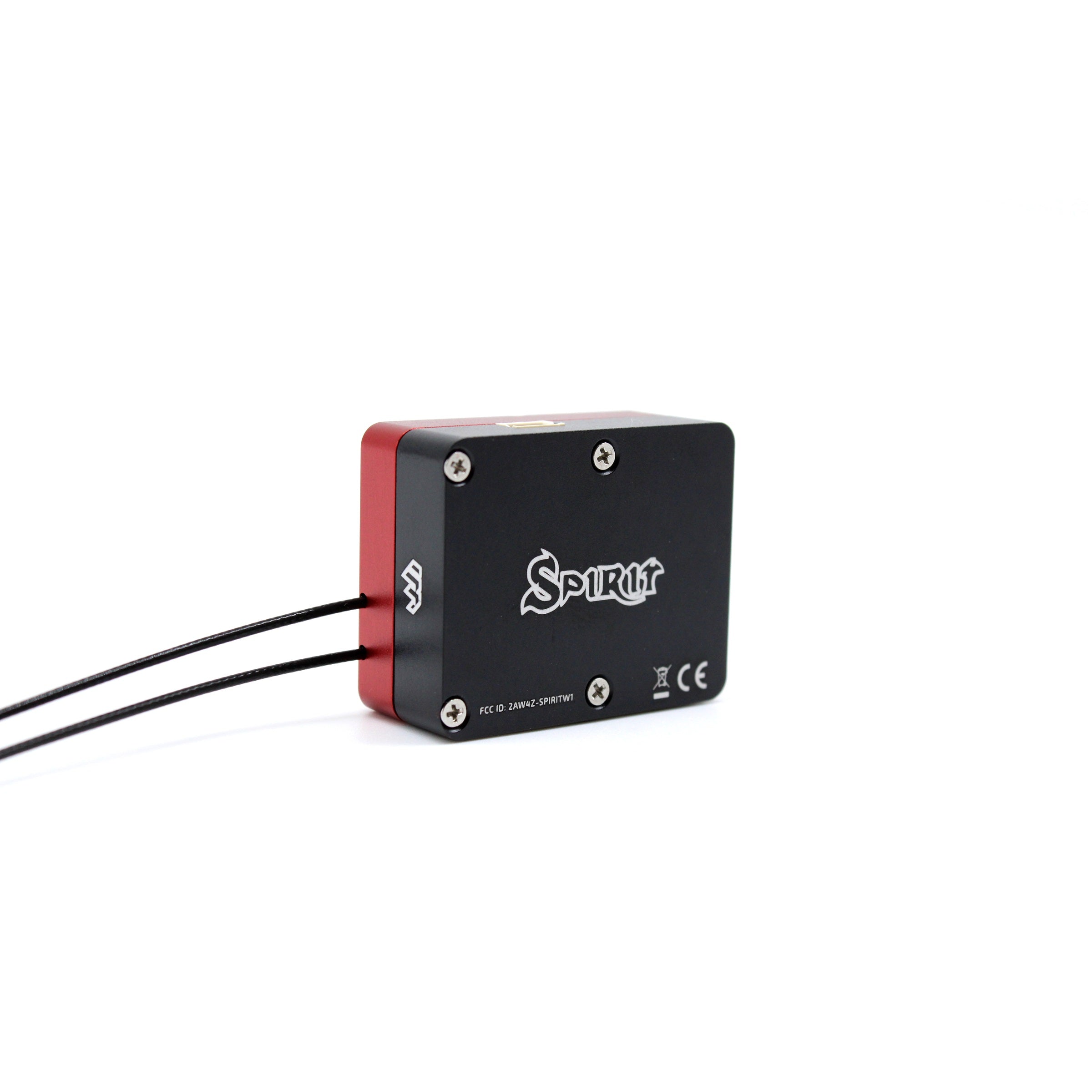

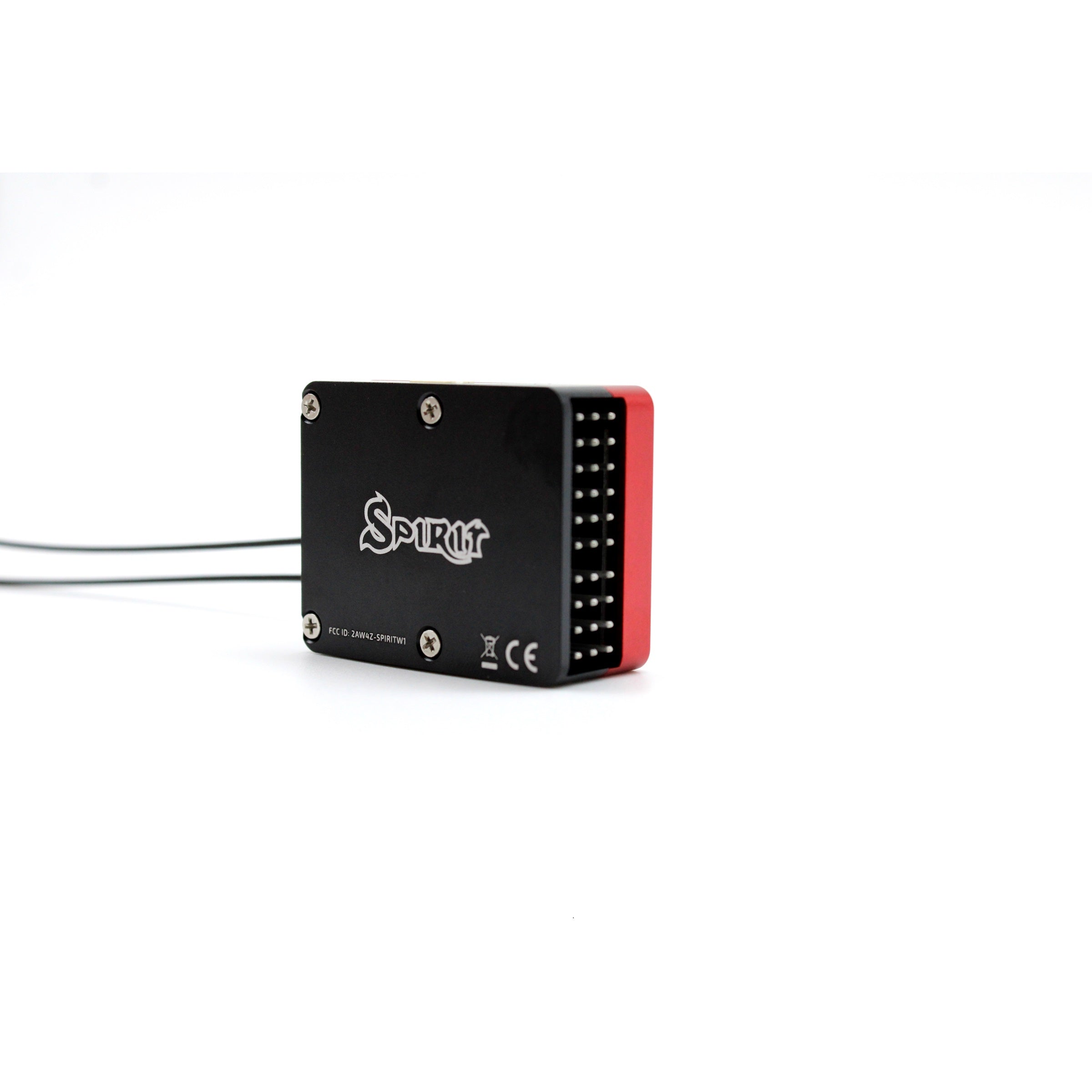

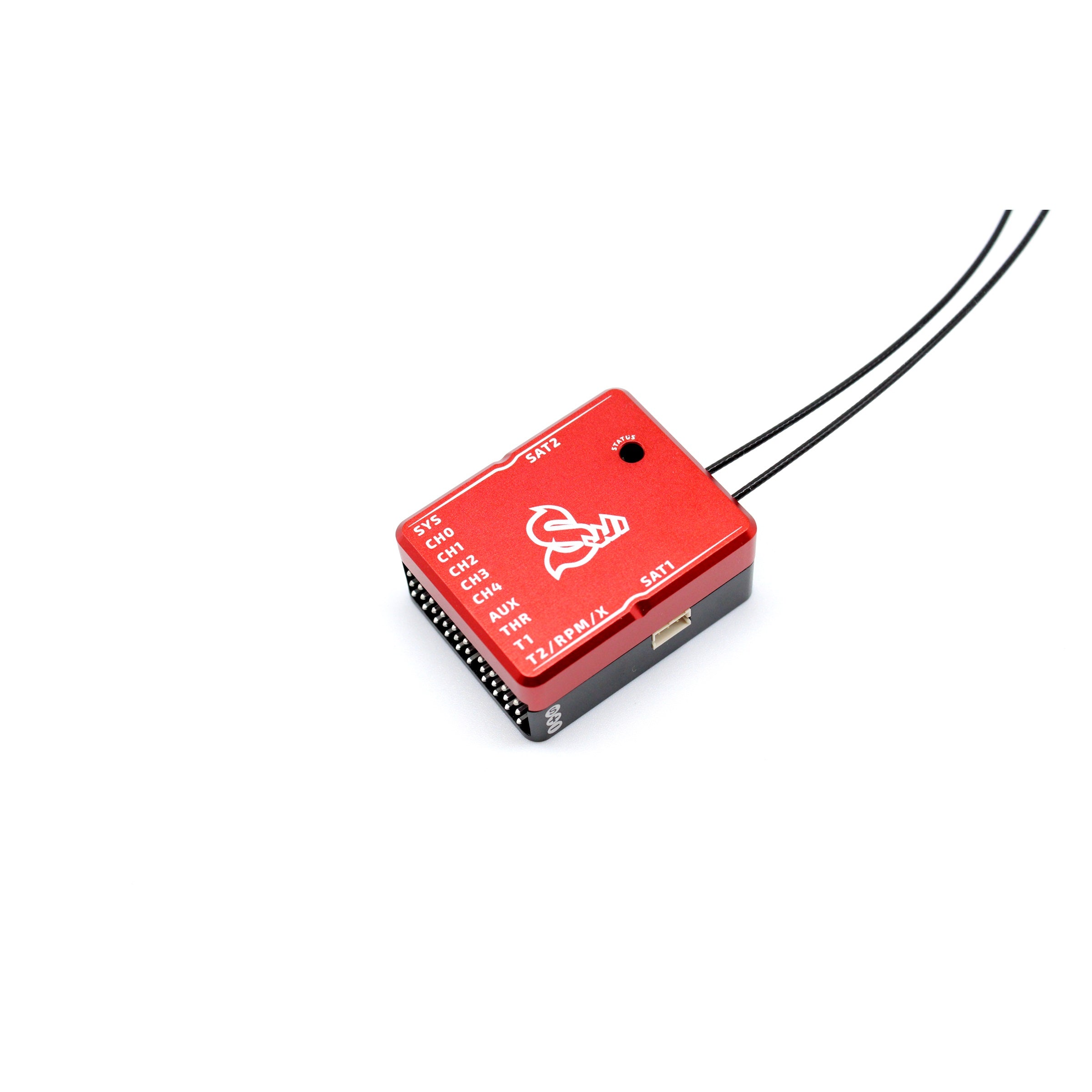

Spirit W1 Stabilization System with Integrated Wave Receiver

DESCRIPTION

Spirit W1 is stabilisation system for R/C aircrafts such as helicopters and planes featuring control
unit and receiver in one extraordinary packageǃ
It combines the best available technologies from both worlds to offer cutting edge experience.
In other words, Spirit W1 consists from Spirit GT hardware and Spirit Wave receiver.
Spirit W1 can be easily bound with all Spirit Wave radios. It can be used also with all third party
external receivers known to work with Spirit units.
This will allow easy transition from previous systems, while Wave radio can be linked anytime later.

GENERAL DESCRIPTION

Control part
• For Helicopters and Planes
• Spirit Governor
• Top-notch 20-bit IMU Sensor
• Performance-line ARM F7 processor
• Precise pressure sensor for Altitude measurement
• Dedicated Memory Chip for detailed logging

Receiver part
• Spirit Wave 2.4Ghz full-range telemetry receiver
• Full featured 30+ channels available
• Blazing fast 333 Hz transmission
• High interference immunity
• BEC Voltage measurement

HARDWARE DETAILS
• Very rigid, CNC milled, anodized and sandblasted enclosure
• Color: Red and Black, matt
• Material: High quality AL6061-T6
• Dimension: 36.8x29.6x15.8mm, weight: 22g
• Power supply: 3 - 15V @ 55mA
• Operating temperature: -10°C to 50°C
• Latest generation, Ultra Fast
• 32bit ARM processor: 468 DMIPS
• MEMS sensor with 20bit IMU (rotation to 2000°/s !)
• Gold plated PCB with Pb-Free soldering

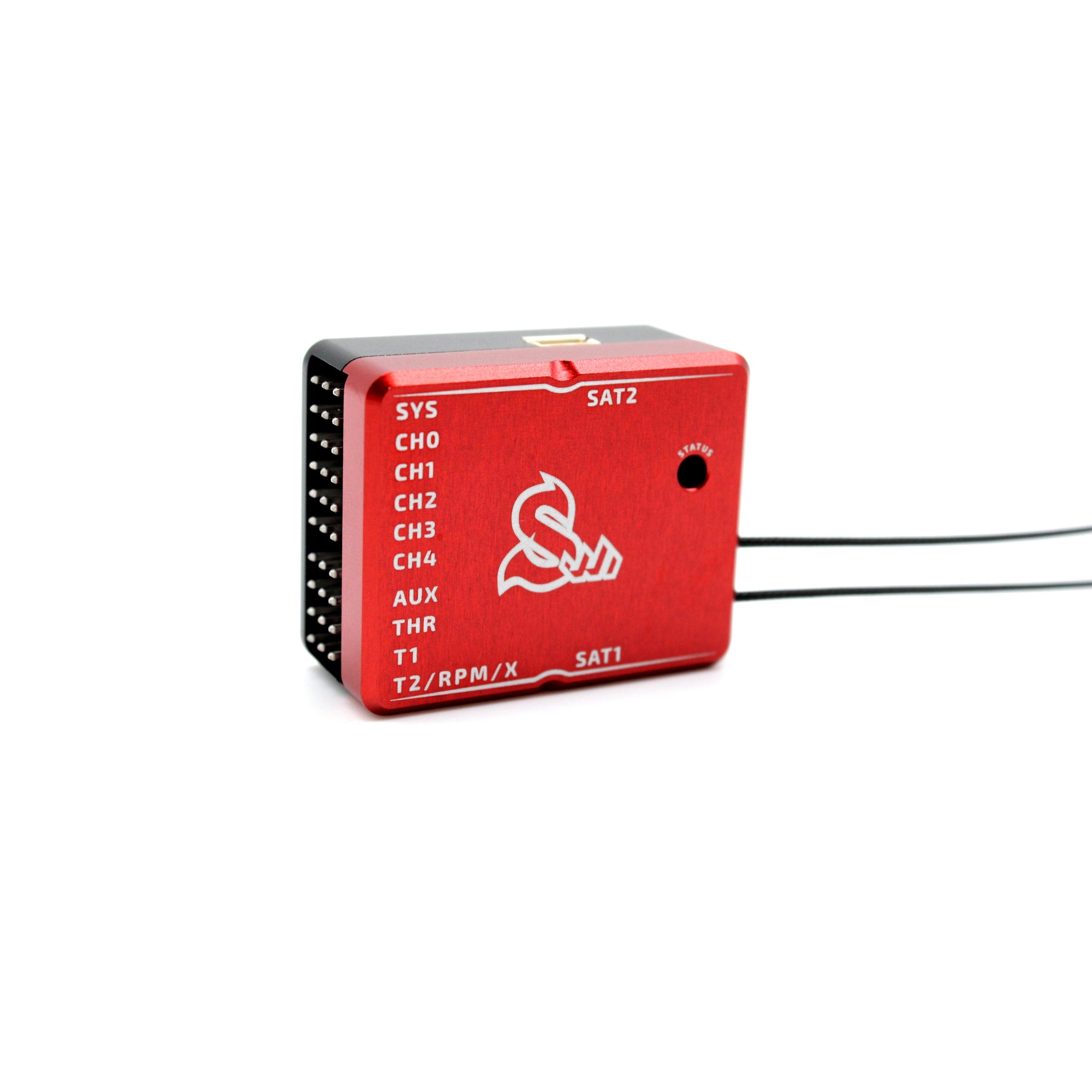

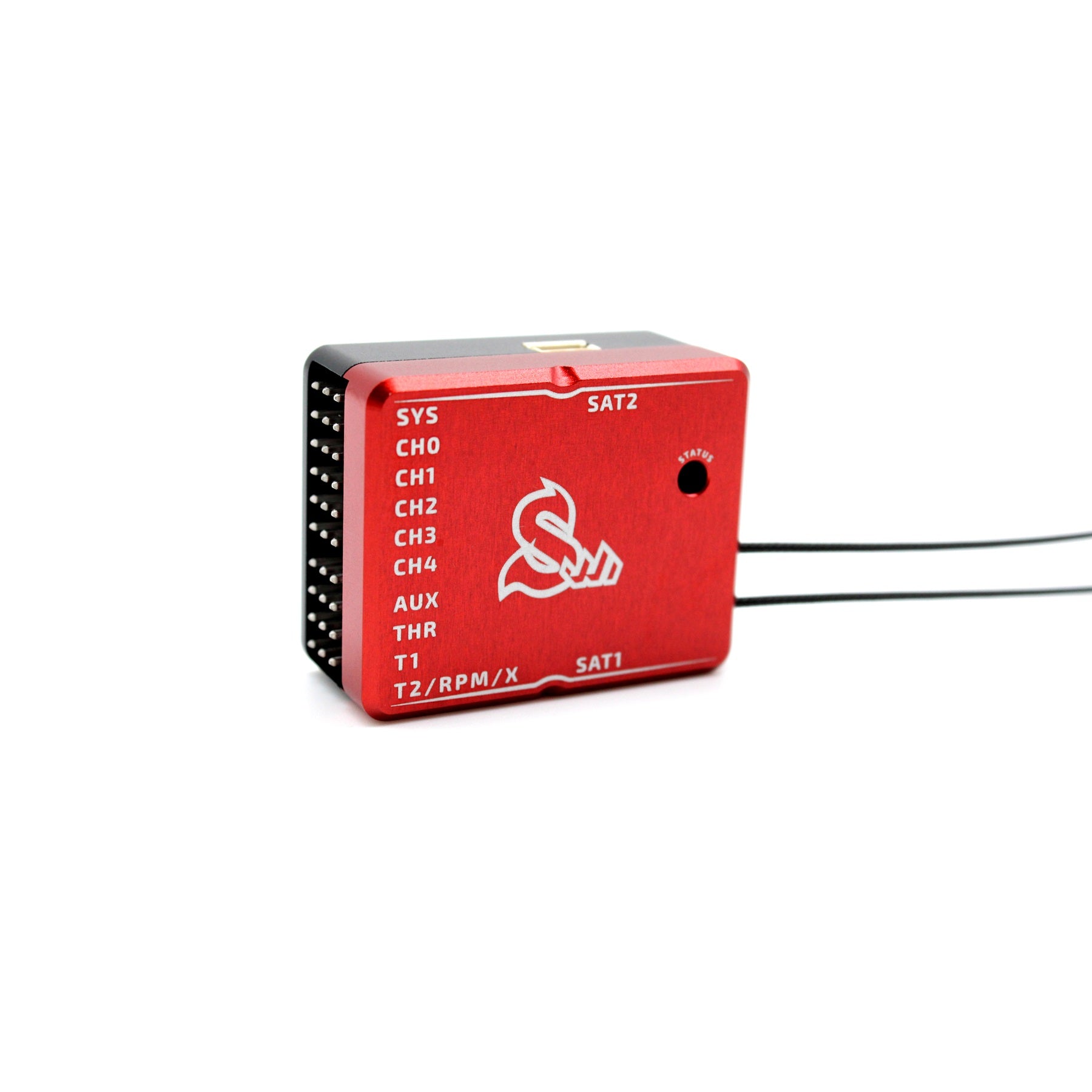

• Laser Engraved labels for perfect visibility.
• 2x independent telemetry ports for Spirit Wave sensors
• 3x connector for power supply, 5x for servos
• All-pin protection
• Redundant internal power chain for maximum safety
• Excessive tolerance for brown-outs
• Embedded Spirit RX 2.4 Ghz Telemetry Receiver
• Precise Pressure Sensor for Altitude Measurement
• RealTime Logging Feature for detailed flight recording

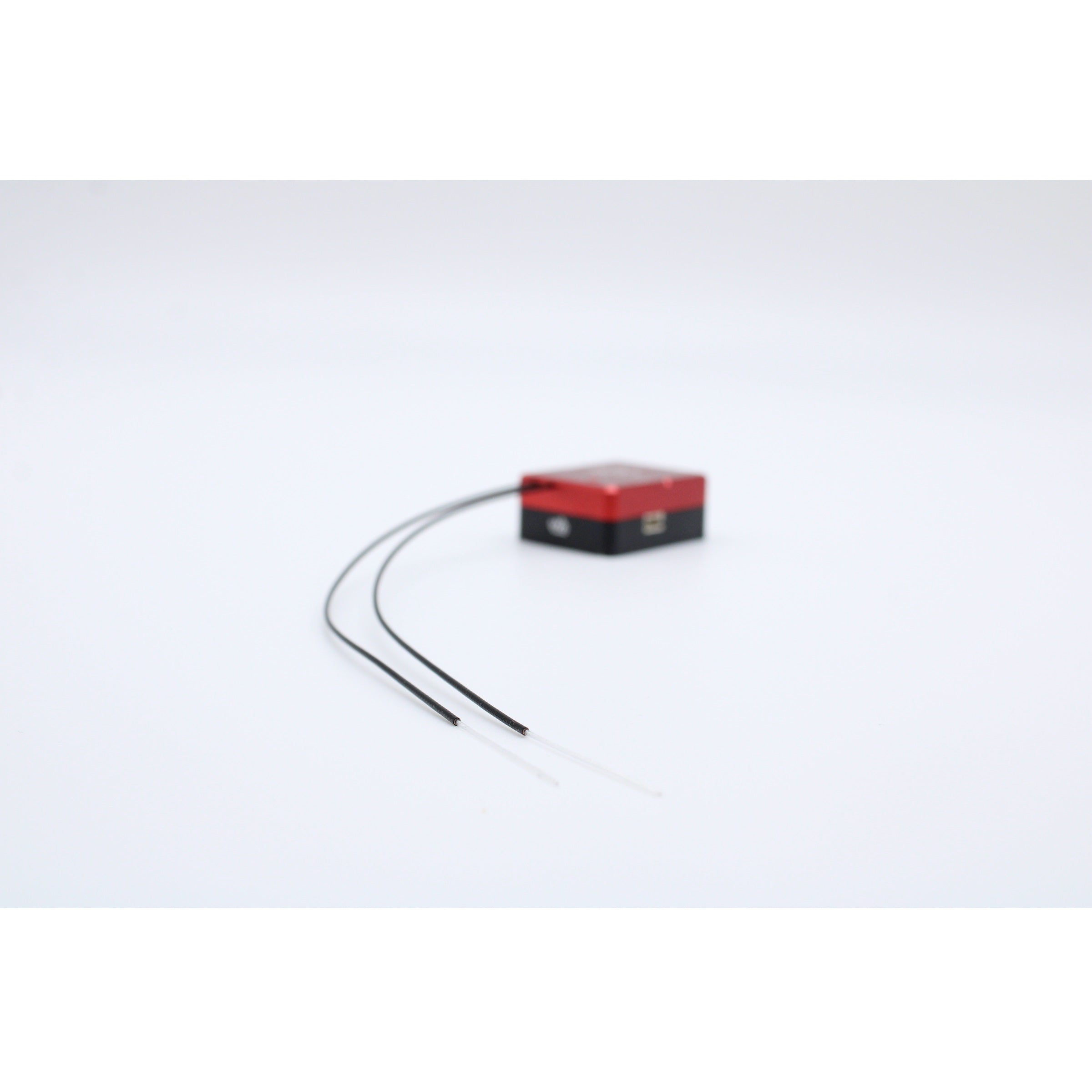

• 2x 20cm Full-range antennas
• Max. output power: 30 dBm
• Receiver sensitivity: -106 dBm
• Works with all third-party receivers – Integrated Wave receiver can be turned off
• Replaceable and Detachable Antennas

FEATURE LIST

• Super-smooth flight control
• Paddle simulation with inexpressible feeling
• Classic Flybar mechanics support
• Extreme Vibration Immunity for all helicopter types
• Spectrum Analysis for model diagnostics
• Flight log with recorded events
• Easy configuration with Setup Wizard
• Smartphone or tablet support via Bluetooth and WiFi (Modules are sold separately)
• Spirit RX Telemetry
• Support for ESC Telemetry - HobbyWing, Kontronik,
• Castle, YGE, Scorpion, OMP Hobby, Graupner
• Revolutionary GeoLink support (GPS/GNSS, vario, logger) - Available for Windows, OSX,
Linux, Android, iOS, WP, SailfishOS, FreeBSD, Raspberry Pi and more
• Stabilisation for Scale pilots and beginners
• Reliable, full-featured and highly proven Rescue system
• Automatic Rescue Mode
• Integrated Bank Switching
• Governor for Electric, Nitro and Gasser Helicopters
• BEC Tester with load verification
• Spirit Aero support
• Support for all servo types: 1520/960/760us @ 50 - 700Hz
• Support for CCPM 90/120/135/140°, Mechanical Mixing and 45° Phasing
Warranty
• 2 year warranty for the original purchaser
• 50% discount for damage replacement of the unit

MANUAL

https://manual.spirit-system.com/index.php?title=SpiritW1

Package Content

• Spirit W1
• Bind Plug
• USB Interface (1m)
• 4x 3M VHB Double Sided tape
Package Dimension
• Paper Box: 120 x 120 x 30 mm

Spirit W1 can be easily bound with all Spirit Wave radios. It can be used also with all third party external receivers known to work with Spirit units.

This will allow easy transition from previous systems, while Wave radio can be linked anytime later.

Following pages are covering setup of your Spirit Wave radio and W1 unit to prepare everything for the first flight.

When W1 unit is used with a non-Wave radio you can proceed according standard Spirit manual
