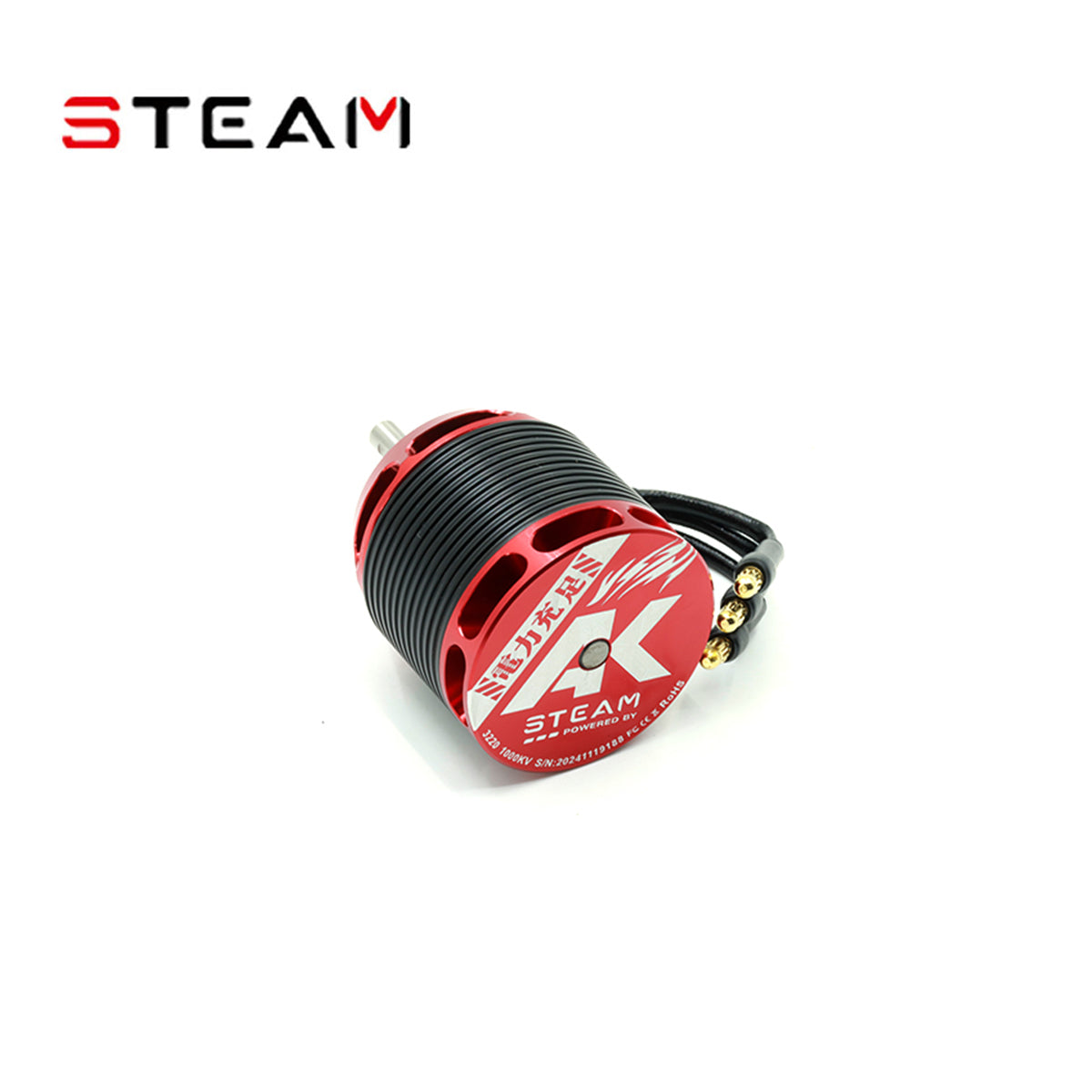

Steam 3220-1000kv Brushless Motor - Red

Specification:

• Motor shaft diameter：5mm
• Motor shaft length：21mm
• Stator Diameter：32mm
• Stator Thickness：20mn
• No. of Stator Arms：8mm
• Number of slots/poles: 10N/10P
• Motor Wind: 5+3 Turn Delta
• Motor wire diameter：0.86mm
• Motor Kv: 1000Kv

• Outside Diameter: 40.8 mm
• Shaft Diameter: 5 mm
• Body Length: 54.5 mm
• Overall Shaft Length: 90 mm
• Weight: 172 grams
• Max Lipo Cell: 6s
• Max Continuous Current: 105 Amp
• Max Peak Current: 130 Amps (5 seconds)
• Max Continuous Power: 2260W

• Max Peak Power: 2920W (5 seconds)
• Motor Timing: 5deg~12deg
• Drive Frequency: 8kHz~32khz
