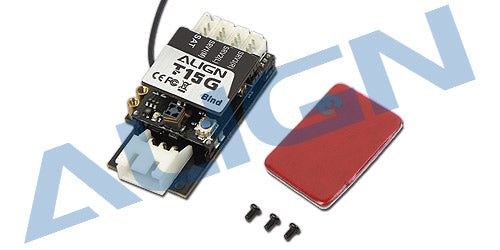

T15G Flybarless System (S-FHSS)

Align
|
HEG15011
You will earn 71.99 points for buying this product
Price Match Guarantee
$71.99 $0.00( / )
●Suitable for T15. ●Integrate 6-aix gyro, receiver, ESC and a Bluetooth controlling system that allows set up and update of flight parameter settings via APP Interface System. ●6-axis Gyro:3-axis gyroscope + 3-axis accelerometer using a superior ARM Cortex-M4 32-bits processor. 3D feeling is superior while auto-level ability is also agile...

●Suitable for T15.
●Integrate 6-aix gyro, receiver, ESC and a Bluetooth controlling system that allows set up and update of flight parameter settings via APP Interface System.
●6-axis Gyro:3-axis gyroscope + 3-axis accelerometer using a superior ARM Cortex-M4 32-bits processor. 3D feeling is superior while auto-level ability is also agile and stable.
●Attitude Auto-level Mode:While there is no stick input for helicopter, the heli will auto-level and still keep at horizontal position, which is suitable for beginners.
●Rescue Mode:While wrong stick input is given or heli is in trouble, or you are in panic, activate the rescue mode by flipping a switch on the radio to keep helis at a level position.
●3D Flying:Brand new DFCS(Direct Flight Control System)Contorller allows to control real time flight. Strong Cortex-M4 Processor allows T-REX 150 to fly just like big scale helicopters.
●Built-in Receiver:Futaba S-FHSS 2.4GHz System.
●Plug-in Receiver(Required):Compatible with Spektrum DSM2/DSMX, JR DSM2/DMSS satellite

Specification:

●Operating voltage range: 2S Li-Po
●Operating current consumption: <100mA @ 5V
●Rotational detection rate: 2000°/sec
●Rudder yaw detection rate: 2000°/sec
●Sensor resolution:16BIT
●Operating temperature:-20℃ ~ 65℃
●Operating humidity:0% ~ 95%
●Swashplate Support : MODE H-1
●Receiver Support : ALIGN / Futaba S-FHSS、DSM2 / DSMX / DMSS
●Transmit Distance: In open space without interference <150M

Package included:

●150 Main Control Board x 1
●T15 Receiver Board x 1
●T15 Brushless ESC x 1
●Screw(M1.4x2.5mm) x 3
●150 GRS Double Sided Tape A x 1





Type:

Helicopter Part

Vendor:

Align

SKU:

HEG15011

Weight:

0.15 lb
