T15GA Flybarless System (A.BUS)

●Suitable for T15.
●Integrate 6-aix gyro, receiver, ESC and a Bluetooth controlling system that allows set up and update of flight parameter settings via APP Interface System.
●6-axis Gyro：3-axis gyroscope + 3-axis accelerometer using a superior ARM Cortex-M4 32-bits processor. 3D feeling is superior while auto-level ability is also agile and stable.
●Attitude Auto-level Mode：While there is no stick input for helicopter, the heli will auto-level and still keep at horizontal position, which is suitable for beginners.
●Rescue Mode：While wrong stick input is given or heli is in trouble, or you are in panic, activate the rescue mode by flipping a switch on the radio to keep helis at a level position.
●3D Flying：Brand new DFCS(Direct Flight Control System)Contorller allows to control real time flight. Strong Cortex-M4 Processor allows T15 to fly just like big scale helicopters.
●Built-in Receiver：ALIGN A.BUS.
●Plug-in Receiver(Required)：Compatible with Spektrum DSM2/DSMX, JR DSM2/DMSS satellite

Specification:

●Operating voltage range：5V-8.4V
●Operating current consumption： <100mA @ 5V
●Rotational detection rate： 2000°/sec
●Rudder yaw detection rate： 2000°/sec
●Sensor resolution：16BIT
●Operating temperature：-20℃ ~ 65℃
●Operating humidity：0% ~ 95%
●Swashplate Support : MODE H-1
●Receiver Support : ALIGN A.BUS / DSM2 / DSMX / DMSS
●Transmit Distance: In open space without interference <150M

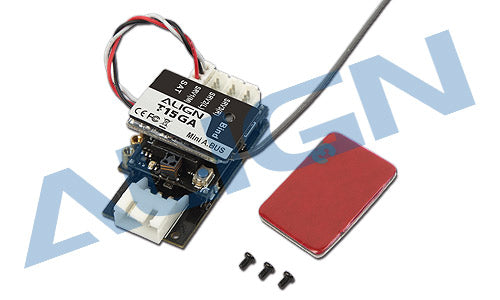

Package included:

●150 Main Control Board x 1
●A.BUS Receiver x 1
●T15 Brushless ESC x 1
●Screw(M1.4x2.5mm) x 3
●150 GRS Double Sided Tape A x 1
