TBS Triumph Pro Micro 5.8GHZ Antenna (U.FL)

|
TBS-TRIUMP-UFL
You will earn 19.95 points for buying this product
Price Match Guarantee
$19.95 $0.00( / )
Continuing the tradition of the TBS Triumph and following the tradition of VideoAerialSystem's "Performance First" mantra, TBS is proud to present the TBS Triumph Pro! We managed to decrease the size of the TBS Triumph design while maintaining range and durability. The circular signal rejection signal consistency was further improved...

Continuing the tradition of the TBS Triumph and following the tradition of VideoAerialSystem's "Performance First" mantra, TBS is proud to present the TBS Triumph Pro! We managed to decrease the size of the TBS Triumph design while maintaining range and durability. The circular signal rejection signal consistency was further improved over the traditional TBS Triumph, making this antenna better in every way!

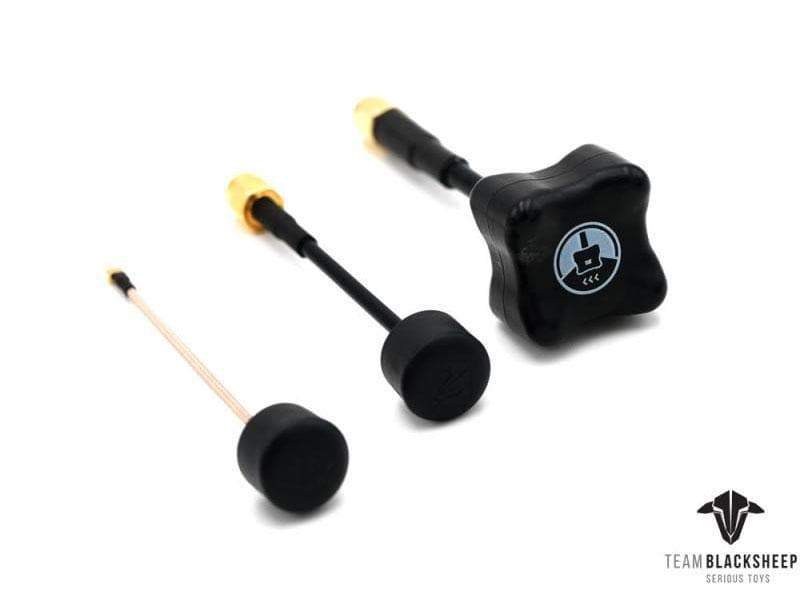

The microstrip antenna design together with a rigid and ultrasonic-welded enclosure allow mounting in exposed places, where signal propagates better. The antenna comes in 4 connector flavors: u.FL, MMCX, MMCX 90º and SMA.

Features:

  • Manufactured and tested to highest standards
  • Best in class range and signal quality
  • Incredibly small and low weight
  • Ultrasonic welded and foam infused cover for ultimate crash-protection
  • Double-jacket semi-rigid cable for heavy impact resistance

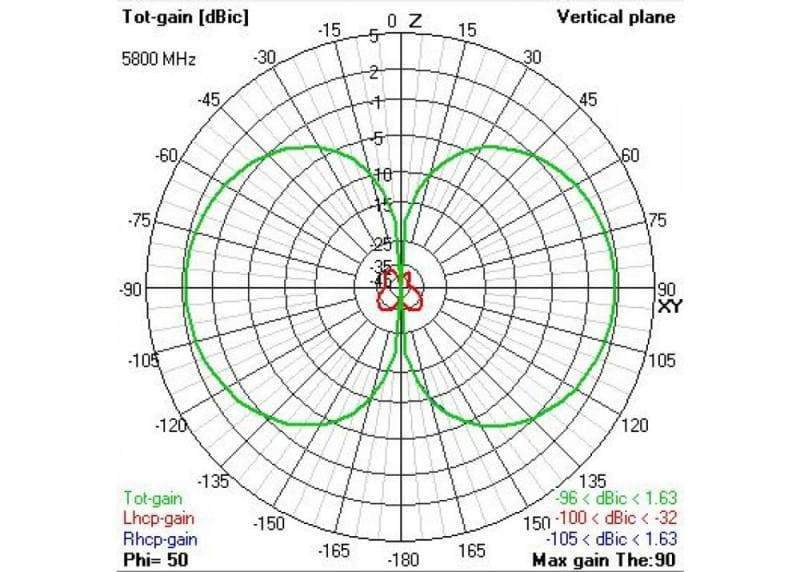

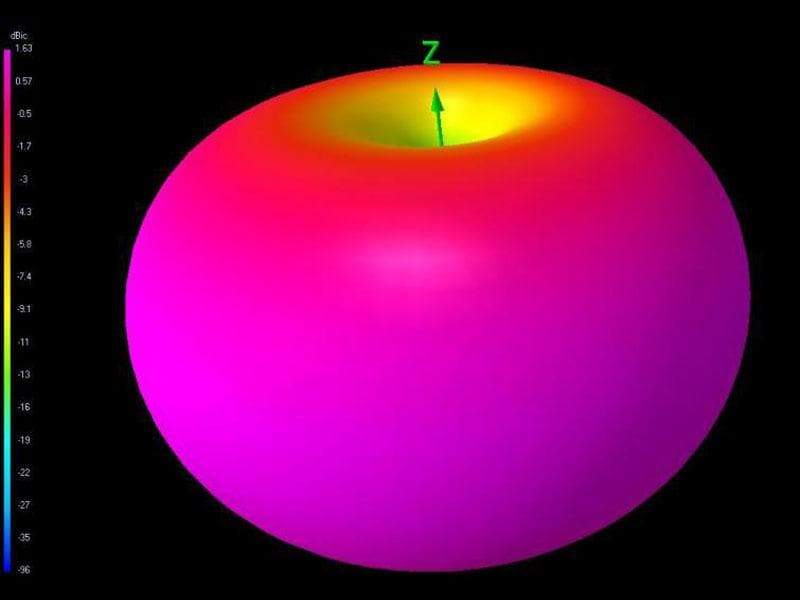

Technical specifications:

  • Frequency range: 5500-6000MHz
  • Gain: 1.26dbic
  • Axial Ratio:   0.74
  • Cable: RG402 (heavy duty)
  • Weight: 11.5g
  • Height: 85mm, 3.3 in
  • Connector: u.FL
  • Dimensions (PDF)

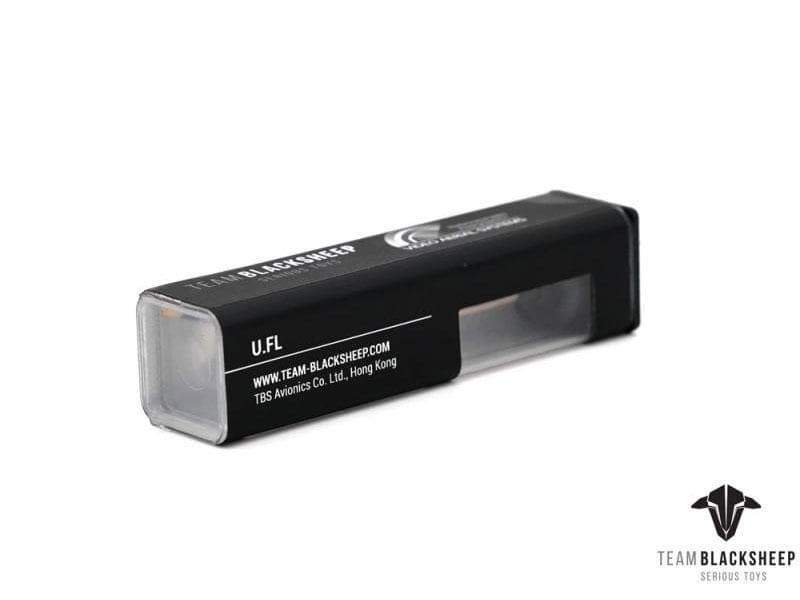

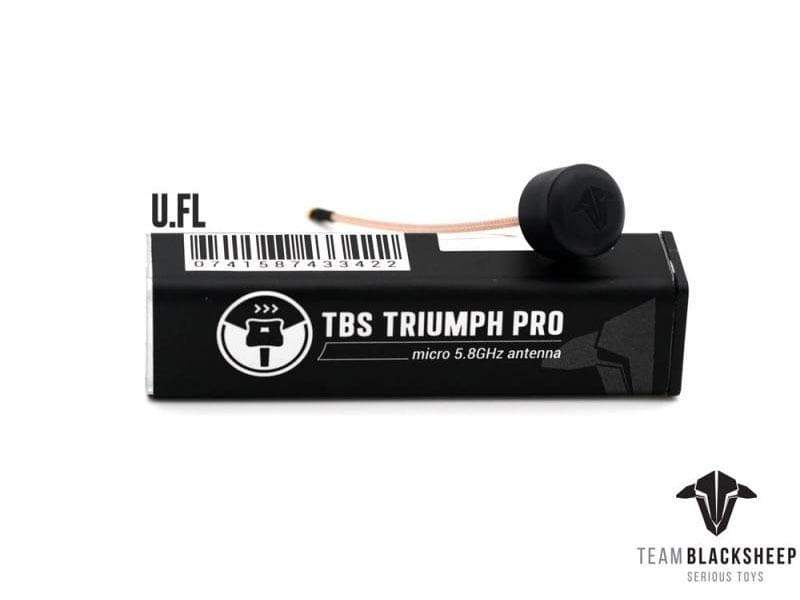

Package contents:

  • 1x TBS Triumph Pro u.FL
Type:

FPV Equipments

Vendor:

Team Black Sheep

SKU:

TBS-TRIUMP-UFL

Weight:

0.1 lb
