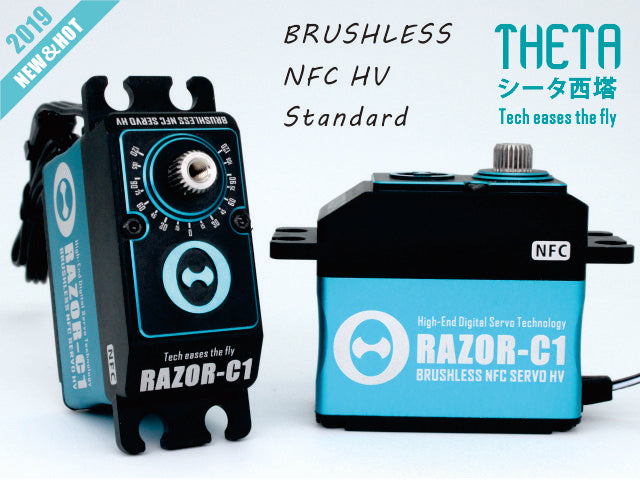

THETA RAZOR-C1 NFC HV Standard Brushless Servo
High voltage, High-Torque, standard size brushless servo
600, 700 and even 800 class helicopters swashplate
airplanes
a great throttle or steering servo on most cars
(SANWA SSR compatible)
40*20*38mm 73g
| Voltage (V) | Current (A) | Speed (s/60°) | Torque (kg*cm) |
5.0 | 2.6 | 0.108 | 23 |
6.0 | 2.6 | 0.084 | 27 |
7.4 | 2.6 | 0.071 | 34 |
8.4 | 2.6 | 0.060 | 36 |
5.0 | 5.0 | 0.102 | 32 |
6.0 | 5.0 | 0.079 | 37 |
7.4 | 5.0 | 0.067 | 44 |
8.4 | 5.0 | 0.056 | 48 |
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
THETA-RAZOR-C1 |
| Weight: |
0.3 lb |
Product Spare Parts
Customer Reviews
First time using Theta servos. Great servos for the raw 580.
I use these in all my 700 builds.
High quality servo that offers a great servo at a great price. I’ve converted all my helis over to Theta Servos
Quite, smoosh, and function as described.
I like the features of this servo that you can configure it through android phones. Specs are better than the expensive servos that I've purchased. Nice and smooth with a lot of torque.
These servos was installed in to my GOBLIN Speed 700.
these servos work great in my soxos
servo's work great on 760
Tried Theta servos in my LOGO 550. I found my “go to servo” for life. I Will only use Theta from now on, my only problem, after purchasing 5 sets of servos, I have only received 2 tiny sticker sheets out of 2k spent. Ridiculous!!
My new "go to" brand for servos.
Excellent performance, very quite and well built.
