THETA RAZOR-C1H/T1H, a high-performance Metal Brushless NFC HV Standard Servo. This servo is engineered to be Ultra Quiet, Super Duty, and Energy Saving, making it an ideal choice for demanding applications.
It features a wide operational frequency range (50-1000Hz) and supports both 1520us (Wide) and 760us (Narrow) neutral pulse widths, making it the perfect choice for high-performance RC models.

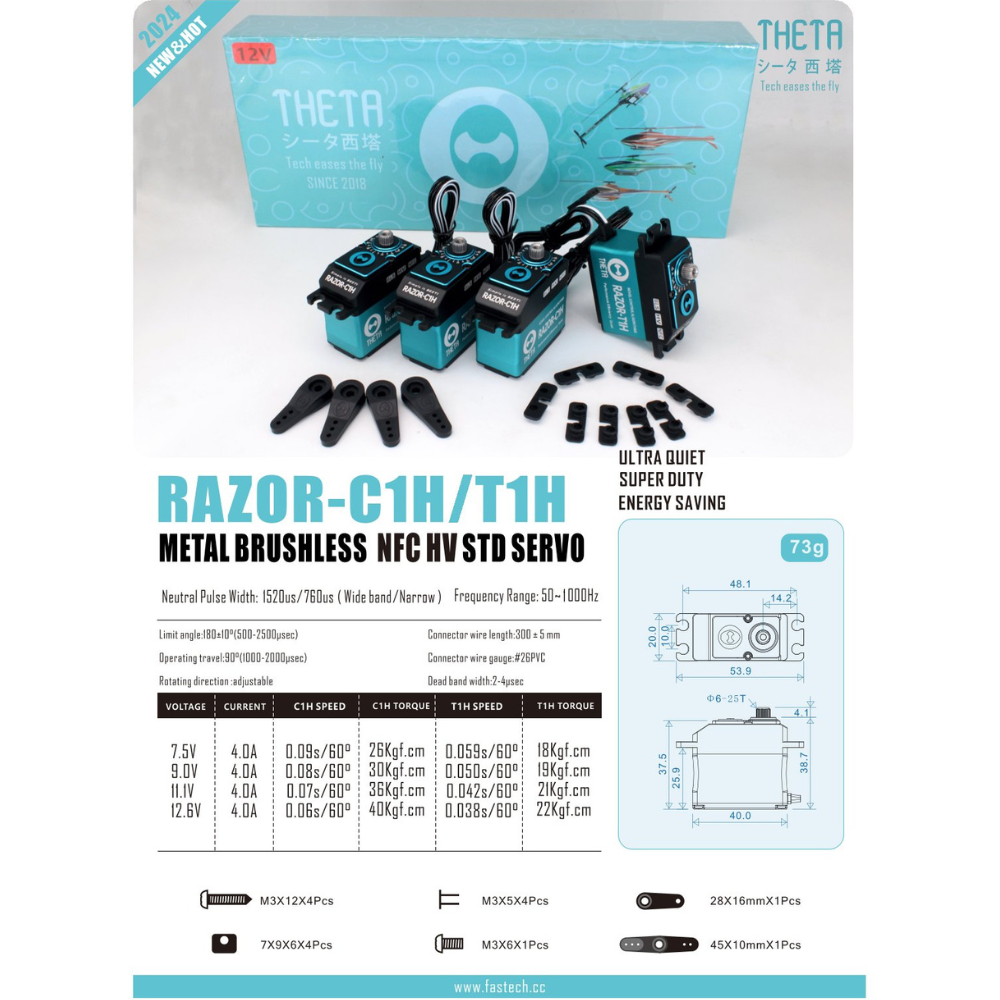

Specifications:
- Type: Metal Brushless NFC HV STD Servo
- Weight: 73g

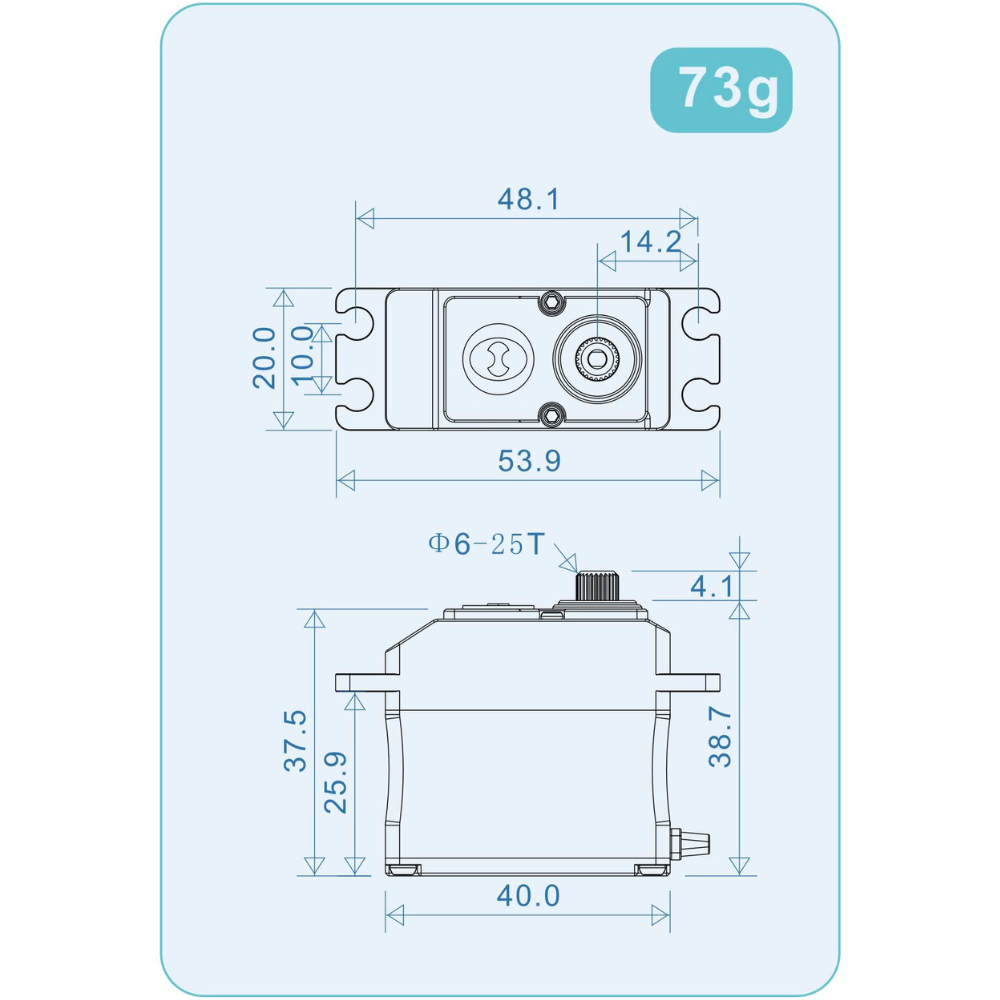

- Dimensions: 40.0 x 20.0 x 38.7mm
- Neutral Pulse: 1520us / 760us (Wide/Narrow)
- Frequency Range: 50-1000Hz
- Operating Travel: 90° (1000-2000µsec)
- Connector Wire: 300mm, #26PVC
Performance Specs:
| VOLTAGE | C1H SPEED | C1H TORQUE | T1H SPEED | T1H TORQUE |
| 7.5V | 0.09s/60° | 26Kgf.cm | 0.059s/60° | 18Kgf.cm |
| 9.0V | 0.08s/60° | 30Kgf.cm | 0.050s/60° | 19Kgf.cm |
| 11.1V | 0.07s/60° | 36Kgf.cm | 0.042s/60° | 21Kgf.cm |
| 12.6V | 0.06s/60° | 40Kgf.cm | 0.038s/60° | 22Kgf.cm |

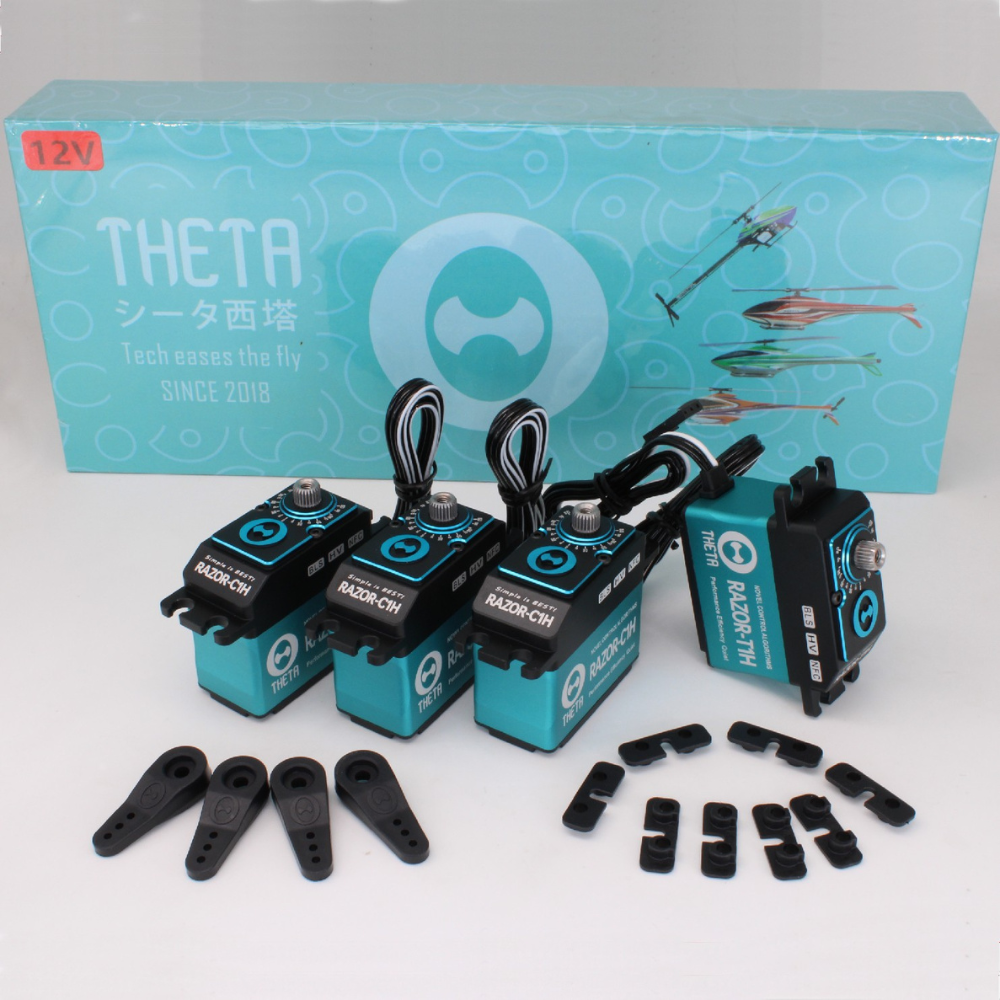

Package includes:
3 x RAZOR-C1H
1 x RAZOR-T1H
| Vendor: | Theta Servo |
| SKU: | THETA-RAZOR-C1H/T1H-SET |
| Barcode: | THETA-RAZOR-C1H/T1H-SET |
| Availability: | Out Of Stock |
| Product Type: | Heli Servo |
| Weight: | 2.6 oz |
