Please note the firmware of M8D has latest upgrade version V3.04
Click to download:www.toolkitrc.com/m8d

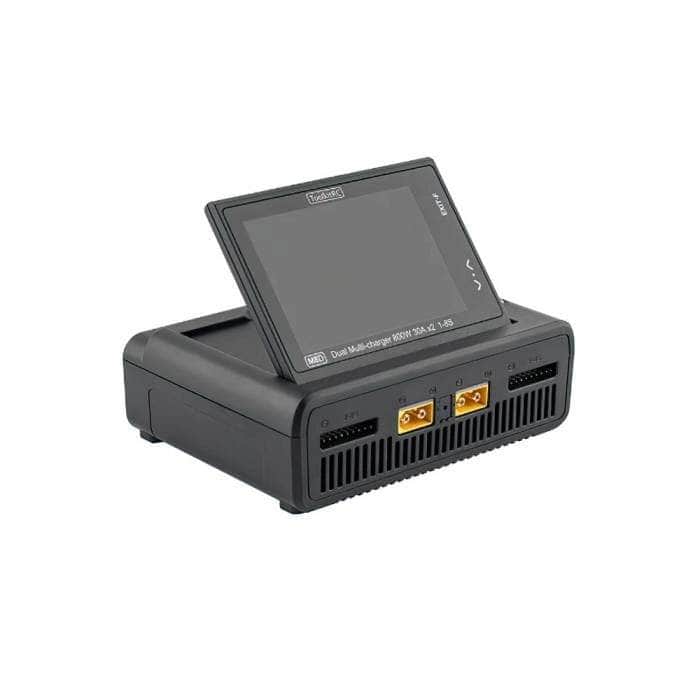

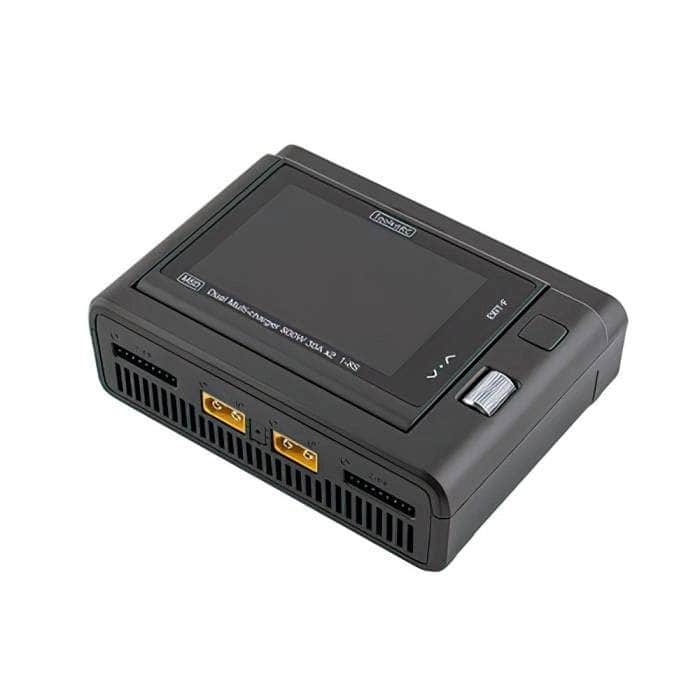

The M8D charger with a flipable touchscreen is a powerful and compact 2-channel charger for, among other things, up to 8S lithium batteries. With a total of 1600W and 50A charging current in synchronized mode, it ensures that batteries are reliably supplied with the energy they need. In addition, it has a 65W fast charging function that can achieve useable results even in a short time.

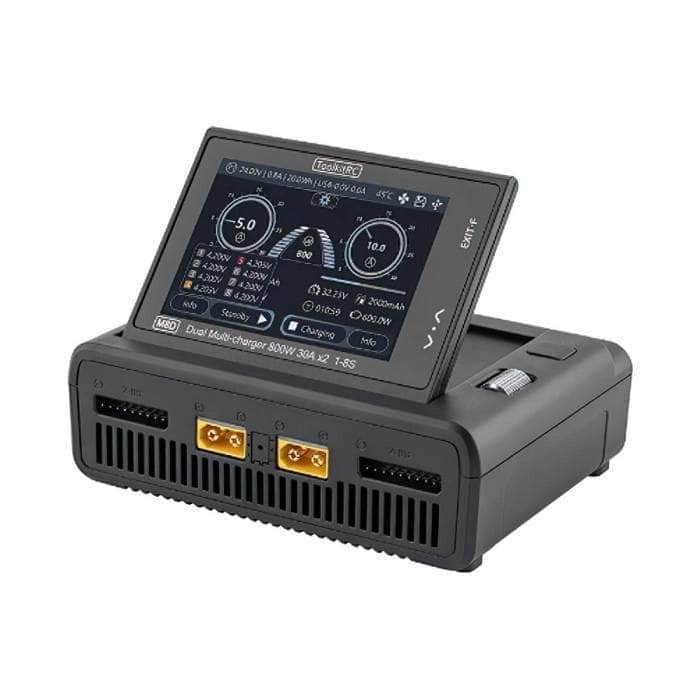

The new UI design, which is used for the first time on the M8D and is based on the user interface of real cars, makes operation via the touchscreen as simple and intuitive as possible. In the settings menu, for example, there are mostly sliders and on/off switches, while charging can be controlled using the buttons in the main screen. The display itself is optimized to clearly display the most important information of both channels. In addition to the attractive UI design, the function for destroying a battery is also new. This feature ensures that used batteries can be disposed of safely and compliantly at the end of the process.
Features
- Up to 1600W charging power and a maximum of 50A charging current
- Max. 800W discharge power
- 2 channels and quick charge function
- Flipable 3.5'' touchscreen with a 480x320px resolution
- Easy-to-use user interface
- Includes USB-C port
- Various security features
Specifications
CHARGER
- USBC: 5.0-20.0V @65W or Upgrade, PD, QC, PPS, AFC, FCP, SCP, PE, SFCP
- Discharge Power: 800W @MAX 30A Recycle mode
- Battery Type: Lipo, LiHV, LiFe, Lion, LTO @ 1-8S
- Charging Power: 800W @MAX 30Ax2 ASYN
- Input Voltage: DC 10.0-49.0V @MAX 60A
- Balance Current: 2000mA @ 4.2V
- Normal Mode: 40W @10.0A
- SYNC: 1600W @MAX 50A
- NiMh: @ 1-20S
- Pb: @ 1-15S
GENERAL
- LCD: IPS 3.5 inch LCD, 480x320 resolution
- Product Size: 130mm97mm42mm
- Packing Size: 14011050mm
- Packaging Weight: 700g
- Touch Panel: Capacitive
- Product Weight: 450g
Includes
- 1x ToolkitRC M8D 1600W 50A 1-8S Touch-Screen Dual Channel DC Smart charger - XT60
- 1x Instruction Manual
- 1x Charging Cable
| Vendor: | ToolkitRC |
| SKU: | HP0110.0031 |
| Barcode: | 6972969830339 |
| Availability: | Out Of Stock |
| Product Type: | Batteries & Chargers |
| Weight: | 1.55 lb |
You may also like
Recently Viewed Products
G
The touchscreen is easy to use also with the scroll bar. Simple menus make it a breeze to use.
S

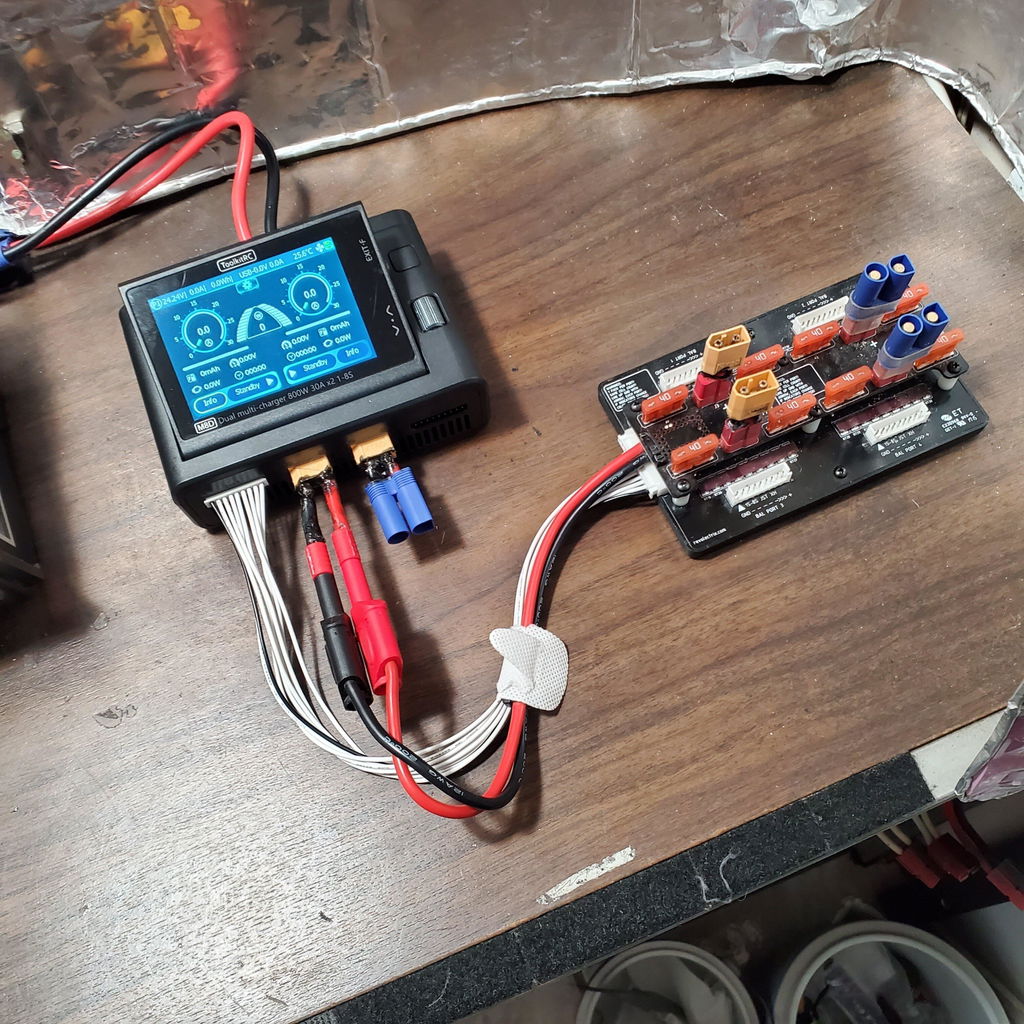

I needed an 8s HV lipo charger, and I found out there isn't that many of them on the market. I found this one, and it's simple to use. It also takes care of all the needed task that you want a charger to do. Don't let the compact size fool you, it has plenty of power. With this set up here, there isn't to many task or battery types it can't handle.
N

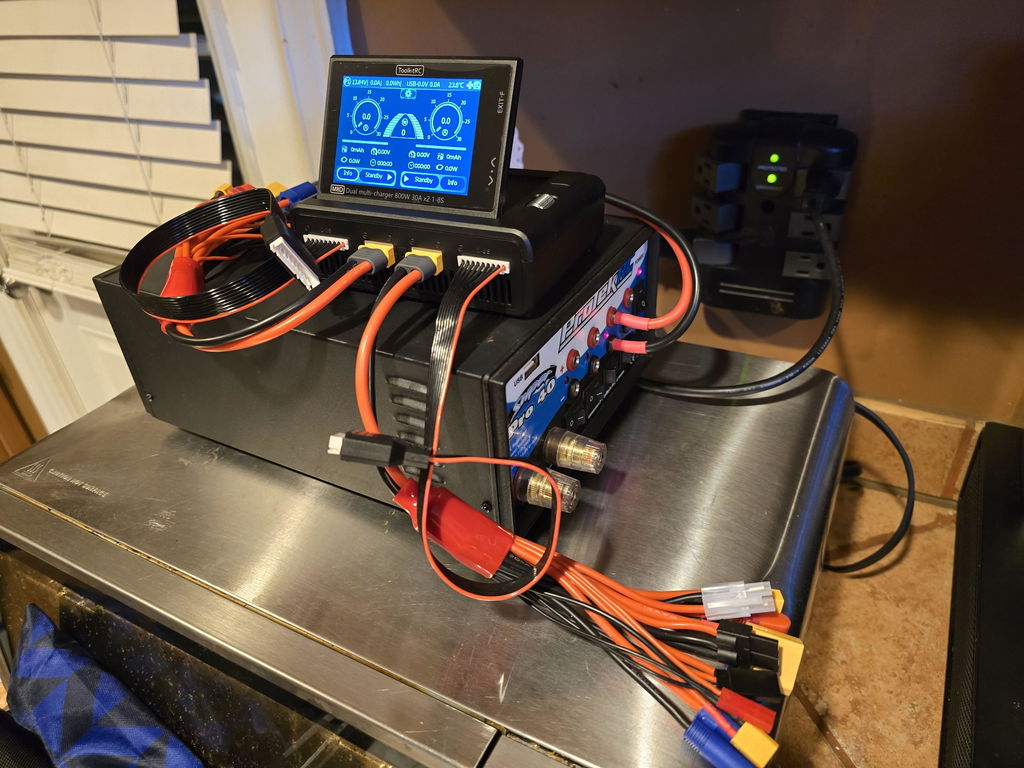

So far so great. Very nice Charger thats hot right now making them sell out quick and difficult to find. Price was best around. UI is cool and has tons of features and battery types. Got a ToolkitRC 200w DC supply at the moment but just ordered a ISDT 400w Smart Power Supply so charging 2 4s of 6s packs that are 6000mah or higher shouldn't be a issue. See how it holds up over time and still haven't checked to see if its reporting accurate voltages etc..
r
execellant size for my nanuk 915
T
Have been using the charger for a couple weeks and am very impressed with it. Its efficient and does a great job. Would buy again.
L
Very Easy To Operate
