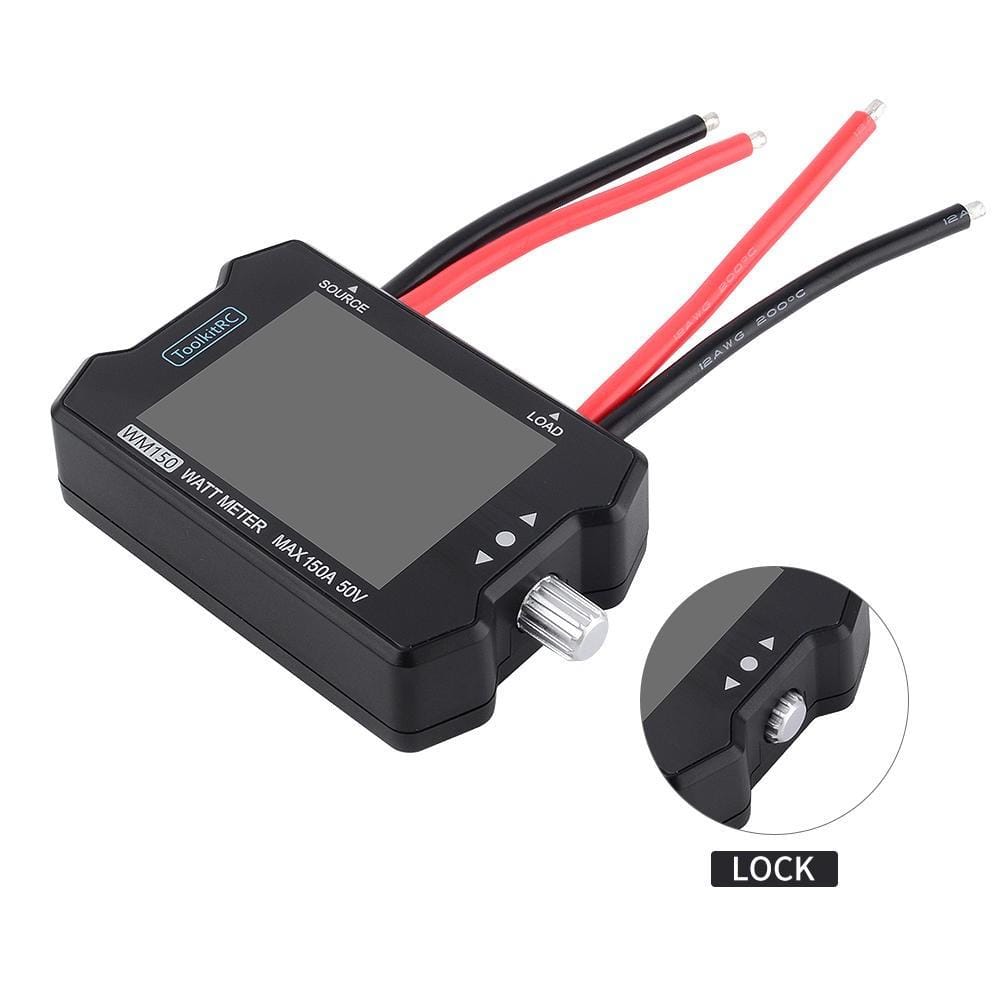

ToolkitRC WM150 Advanced Watt & Power Meter

ToolkitRC
|
HP110-0006
You will earn 34.99 points for buying this product
Price Match Guarantee
$34.99 $0.00( / )
Features ToolkitRC WM150 is a Watt Meter, which is capable to test voltage, power, current data of the electric equipment, like a servo, ESC, battery, etc. 1-50V power supply, the max current is up to 150A, the precision is accurate to 10mA. Support PWM signal, 1us precision, the pulse width...

Features

  • ToolkitRC WM150 is a Watt Meter, which is capable to test voltage, power, current data of the electric equipment, like a servo, ESC, battery, etc.
  • 1-50V power supply, the max current is up to 150A, the precision is accurate to 10mA.
  • Support PWM signal, 1us precision, the pulse width is changeable by adjusting the button.
  • Automatically to change the unit of the capacity, when it is lower than 1A, the unit-display is MA, when it is higher than 1A, the unit-display is changed to A.
  • The wattmeter is also supporting to display working hours.
  • USB firmware update, easy to operate.

Specifications

  • Brand: ToolkitRC
  • Item: WM150 Watt Meter
  • Input Voltage: 1-50V
  • Current(Max): 150A (precision:10mA)
  • USB: 5.0V@1A ( USB3.0 firmware update)
  • Output: PWM 1000-2000us@50Hz

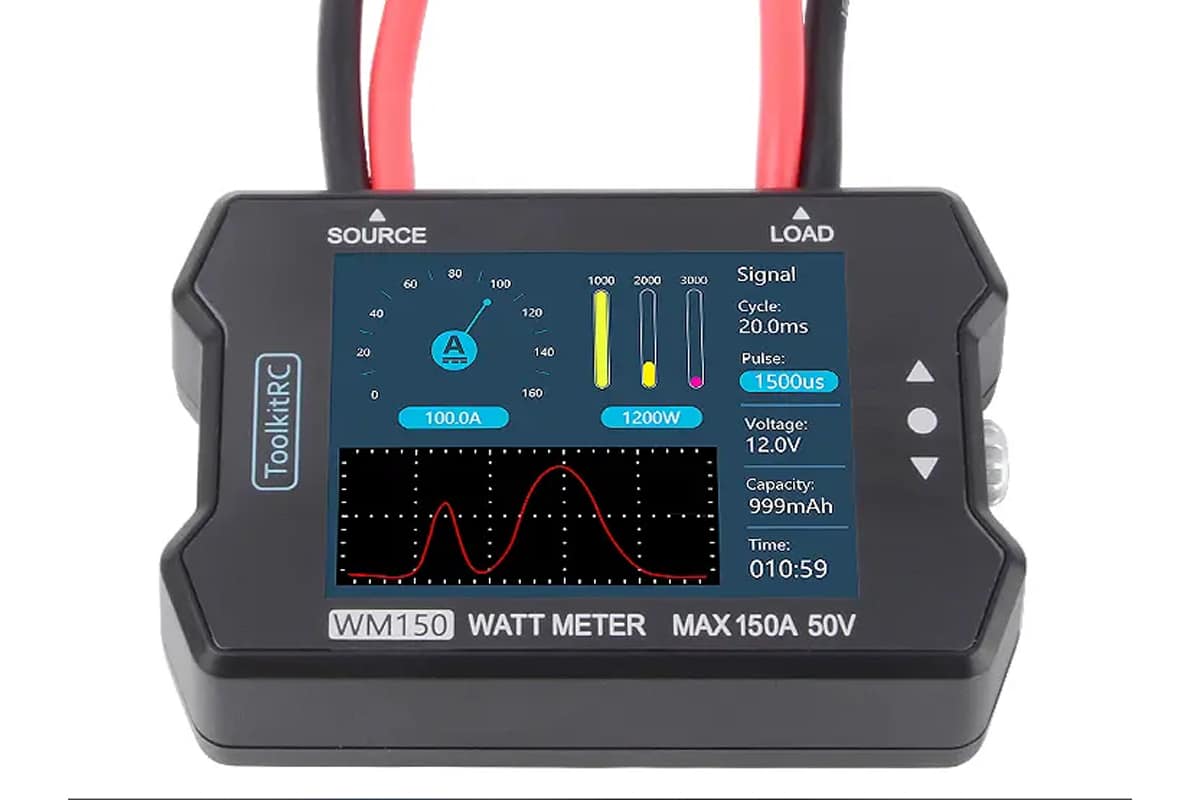

  • Display: TFT 2.4" LCD Screen(320*240 resolution)
  • Product Size: 80*54*23mm Approx.
  • Packing Size: 87*87*28mm Approx.
  • Net Weight(Approx): 120g
  • Gross Weight(Approx): 140g

Manual

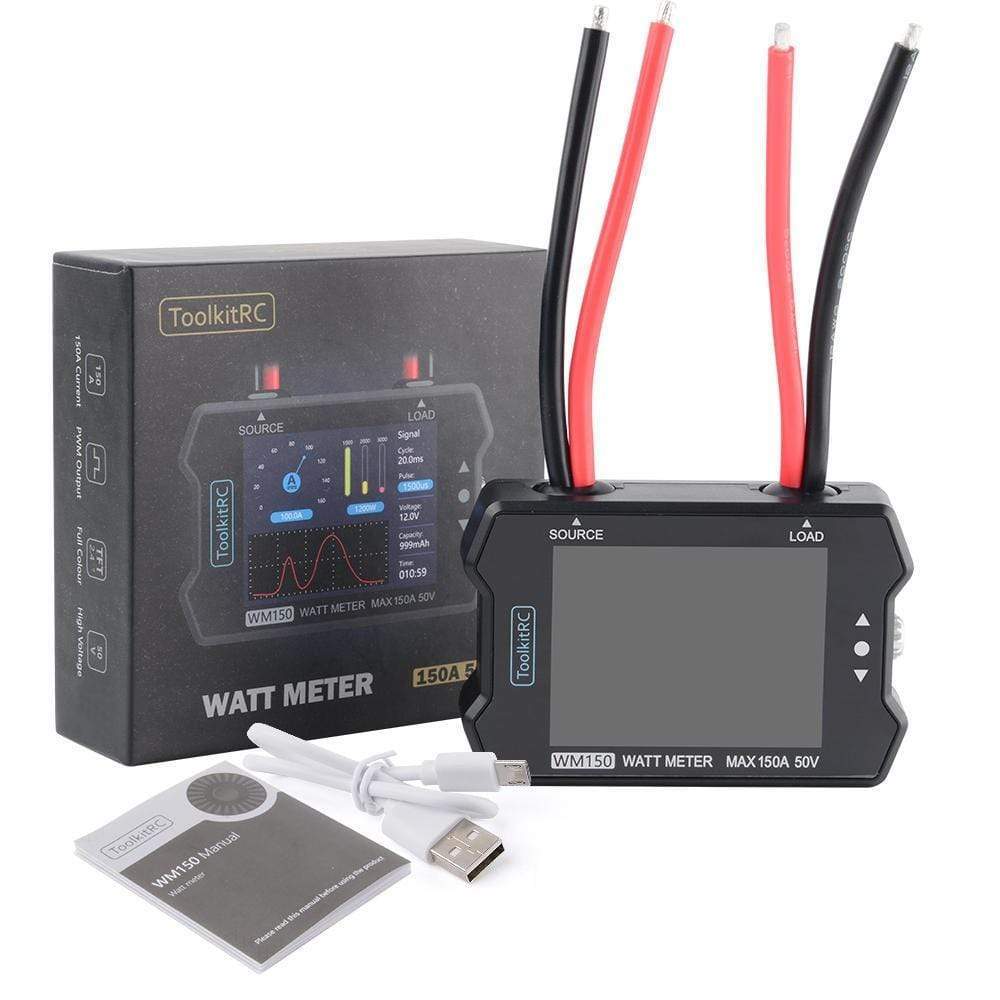

Includes

  • 1 x ToolkitRC WM150 Watt Meter
  • 1 x USB Wire
  • 1 x Manual
Type:

Battery Accessories

Vendor:

ToolkitRC

SKU:

HP110-0006

Weight:

0.25 lb


Product Spare Parts


Electronics
