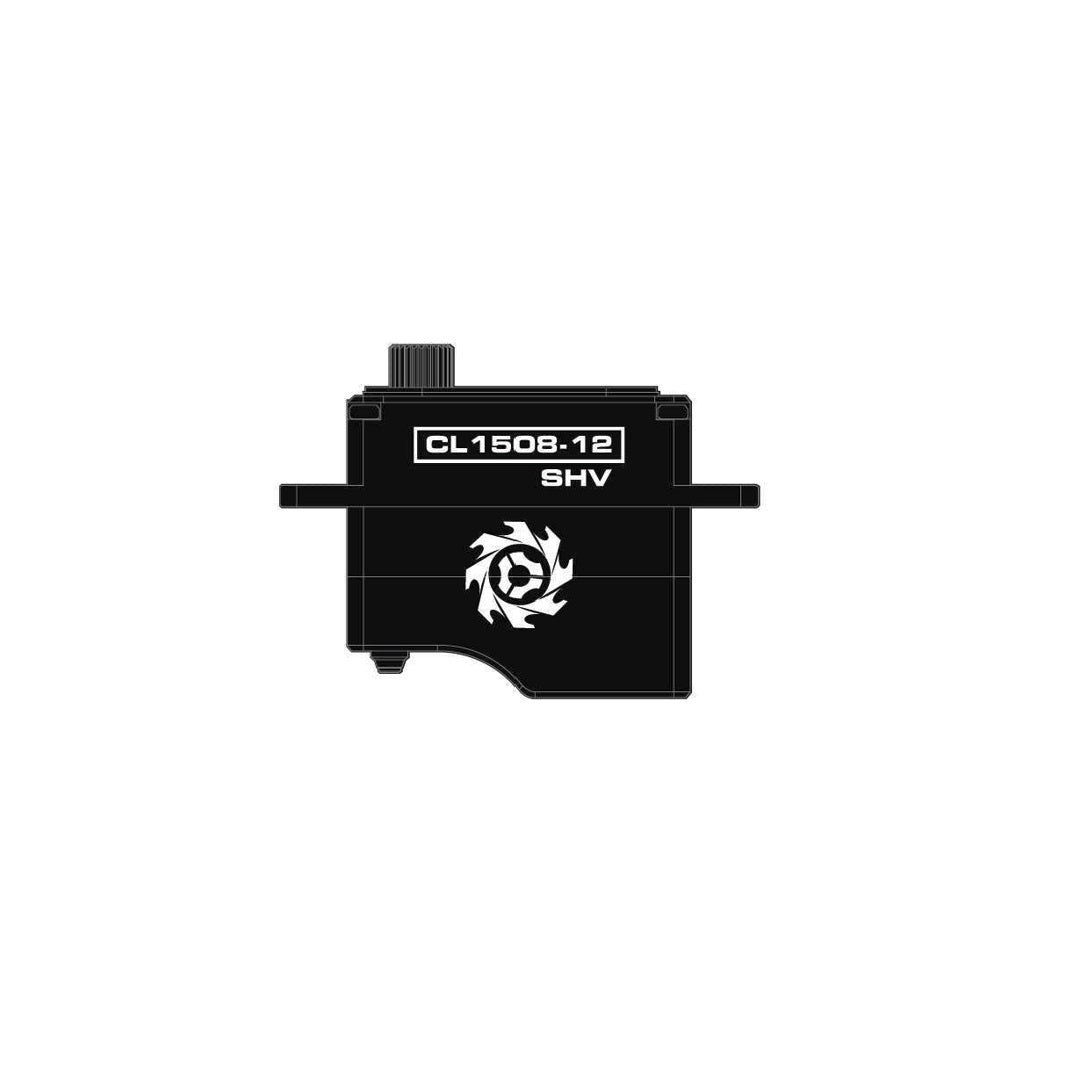

TORQ CL1508-12 Mini SHV Cyclic Servo

TORQ CL1508-12 Mini SHV Cyclic Servo

Explore new worlds of precision & control with the TORQ CL1508-12 Mini SHV Cyclic Helicopter Servo. Specifically designed for the intense demand of helicopter control, the TORQ CL1508-12 Black Edition has been optimized for incredible levels of precision and resolution

Specification

• Rated Voltage: DC12.0V
• Voltage Range : DC8.40V-13.0V
• Stalling Torque:
  • 15.0Kgf.cm@8.40V
  • 18.0Kgf.cm@12.0V
  • 20.0 Kgf.cm@13.0V
• Speed:
  •  0.15sec/60°@8.40V
  • 0.11sec/60°@12.0V
  • 0.10sec/60°@13.0V
• Start Current:
  •  1.50A@8.40V
  •  2.08A@12.0V
  •  2.25A@13.0V
• Working Frequency: 1520us/333Hz
• Default Travel Angle: ±60° =100° Total
• Temperature Range: -10℃……+65℃
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Ball Bearing: 2BB
• Case Dimensions: 33mm*15mm*30mm±0.2mm
• Weight: 35g±10%

Command signal - PWM Command Interface

Signal Voltage:

• HIGH: min.3.3V, max.5.0V
• Low: min.0.0V, max.1.5V
