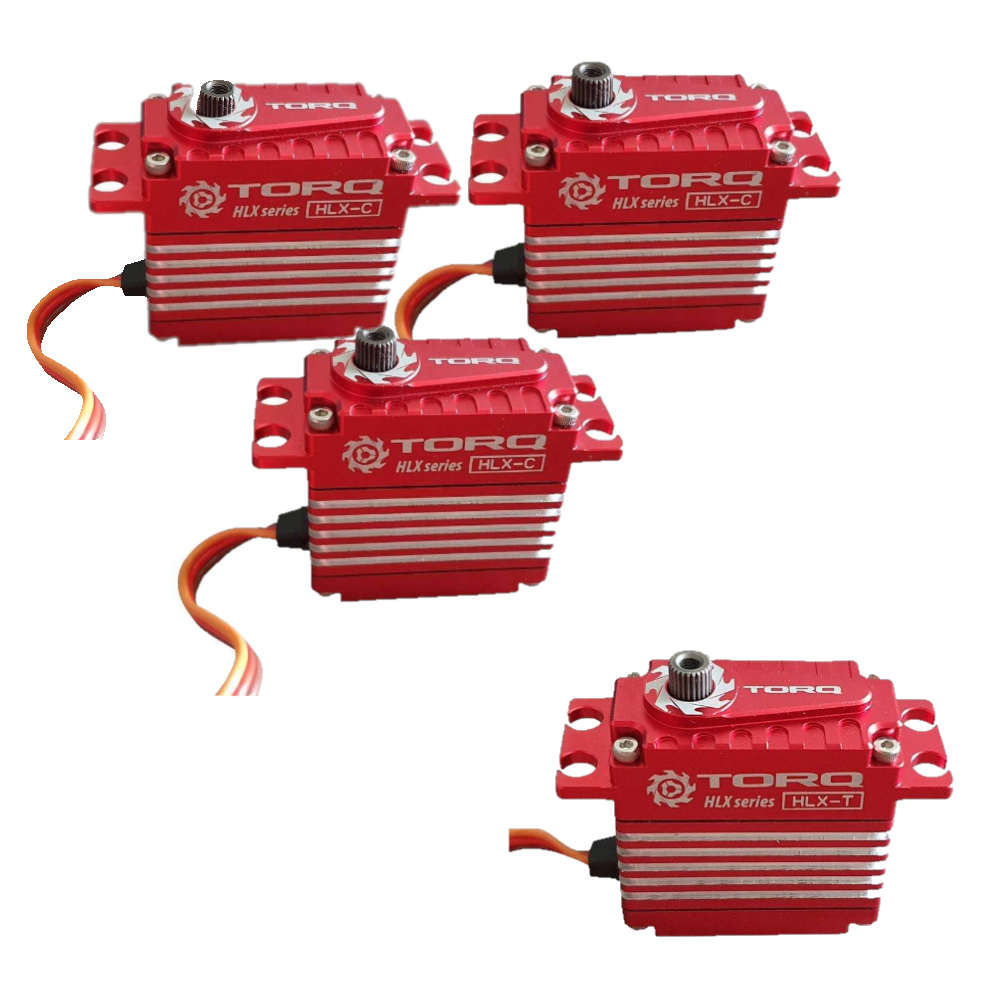

TORQ HLX Fullsize Brushless Servo Combo

TORQ Servos
|
TORQ-HLX-CB
You will earn 636 points for buying this product
Price Match Guarantee
$636.00 $0.00( / )
Combo includes HLX-C (Torq HLX Fullsize Cyclic Servo) * 3pcs HLX-T  (Torq HLX Full Size Tail Servo)* 1pcs Recommended for helicopters sized 600 - 700 HLX-C - Torq HLX Fullsize Cyclic Servo Features: - Using the newest Hall Sensor Technology- Incredible Levels of Speed & Performance- Ultra Precise, High Resolution...

Combo includes

  • HLX-C (Torq HLX Fullsize Cyclic Servo) * 3pcs
  • HLX-T  (Torq HLX Full Size Tail Servo)* 1pcs

Recommended for helicopters sized 600 - 700

HLX-C - Torq HLX Fullsize Cyclic Servo

Features:

- Using the newest Hall Sensor Technology
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully New Design Steel Gear Train for Maximum Strength
- 8.4V High Voltage Ready
- Optimized for Heli, Airplane & Jet Aircraft
- 6 Ball Bearings Construction

Speed:

0.07 sec / 60° @  8.2V
0.09 sec / 60° @ 7.4V
0.11 sec / 60° @ 6.0V

Torque:

35Kg.cm / 486,05 oz in. @ 8.2V
30Kg.cm / 416,62 oz in. @ 7.4V
24Kg.cm / 333,29 oz. in. @ 6.0V

Specifications:
Motor Type: Brushless
Servo Arm Type: Futaba
Working Frequency: 1520us / 333Hz    or  760us / 560Hz (need the TBOX Program Card)
Weight: 80g
Dimensions: 40mm x 20mm x 40mm (LxWxH)
Voltage Range: 6.0V - 8.4V

Usage Note: Servo Grommet is suggested use if you use our servo on Nitro Heli.

HLX-T - Torq HLX Full Size Tail Servo

Features:

- Using the newest Hall Sensor Technology
- Blistering 0.035 Second Transit Speed
- Dedicated Helicopter Rudder Servo
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Newly Design Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for High Demand Rudder Control
- 6 Ball Bearings Construction

Speed:

0.03 sec / 60° @ 8,2V
0.035 sec / 60° @ 7.4V
0.04 sec / 60° @ 6.0V

Torque:

13.0Kg.cm / 180,53 oz. in. @ 8.2V
11.0Kg.cm / 152,76 oz. in. @ 7.4V
9.0Kg.cm / 124,98 oz. in. @ 6.0V

Specifications:

Motor Type: Brushless
Servo Arm Type: Futaba
Working Pulse Width / Frequency: 760us / 560Hz  450us-1050us
Weight: 80g
Dimensions: 40mm x 20mm x 40mm (LxWxH)
Voltage Range: 6.0V - 8.4V

Usage Note:

  • For helicopter rudder usage only. Please note that the TORQ HLX-T servo must be connected to a flybarless flight controller that is set at a 760us pulse width setting for proper functionality. Due to the 760us pulse width, if the servo is connected to a receiver or servo tester, the servo will not properly function due to these applications that use a 1520us pulse width.
  • Servo Grommet is suggested use if you use our servo on Nitro Heli.
