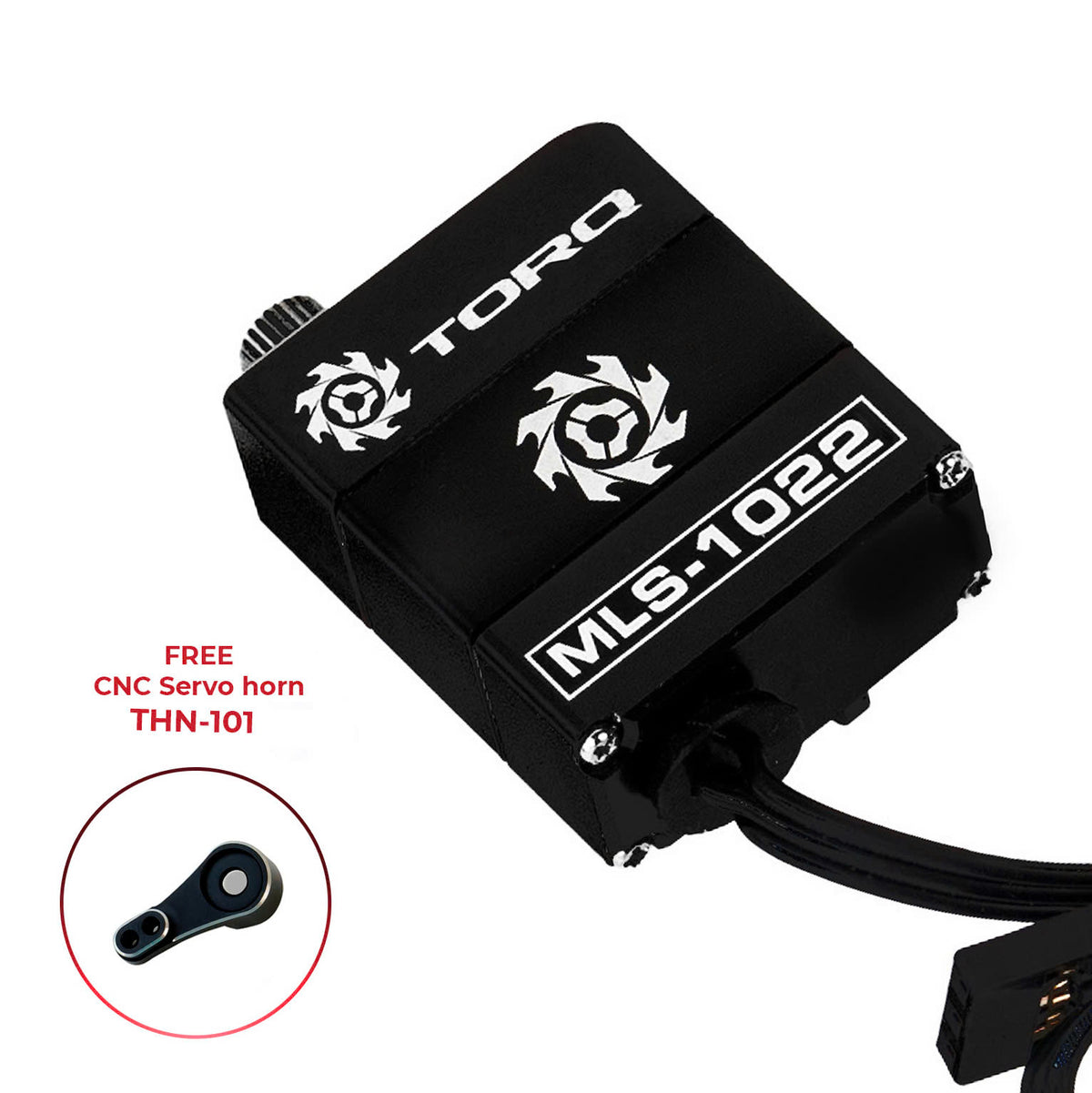

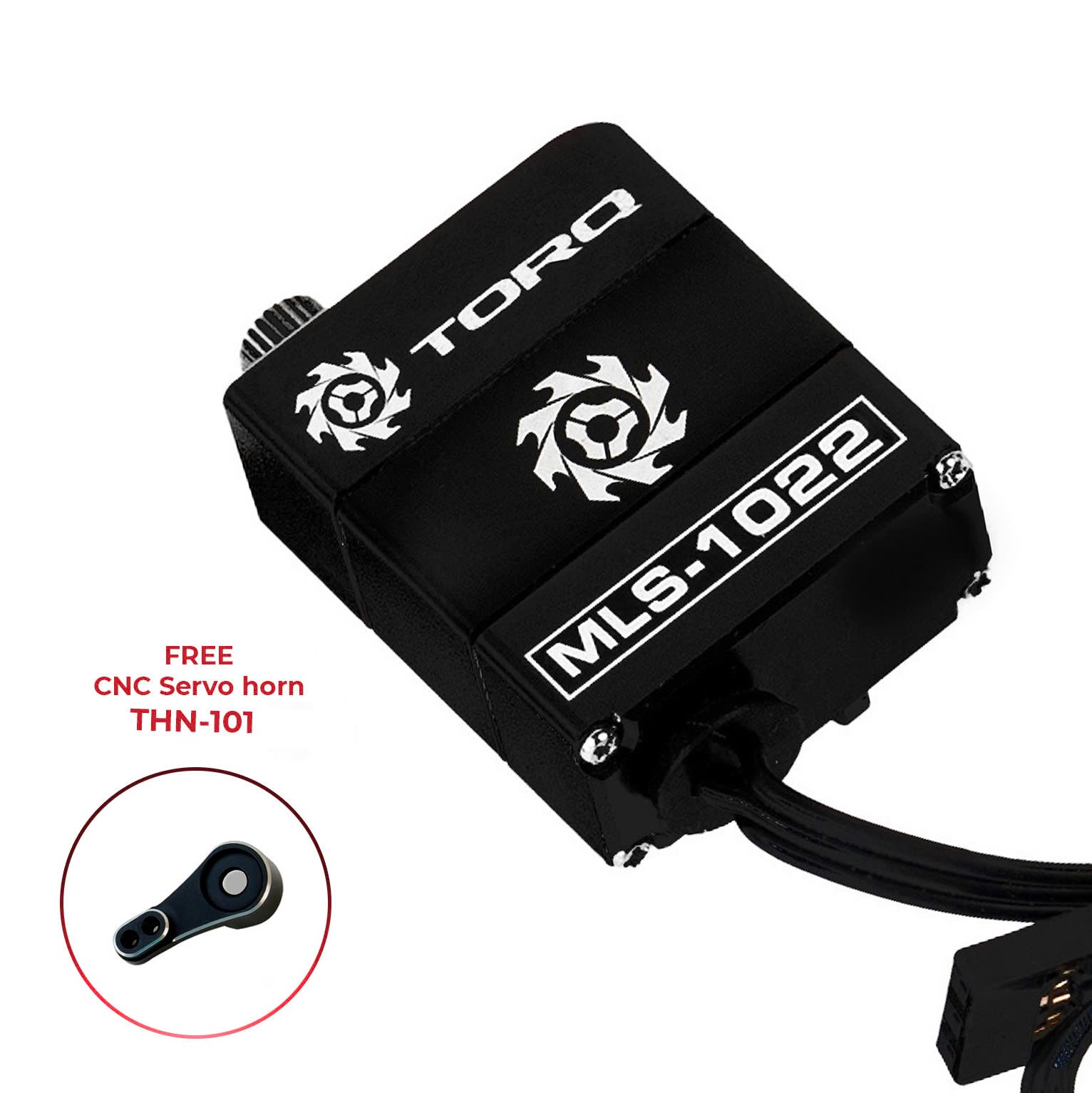

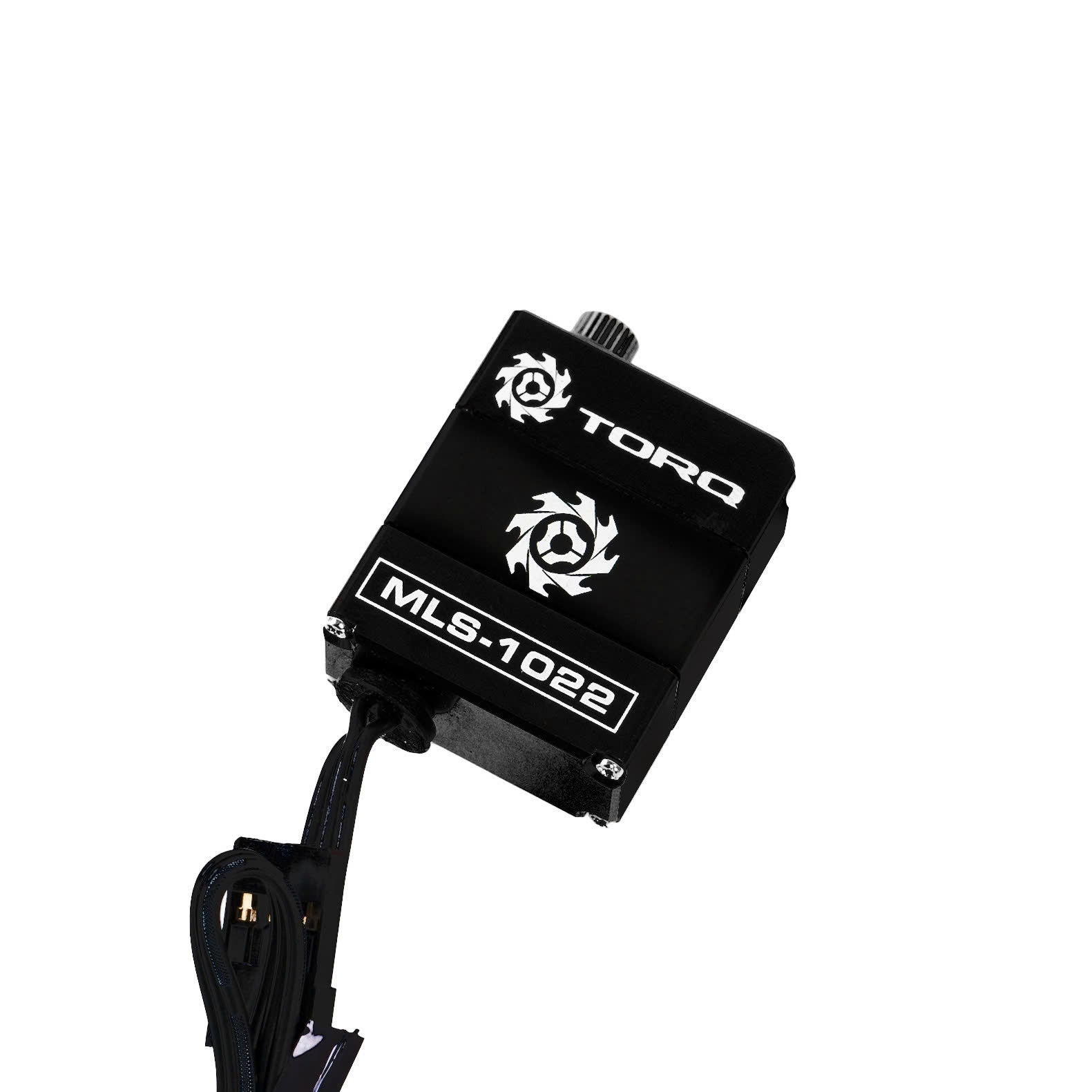

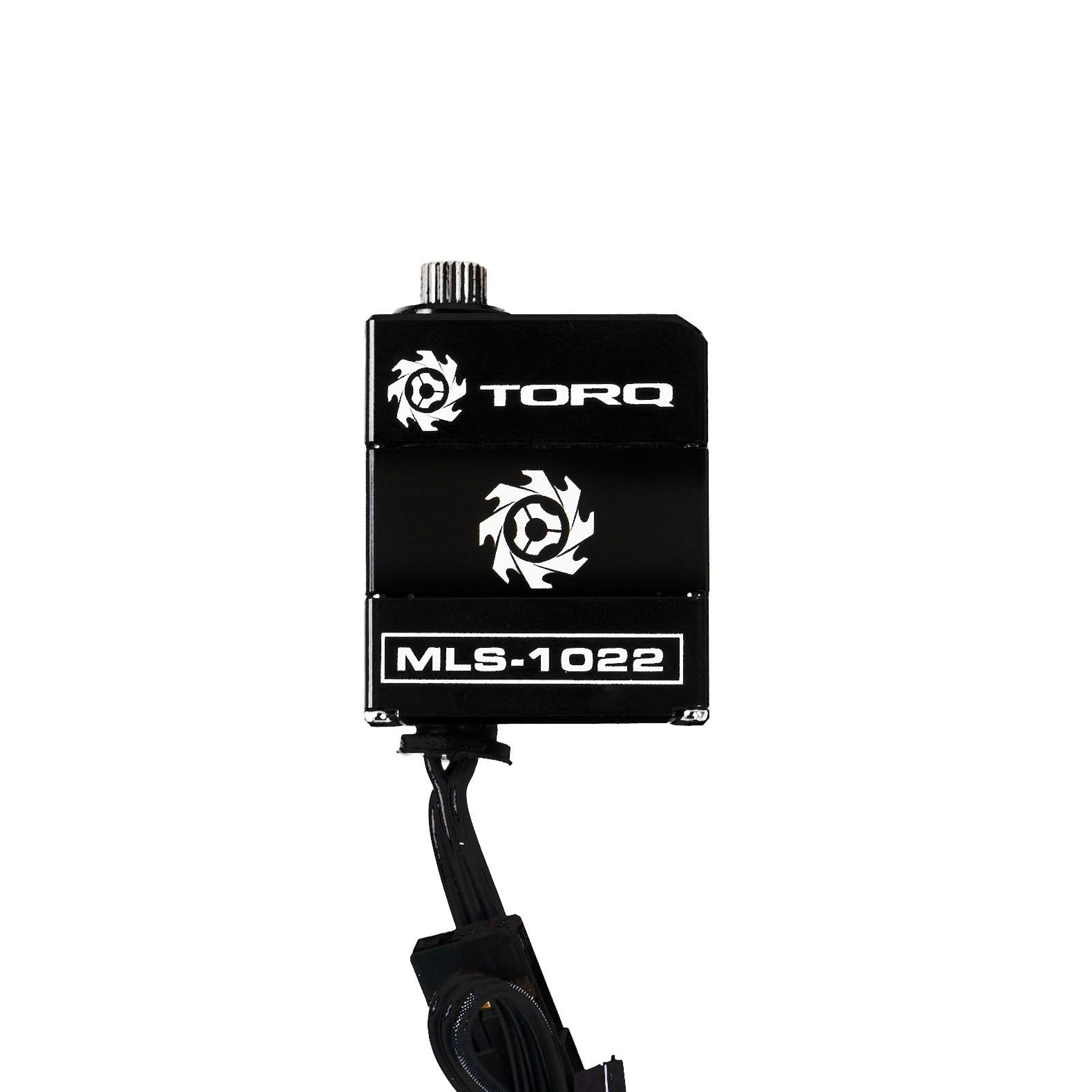

TORQ MLS-1022B Premium DIRECT-MOUNT Servo for SCX24 - Black
The TORQ MLS-1022B Premium DIRECT-MOUNT Servo for SCX24 - Black is expertly engineered to cater to the needs of small-scale crawlers. This innovative servo design eliminates traditional servo ears, providing ample clearance between the servo and the frame rails, ensuring smooth and unobstructed suspension movement. The MLS-1022B’s unique configuration also eliminates the necessity for a separate servo mount, simplifying the installation process.
Key features include rear exit wires, further ensuring that suspension travel remains unhindered. This servo is designed for ultimate clearance all around, making it a standout choice for crawler enthusiasts. The design is patent-pending, showcasing its unique and innovative nature.
FULL Precision CNC Aluminum Case with black anodizing colors.
FREE CNC Servo Horn – $14.99 Value
Features
- High Torque Output: Delivers powerful performance for small-scale crawlers.
- Mountless Design: Eliminates the need for a separate servo mount, reducing the overall cost.
- No Servo Ears: Provides ample clearance between the servo and frame rails, ensuring smooth suspension movement.
- Rear Exit Wires: Ensures suspension travel is unhindered for optimal performance.
- Simplified Installation: Easy to mount due to its unique design.
- Enhanced Clearance: Designed for ultimate clearance around the servo.
- CNC Servo Horn Included: Limited time offer includes a free CNC servo horn.
- Full precision CNC Metal Gears
- Full precision CNC Aluminum Case with black anodizing color.
- Waterproof
- Patent Pending: The innovative design is currently under patent protection.
Specifications
- Dead Bandwidth: 3μs
- Working Frequency: 1520μs / 330Hz
- Operating Voltage: 5.0V - 8.4V
- Motor Type: Coreless Motor
- Operating Speed:
· At 5.0V: 0.10 sec/60°
· At 6.0V: 0.09 sec/60°
· At 7.4V: 0.07 sec/60°
· At 8.4V: 0.055 sec/60°
- Stall Torque:
· At 5.0V: 9 kg-cm (125 oz-in)
· At 6.0V: 11.5 kg-cm (160 oz-in)
· At 7.4V: 12.8 kg-cm (177 oz-in)
· At 8.4V: 14.5 kg-cm (200 oz-in)
- Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches)
- Weight: 22.0 g (0.78 oz)
- Connector Wire Length: JR 170 mm (6.7 inches)
- Output Gear Spline: 25T
Benefits
- Space Efficiency: Compact design fits seamlessly within small-scale crawler setups.
- Cost Savings: No need to purchase additional CNC servo mounts and CNC servo arms.
- Performance Enhancement: Unhindered suspension movement leads to better crawler performance.
- Ease of Installation: Simplifies the mounting process, saving time and effort.
- The TORQ MLS-1022B Premium High Torque Servo - Black is an excellent choice for crawler enthusiasts looking for a high-performance, easy-to-install, and cost-effective servo solution.
| Vendor: | TORQ Servos |
| SKU: | MLS-1022B |
| Barcode: | 769923276472 |
| Availability: | In Stock |
| Product Type: | Electronics |
| Weight: | 0.25 lb |
You may also like
Recently Viewed Products
M
Great servo! Love that it mounts straight to axle!
D
The Torq MLS-1022 is a great servo for short front end crawlers. I've used them on many builds with great success. The servo is also high torque and durable. My new build is four wheel steering, and I'm interested to see how they'll work in that application.
A
Awesome little servo, and all kinds of room for activities with the direct mount.
T

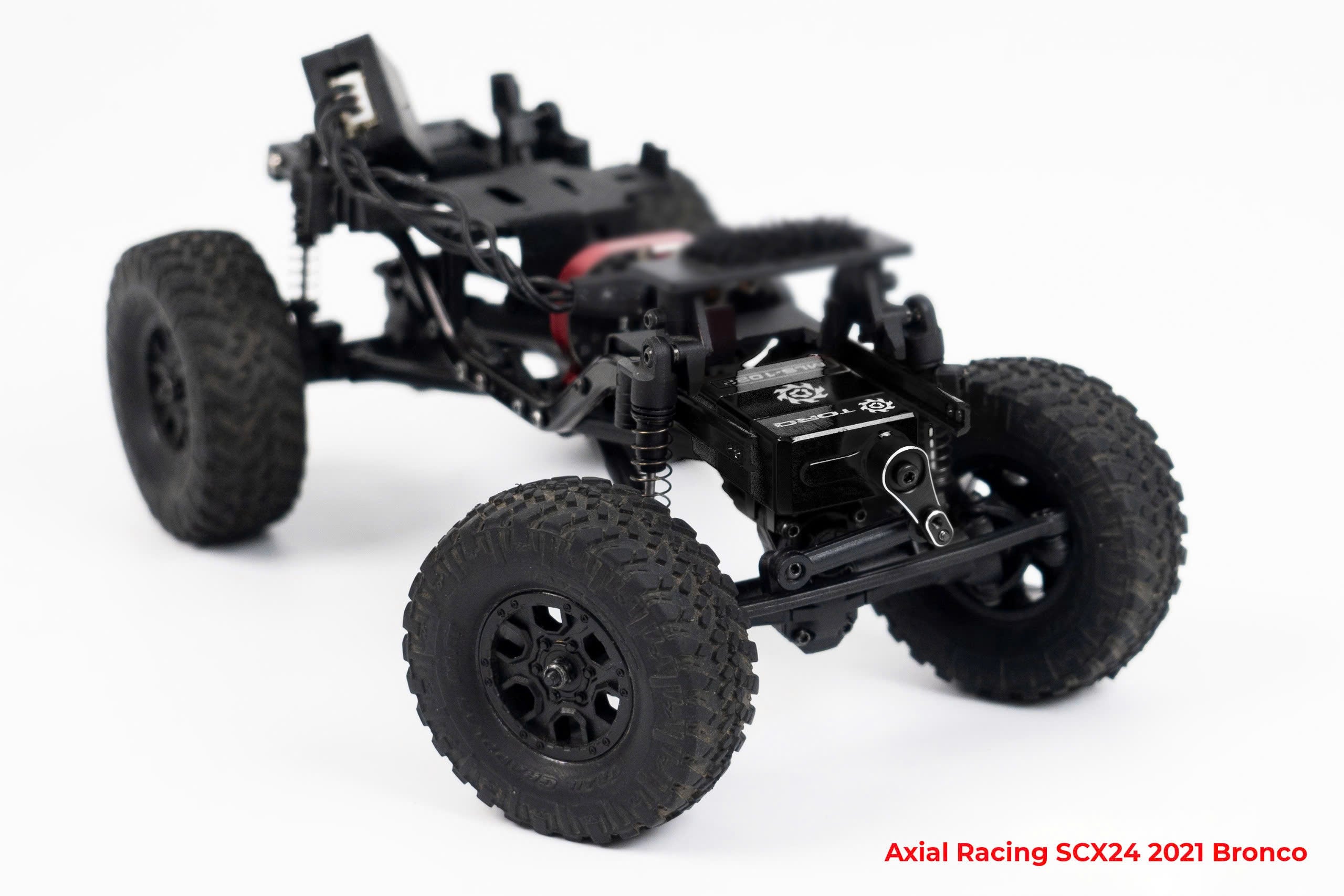

Got the 1022B servo for my SCX24 Bronco build and it fit perfectly and is an awesome upgrade addition!
M
I am very satisfied with the performance of this MLS-1022 servo. Well done TORQ 👍🏻
K
If you are in need of a fantastic servo upgrade look no further. This servo is designed for the SCX24 with limited space and has plenty of TORQ. My SCX24 fleet all received a level up in performance.
W
Awesome servo, strong & fast. Do be aware that it does not fit on the MEUS RACING Isokinetic 3-Section CVD Front Axles Maximum Steering Angle 52° Wider +5MM. The spacing on the axles is narrower than stock, so the tabs are too wide.
S
Great strong little servo and absolutely no binding which makes for a full articulated experience.
I
A great improvement over the stock servo! I love the integrated mounting bracket.
D
Great product speedy delivery
J
I normally use Reefs servos in my crawlers but I was in the mood to try something else. The servo works well, mounts directly to the axle and does what you expect it to do. Not happy about all the Helidirect spam I get now. I'd have stuck with Reefs if I knew my inbox was gonna get bombed.
C
These are excellent and fast. You could spend 2-3 times the money and still get the same performance as these servos. Buy one and try it. You won’t regret it!!! 👍🏻💯 Dave of CRAZYQUADBROTHERSP3
e
Fits injora planet axles perfectly, no servo mount needed!
r
Been thru a lot of servos. This IS the strongest. My truck is heavy and 4 wheel steer. This servo does the job well.
B
The servo runs very quiet. Combined with my brushless motor my scx24 moves silent.
G
Had very bad luck with this servo. The gears are very fine. I stripped them with two different servos. Go with the NSDRC it's way better for just a little bit more money. Thank you to the customer service people for making this right.
R
Good bang for your buck here. Stock servo will only last so long, especially after you add some upgrades to the front of your rig. Mounting is easy and power is enough so far for a moderately modified crawler.
R
simple install, plenty of power for a lighter rig.
D
So far this servo has been great. Very powerful for the voltage and has been a major upgrade for my SCX24.
My only note is that this fits perfectly on a stock axle (no mounting tray required) but is hit or miss with after market axles like the MEUS racing ones I have. I have heard that this servo fits the RC4WD axles with out issue but I coulc not use this with my MEUS front axle. I instead put this on another rig that still had stock axles.
R
This torq servo is fantastic. I really like it I usually don’t buy the little higher priced ones but these are well worth it! Spend the money once and you won’t regret it. It is so smooth and quiet. Seriously, love it.
R
Nice compact strong servo
S
Color coordination on my rigs is a priority. These really help. Basic comp servo at a great price.
