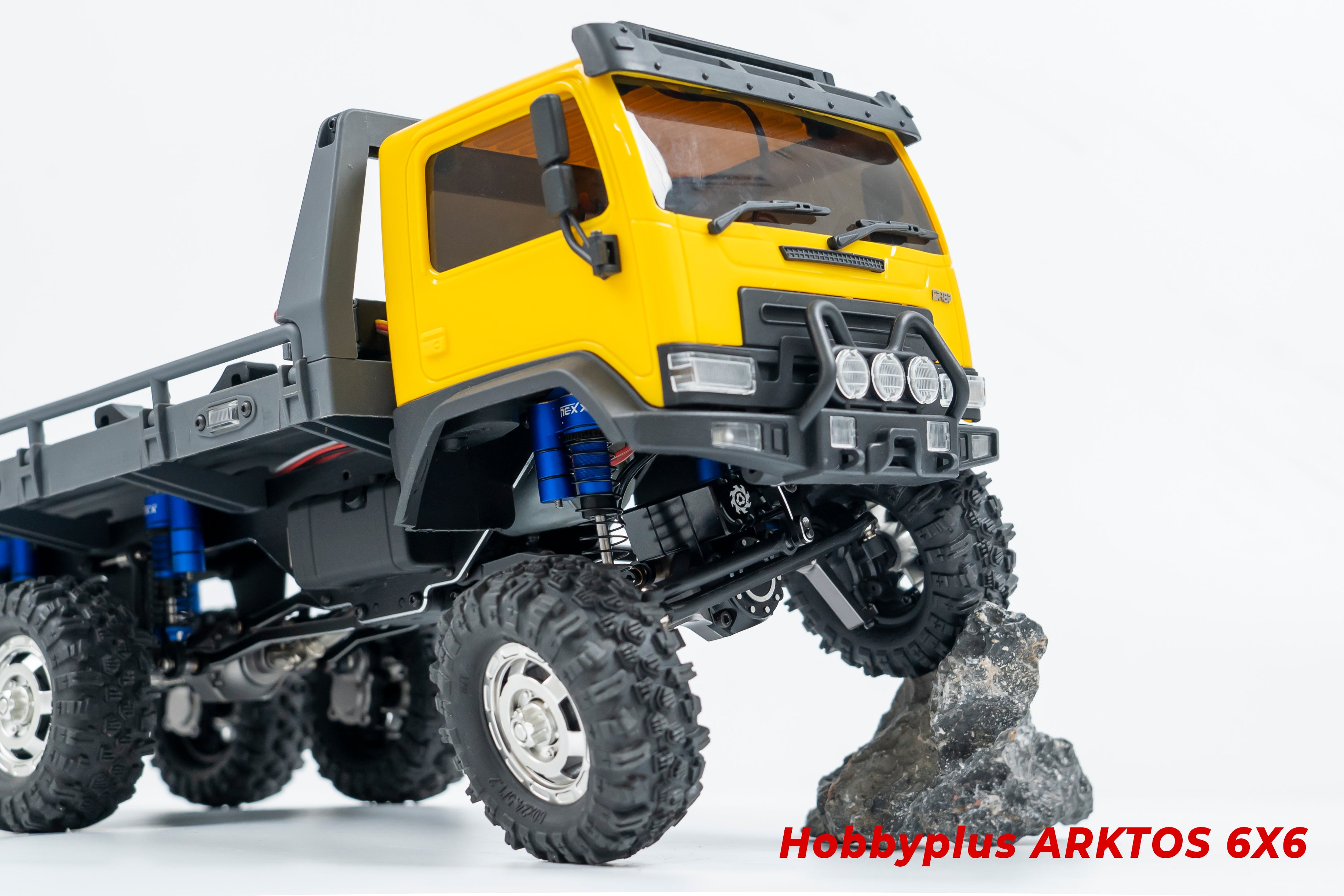

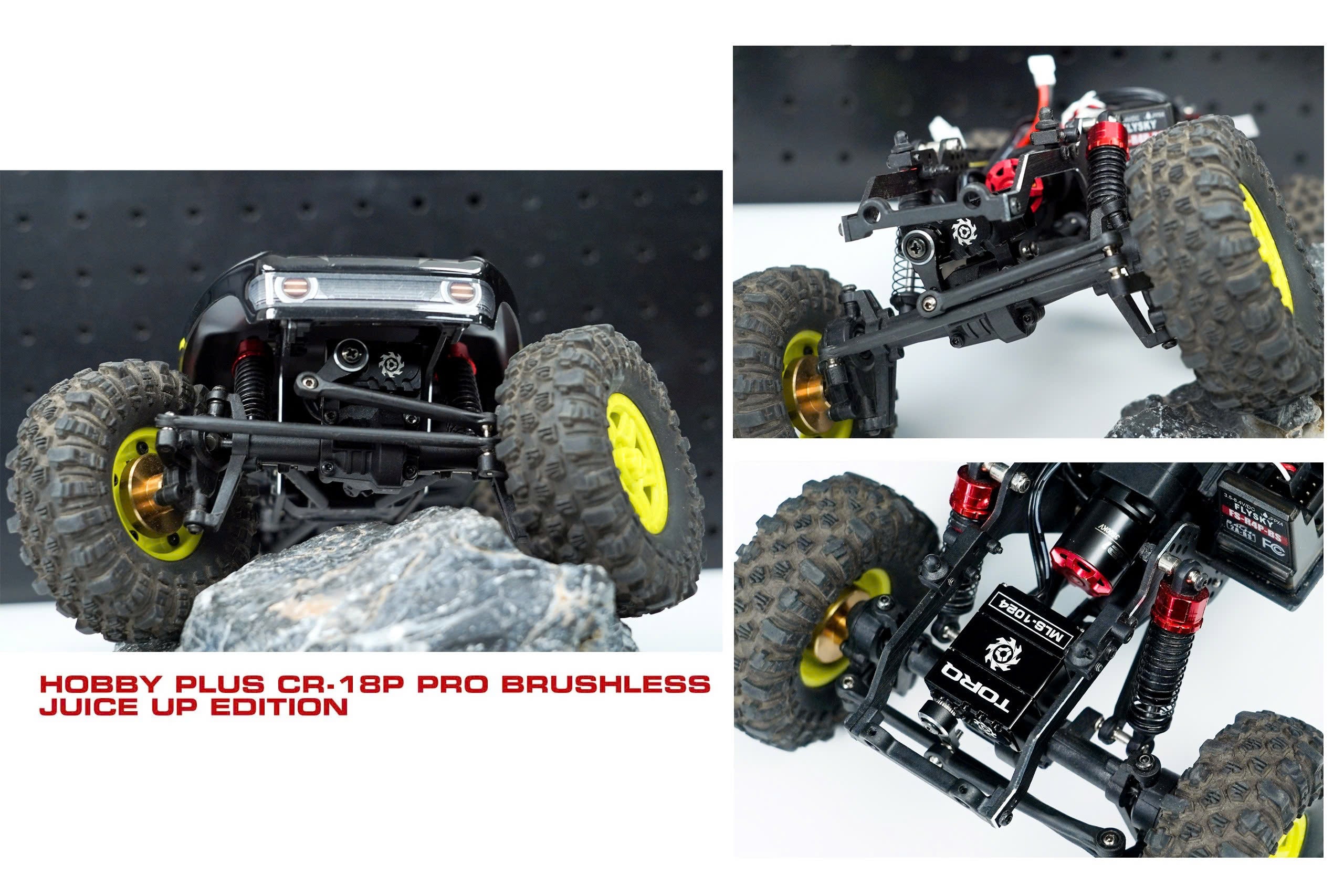

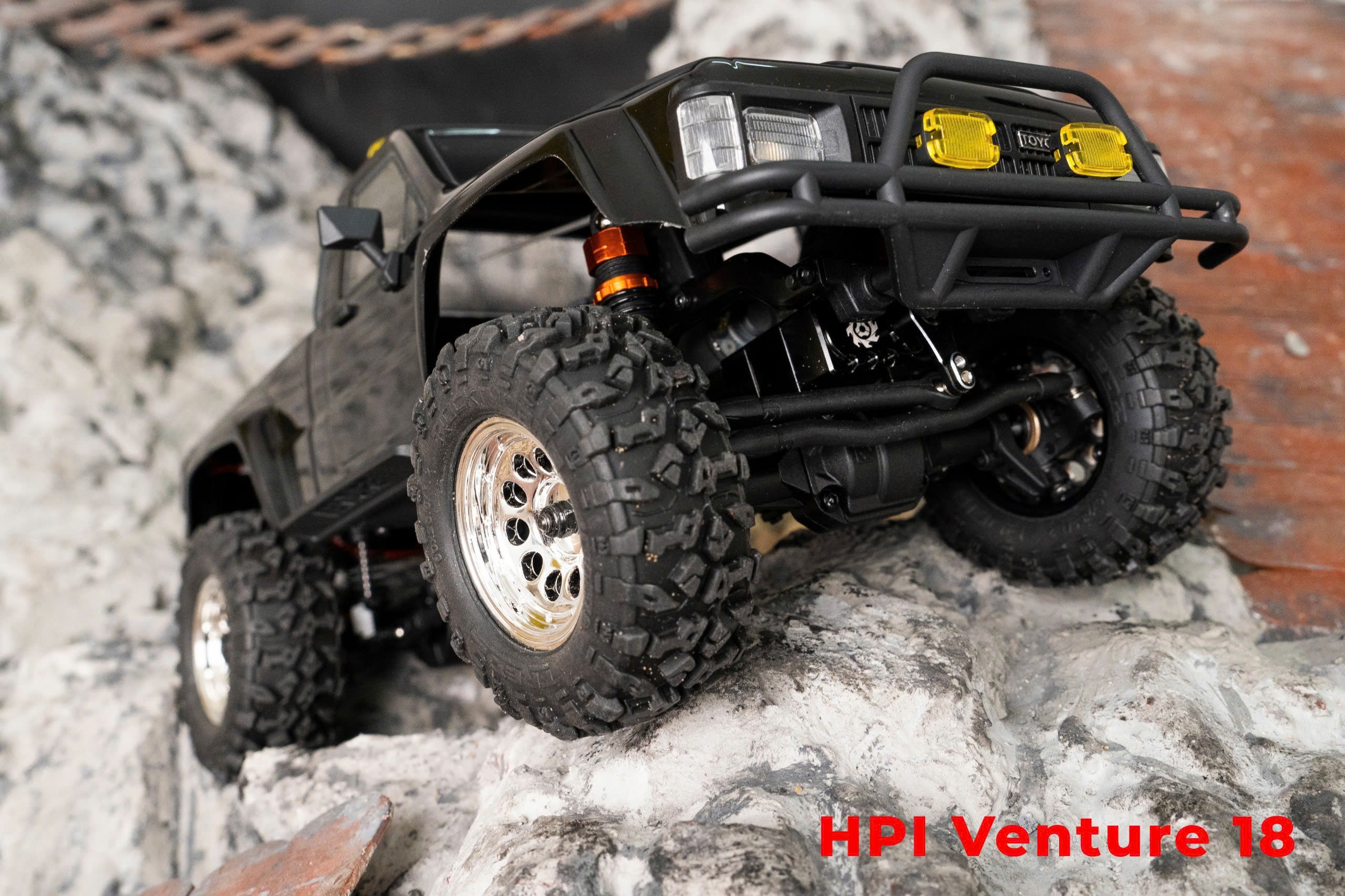

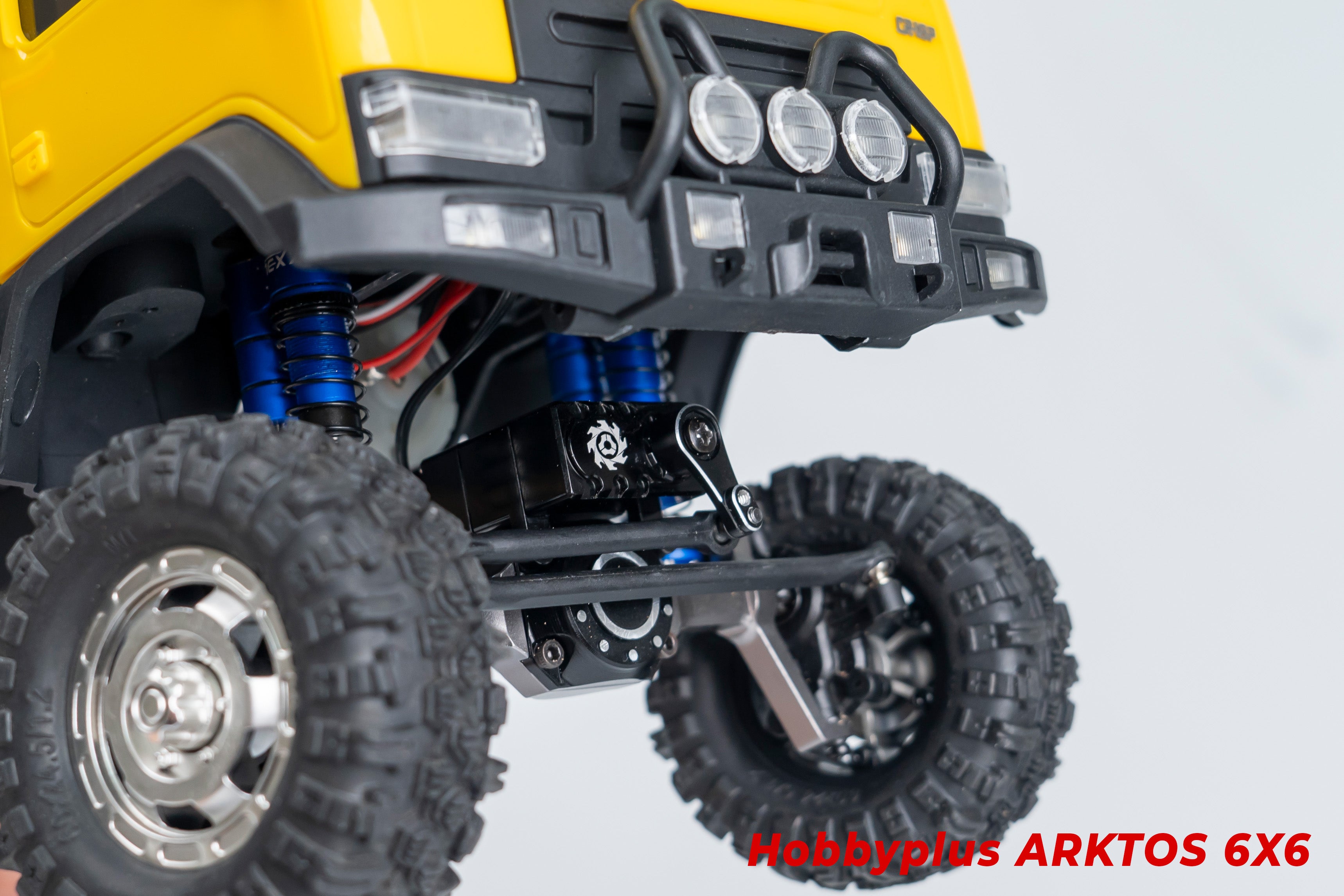

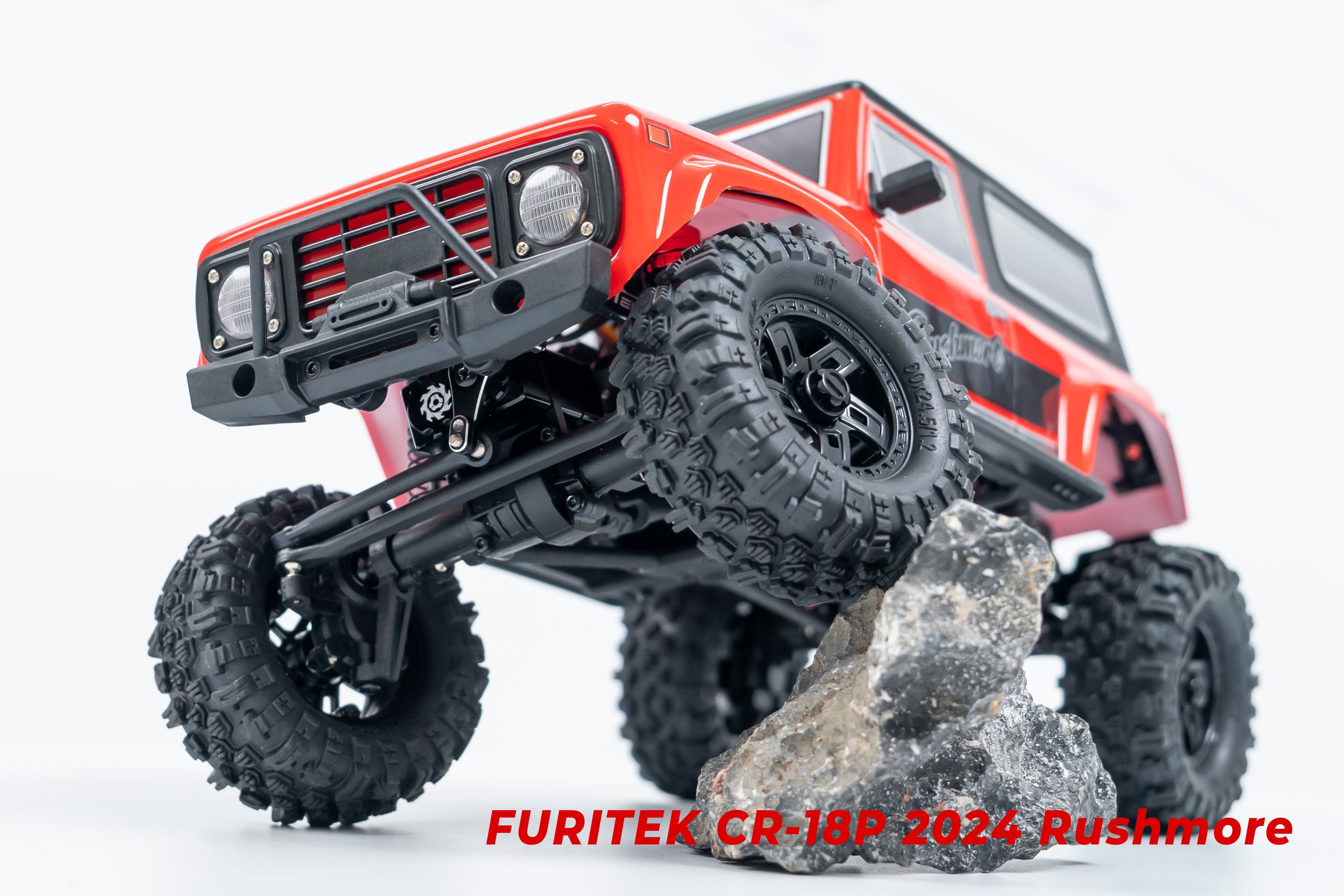

TORQ MLS-1024 Premium DIRECT-MOUNT Servo for FURITEK FX118, CR-18P 2024, HobbyPlus ARKTOS, CR-18P Pro Juice Up, CR-18P V3 Brushless, HPI Venture 18, HobbyPlus CR-18P Terranaut 8X8 (recommended for outer axles only)

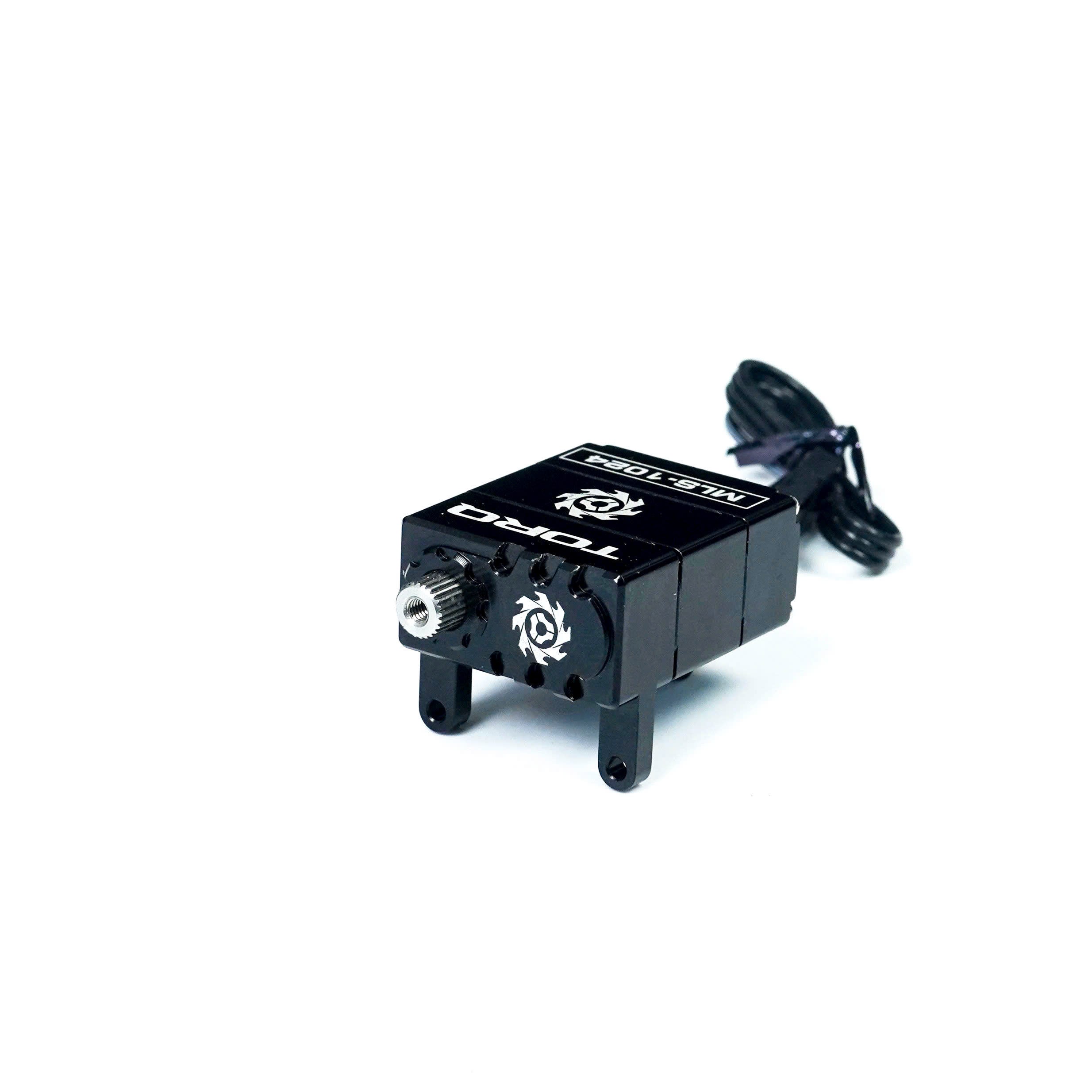

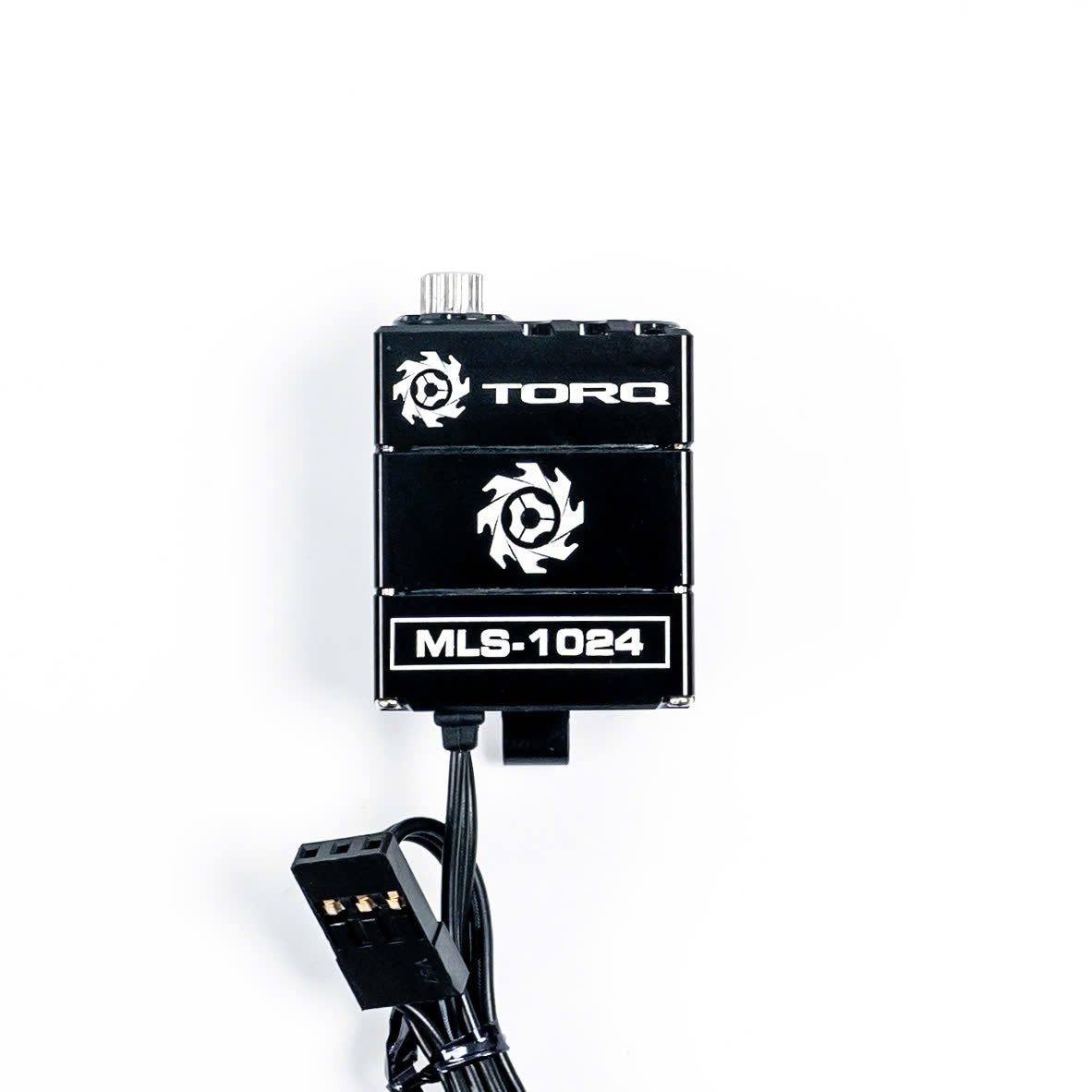

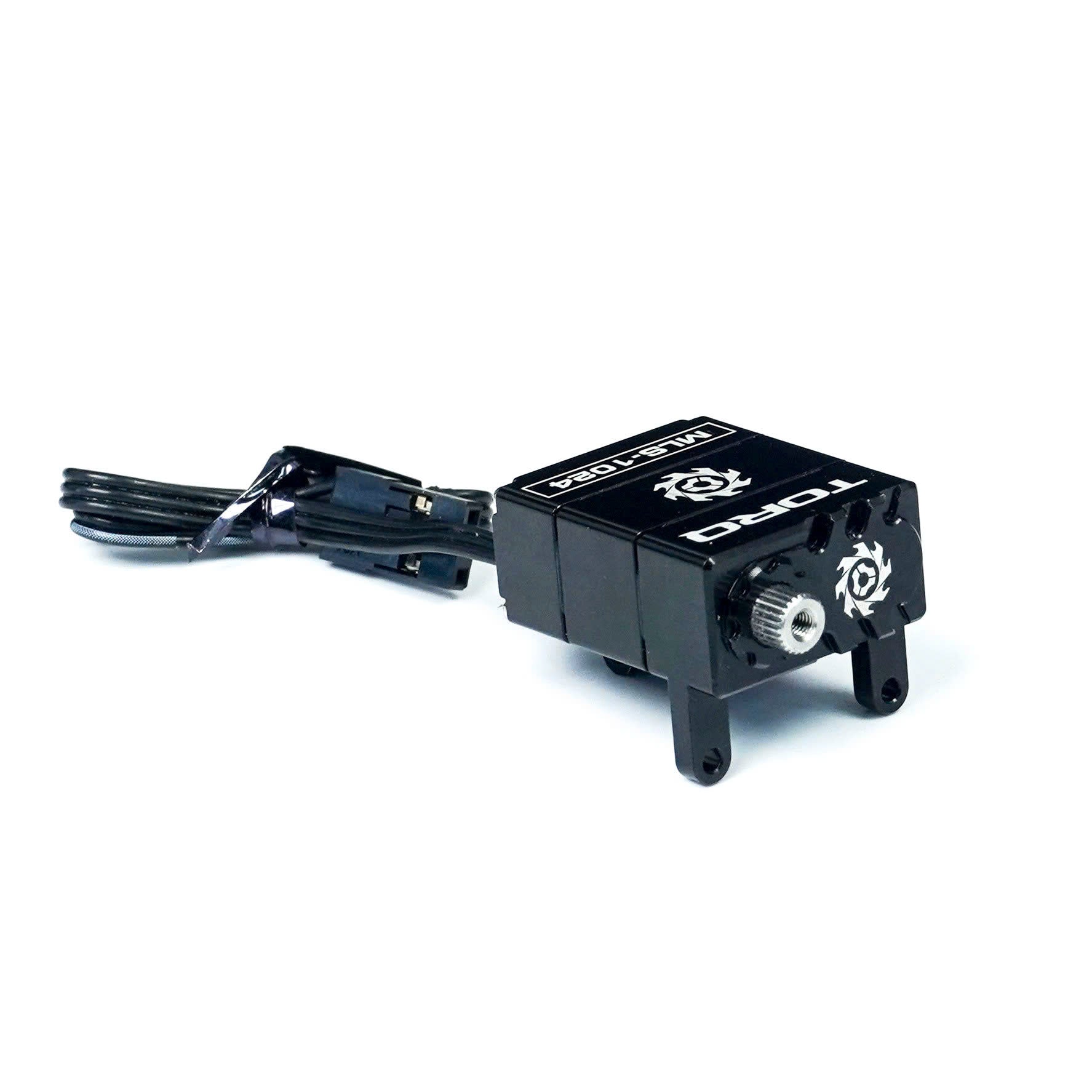

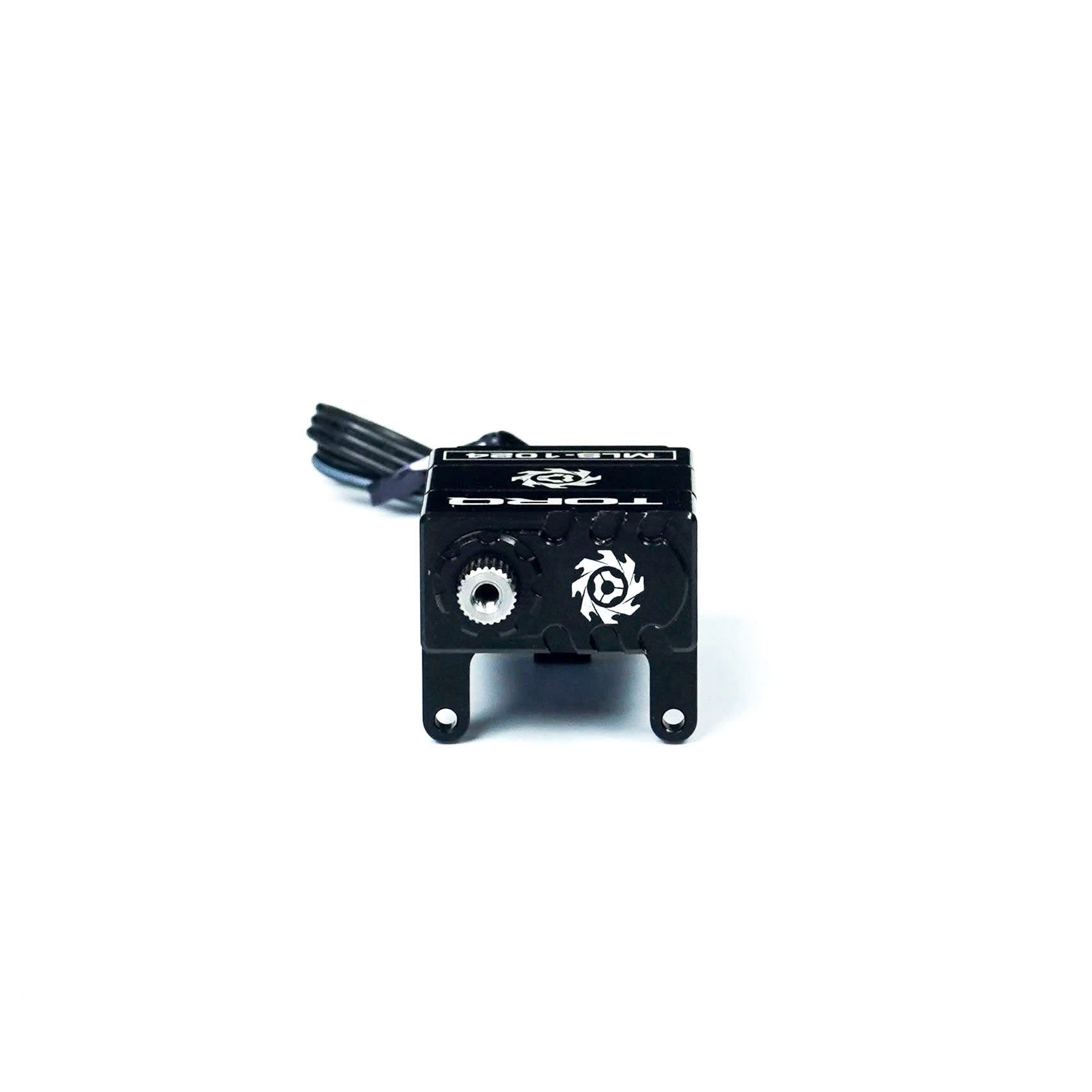

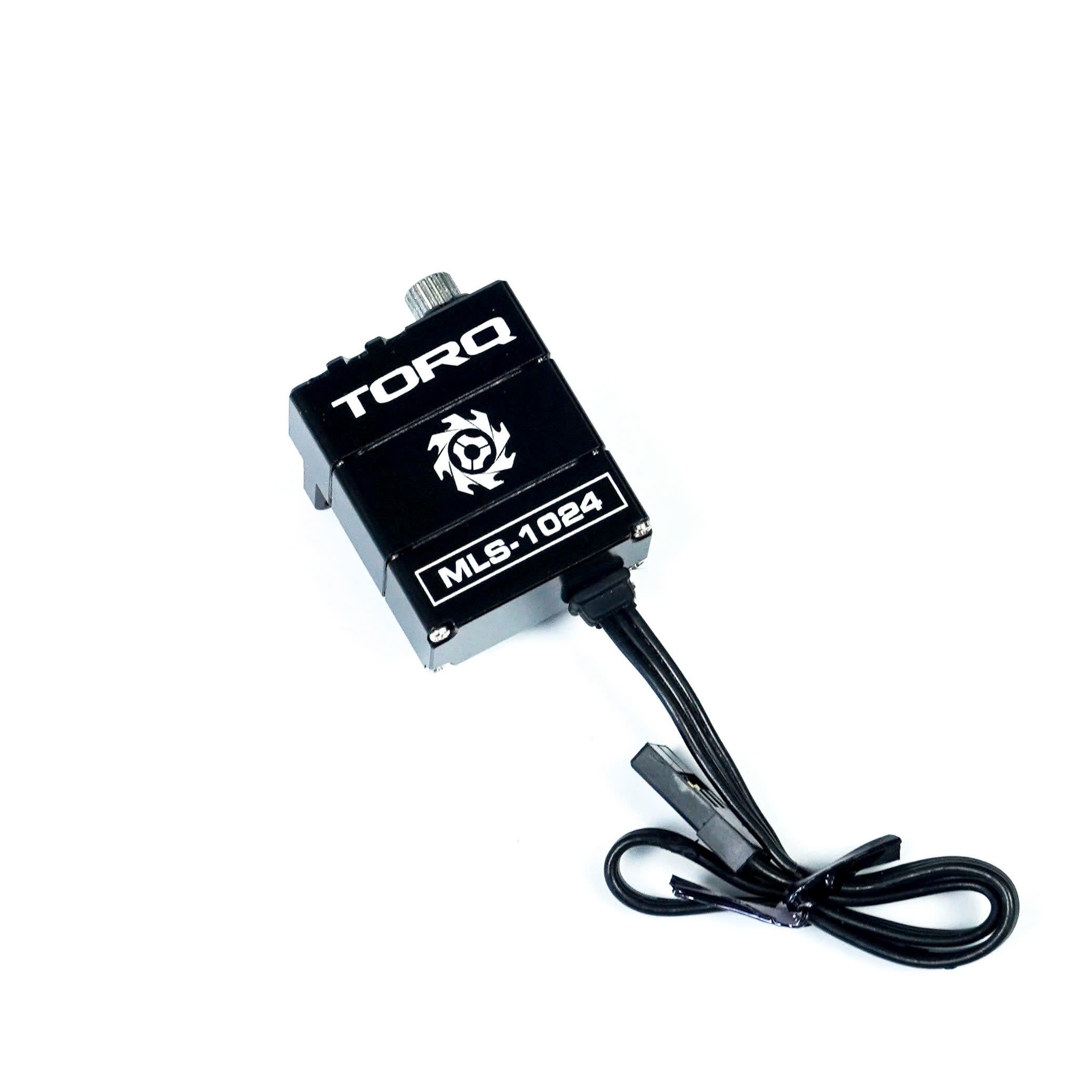

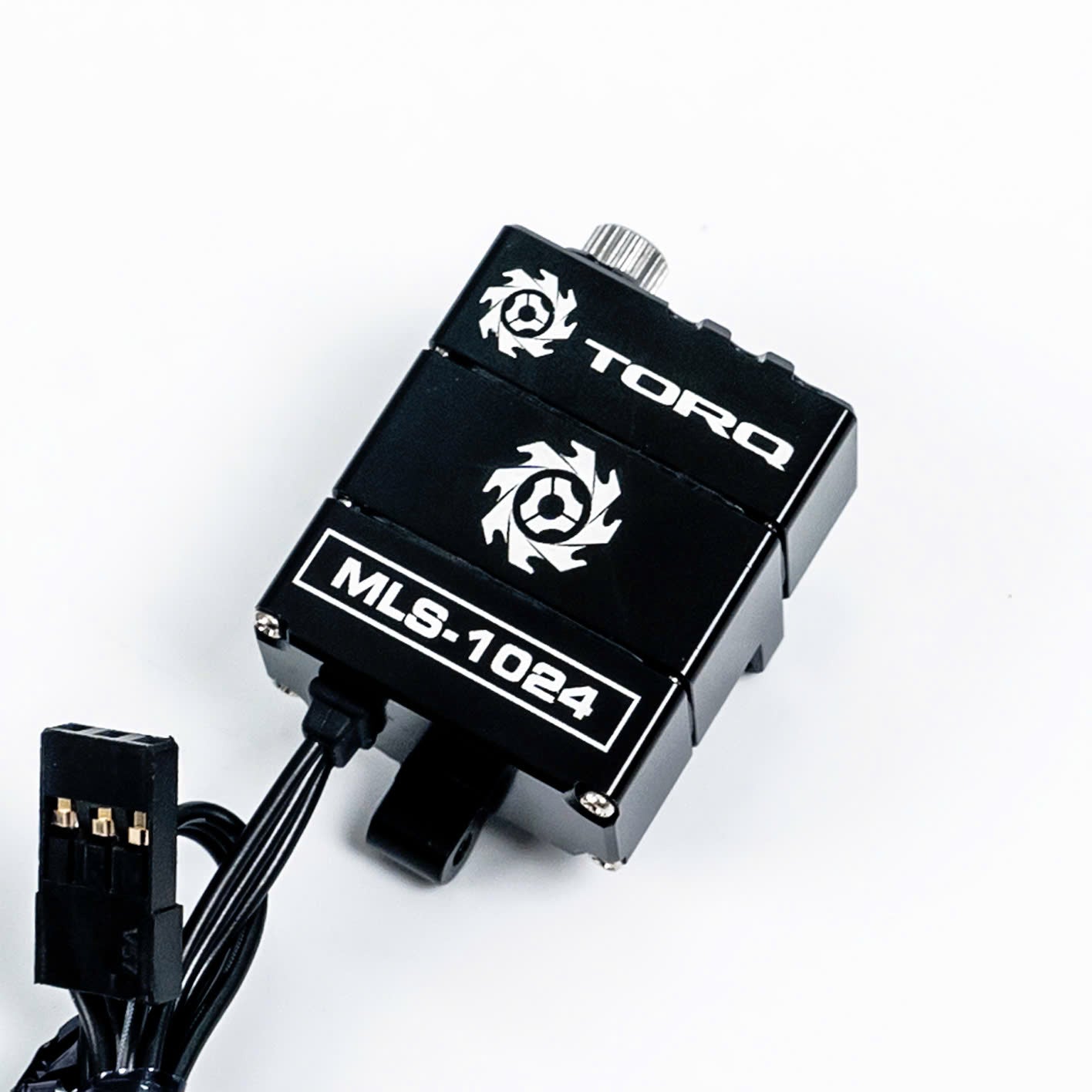

The TORQ MLS-1024 Premium DIRECT-MOUNT Servo is expertly engineered to cater to the needs of small-scale crawlers. This innovative servo design eliminates traditional servo ears, providing ample clearance between the servo and the frame rails, ensuring smooth and unobstructed suspension movement. The MLS-1024’s unique configuration also eliminates the necessity for a separate servo mount, simplifying the installation process.
Key features include rear exit wires, further ensuring that suspension travel remains unhindered. This servo is designed for ultimate clearance all around, making it a standout choice for crawler enthusiasts. The design is patent-pending, showcasing its unique and innovative nature.
FULL Precision CNC Aluminum Case with black anodizing colors.

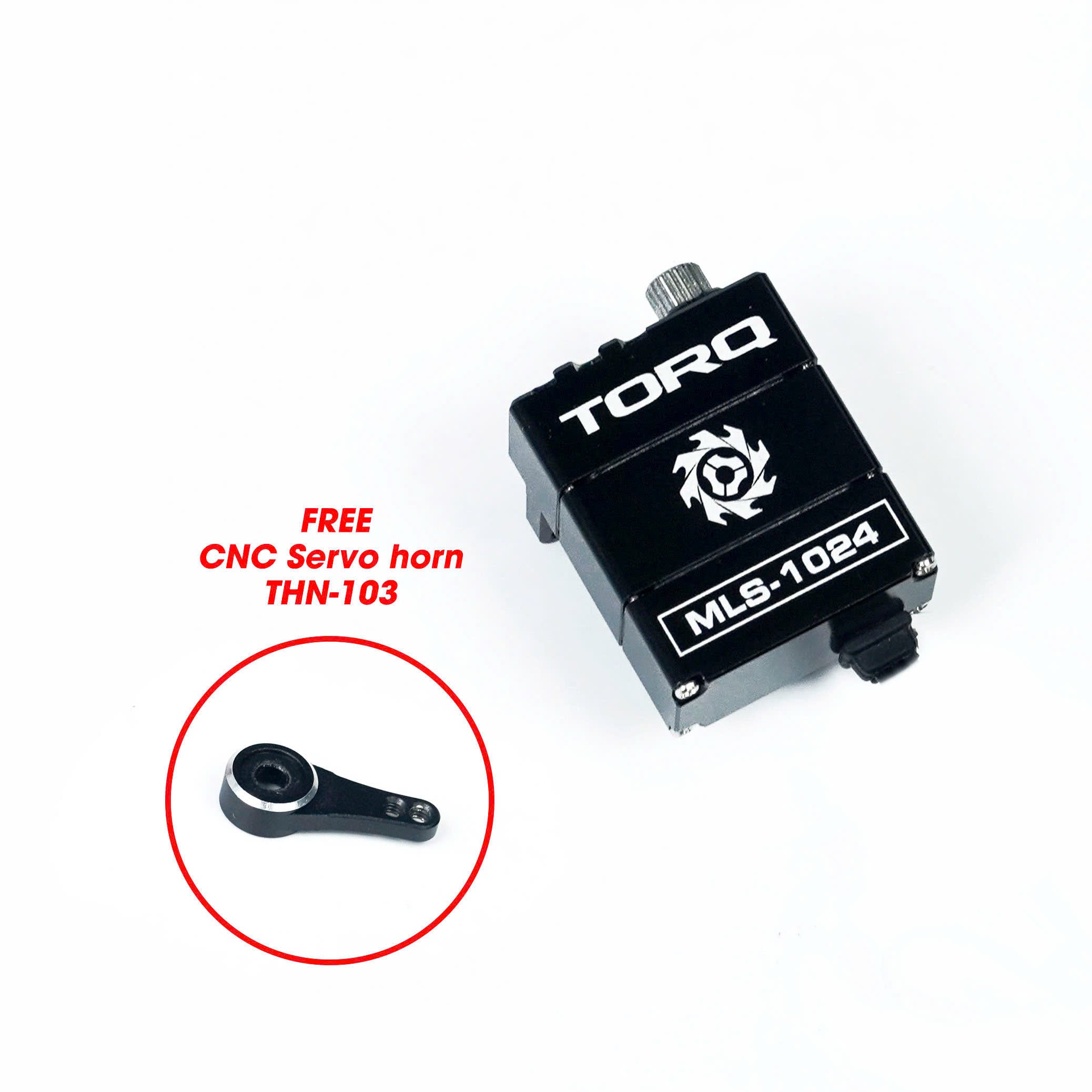

FREE CNC Servo Horn THN-103 – $14.99 Value
Important Setup Notes
-

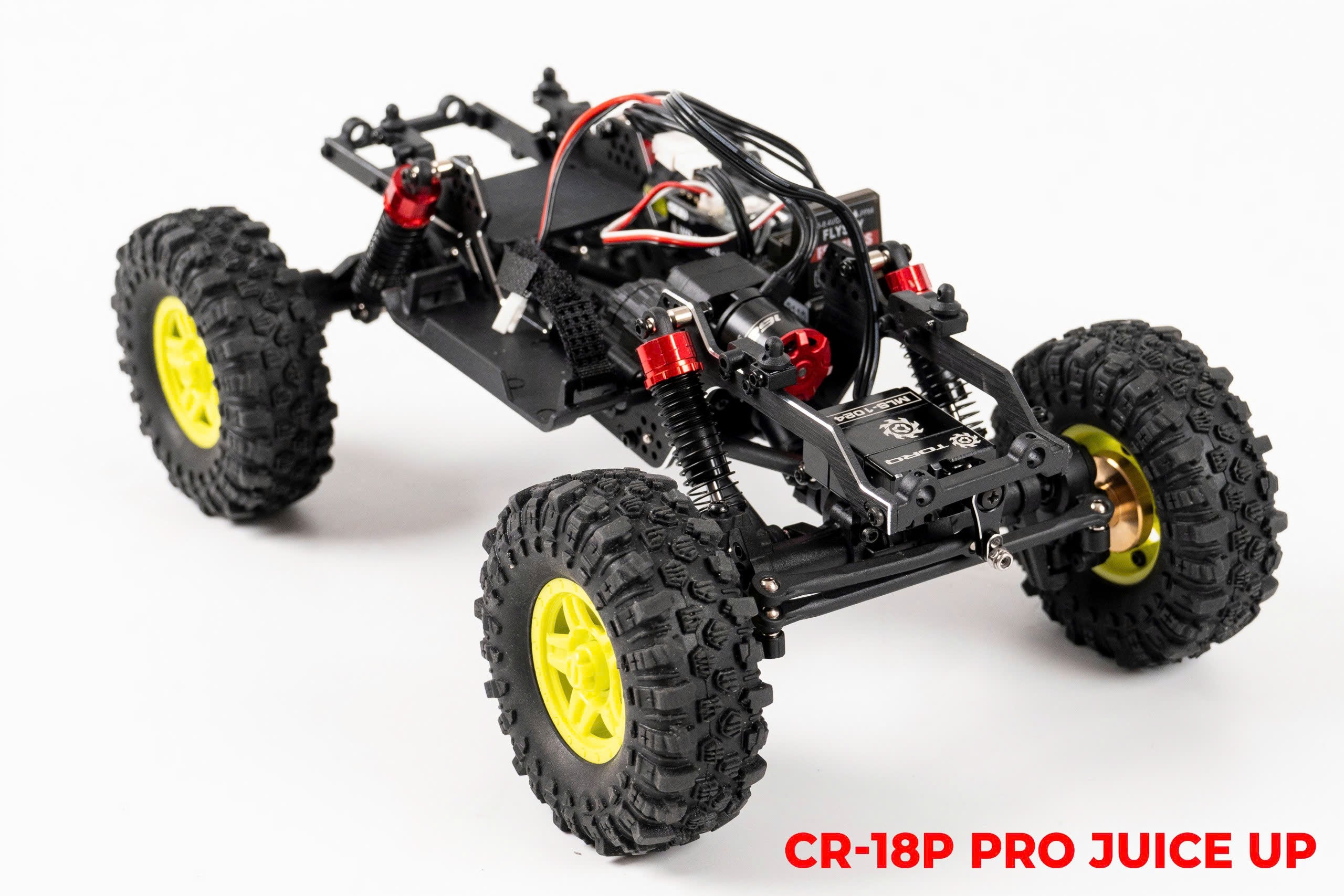

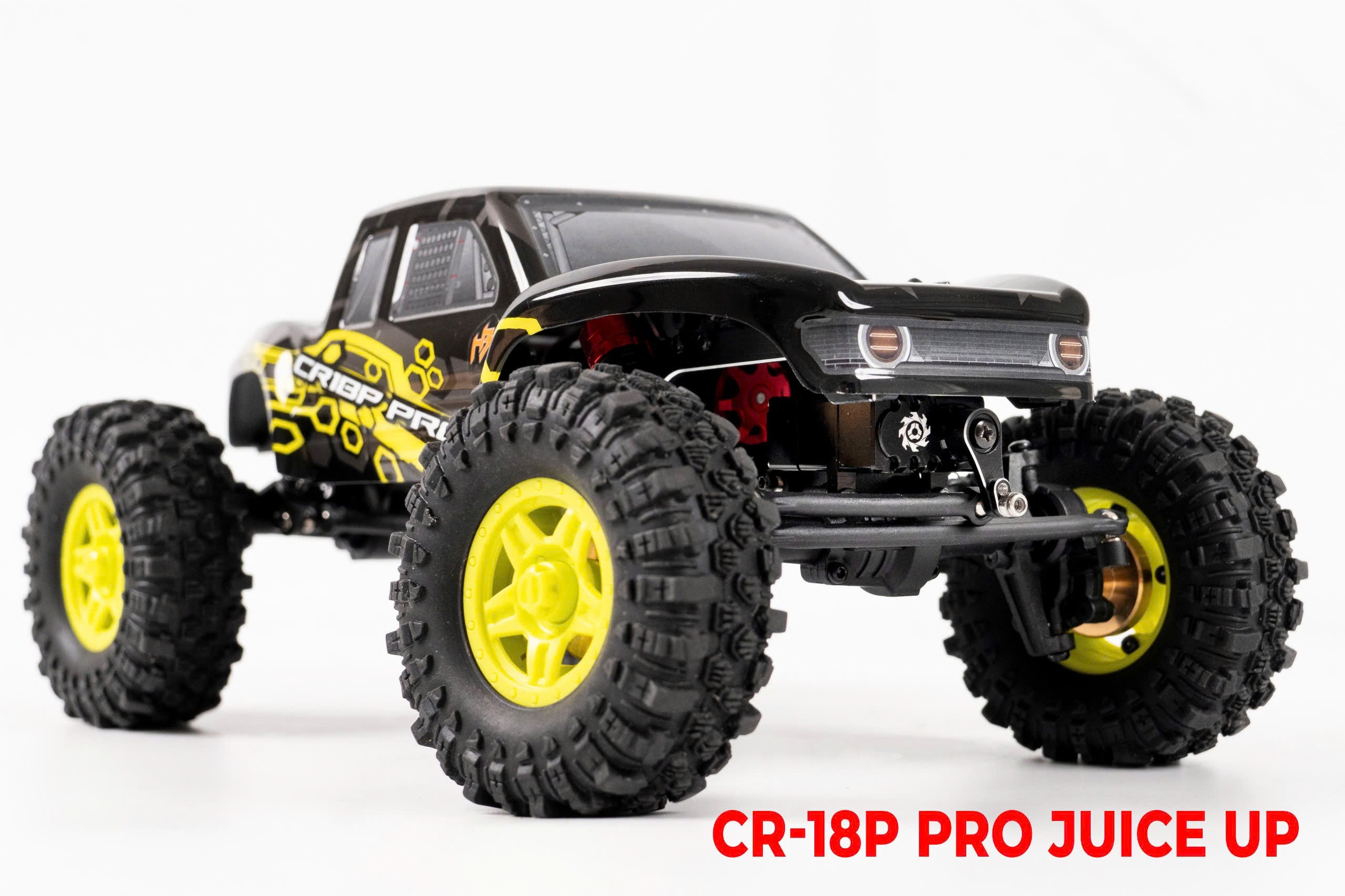

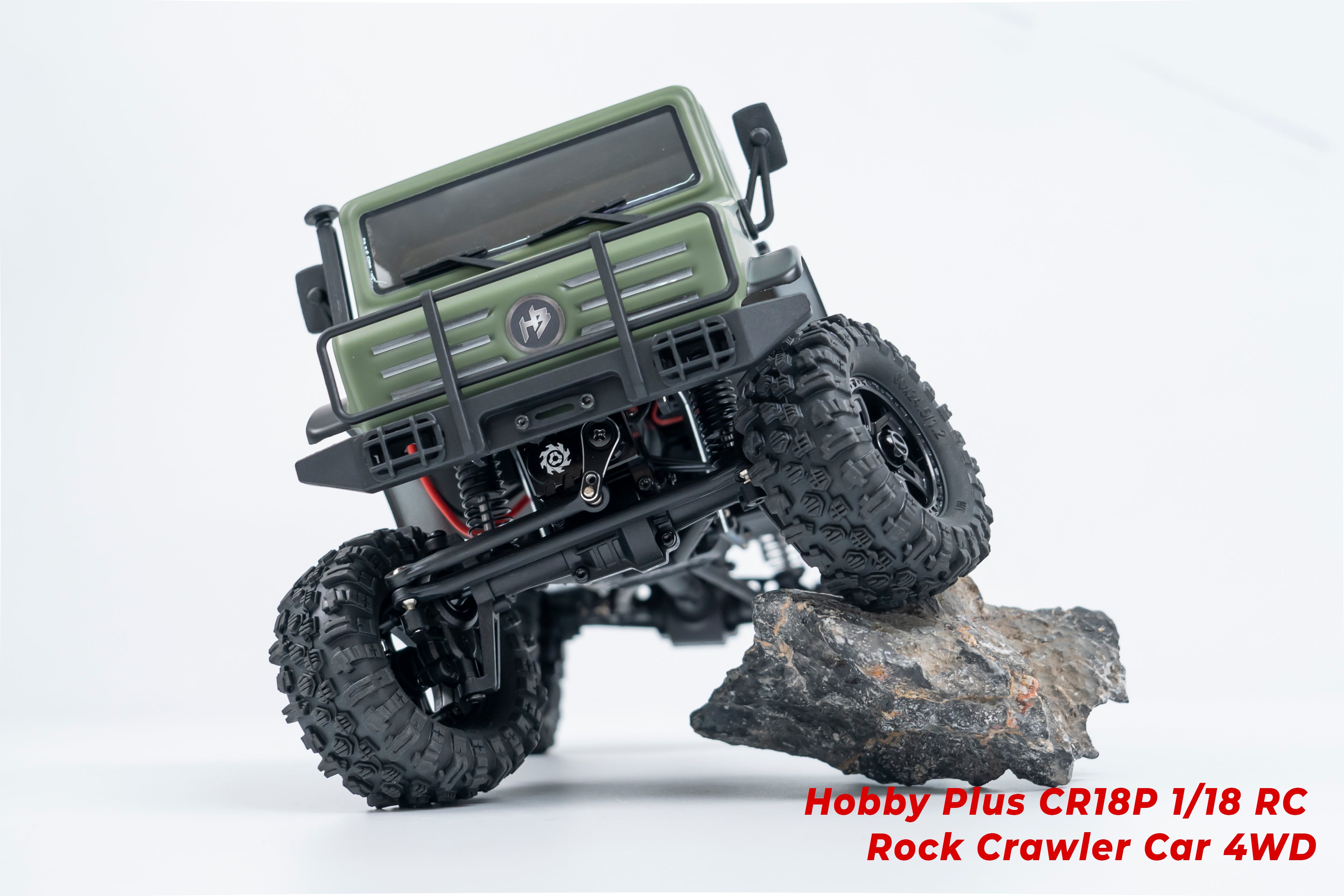

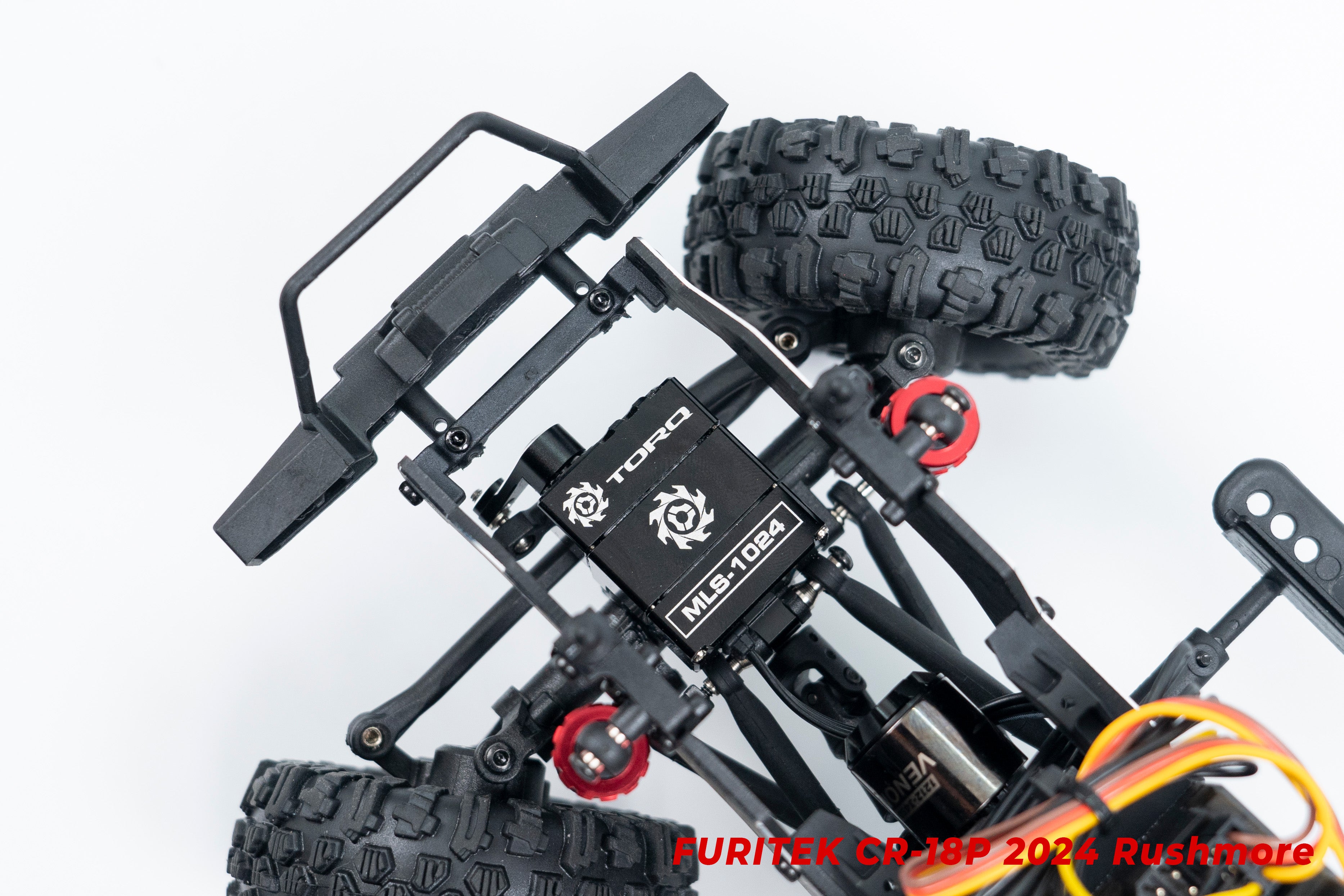

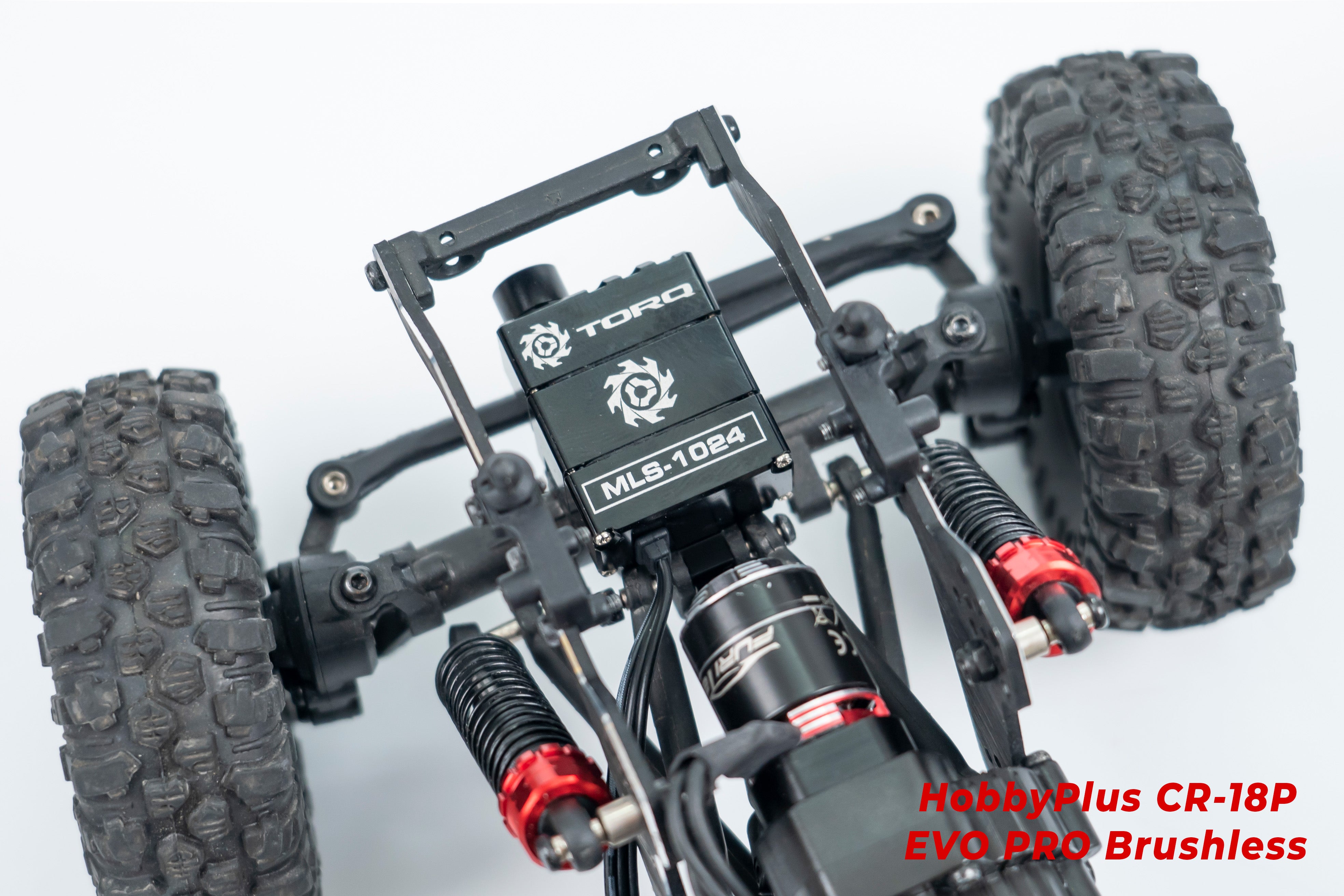

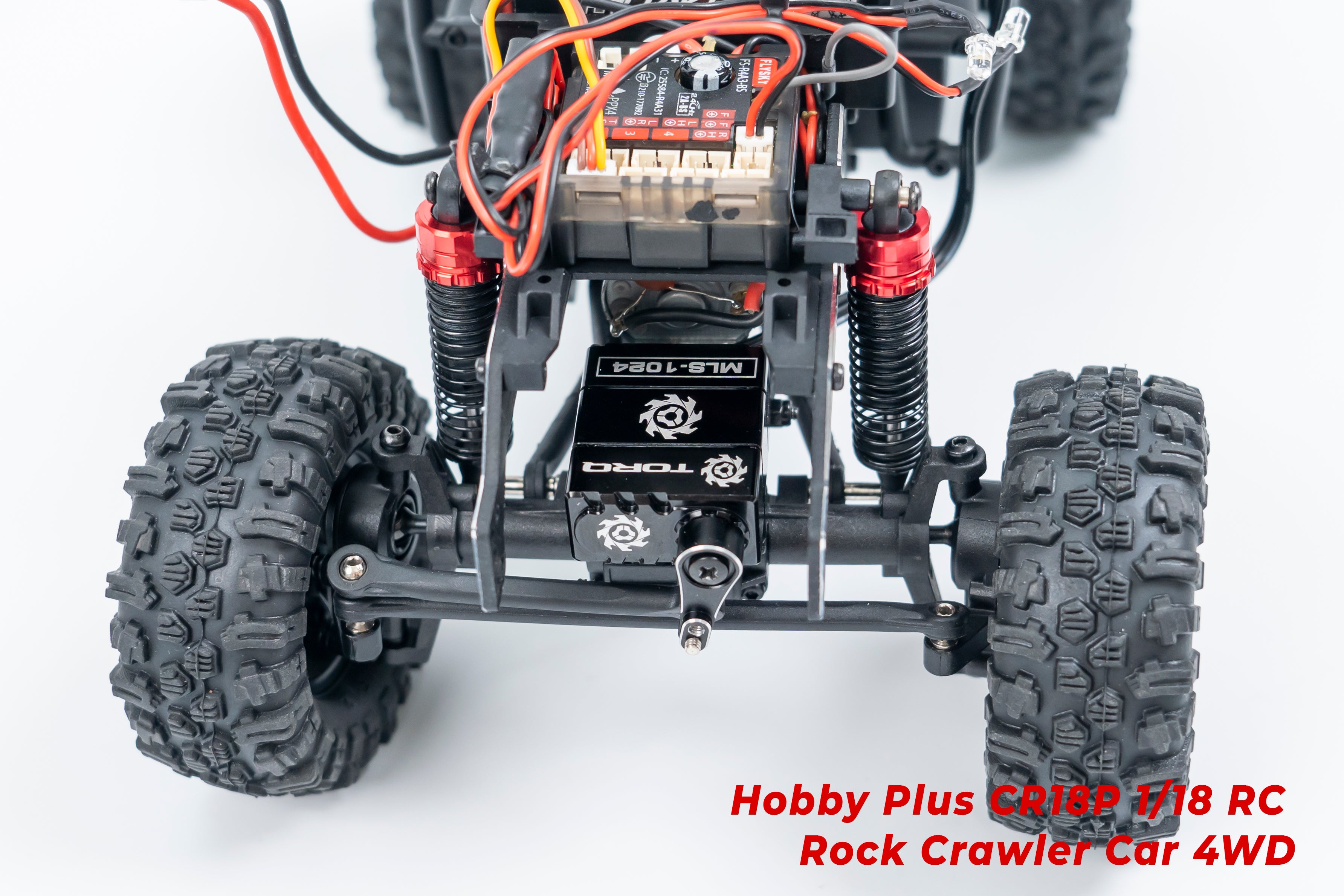

On CR18P models: When installing the MLS-1024, you need to change the servo link mounting position from the LEFT SIDE TO RIGHT SIDE. Please refer to the video clip for detailed steps and demonstration.
-

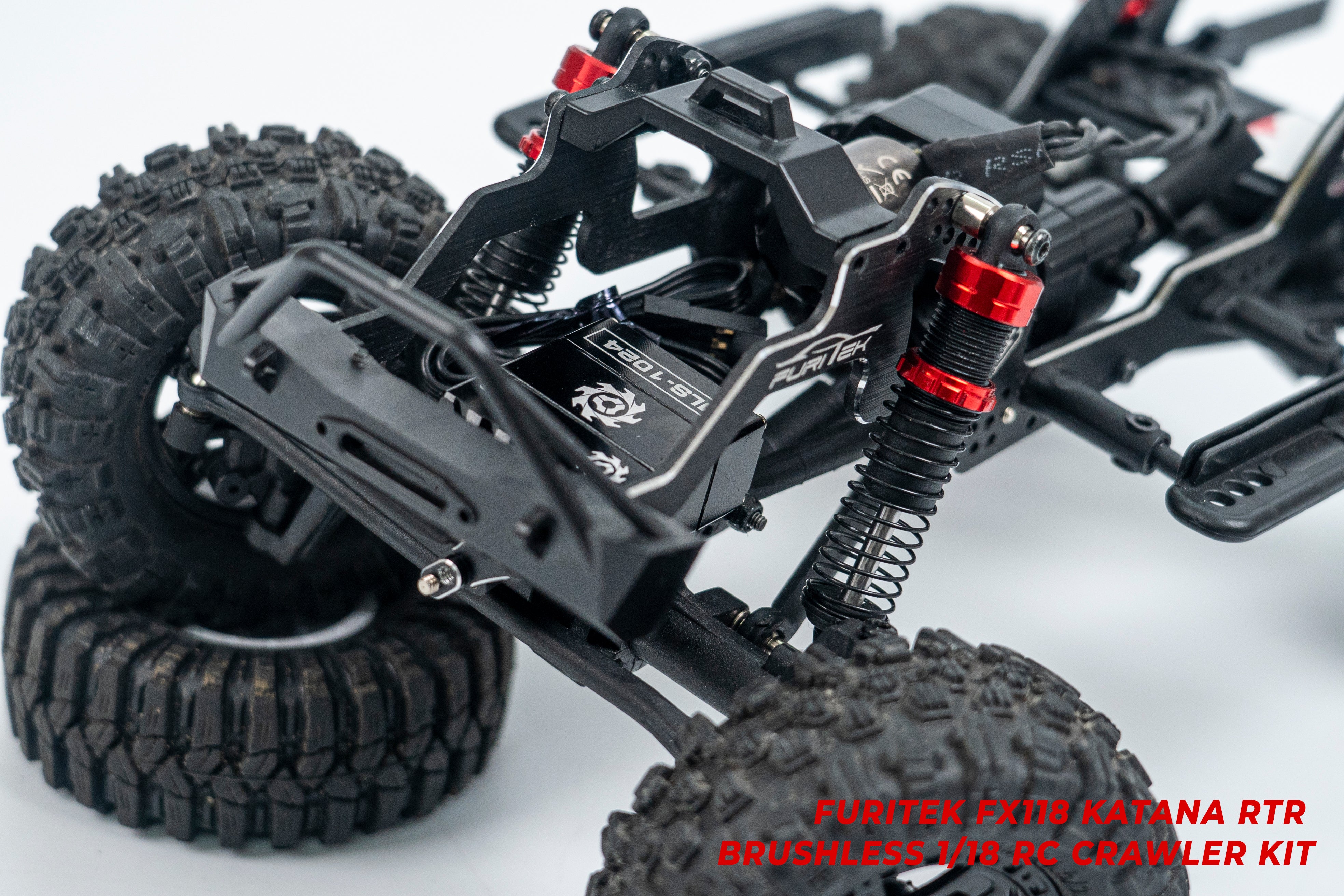

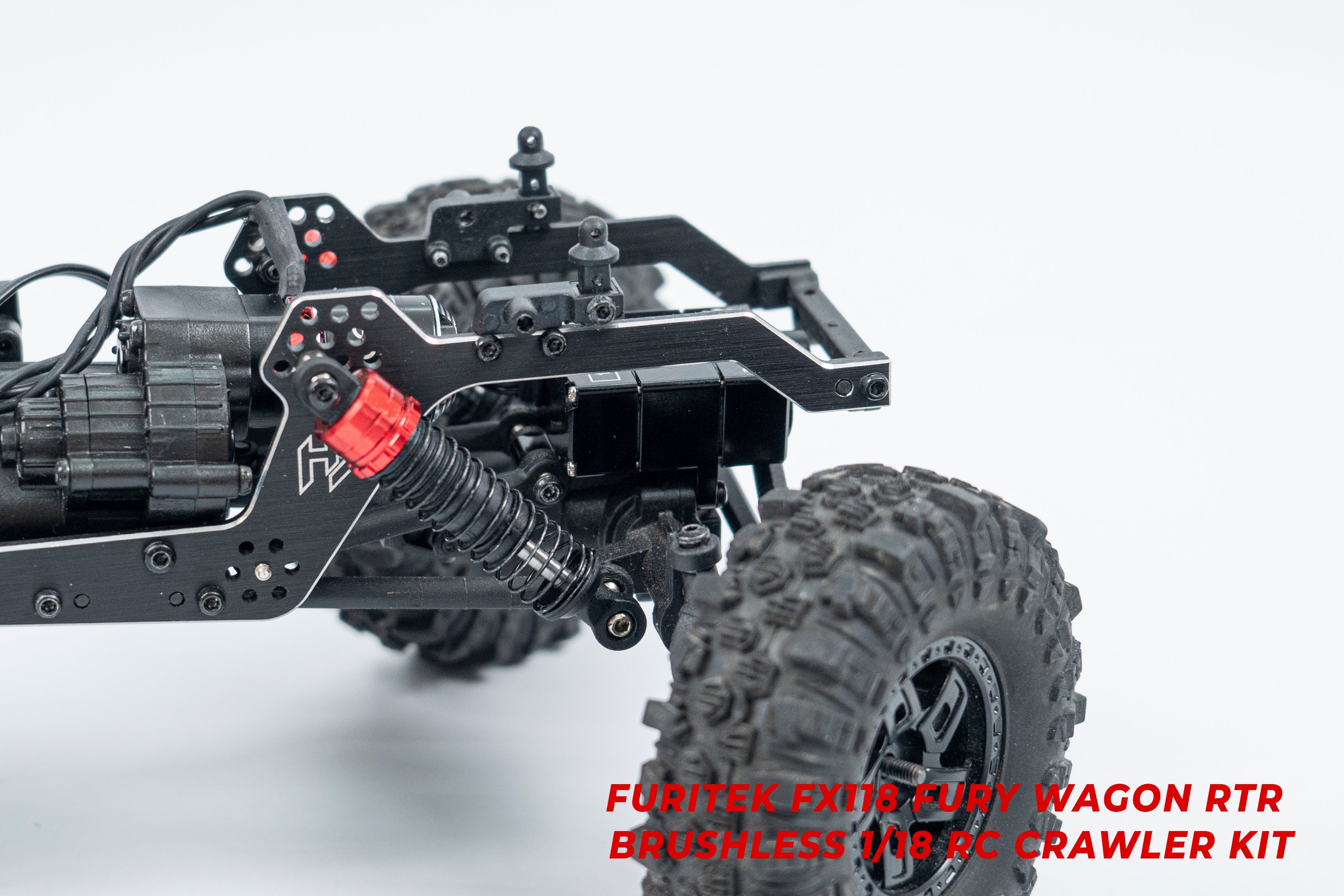

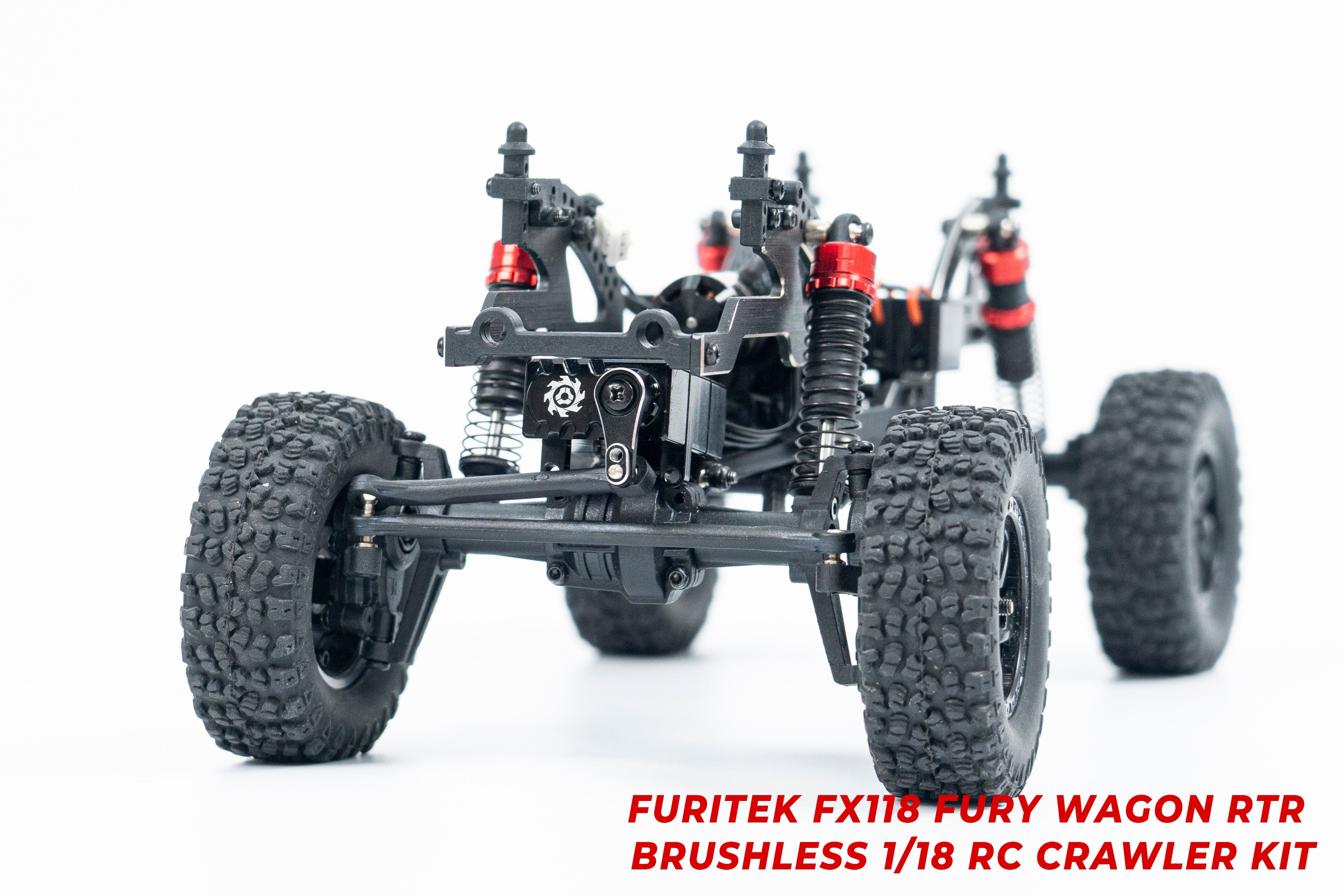

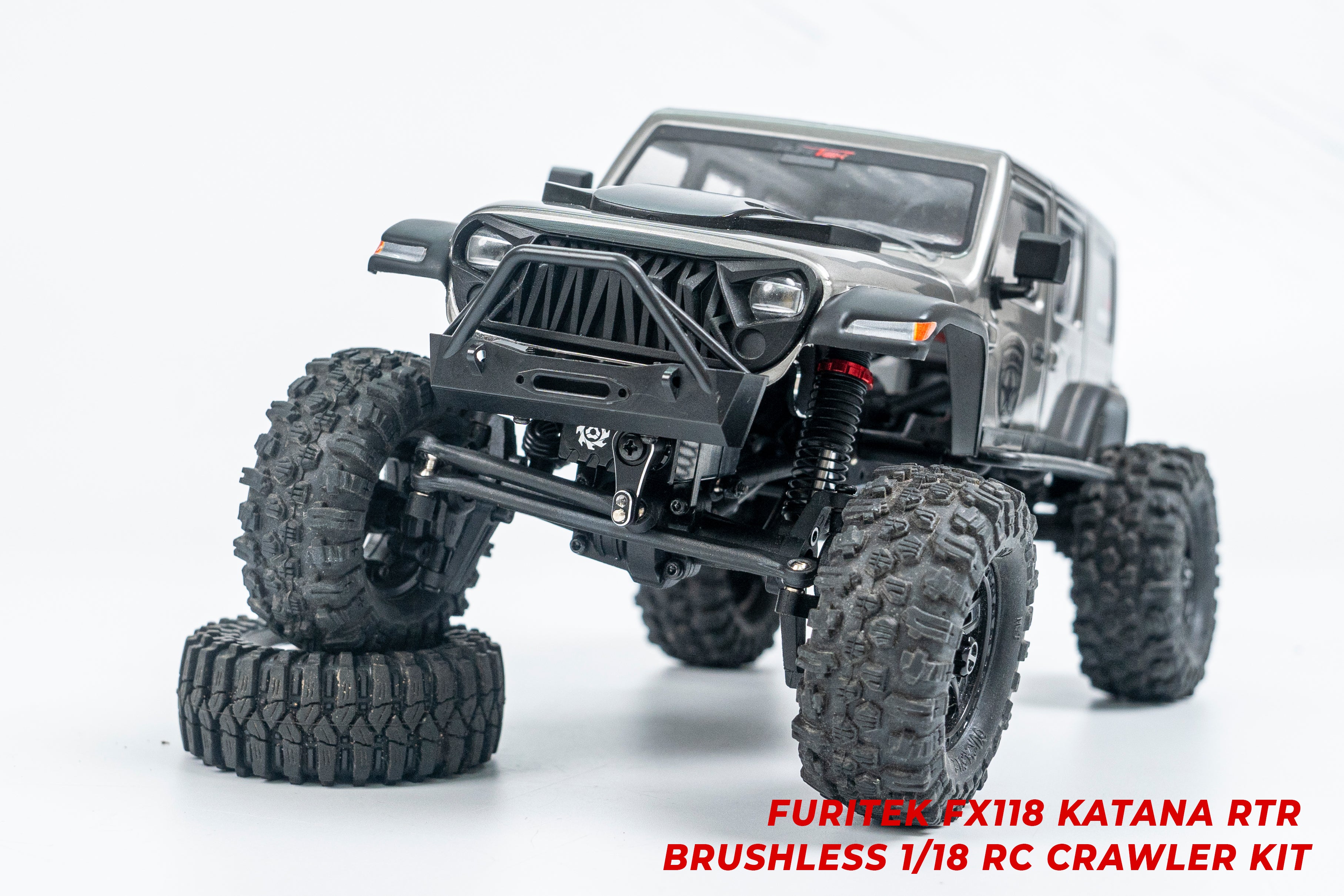

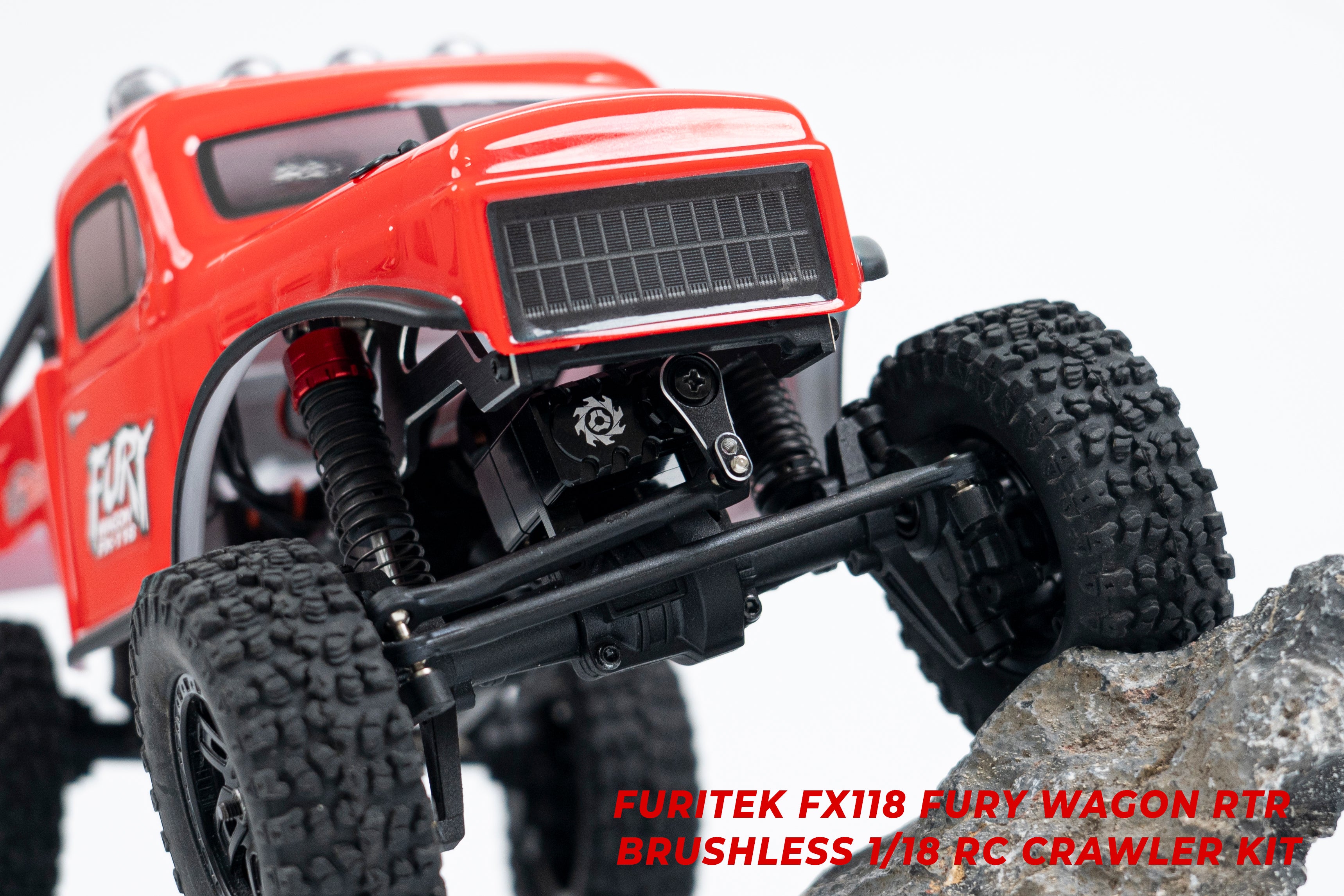

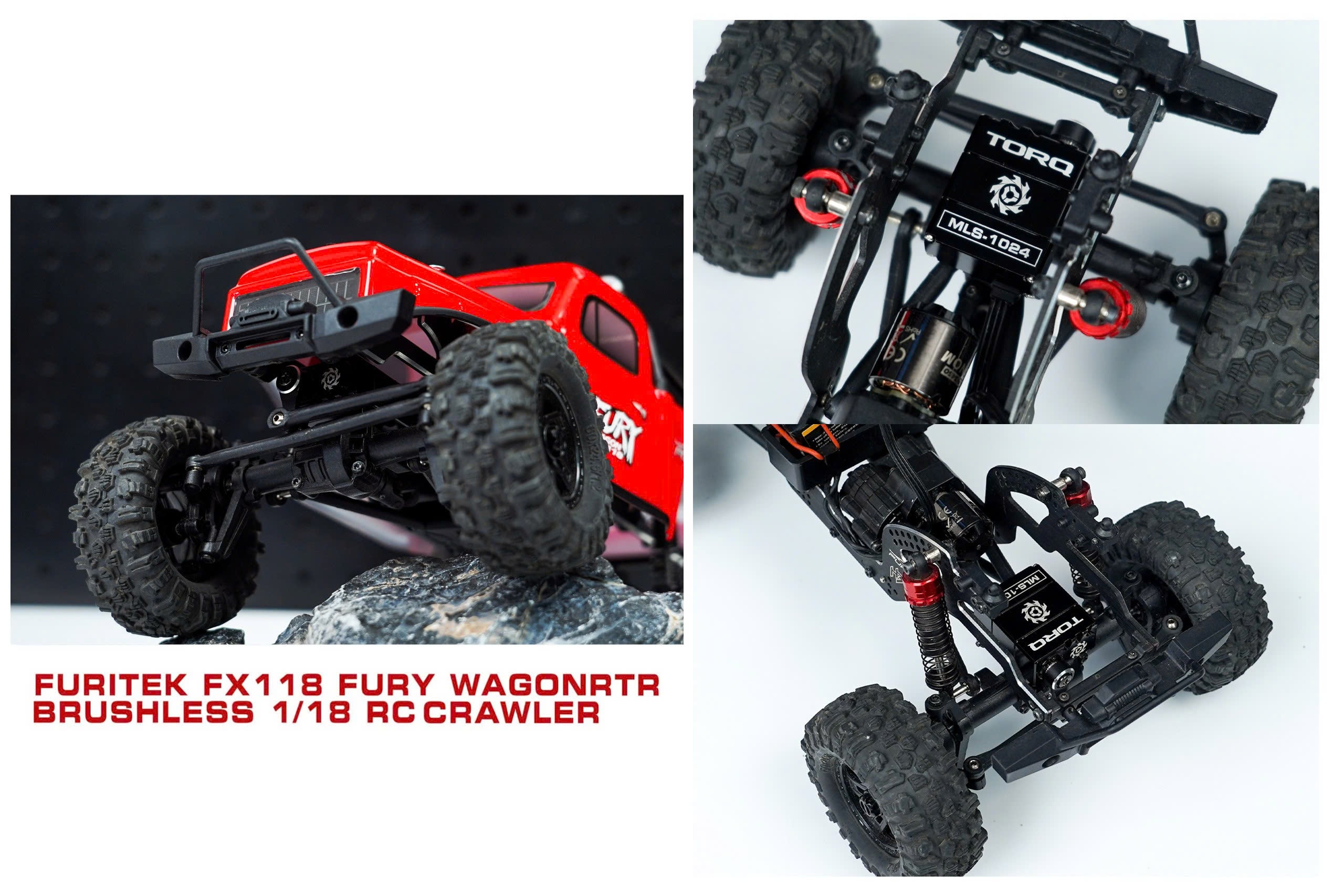

On FX118 models: Install the MLS-1024 as usual, with no changes required.
Features
- High Torque Output: Delivers powerful performance for small-scale crawlers.
- Mountless Design: Eliminates the need for a separate servo mount, reducing the overall cost.
- No Servo Ears: Provides ample clearance between the servo and frame rails, ensuring smooth suspension movement.
- Rear Exit Wires: Ensures suspension travel is unhindered for optimal performance.
- Simplified Installation: Easy to mount due to its unique design.
- Enhanced Clearance: Designed for ultimate clearance around the servo.
- CNC Servo Horn Included: Limited time offer includes a free CNC servo horn.
- Full precision CNC Metal Gears
- Full precision CNC Aluminum Case with black anodizing color.
- Waterproof
- Patent Pending: The innovative design is currently under patent protection.
Specifications
- Dead Bandwidth: 3μs
- Working Frequency: 1520μs / 330Hz
- Operating Voltage: 5.0V - 8.4V
- Motor Type: Coreless Motor
- Operating Speed:
· At 5.0V: 0.10 sec/60°
· At 6.0V: 0.09 sec/60°
· At 7.4V: 0.07 sec/60°
· At 8.4V: 0.055 sec/60°
- Stall Torque:
· At 5.0V: 9 kg-cm (125 oz-in)
· At 6.0V: 11.5 kg-cm (160 oz-in)
· At 7.4V: 12.8 kg-cm (177 oz-in)
· At 8.4V: 14.5 kg-cm (200 oz-in)
- Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches)
- Weight: 22.0 g (0.78 oz)
- Connector Wire Length: JR 170 mm (6.7 inches)
- Output Gear Spline: 25T
Benefits
- Space Efficiency: Compact design fits seamlessly within small-scale crawler setups.
- Cost Savings: No need to purchase additional CNC servo mounts and CNC servo arms.
- Performance Enhancement: Unhindered suspension movement leads to better crawler performance.
- Ease of Installation: Simplifies the mounting process, saving time and effort.
- The TORQ MLS-1024 Premium Torque Micro Servo is an excellent choice for crawler enthusiasts looking for a high-performance, easy-to-install, and cost-effective servo solution.
| Vendor: | TORQ Servos |
| SKU: | MLS-1024 |
| Barcode: | 769923276632 |
| Availability: | In Stock |
| Product Type: | Electronics |
| Weight: | 0.25 lb |
You may also like
Recently Viewed Products
J
Perfect for the Terranaut too! I only found out these would work for the front and rear axles of the Terranaut via a product photo on the Terranaut product page. Direct RC update this Torq page or title to include the Terranaut!
M

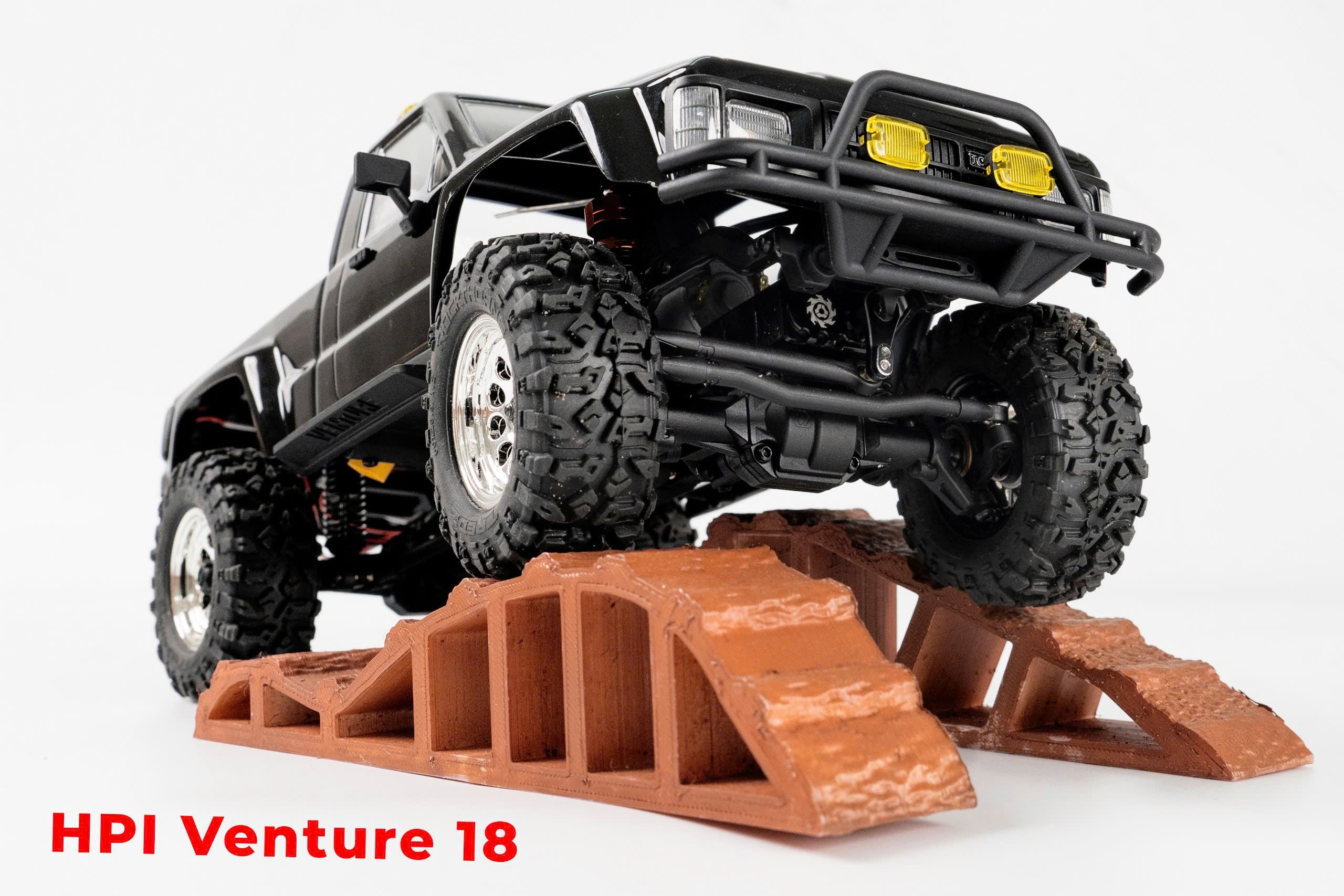

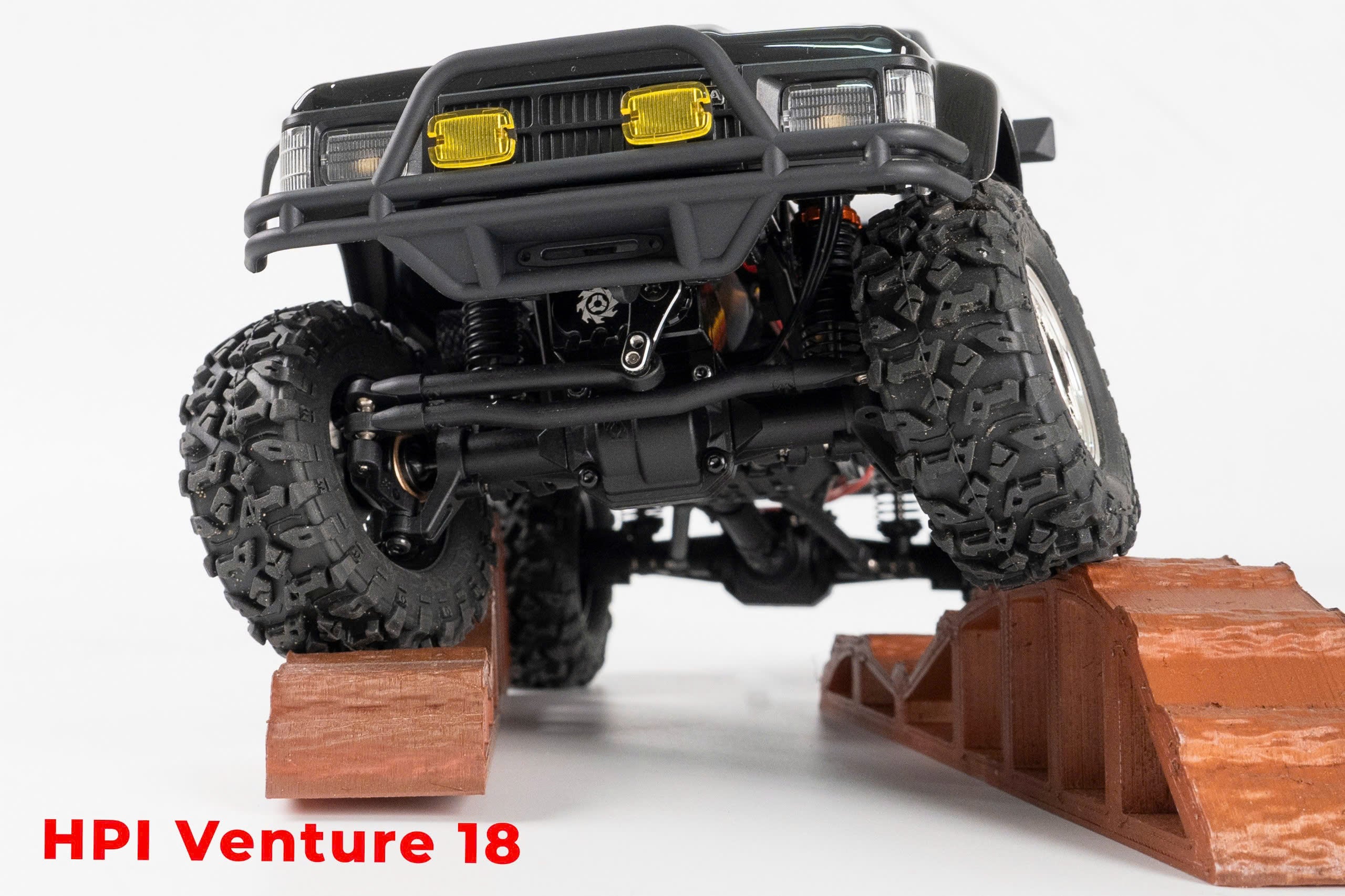

Great steering servo, small and easy to install [ also have #1011 FOR MY ASSCENT 18] this one in venture 18. And thinking one more for my Asktos 6x6.
N
Awesome piece of kit for the CR18P, definitely improves steering power. I did have to upgrade my esc in the V3 T-Hunter to get the ability to change BEC to 7.4v though, which was a bummer - but not this parts fault.
W
These have been my go to servos ever since my first install into my fcx24m…
Now they are in everything I buy! The lay down design over axle install (with no mount) makes it perfect for full articulation & no hang ups! Very strong & responsive at lower voltages! No over heating at higher ones.
Do yourself a favor & try one - you got nothing to lose & everything to gain.
N
This servo is fast and plenty powerful, my only complaint is how it’s shaped differently which makes you steering link sit all weird in order for it not to hit. If I put it behind the horn it hits the servo itself when it turns. I’m not sure if this could be fixed with a different shaped horn?it sucks I bought two
K
This is a must-have upgrade for your Hobby Plus Arktos or CR-18 RC vehicles.
C
This little thing is a space saver without the loss of power and agility! A must have for any serious or beginner builder!
R
Just pay for the shipping! Ordered the wrong part and they were quick to instruct me on how to return it. I just had to pay for the shipping which is fine. Very fast turnaround. I will be buying more parts for Helidirect!
D
Fits perfectly with way more speed than stock. Original order came in defective. Helidirect was quick to resolve the issue
E
The servo is quick, strong and responsive. The fit on the CR18P EVO V2 is great except for the servo horn. That's where it's tight, causing a little drag with the linkage. It works, but not ideal, I may have to try shimming the horn with a washer to give it some clearence.
d
Works as described.
Fast shipping.
Good seller
R
Good upgrade for the CR-18 Arktos 6X6, doesn’t need an extension cable as the Arktos already has one.
S
I did use the aluminum links yet. The servo and servo mount are awesome.
K
looks nice, mounts without issue. died after only being used 3 or 4 times less than a month after purchasing it.
e
Everything perfecr
B
Great speed and torque and easy to install.
B
It can’t find center and it constantly shakes
E
Very easy installation, heavier than the stock servo, stronger, faster, quieter... It's worth it if you're looking for a big upgrade!
s
I installed it and it failed wright out of the box. Maybe I got a defective one. One thing is it doesn't line up with the steering linkage, like the stock one did.
R
I highly recommend this servo it’s a direct mount servo so no servo mount needed it’s fast and strong great upgrade from stock
B
Great fit and easy install with Great steering torque.
B
Good quality, easy to mount. Works well.
K
Servo works as it should. Smooth and easy. Lots more power than the stock servo. Will be buying more for other RC trucks!
M
Awesome upgrade for the Artkos, fast ship as usual! Keep up the good wrk.
A
Perfect fit, not too heavy. Powerful and dependable..
