TORQ Servo Combo for Atom/Lancer Jet

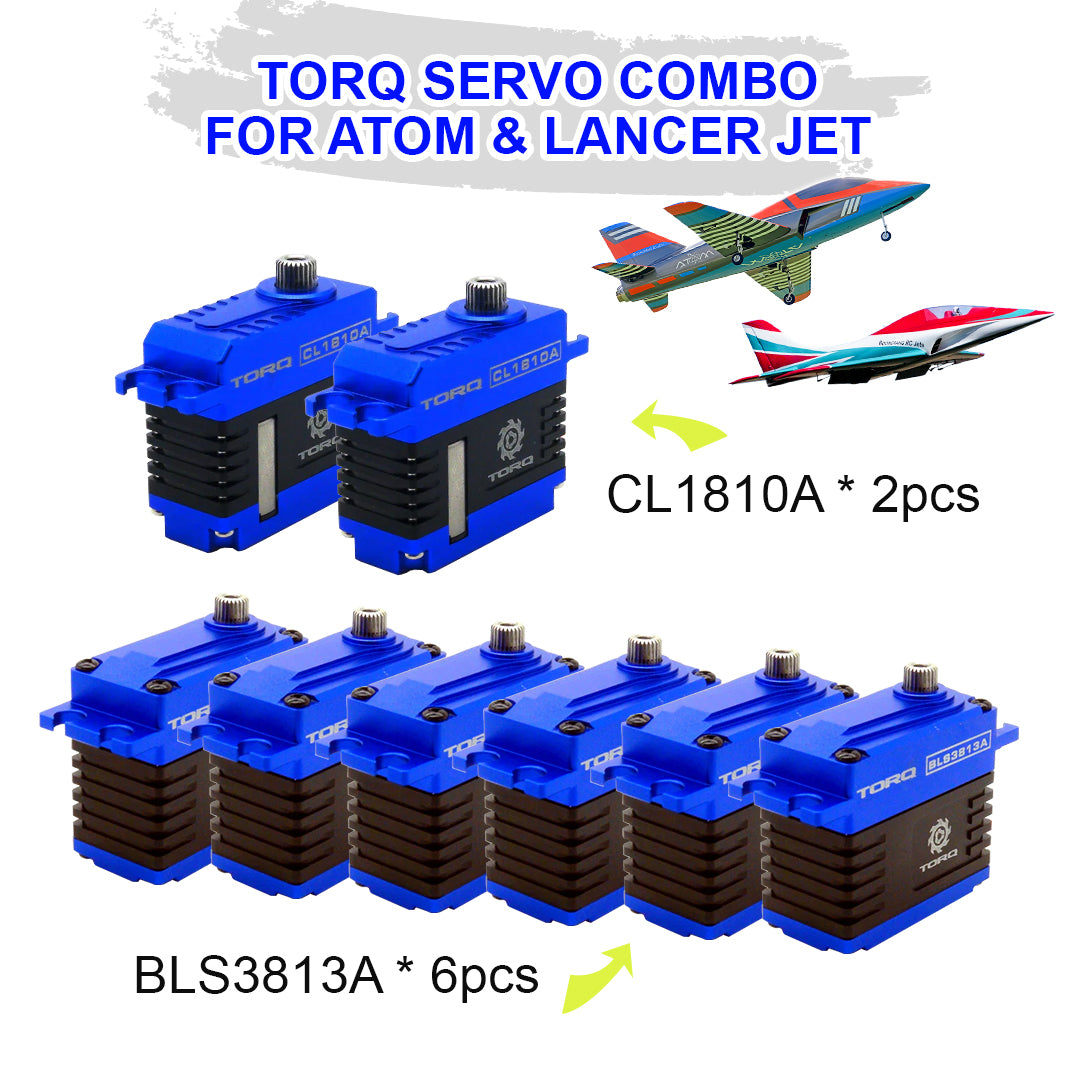

Experience unparalleled precision and power with the TORQ Servo Combo, designed specifically for Atom/Lancer Jet enthusiasts. This combo includes 2pcs*TORQ CL1810A servos and 6pcs*TORQ BLS3813A servos, ensuring optimal performance for your high-speed jet.

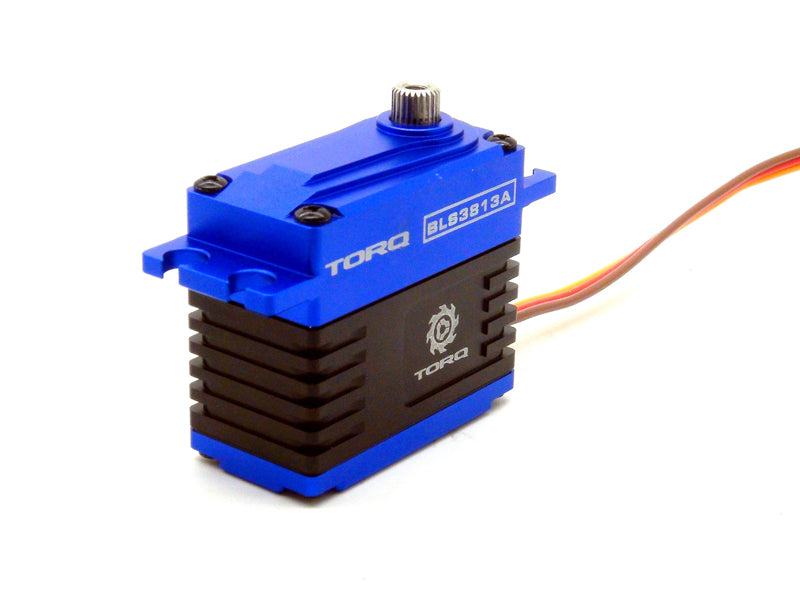

1. TORQ BLS3813A Brushless High Torque Metal Gear Digital Servo (6pcs)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Torque: 30Kg.cm@6.0V / 38Kg.cm@7.4V / 43Kg.cm@8.4V
Speed: 0.15sec/60°@6.0V / 0.13sec/60°@7.4V / 0.12sec/60°@8.4V
Signal: 900-2100Hz
Motor Type: Brushless
Gear Type: Metal
Operating Temperature: -20℃~55℃
Size: 40.5*20*38mm

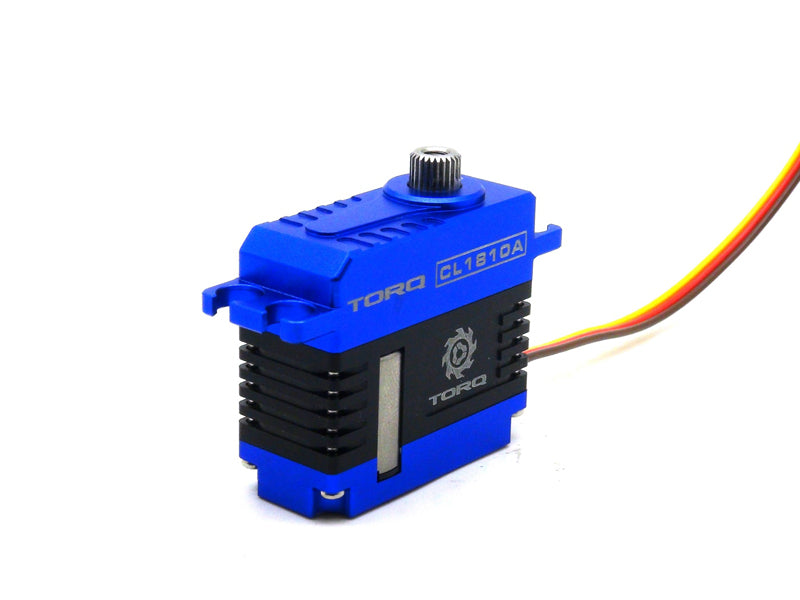

2. TORQ CL1810A Coreless High Torque Metal Gear Digital Servo (2pcs)
Case Material: Aluminum Alloy
Motor Type: Coreless
Gear Set Material: Phosphor Bronze + Hardened Steel
Position Sensor: Potentionmeter
Dimension: 35.5x15x32.5mm
Weight: 42g
Operation Voltage(rated): 7.4V
Operation Voltage Range: DC 6.0V - 8.4V
Torque: 15Kg.cm@6.0V, 18Kg.cm@7.4V, 20Kg.cm@8.4V
Speed: 0.14sec/60°@6.0V, 0.12sec/60°@7.4V, 0.10sec/60°@8.4V
Travel Angle: ±50° when 1000-2000us
Operating Temperature Range: -10℃ ~ +65℃
