TORQ Servo Combo for Turbinator 2
$932.00
$0.00( / )

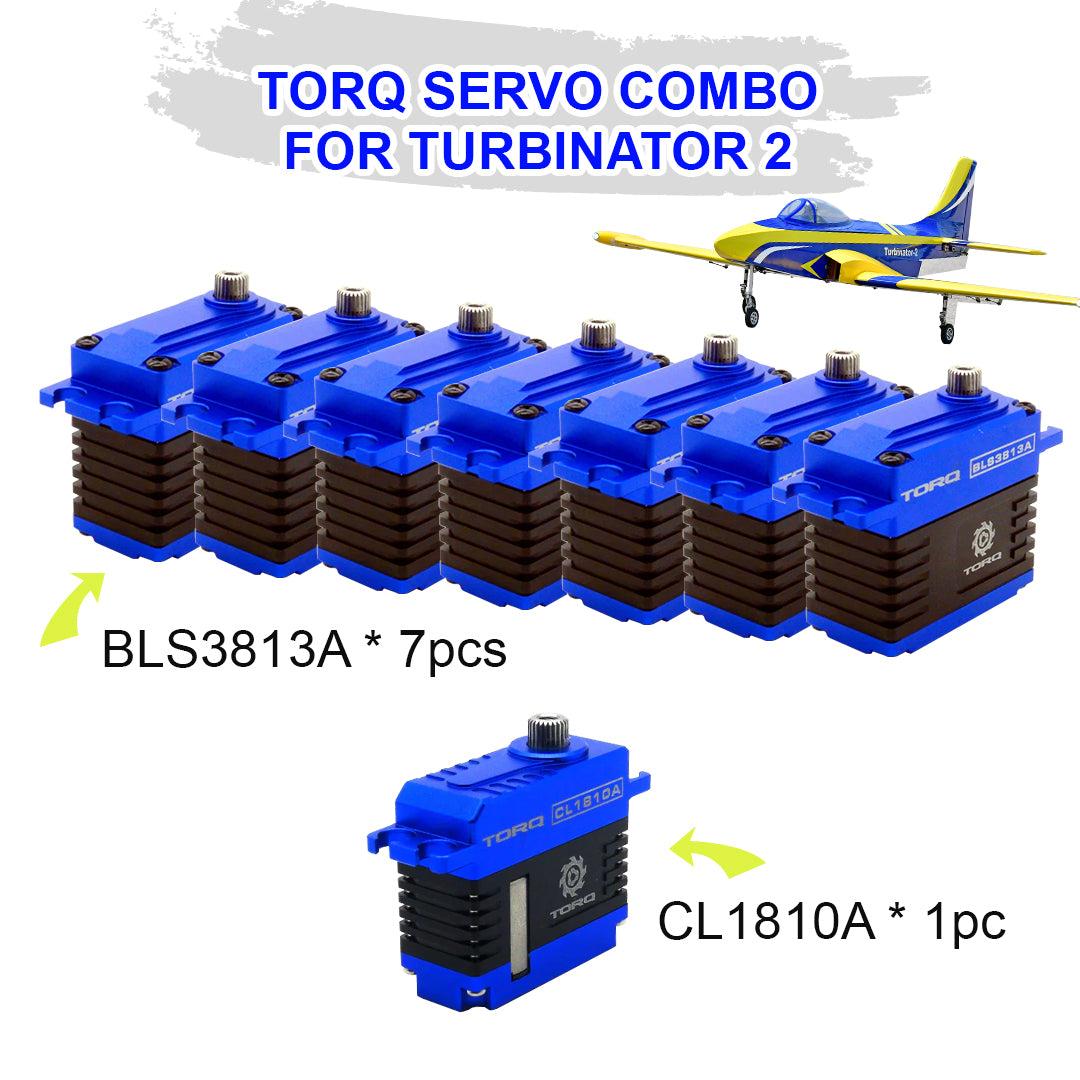

TORQ Servo Combo for Turbinator 2 Jet Experience unparalleled precision and power with the TORQ Servo Combo, designed specifically for Turbinator 2 Jet enthusiasts. This combo includes 7pcs*TORQ BLS3813A servos and 1pcs*TORQ CL1810A, ensuring optimal performance for your high-speed jet. 1. TORQ BLS3813A Brushless High Torque Metal Gear Digital Servo...
TORQ Servo Combo for Turbinator 2 Jet
Experience unparalleled precision and power with the TORQ Servo Combo, designed specifically for Turbinator 2 Jet enthusiasts. This combo includes 7pcs*TORQ BLS3813A servos and 1pcs*TORQ CL1810A, ensuring optimal performance for your high-speed jet.

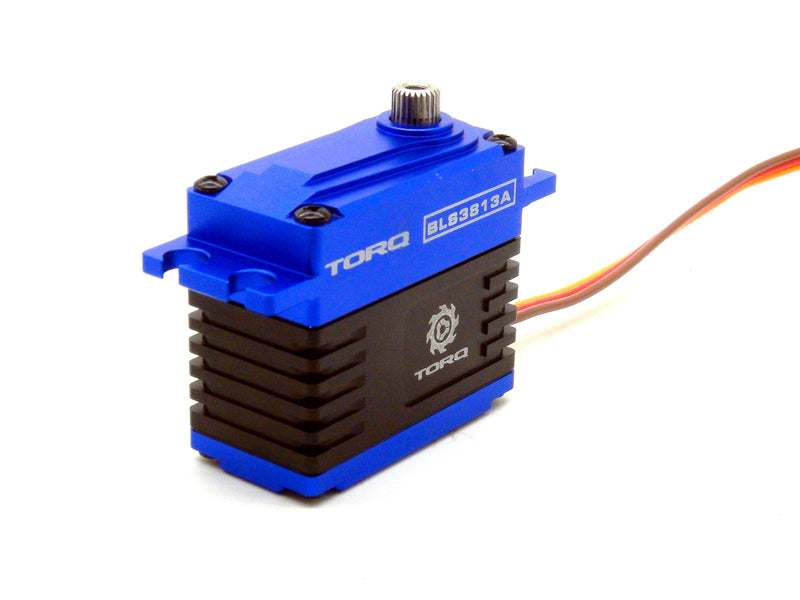

1. TORQ BLS3813A Brushless High Torque Metal Gear Digital Servo (7pcs)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Torque: 30Kg.cm@6.0V / 38Kg.cm@7.4V / 43Kg.cm@8.4V
Speed: 0.15sec/60°@6.0V / 0.13sec/60°@7.4V / 0.12sec/60°@8.4V
Signal: 900-2100Hz
Motor Type: Brushless
Gear Type: Metal
Operating Temperature: -20℃~55℃
Size: 40.5*20*38mm

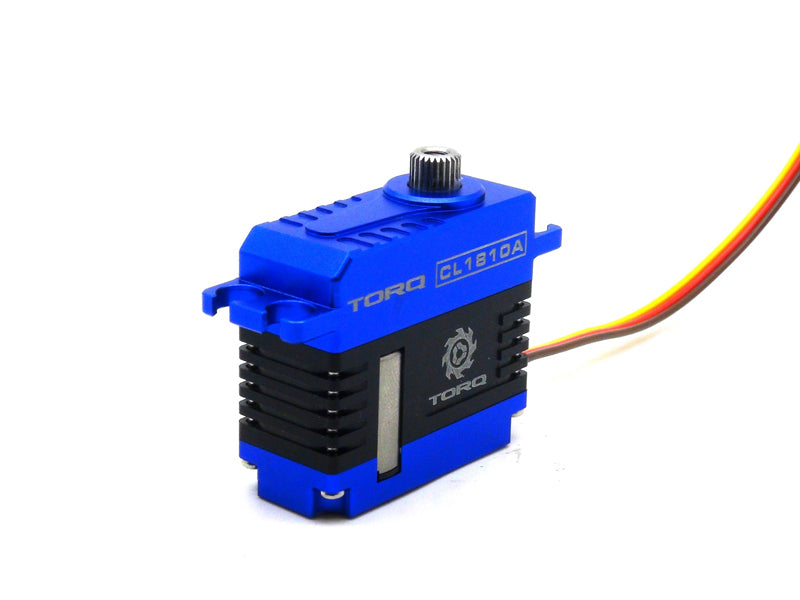

2. TORQ CL1810A Coreless High Torque Metal Gear Digital Servo (1pcs)
Case Material: Aluminum Alloy
Motor Type: Coreless
Gear Set Material: Phosphor Bronze + Hardened Steel
Position Sensor: Potentionmeter
Dimension: 35.5x15x32.5mm
Weight: 42g
Operation Voltage(rated): 7.4V
Operation Voltage Range: DC 6.0V - 8.4V
Torque: 15Kg.cm@6.0V, 18Kg.cm@7.4V, 20Kg.cm@8.4V
Speed: 0.14sec/60°@6.0V, 0.12sec/60°@7.4V, 0.10sec/60°@8.4V
Travel Angle: ±50° when 1000-2000us
Operating Temperature Range: -10℃ ~ +65℃
Motor Type: Coreless
Gear Set Material: Phosphor Bronze + Hardened Steel
Position Sensor: Potentionmeter
Dimension: 35.5x15x32.5mm
Weight: 42g
Operation Voltage(rated): 7.4V
Operation Voltage Range: DC 6.0V - 8.4V
Torque: 15Kg.cm@6.0V, 18Kg.cm@7.4V, 20Kg.cm@8.4V
Speed: 0.14sec/60°@6.0V, 0.12sec/60°@7.4V, 0.10sec/60°@8.4V
Travel Angle: ±50° when 1000-2000us
Operating Temperature Range: -10℃ ~ +65℃
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
TORQ-CB-TUR2 |
| Weight: |
24.19 lb |
