TORQ TCM-1022 Premium High Torque Servo

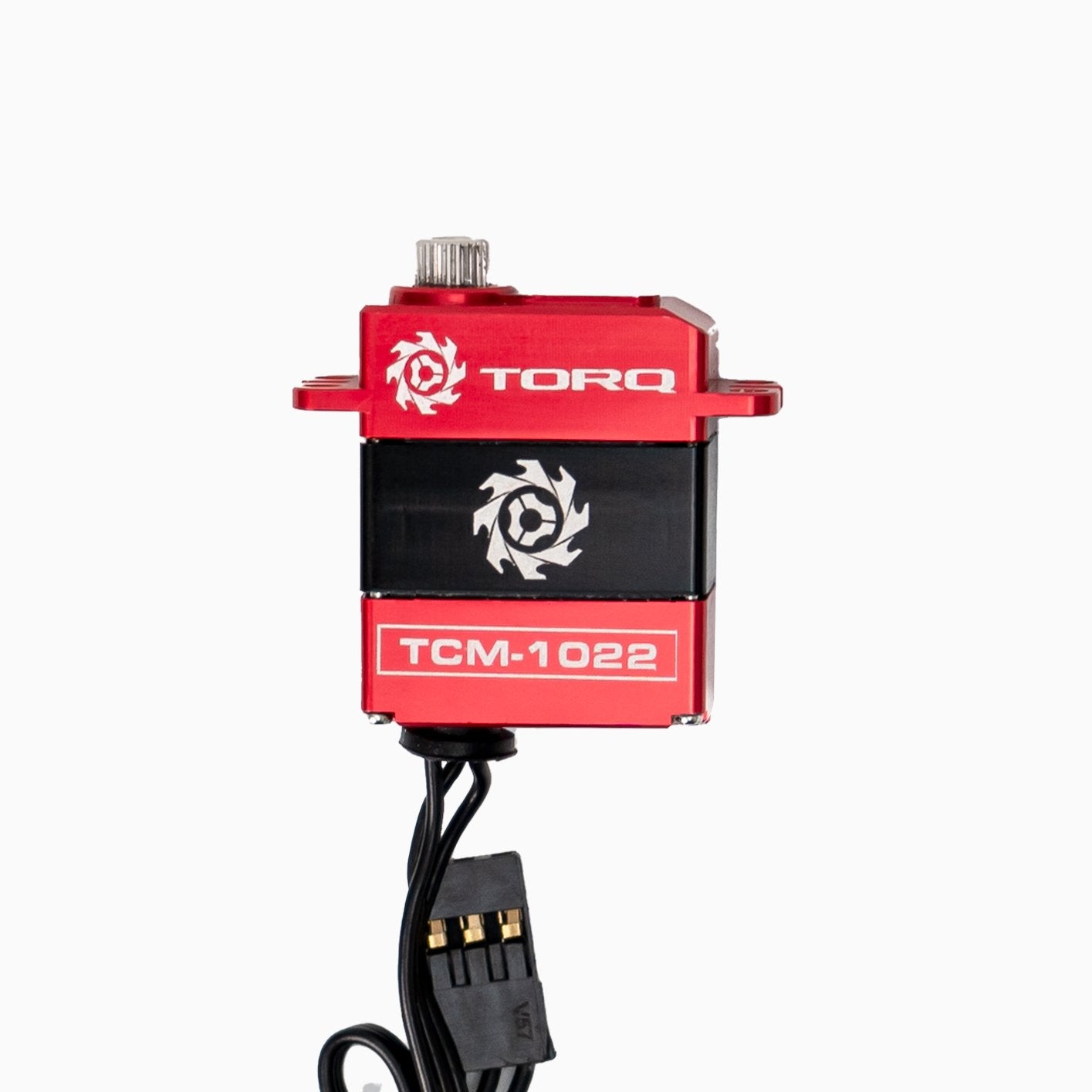

TORQ TCM-1022 Premium High Torque Servo - RED
The TORQ TCM-1022 Premium High Torque Servo is expertly engineered to cater to the needs of small-scale crawlers.
Key features include rear exit wires, further ensuring that suspension travel remains unhindered. This servo is designed for ultimate clearance all around, making it a standout choice for crawler enthusiasts. The servo bolts in for the TRX-4M, TRX-4MT, SCX24, Furitek FX118, CR-18P 2024, HobbyPlus Arktos 6x6, HobbyPlus EVO PRO, Redcat Ascent 18, FMS FCX24 and FMS FCX18.
FULL Precision CNC Aluminum Case with red anodizing colors.
Note: When using with SCX24, you should use the edge hole and cut the shock mount a little bit.
Features
High Torque Output: Delivers powerful performance for small-scale crawlers.
Rear Exit Wires: Ensures suspension travel is unhindered for optimal performance.
Simplified Installation: Easy to mount due to its unique design.
Enhanced Clearance: Designed for ultimate clearance around the servo.
Full precision CNC Metal Gears
Full precision CNC Aluminum Case with red anodizing color.
Waterproof
Specifications
- Dead Bandwidth: 3μs
- Working Frequency: 1520μs / 330Hz
- Operating Voltage: 5.0V - 8.4V
- Motor Type: Coreless Motor
- Operating Speed:
· At 5.0V: 0.10 sec/60°
· At 6.0V: 0.09 sec/60°
· At 7.4V: 0.07 sec/60°
· At 8.4V: 0.055 sec/60°
- Stall Torque:
· At 5.0V: 9 kg-cm (125 oz-in)
· At 6.0V: 11.5 kg-cm (160 oz-in)
· At 7.4V: 12.8 kg-cm (177 oz-in)
· At 8.4V: 14.5 kg-cm (200 oz-in)
- Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches)
- Weight: 22.0 g (0.78 oz)
- Connector Wire Length: JR 170 mm (6.7 inches)
- Output Gear Spline: 25T
Benefits
- Space Efficiency: Compact design fits seamlessly within small-scale crawler setups.
- Cost Savings: No need to purchase additional CNC servo mounts and CNC servo arms.
- Performance Enhancement: Unhindered suspension movement leads to better crawler performance.
- Ease of Installation: Simplifies the mounting process, saving time and effort.
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
TCM-1022 |
| Weight: |
0.25 lb |
Product Spare Parts
Customer Reviews
Its pretty good I had issues with it twitching but I think it was my transmitter
This TORQ Servo is a great addition to your mini crawlers and I also works great in my Arrma Groms.
This servo was not very strong. Requested a refund but no response from Helidirect. Customer service is very poor. Save your money. Buy from reputable site.
I would love to review this product, if I have received it! It’s been 14 days since I had placed my order and no parts delivered yet! Not sure what shipping methods furitek uses but I have never had this delay with any other company
Maybe I just got a lemon but the servo locked up after five minutes of use. RMA requested.
Good servo. Different voltage options.
If you’re going to use anything other than a simple servo horn or you lose the provided screw, good luck. I was forced to use a M2.5 and re tap the threads. I wish this was a joke.
Furitek stepped up their game with this servo. It can compete with the big boys.
Great servo so far. Does everything it should. Fits nicely had to drill out the arm but no big deal.
Perfect fit for my 1/24 scale crawler build. I've been using Torq servos for a few years now on mini-b/t platforms and the performance on this one is exceptional. If you're looking for a quality servo with a rear wire exit, this is the one you want!
