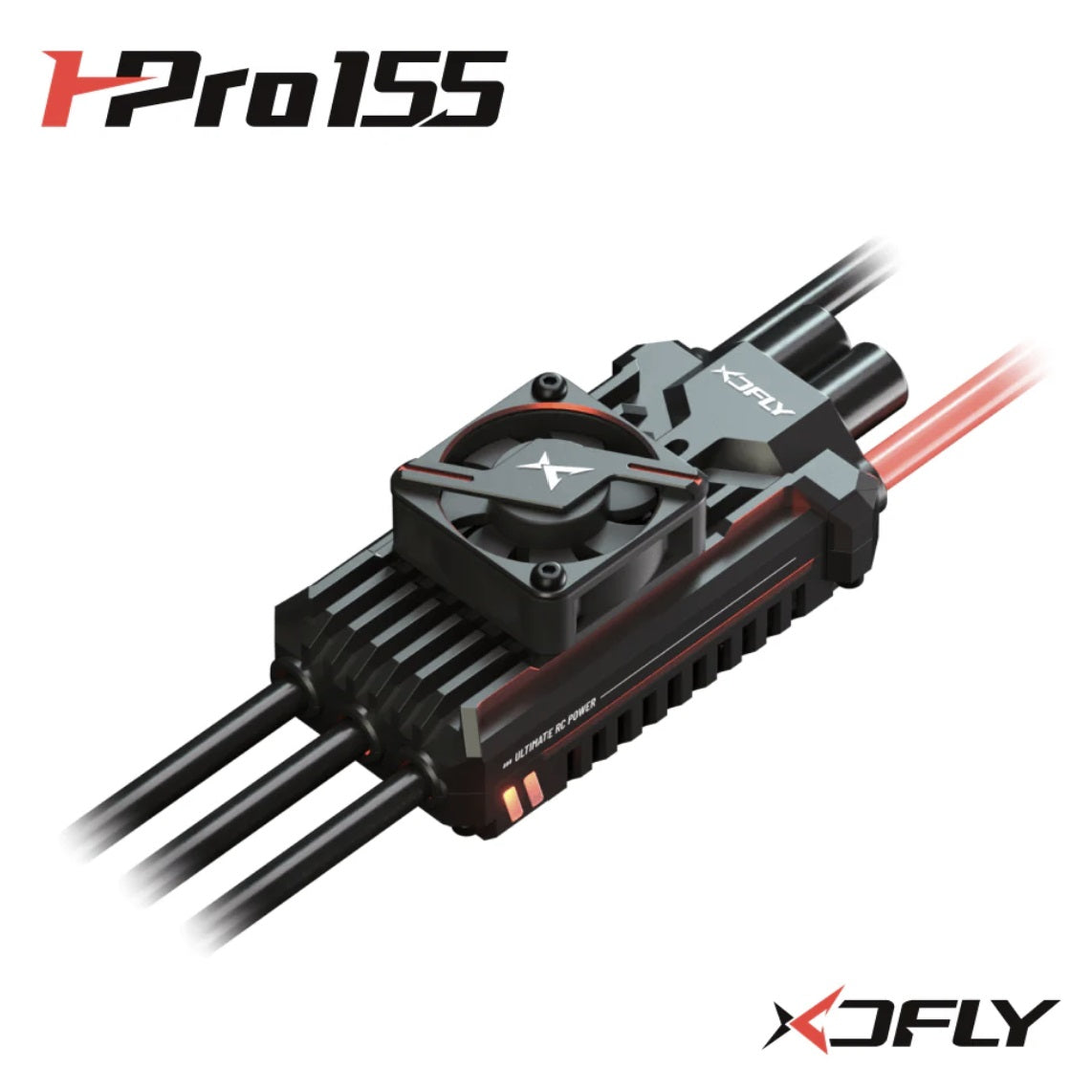

Name: XDFly HPro 155A 3-8S SBEC ESC for RC Helicopter 550-580 Class
Brand: XDFly
SKU: 1011550
Price: 159.99 USD
Availability: InStock

{"id":7354054213709,"title":"XDFly HPro 155A 3-8S SBEC ESC for RC Helicopter 550-580 Class","handle":"xdfly-hpro-155a-3-8s-sbec-esc-for-rc-helicopter-550-580-class","description":"\u003cp\u003e\u003cstrong\u003eDescription:\u003c\/strong\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cspan\u003eWe(XDFly) have released HPRO 155A ESC 3-8S Built-in SBEC 6-12V Adjustable Speed Control For RC Airplane Aircraft F3A F3C 550-580 Helicopter.\u003c\/span\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cstrong\u003eKey Features:\u003c\/strong\u003e\u003cbr data-mce-fragment=\"1\"\u003e1. Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.\u003cbr\u003e2. Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.\u003cbr\u003e3. Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.\u003cbr\u003e4. The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.\u003cbr\u003e5. The smart temperature controlled fan will only start when the temperature exceeds 40 degrees, ensuring a quiet environment during the adjustment.\u003cbr\u003e6. With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.\u003cbr\u003e7. Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.\u003cbr\u003e8. The ESC has an independent programming interface, it supports parameter adjustment via Phone APP\/Mikado VBCT\/E\/Rotorflight2\/Jeti remote control devices.\u003cbr\u003e9. With telemetry function for Mikado VBCT\/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.\u003cbr\u003e10. Equipped with colorful LED lights including five optional colors for users: red, green, blue, yellow, and white, which indicate the ESC status through flashing modes.\u003cbr\u003e11. Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eSpecification:\u003c\/strong\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eModel\u003c\/td\u003e\n\u003ctd\u003eHPRO 155A 3-8S SBEC\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eContinuous Current(A)\u003c\/td\u003e\n\u003ctd\u003e155A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBurst Current(A)\u003c\/td\u003e\n\u003ctd\u003e260A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Voltage\u003c\/td\u003e\n\u003ctd\u003e3-8S Lipo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBEC Output\u003c\/td\u003e\n\u003ctd\u003e6-12V Adjustable; Current Cont.10A, Peak 35A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSize\u003c\/td\u003e\n\u003ctd\u003e90x43x25mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight\u003c\/td\u003e\n\u003ctd\u003e178g\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePower Wire\u003c\/td\u003e\n\u003ctd\u003e10 Gauge 145mm Red\/Black\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMotor Wire\u003c\/td\u003e\n\u003ctd\u003e10 Gauge 150mm Black\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProgramming Way\u003c\/td\u003e\n\u003ctd\u003eXDFly Android\u0026amp;iOS APP\/VBCT\/E\/RF2\/Jeti\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTelemetry\u003c\/td\u003e\n\u003ctd\u003eVBCT\/E\/RF2\/Futaba SBUS2\/Jeti\/MSH Brain\/iKon\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eApplications\u003c\/td\u003e\n\u003ctd\u003e550-580 Class electric helicopters or fixed-wing aircrafts\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e","published_at":"2024-10-08T22:53:29-04:00","created_at":"2024-10-08T22:43:48-04:00","vendor":"XDFly","type":"Heli ESCs","tags":["151-200A","550-600 Electronics","6S ESC","Brushless ESCs","Electric","ESCs","heli electronics","heli-escs","heli_cate","Helicopter Electronics","HV ESC","promotable","sales","was_instock","XMAS2024","ZTW"],"price":15999,"price_min":15999,"price_max":15999,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41365548728397,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"1011550","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"XDFly HPro 155A 3-8S SBEC ESC for RC Helicopter 550-580 Class","public_title":null,"options":["Default Title"],"price":15999,"weight":136,"compare_at_price":null,"inventory_management":"shopify","barcode":"6977581880038","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.helidirect.com\/cdn\/shop\/files\/XDFly155A.jpg?v=1728442389"],"featured_image":"\/\/www.helidirect.com\/cdn\/shop\/files\/XDFly155A.jpg?v=1728442389","options":["Title"],"media":[{"alt":null,"id":24328818163789,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1142,"width":1142,"src":"\/\/www.helidirect.com\/cdn\/shop\/files\/XDFly155A.jpg?v=1728442389"},"aspect_ratio":1.0,"height":1142,"media_type":"image","src":"\/\/www.helidirect.com\/cdn\/shop\/files\/XDFly155A.jpg?v=1728442389","width":1142}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e\u003cstrong\u003eDescription:\u003c\/strong\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cspan\u003eWe(XDFly) have released HPRO 155A ESC 3-8S Built-in SBEC 6-12V Adjustable Speed Control For RC Airplane Aircraft F3A F3C 550-580 Helicopter.\u003c\/span\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cstrong\u003eKey Features:\u003c\/strong\u003e\u003cbr data-mce-fragment=\"1\"\u003e1. Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.\u003cbr\u003e2. Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.\u003cbr\u003e3. Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.\u003cbr\u003e4. The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.\u003cbr\u003e5. The smart temperature controlled fan will only start when the temperature exceeds 40 degrees, ensuring a quiet environment during the adjustment.\u003cbr\u003e6. With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.\u003cbr\u003e7. Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.\u003cbr\u003e8. The ESC has an independent programming interface, it supports parameter adjustment via Phone APP\/Mikado VBCT\/E\/Rotorflight2\/Jeti remote control devices.\u003cbr\u003e9. With telemetry function for Mikado VBCT\/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.\u003cbr\u003e10. Equipped with colorful LED lights including five optional colors for users: red, green, blue, yellow, and white, which indicate the ESC status through flashing modes.\u003cbr\u003e11. Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eSpecification:\u003c\/strong\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eModel\u003c\/td\u003e\n\u003ctd\u003eHPRO 155A 3-8S SBEC\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eContinuous Current(A)\u003c\/td\u003e\n\u003ctd\u003e155A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBurst Current(A)\u003c\/td\u003e\n\u003ctd\u003e260A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Voltage\u003c\/td\u003e\n\u003ctd\u003e3-8S Lipo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBEC Output\u003c\/td\u003e\n\u003ctd\u003e6-12V Adjustable; Current Cont.10A, Peak 35A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSize\u003c\/td\u003e\n\u003ctd\u003e90x43x25mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight\u003c\/td\u003e\n\u003ctd\u003e178g\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePower Wire\u003c\/td\u003e\n\u003ctd\u003e10 Gauge 145mm Red\/Black\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMotor Wire\u003c\/td\u003e\n\u003ctd\u003e10 Gauge 150mm Black\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProgramming Way\u003c\/td\u003e\n\u003ctd\u003eXDFly Android\u0026amp;iOS APP\/VBCT\/E\/RF2\/Jeti\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTelemetry\u003c\/td\u003e\n\u003ctd\u003eVBCT\/E\/RF2\/Futaba SBUS2\/Jeti\/MSH Brain\/iKon\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eApplications\u003c\/td\u003e\n\u003ctd\u003e550-580 Class electric helicopters or fixed-wing aircrafts\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e"}

Vendor:	XDFly
SKU:	1011550
Barcode:	6977581880038
Availability:	In Stock
Product Type:	Heli ESCs
Weight:	0.3 lb

XDFly HPro 155A 3-8S SBEC ESC for RC Helicopter 550-580 Class

XDFly HPro 155A 3-8S SBEC ESC for RC Helicopter 550-580 Class

XDFly HPro 155A 3-8S SBEC ESC for RC Helicopter 550-580 Class

Related Products

You may also like

Recently Viewed Products

Customer Reviews

Model	HPRO 155A 3-8S SBEC
Continuous Current(A)	155A
Burst Current(A)	260A
Input Voltage	3-8S Lipo
BEC Output	6-12V Adjustable; Current Cont.10A, Peak 35A
Size	90x43x25mm
Weight	178g
Power Wire	10 Gauge 145mm Red/Black
Motor Wire	10 Gauge 150mm Black
Programming Way	XDFly Android&iOS APP/VBCT/E/RF2/Jeti
Telemetry	VBCT/E/RF2/Futaba SBUS2/Jeti/MSH Brain/iKon
Applications	550-580 Class electric helicopters or fixed-wing aircrafts
