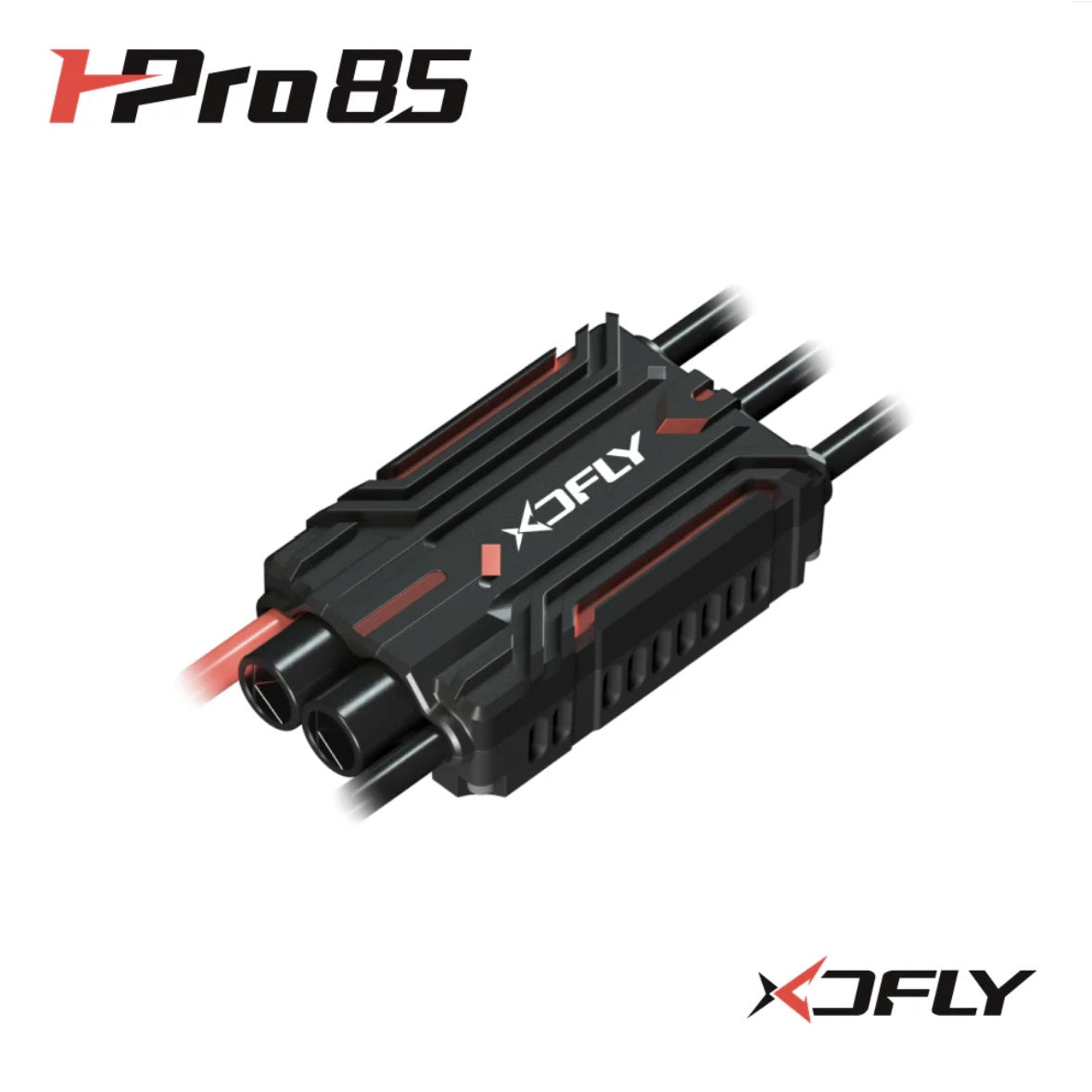

XDFly HPro 85A ESC 3-6S SBEC For RC Helicopter 380-420 Class

XDFly HPro 85A ESC 3-6S SBEC For RC Helicopter 380-420 Class

$84.99 $72.24
XDFly HPro 85A ESC 3-6S SBEC For RC Helicopter 380-420 Class

XDFly HPro 85A ESC 3-6S SBEC For RC Helicopter 380-420 Class

$84.99 $72.24

Related Products

Description

Description:

We(XDFly) have released HPRO 85A ESC 3-6S Built-in SBEC 6-12V Adjustable Speed Control For RC Airplane Aircraft F3A F3C 380-420 Helicopter.

Key Features:

  1. Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
    2. Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.
    3. Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.
    4. The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.
    5. With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
    6. Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
    7. The ESC has an independent programming interface, it supports parameter adjustment via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.
    8. With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
    9. Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.

Specification:

Model  HPRO 85A 3-6S SBEC
Continuous Current(A) 85A
Burst Current(A) 160A
Input Voltage 3-6S Lipo
BEC Output 6-12V Adjustable; Current Cont.10A, Peak 35A
Size 70x36x21mm
Weight 93g
Power Wire 12 Gauge 130mm Red/Black
Motor Wire 12 Gauge 92mm Black
Programming Way XDFly Android&iOS APP/VBCT/E/RF2/Jeti
Telemetry VBCT/E/RF2/Futaba SBUS2/Jeti/MSH Brain/iKon
Applications 380-420 Class electric helicopters or fixed-wing aircrafts
Read More
Additional Information
Vendor: XDFly
SKU: 1010850
Barcode: 6977581880021
Availability: In Stock
Product Type: Electronics
Weight: 0.3 lb

You may also like

Recently Viewed Products

  • 5 stars: 9 (69%)
  • 4 stars: 2 (15%)
  • 3 stars: 1 (8%)
  • 2 stars: 0 (0%)
  • 1 star: 1 (8%)
H
Harry H.S.I.
I do not have the Product yet.

As the Email Request states, I Ordered the ESC and Motor Pulley on October 27th. I received an Email and Text stating a Shipping Label had been created on the 28th.

Today, November 11th, USPS Tracking finally came alive, with a Text Alert that the Shipment had finally been received in Indianapolis by USPS.

I have 5 XDFLY ESC's now, and they all work flawlessly. The SAB Motor Pulley will be used on one of my Helis to lower the Headspeed.
I'm glad to finally see these Items ship, after 15 days.

Hopefully, Helidirect will fire ShipBob and resume their own Order Processing and Shipping, which was always VERY fast. Their Customer Service has always been awesome as well (thank you Patrick). I'd love to see them get back in track, post ShipBob.

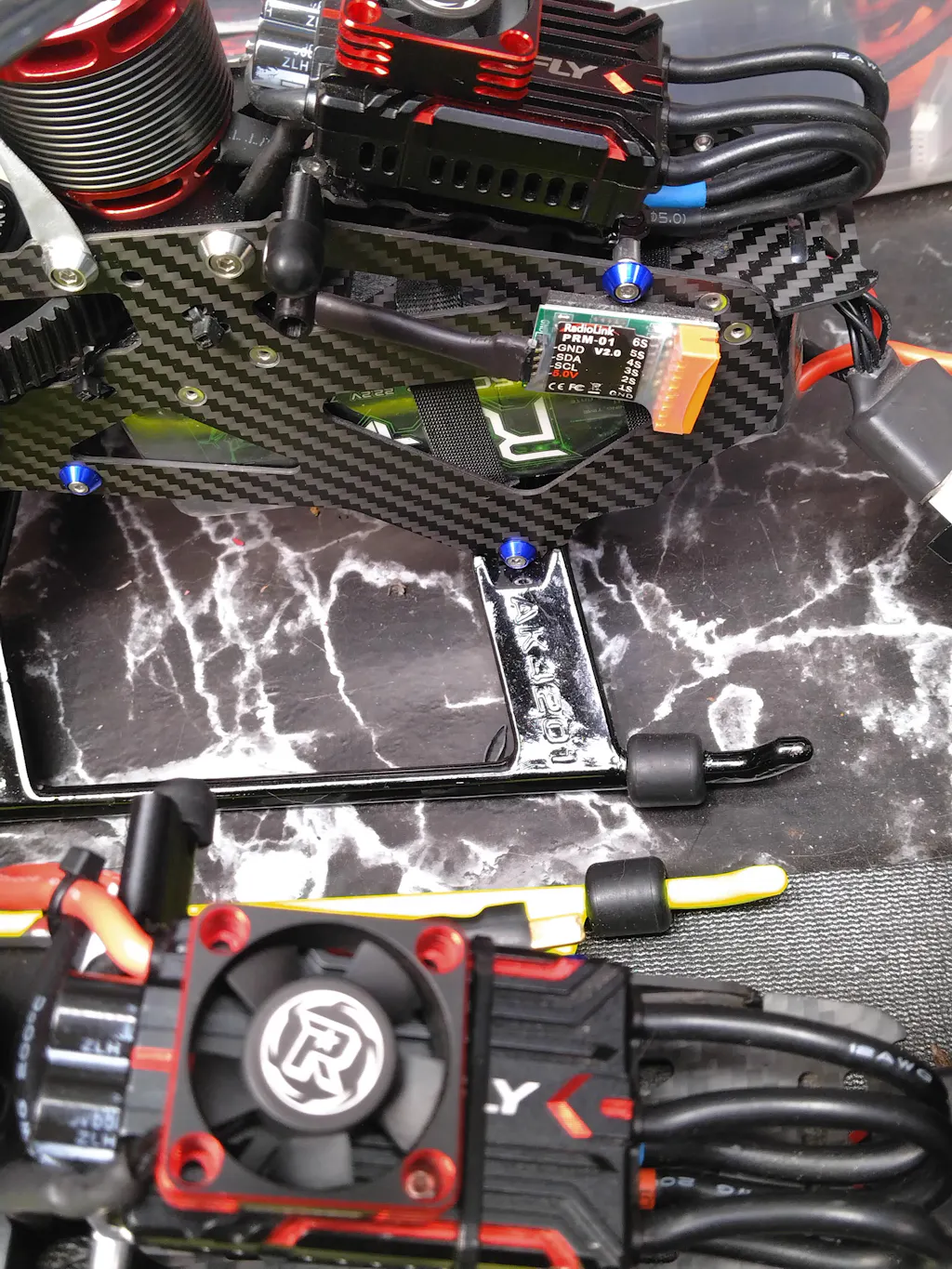

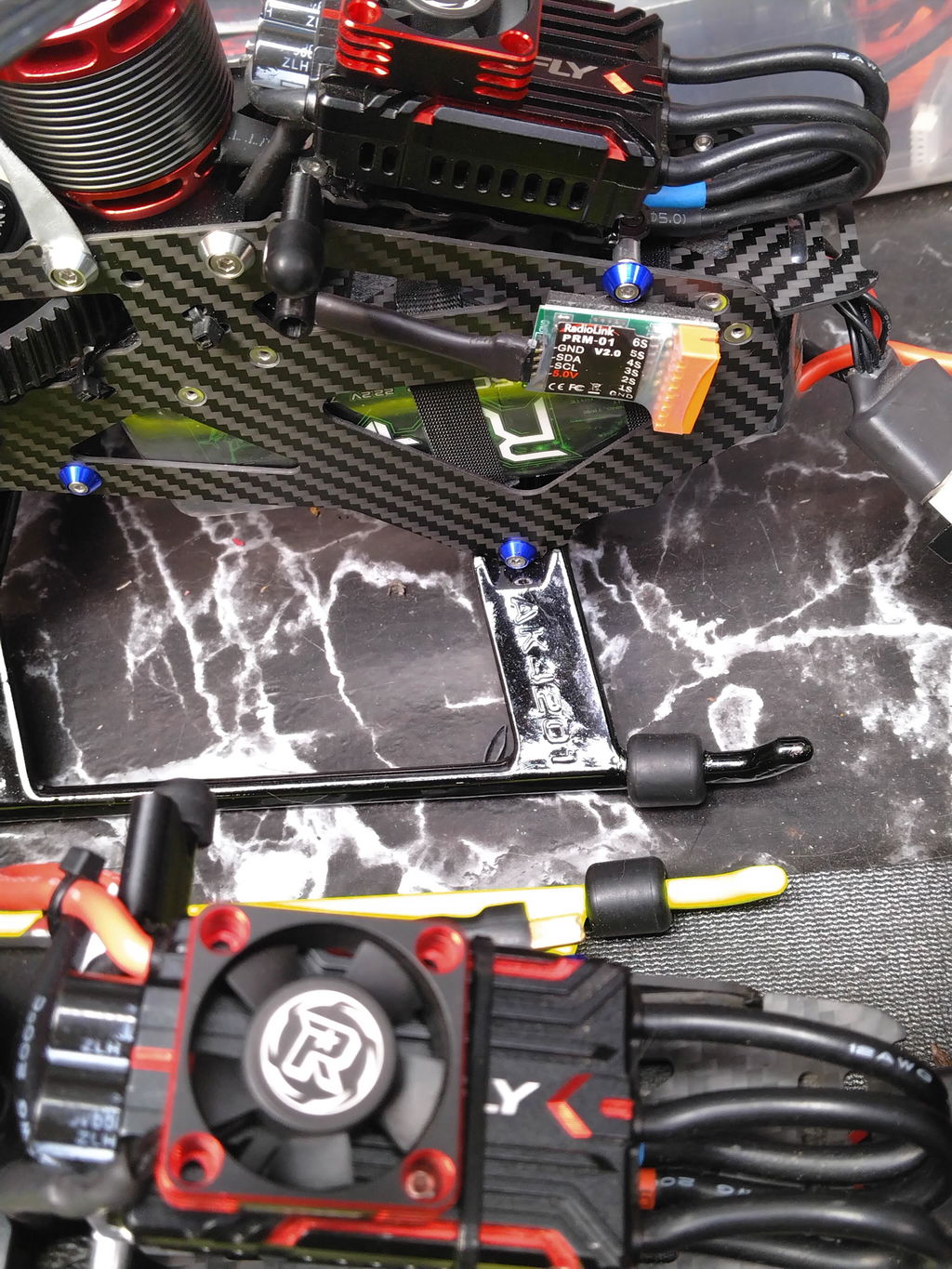

Harry H.S.I. review photo Harry H.S.I. review photo
A
Anonymous
Good esc..

Good esc plenty of adjustments to fine tune.could use a more slower throttle start up it starts slow but quickly ramps up speed needs to be more linear.

Anonymous review photo Anonymous review photo
C
Christophe O.
It does the job but I wished Bluetooth was built-in.

Not that I am an expert at reviewing an ESC, but I am only giving it 4 stars because I needed to buy the Bluetooth module to be able to upgrade the firmware and adjust the settings (which I did not need to adjust).
Note that you cannot keep the Bluetooth module connected if you want the ESC telemetry because the telemetry wire connects to one of the pins also used by the module. So in short I bought a BT module to use it for a few minutes! Other than that, it works as expected.

J
John C.
Works good

Works good but doesn’t fit in a Goosky RS4 without modifying the tray. Midland Helicopters sells a tray that will let it fit.

T
Tom P.
Bought to use in a 420 sized Heli.

Grabbed this to use in a 420 sized Heli as it was on sale at the time.

M
Michael

Works perfect

Z
Zachary C.
Good Quality

XDFly makes a good quality ESC. Their ESC is my go to for any build. They are decently priced and perform no matter what you throw at them. They are easy to set up and program, and they provide accurate telemetry.

R
Rich
Unit is solid!

Running on my Steam AK420 HDX. Unit is good quality, has a good manual and parts that come with the unit.

T
T2
XDFly has you covered

XDFly features are just amazing compared with the other market leaders. The dynamic fan on/off is really awesome. And the ESC telemetry is spot on with RotorFlight. I picked this over HobbyWing since it's lower prices, yet the features are just awesome. Plus majority of my club field flyers are using this brand. They used to be the underdog, but it's at the point of mass adoption not just for being the big guy, but for actual result and performance! I put this on the GooSky RS4!

I
Imroze K.
Customer Service

I had an issue with my latest purchase, HeliDirect took care of me. Will definitely do business with HD in the future!

A
Ariel A.
Great Quality!

I'm loving this ESC. Compact, powerful, programmable and of great quality. Great for my Raw 420 Comp.

D
Dtf
Smooth

I got this XDFLY 85 for my 2nd Goosky RS4 build. First RS4 has their 65. This 85 seems to spool up smoother than the 65. Both the 65 and 85 were tight fits that required the ESC tray to be moved up as far as possible so they would clear the skids. Both operate smoothly for a nice cost. Get the Bluetooth module so you can make adjustments and perform updates.

S
Steven A.
Xdfly ESC

Very nice ESC I think it’s an upgrade from the ZTW Skyhawk esc. I own both esc . This has a little more features
