XGuard Intelligent Switch w/ Solid State Relay & Aircraft Locator

Vendor: XGuard RC
|
SKU: AAVXG0270
Availability: In Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Price Match Guarantee
$39.95
$39.95
The order quantity exceeds the stock!
XGuard Intelligent Switch w/ Solid State Relay & Aircraft Locator - HeliDirect

XGuard Intelligent Switch w/ Solid State Relay & Aircraft Locator

$39.95
XGuard Intelligent Switch w/ Solid State Relay & Aircraft Locator - HeliDirect

XGuard Intelligent Switch w/ Solid State Relay & Aircraft Locator

$39.95

Related Products

Description

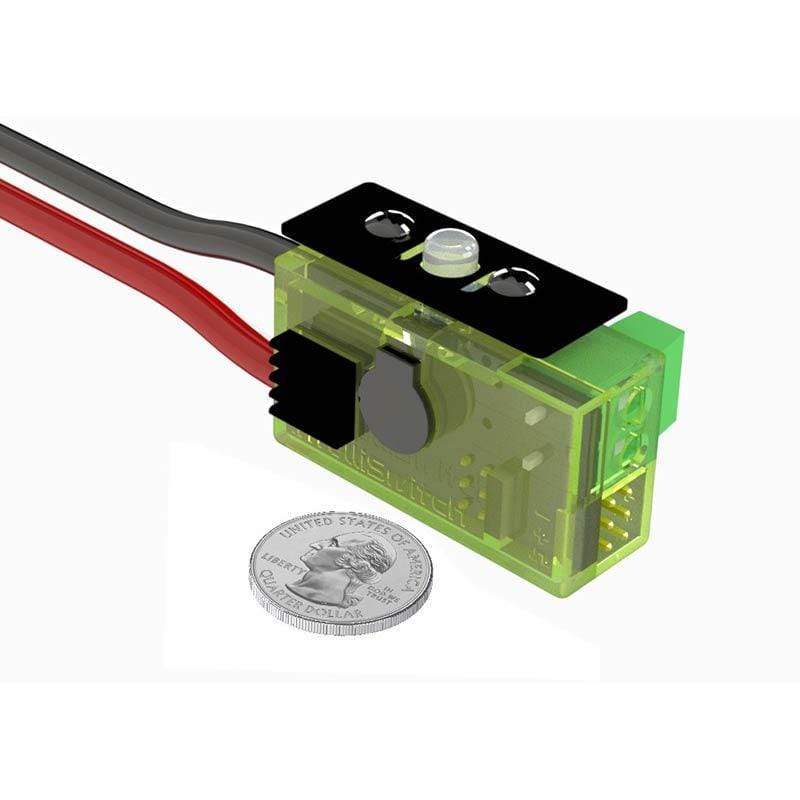

XGuard IntelliSwitch – Switch with dual solid state relay and aircraft locator buzzer

Massive dual Solid State Relays for ultra-reliability under peak loads and redundancy safety.

Current Capacity limited by the cable wires used. Switch itself can handle up to 240A peak

Pre-Installed AWG 14 Cables compatible with your EC3 or XT60 Connectors

Illuminated light pipes one GREEN for when everything is OK and one RED when a critical low voltage is detected or blinking RED when below minimum recommended voltage.

Screw-Type terminal for larger gauge Wires for High-Current applications.

Double the servo output connectors adds redundancy and doubles current capacity

100 dB Buzzer as low-level battery indicator & Aircraft Locator.

Two types of Battery Chemistry
• 7.4V Lipo (2S)
• 7.2V Ni-Mh (6 cell)
• Note: (LiFe packs can also be used but it will only warn if voltage drops below 6.2V)

Read More
Additional Information
Vendor: XGuard RC
SKU: AAVXG0270
Barcode: AAVXG0270
Availability: In Stock
Product Type: Accessories
Weight: 0.03 lb

You may also like

Recently Viewed Products

  • 5 stars: 6 (75%)
  • 4 stars: 1 (13%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 1 (13%)
C
CarlosF
XGuard RPM sensor

Easy installation on my Nimbus 550, so far no issues, maintains stable RPM's.

F
F.(.F.).V.

Excellent Switch

L
Landon H.
Case issues

For the switch, works great. But the case itself is junk. Had 3 either strip the mounting screw holes. If you snug them, they get loose. If you tighten to tight, the case strips. You put bigger screws in place, it will Crack/bust. Good luck getting a replacement case. Xgaurd or fb won't reply to anything

J
Jim P.
Great power switch

I like the dual solid-state relays for reliability and redundancy. This switch works great for a nitro, allowing you to switch on/off without removing the canopy every flight. It has convenient dual servo- type connectors so you can connect two power connections to the FBL, or use the fat connectors if you have a power bus or some other setup. I haven't tried the locator buzzer. Beware it will accept max 2S voltage, a 3S battery will destroy it.

B
Barney B.
Xguard intelli switch

I have two of these switches in my gas helicopters and they work great. And the locator buzzer is super loud

M
Matt C.
Great power button

Really like this as it's easy to use and has expandability. Kind of wish you cold more easily put on your own power leads but not a big deal.

M
Matthew
Great power button

This is the only way I power my nitro helis!

A
Angelo A.
Excellent Intelligent Switch

Makes powering on and off your machine a breeze without fussing with battery connectors. Smart tech, has a very loud programmable audible alarm in case you dump it in the corn somewhere too!
