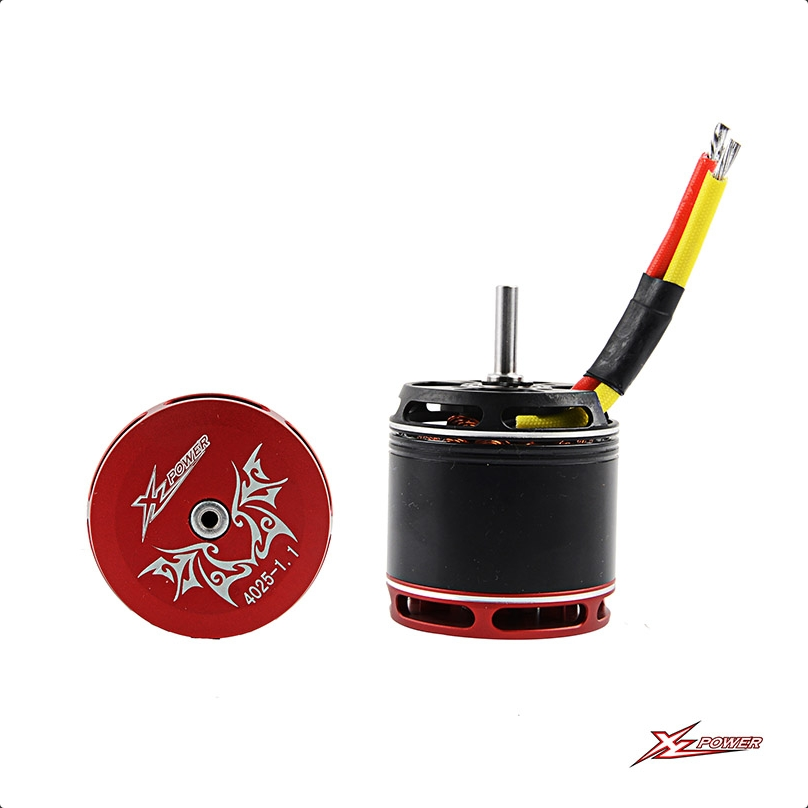

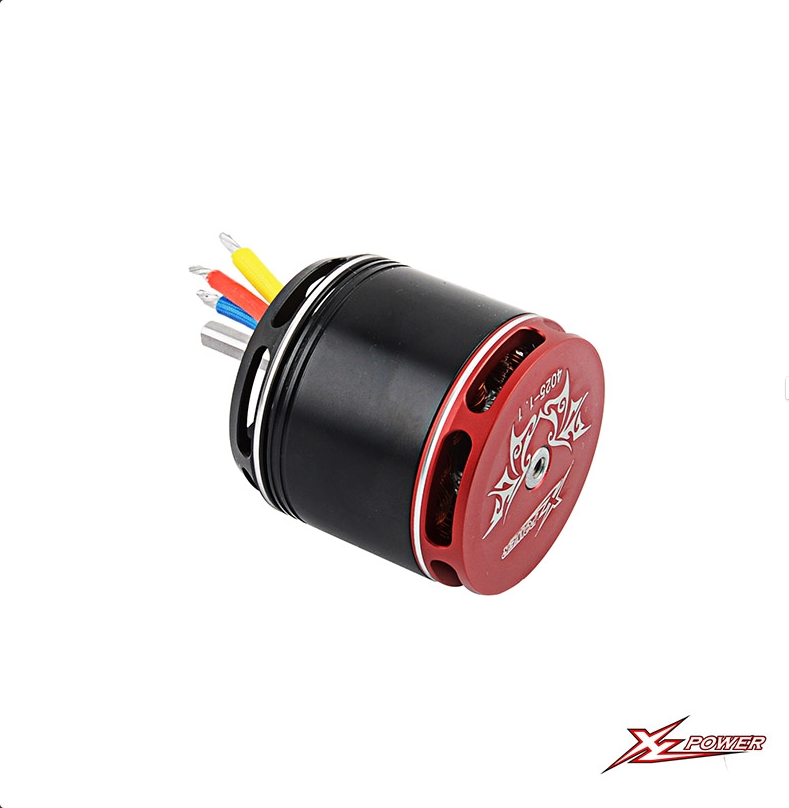

XLPower 4025-1100kv Motor

Specifications:

• Stator Diamrter 40mm


• Stator Thickness 25mm


• No.of Stator Arms 12


• Magent Poles 10


• Motor Wind 3.5T/△


• Motor Wire 13×0.35mm


• Motor KV 1080


• No-Load current(Io/10v) 3.5A


• Motor Resistance(RM) 0.0076 Ohms


• Max Continuous Current 95A


• Max Continuous Power 2350W


• Weight 308g


• Outside Diameter 49mm


• Shaft Diameter 5mm


• Body Length 50mm


• Overall Shaft Length 71.5mm


• Max Lipo Cell 6s


• Peak Current 125A/5s


• Peak Continuous Power 2850W
