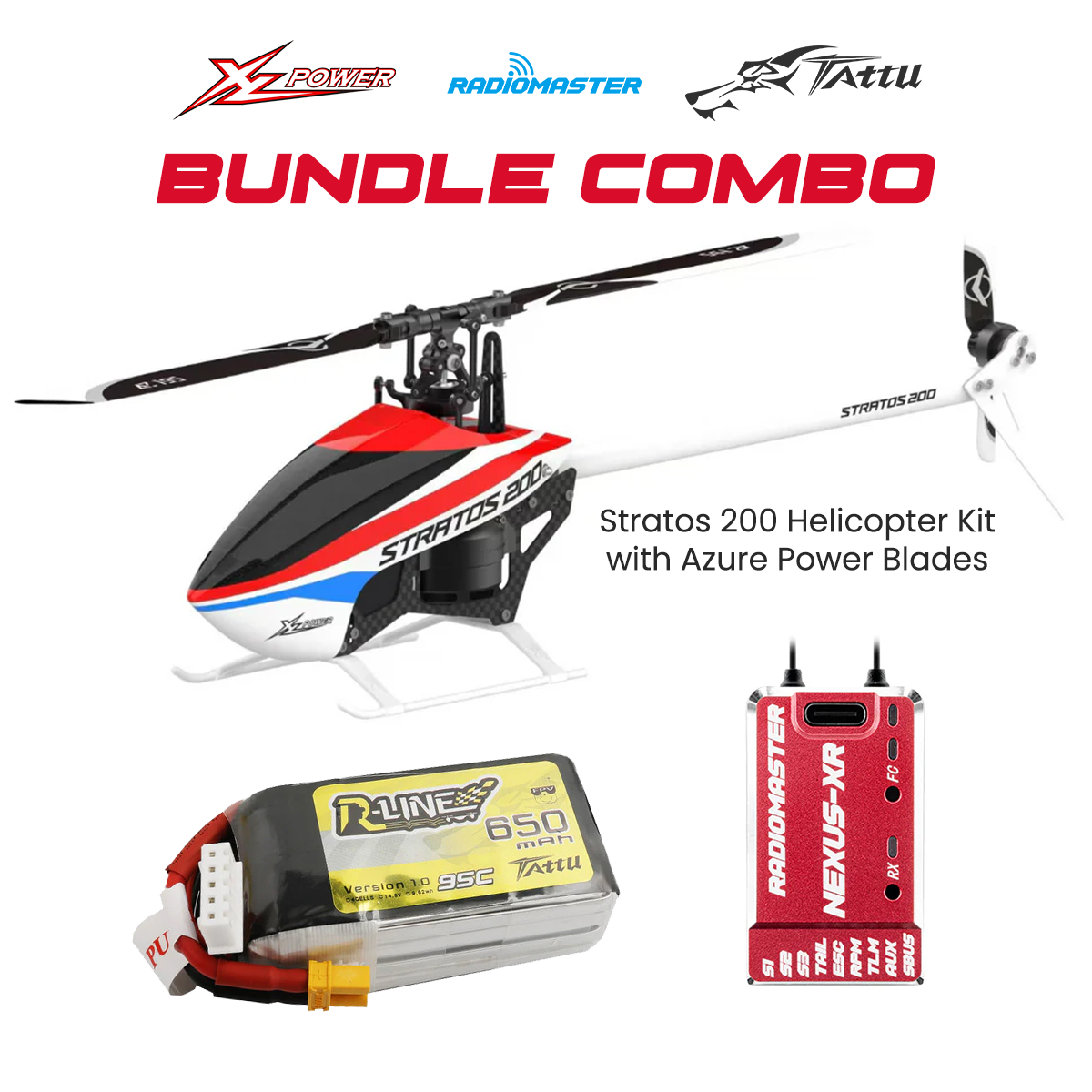

*** Package Includes:
XLPower Stratos 200 Helicopter Kit with Azure Power Blades * 1
RadioMaster Nexus-XR Helicopter Flight Controller Integrated 2.4GHz ExpressLRS Receiver – Red * 1
Tattu 650mAh 4s 14.8V 95C R-Line Lipo Battery Pack with XT30 Plug * 1
I. XLPower Stratos 200 Helicopter Kit with Azure Power Blades:
1. Introduce:
Meet XLPower’s new 200-class helicopter, engineered to deliver the feel of a larger machine in a compact, ultra-efficient package. Borrowing true 1:1 rotor geometry and control concepts from our 700-class platform, it delivers smooth, linear response with confident control. First in its class, an adjustable battery system unlocks true 4S performance. Factory-calibrated and built with an integrated motor and ESC drivetrain(Hobbywing Platinum V5 ESC), it features a clean, telemetry-ready electronics layout for a streamlined setup. A rapid service tail system ensures that even after a crash, repairs are quick and hassle-free, with no wiring or soldering required. Compact, performance-driven, and easy to maintain, it’s a micro helicopter that flies precise, responsive, and seriously fun.
2. Features:
2.1. True 1:1 Rotor Geometry:
Using true 1:1 rotor geometry from our 700-class designs, it offers the feel of a big helicopter with smooth, predictable control and serious 3D capability.
Big-heli feel
Linear control
Serious 3D
2.2. Dual Damping Options:
With dual damping options, pilots can choose a direct, rigid feel or enjoy stable, quiet, and efficient 3D performance even at low head speeds
Option 1 - New Tapered design spindle dampers
Maximum rigidity
More direct control feel
Precise and high head-speed 3D performance
Option 2 - Standard 90-degree O-ring dampers
Excellent low head-speed stability
Stable 3D performance even at low head speeds around 3700 RPM
Quieter operation and higher efficiency
2.3. Azure Power - Factory High-Performance Blade Setup
Factory-equipped with Azure Power 195mm main blades and matched tail blades, delivering strong authority, smooth control, and serious 3D capability right out of the box.
Extreme 3D capability
Strong tail authority
Smooth, linear control feel
2.4. Sacrificial blade grip arms
Sacrificial blade grip arms help minimize damage and get you back in the air faster and keeping repair costs low.
Designed to break first in a crash
Protects blade grips and swashplate
Reduces repair cost and damage scope
2.5. High-Rigidity Rotor Control System
A high-rigidity rotor control system eliminates setup complexity while delivering precise, linear response. Five equal-length control links ensure perfect geometry, while the Stratos 700–inspired reverse-mounted phase arm provides rock-solid rigidity and accurate phasing. Paired with a 120-degree servo layout, it delivers clean, confident control with true big-heli feel.
Integrated control links
Ultra-short reverse-mounted phase arm
120° evenly distributed servo layout
2.6. Factory Pre-Calibrated Setup
Servos are factory-centered and the swashplate is perfectly leveled right out of the box. This eliminates complex setup after assembly and reduces build time significantly. The result is a smoother, more approachable experience for pilots of all skill levels.
2.7. Integrated Power and Frame Structure
The integrated power and frame structure combines the main shaft block, center frame, and motor mount into one rigid, compact drivetrain. A gearless drive design eliminates gear mesh and concentricity issues, delivering smoother and more efficient power. The quick-change main shaft allows fast maintenance without removing surrounding components, getting you back in the air sooner.
Integrated frame structure
Gearless drive design
Quick-change main shaft design
2.8. Integrated Electronics Layout
The integrated electronics layout features a standard Hobbywing V5 ESC with support for major telemetry systems, including Rotorflight, VBar and Futaba. A dedicated gyro mounting position and integrated PCB gyro plate eliminate external power wires, delivering broad gyro compatibility and a clean, organized wiring setup.
Hobbywing V5 ESC system
Integrated motor and ESC layout
Rotorflight, VBar telemetry, Futaba telemetry
Compatible with most mainstream gyros
Gyro plate with integrated PCB
2.9. Flexible Battery System
A flexible battery system with an adjustable, tray-less compartment simplifies the design while increasing reliability for a cleaner, more dependable setup.
Supports 3S to 4S setups
Maximum battery size: 24mm × 32mm × 70mm
2.10. Ultra-Stable Landing Gear
Extra-wide and low landing gear delivers rock-solid stability during takeoff and ground handling. The planted stance prevents forward tipping and gives the helicopter a performance stance and controlled presence on the ground.
2.11. Beginner-Friendly Tail Layout
The top-mounted tail motor protects the tail blades from ground strikes, delivering safer, cleaner takeoffs and landings while keeping the tail protected where it matters most.
Safer and more forgiving for beginners
Cleaner, more protected tail assembly
2.12. Fast-Service Tail System
The fast-service tail system is engineered for maximum simplicity and speed, featuring a plug-in tail boom with built-in gold connectors for quick removal and installation. An integrated PCB swash guide and servo-style tail ESC eliminate wiring, routing, and soldering, making adjustments fast and frustration-free. The result is a true rapid service design that gets you back in the air in minutes.
Plug-in tail boom design with built-in gold connectors
Integrated PCB swash guide combining two functions in one part
Tail ESC uses servo-style connector
Contact-type tail motor mount. No wires or soldering
Rapid-service design.
II. RadioMaster Nexus-XR Helicopter Flight Controller Integrated 2.4GHz ExpressLRS Receiver - Red:
1. Features:
- Integrated ExpressLRS Receiver: Dual Semtech SX1281 2.4GHz transceivers for seamless RF performance, eliminating the need for an external receiver.
- Optimized for Rotorflight 2.2: Engineered for peak performance and compatibility.
- Precision Control: STM32F722 MCU and ICM42688P 6-axis gyroscope/accelerometer for superior flight dynamics.
- Flight Logging: 256MB onboard flash memory for detailed logging and tuning.
- Dual Antenna Design: Two 65mm wire antennae for superior signal strength and range.
- Versatile Connectivity: Multiple UART ports support CRSF, ELRS, S.BUS, and more.
- More PWM Pins: Additional pins for expanded control in complex setups.
- CNC-Machined Aluminum Case: Sleek, rugged design doubles as a heat sink to keep the system cool.
- Tail Servo/ESC Support: Compatible with 760μs/1520μs tail servos and ESCs.
- 12V Servo Support: Capable of supporting 12-volt servos.
- Wide Voltage Range: Supports 3.6V–70V external power input for flexible setups.
- Improved BEC: Stable, reliable power delivery to electronics for enhanced performance.
- Isolated Power Supplies: Dedicated 1.8V (gyro), 3.3V (MCU), and 5V (interfaces) to minimize noise.
- USB-C Accessibility: Lightweight, flexible USB-C extender cable for easy access in tight builds.
- Compact and Lightweight: Ideal for any helicopter builds.
- Rotorflight Rescue: Standard feature for enhanced safety in emergencies.
- Optional Case Color: Grey / Gold / Red / Blue / Purple.
2. Specification:
- Item: Nexus-XR Helicopter Flight Controller
- Firmware: Rotorflight 2.2
- MCU: STM32F722RET6
- Gyro (IMU): ICM42688P
- Flash Memory (Black Box. IC): 256MB (W25N02KVZEIR)
- Barometer: SPL06-001
- Uart: 5 - S.BUS[UART1], TELEM[UART2], PORT-A[UART4], PORT-B[UART6], PORT-C[UART3]
- Servo: S1, S2, S3, TAIL Servos (Up to 12V )
- Rpm Sensor: 1 - FROM ESC FREQUENCY SENSOR
- AUX: 1
- Ext voltage input (tele): 3.6-70v
- Receiver Support: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP
- Voltage Supply(DC): 5 - 16V
- A-B-C Serial Port Power Output: 5V - 1.5A
- Telemetry: S.BUS, HoTT, S.Port, MSP, EDGETX, ELRS
- ESC: PWM, Oneshot, Multishot, Dshot
- Support Tail ESC: 760μs / 1520μs Servo
- Support Tail Motor: Yes
- Internal Receiver: RP4TD-M ExpressLRS 2.4GHz Mini True Diversity Receiver
- MCU: ESP32
- Type: ISM
- RF Chip: SX1281 x 2
- Antenna: 65mm 2.4GHz Wire Antenna x 2
- Frequency Range: 2.4GHz
- Maximum Refresh Rate: 500Hz / F1000Hz
- Telemetry RF Power: Max 2 x 10mW
- Wifi Updates: Yes
- FW Target: RadioMaster RP4TD-M 2400 RX
- Bus interface: CRSF
- Demensions: 44.70 x 26.50 x 14.30mm
- Weight: 24.1g
3. Package Includes:
1 * NEXUS-XR Helicopter Flight Controller
3 * JST-GH 4 Wire pigtail cables
1 * JST-GH to Servo Plug (dupont 3 pin connector)
1 * Ultra light-weight and flexible USB-C extender
1 * Type C extension cable
1 * JST-ZH1.5 "DSM" Telemetry cable (Telemetry only does not support DSM Receivers)
1 * Voltage telemetry wire
3 * 3M double-sided mounting tape
2 * Heat shrink tubing
1 * Inventory Card
III. Tattu 650mAh 4s 14.8V 95C R-Line Lipo Battery Pack with XT30 Plug:
Tattu R-Line is a brand new product line specifically designed for professional FPV racing competitions. It's the selling version of Toppilot batteries. It's also a subsidiary of the Tattu brand. It's got higher capacity, lower internal resistance and lower landing temperatures. They are more powerful than any graphene battery. Generally, R-Line batteries have the same specs as our popular Toppilot batteries. There are different R-Line versions for the needs of different FPV racing competitions
1. Features:
- Remarkable stacking technology enables single-cell capacities of 650mAh.
- High discharge performance and high energy density.
- Superior Japan and Korea Lithium Polymer raw materials.
- Local after-sales service (located in Dublin, CA).
2. Specifications:
- Minimum Capacity: 650mAh
- Configuration: 4S / 14.8V / 4Cells
- Discharge Rate: 95C
- Max Burst discharge Rate: 190C
- Net Weight(±20g): 82g
- Dimensions: 61mm Length x 31mm Width x 25mm Height
- Charge Plug: JST-XHR-5P
- Discharge Plug: XT30
