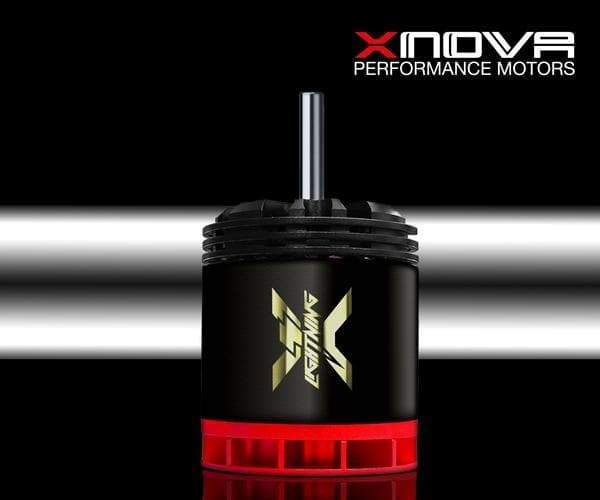

This is the Xnova Lightning 3225-1100KV Brushless Motor. This motor was developed to have crazy power for helicopters spinning 420mm-500mm sized rotor blades. All Xnova motors are 100% hand-wound and each motor runs through a complete quality control test before shipping.
Features
- Designed for extreme 3D flying
- High quality Neo Magnets, heat resistant up to 150 degree C
- Specialized wires, heat resistance up to 250 degree C
- Precise balanced
- High performance stator metal sheet
- High quality NMB bearings
- Marked leading high efficiency up to 90%
- Cooler running
- Superb quality and machining of CNC parts
- Hand wound single strand wire
Specifications
| Slots & Poles | 12n10p |
| Winding T | YY |
| rpm/V | 1100 |
| Volt (V) | 10 / 22.2 |
| Io(A) | 3.1 / 5.1 |
| Rm (mohm) | 10 / 10 |
| Weight (without connector) (g) | 240 |
| Body Length (no shaft) mm | 50 |
| Diameter (mm) | 40.5 |
| Shaft Length (mm) (Details pictures) | A |
| Shaft Dia. (mm) | 5 |
| Mounting Holes CTC Distance (mm) | 25 |
| Mounting Screw | M3x0.5 |
| Max Eff. Curr. | 55.68 / 106.40 |
| Max Eff. | 88.86 / 90.41 |
| Kt (Nm/A | 0.0087 |
| Km (Nm/sqrt(w)) | 0.0868 |
| Max Continuous Power(Watts) | 1900 |
| Peak Continuous Power(Watts) (2 sec) | 2500 |
| Max Continuous Current(Amps) | 86 |
| Vendor: | Xnova Performance Motors |
| SKU: | LGT32251100KV10PA |
| Barcode: | 000845521517 |
| Availability: | In Stock |
| Product Type: | Heli Motors |
| Weight: | 1.5 lb |
