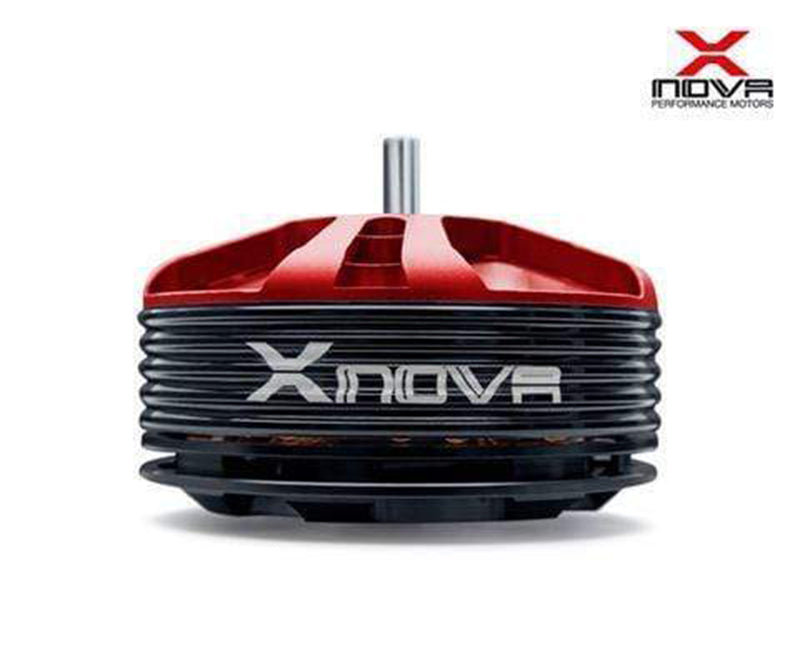

Xnova MS4808-620KV Multirotor Motor
$24.99
$95.00( / )
High performance and finest CNC quality Ultimate efficiency Low cogging torque and smooth running Precise balanced and fully tested Motor Type MS4808-620 No-load current (@10V) 0.9A Weight (not including 60mm wires) 100g Li-Po cells 3-4s Resistance (including 60mm wires) 0.082Ω Prop Volts(V) Throttle Amps(A) Thrust(g) Watts(W) Efficiency(g/w) APC14x4.7 14.8...
- High performance and finest CNC quality
- Ultimate efficiency
- Low cogging torque and smooth running
- Precise balanced and fully tested
| Motor Type | MS4808-620 |
|---|---|
| No-load current (@10V) | 0.9A |
| Weight (not including 60mm wires) | 100g |
| Li-Po cells | 3-4s |
| Resistance (including 60mm wires) | 0.082Ω |
| Prop | Volts(V) | Throttle | Amps(A) | Thrust(g) | Watts(W) | Efficiency(g/w) |
|---|---|---|---|---|---|---|
| APC14x4.7 | 14.8 | 50% | 4.6 | 610 | 68.08 | 8.96 |
| 65% | 8.7 | 960 | 128.76 | 7.45 | ||
| 75% | 12 | 1180 | 177.6 | 6.64 | ||
| 80% | 13.1 | 1250 | 193.88 | 6.44 | ||
| 85% | 16.4 | 1450 | 242.72 | 5.97 | ||
| 100% | 28.6 | 2040 | 423.28 | 4.81 | ||
| DJI15x5 | 50% | 7.3 | 860 | 108.04 | 7.96 | |
| 65% | 12.9 | 1260 | 190.92 | 6.59 | ||
| 75% | 18.1 | 1515 | 267.88 | 5.65 | ||
| 85% | 23.7 | 1860 | 350.76 | 5.30 | ||
| 100% | 29.4 | 2100 | 435.12 | 4.82 |
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
MS4808-620 |
| Weight: |
0.5 lb |
