Xnova TAREQ Edition 3215-945KV V2 Shaft A

Vendor: Xnova Performance Motors
|
SKU: XNM3215945KV10PA
Availability: Out Of Stock

Earn [points_amount] when you buy this item.

Price Match Guarantee
$181.49
$181.49
The order quantity exceeds the stock!
Xnova TAREQ Edition 3215-945KV V2 Shaft A - HeliDirect

Xnova TAREQ Edition 3215-945KV V2 Shaft A

$181.49
Xnova TAREQ Edition 3215-945KV V2 Shaft A - HeliDirect

Xnova TAREQ Edition 3215-945KV V2 Shaft A

$181.49

Related Products

Description

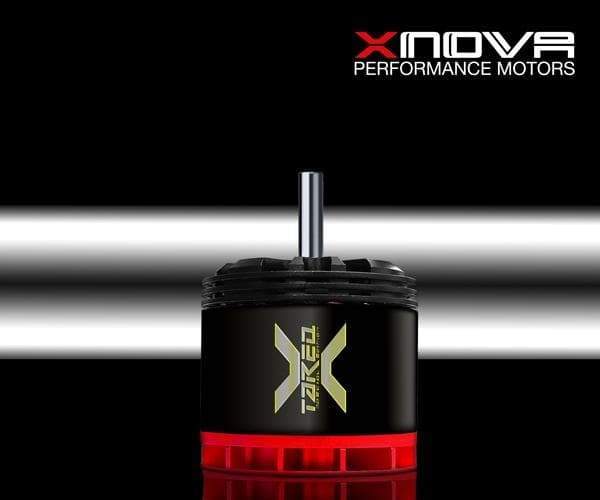

This is the Xnova "Tareq Edition" 3215-945KV Brushless Motor. The Xnova Tareq Special Edition was carefully optimized and tested under the watchful eye of Tareq himself to deliver the power he needs for his insane style of extreme 3D flying. All Xnova motors are 100% hand-wound and each motor runs through a complete quality control test before shipping.


Features

  • Designed for extreme 3D flying
  • Developed with Tareq Alsaadi for SAB-Goblin 380 helicopter
  • High quality Neo Magnets, heat resistant up to 150 degree C
  • Specialized wires, heat resistance up to 250 degree C
  • Precise balanced
  • High performance stator metal sheet
  • High quality NMB bearings
  • Marked leading high efficiency up to 90%
  • Cooler running
  • Superb quality and machining of CNC parts
  • Hand wound single strand wire

Specifications

Slots & Poles 12n10p
Winding T YY
rpm/V 945
Volt (V) 10 / 22.2
Io(A) 1.4 / 2.4
Rm (mohm) 24 / 24
Weight (without connector) (g) 166
Body Length (no shaft) mm 40
Diameter (mm) 40.5
Shaft Length (mm) (Details pictures) All in one
Shaft Dia. (mm) 5
Mounting Holes CTC Distance (mm) 25
Mounting Screw M3x0.5
Max Eff. Curr. 24.15 / 47.12
Max Eff. 88.41 / 89.81
Kt (Nm/A 0.0101
Km (Nm/sqrt(w)) 0.0652
Max Continuous Power(Watts) 1350
Peak Continuous Power(Watts) (2 sec) 1800
Max Continuous Current(Amps) 60



Xnova TAREQ Edition 3215-945KV V2 Shaft A








Read More
Additional Information
Vendor: Xnova Performance Motors
SKU: XNM3215945KV10PA
Barcode: 000845501151
Availability: Out Of Stock
Product Type: Heli Motors
Weight: 1.5 lb

You may also like

Recently Viewed Products

Customer Reviews

Based on 4 reviews
50%
(2)
25%
(1)
25%
(1)
0%
(0)
0%
(0)
J
Justin H.
Xnova

I love Xnova motors. This one didn’t work out for my comp raw 420. Not sure why but I couldn’t get it dialed. Still love Xnova . I run them in all my helis

S
Steven A.
2nd motor in 2 weeks

A bit upset that I had to buy a 2nd Xnova motor .
The 1st was only 2 weeks old . And because it was in the helicopter. And on the bench when it smoked . And heliDirct didn’t warrantee the motor and took $30.00 off .

T
Tien S.
Great motor

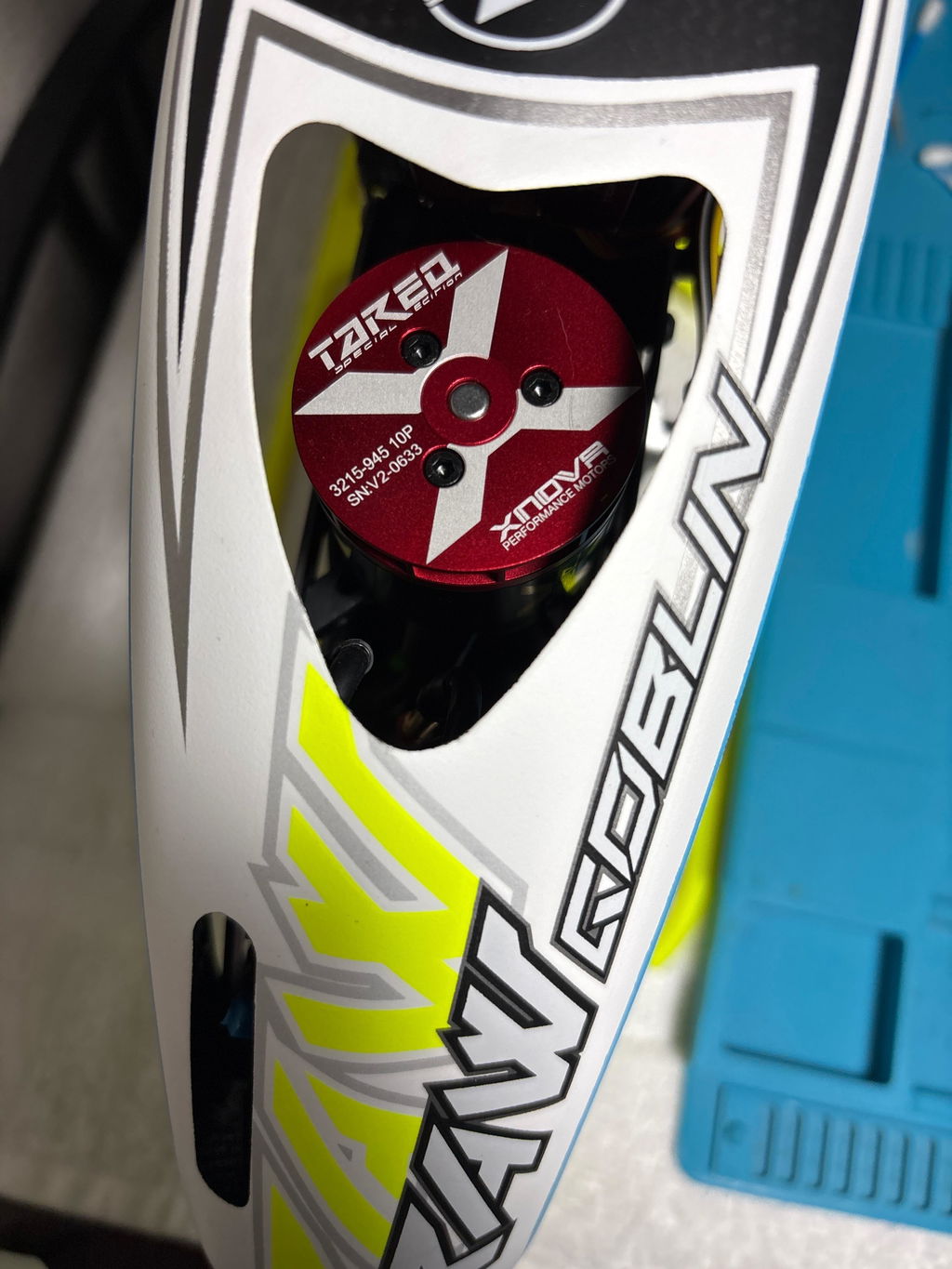

Can't go wrong with this powerful motor for the Goblin 380. I prefer the Xnova because it has the flat spot already machined on the metal rod. Some other brands you have to do it yourself.

r
robert s.
Excellent motor

Excellent motor. Lots of power. runs cool. using it in my sab 420
