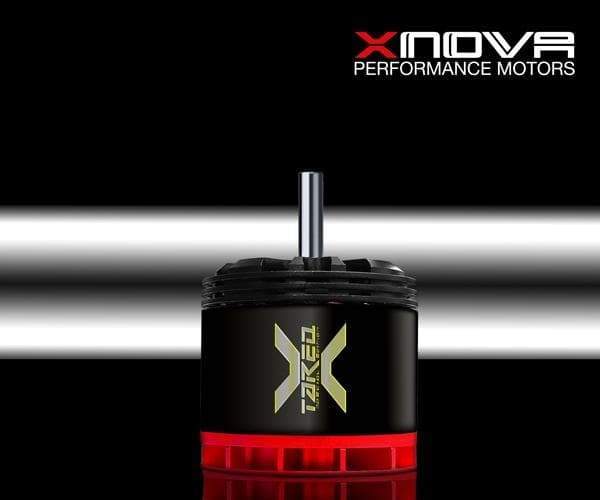

This is the Xnova "Tareq Edition" 3215-945KV Brushless Motor. The Xnova Tareq Special Edition was carefully optimized and tested under the watchful eye of Tareq himself to deliver the power he needs for his insane style of extreme 3D flying. All Xnova motors are 100% hand-wound and each motor runs through a complete quality control test before shipping.
Features
- Designed for extreme 3D flying
- Developed with Tareq Alsaadi for SAB-Goblin 380 helicopter
- High quality Neo Magnets, heat resistant up to 150 degree C
- Specialized wires, heat resistance up to 250 degree C
- Precise balanced
- High performance stator metal sheet
- High quality NMB bearings
- Marked leading high efficiency up to 90%
- Cooler running
- Superb quality and machining of CNC parts
- Hand wound single strand wire
Specifications
| Slots & Poles | 12n10p |
| Winding T | YY |
| rpm/V | 945 |
| Volt (V) | 10 / 22.2 |
| Io(A) | 1.4 / 2.4 |
| Rm (mohm) | 24 / 24 |
| Weight (without connector) (g) | 166 |
| Body Length (no shaft) mm | 40 |
| Diameter (mm) | 40.5 |
| Shaft Length (mm) (Details pictures) | All in one |
| Shaft Dia. (mm) | 5 |
| Mounting Holes CTC Distance (mm) | 25 |
| Mounting Screw | M3x0.5 |
| Max Eff. Curr. | 24.15 / 47.12 |
| Max Eff. | 88.41 / 89.81 |
| Kt (Nm/A | 0.0101 |
| Km (Nm/sqrt(w)) | 0.0652 |
| Max Continuous Power(Watts) | 1350 |
| Peak Continuous Power(Watts) (2 sec) | 1800 |
| Max Continuous Current(Amps) | 60 |
Ā
| Vendor: | Xnova Performance Motors |
| SKU: | XNM3215945KV10PA |
| Barcode: | 000845501151 |
| Availability: | In Stock |
| Product Type: | Heli Motors |
| Weight: | 1.5 lb |
