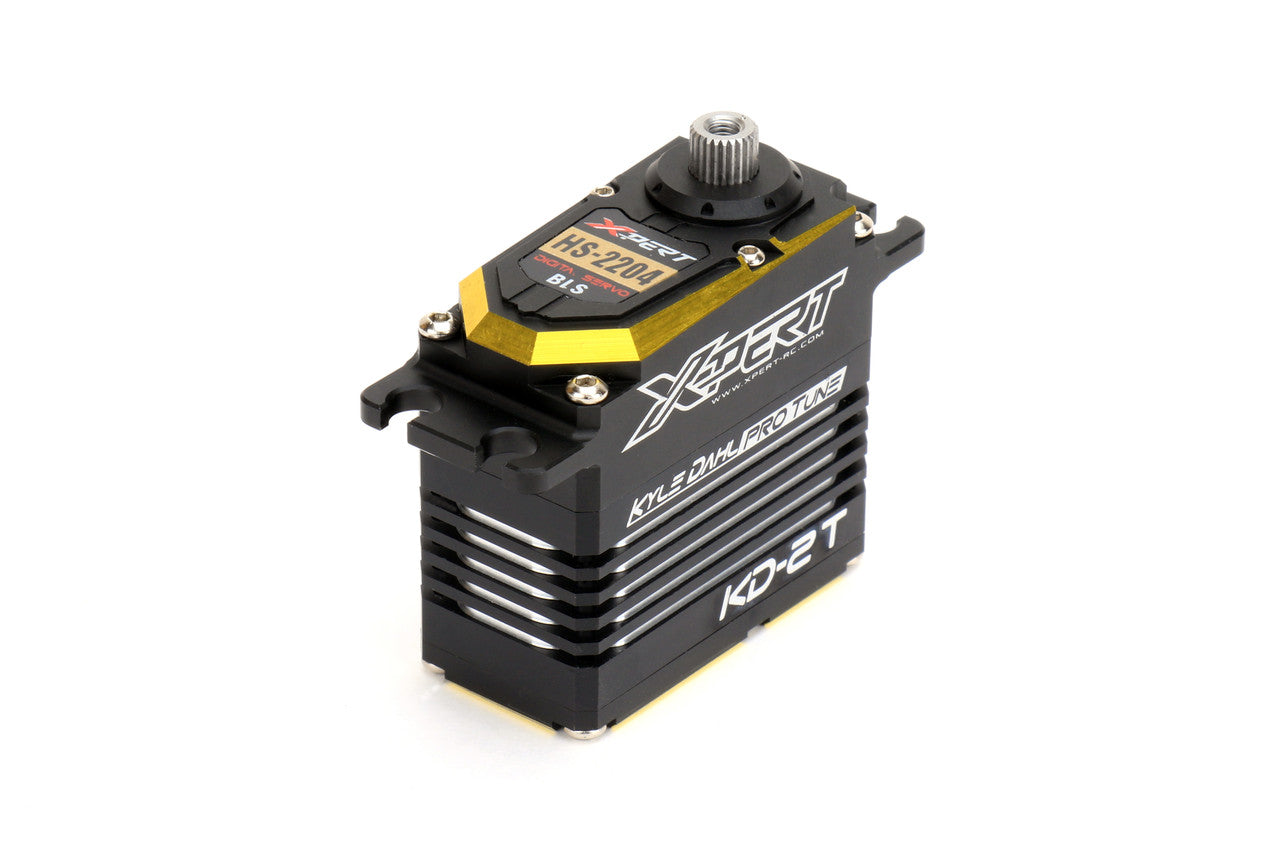

Xpert HS-2204T-HV KD2T Standard Size Full Aluminum Servo

Features

• Developed and tuned by World Champion Helicopter Master, Kyle Dahl.
• All new software algorithm with the best "connection" with your helicopters.
• All new motor and gear set design with enlarged 2mm gear alignment pins for better durability under impact.
• Super Responsive NARROW BAND (760us)
• Auto Adaptive FREQUENCY RANGE (50-1000Hz)
• Quick release cable that allows easy and quick installation for all helicopters.
• Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
• 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
• All Aluminum case for the best thermal dissipation and durability.
• High-Speed, High-precision 12-bit AD converter and CPU calculation
• Fail safe
• Over current protection
• Over temperature protection
• Start sonorant

Specifications

• Power Supply: 7.4V~8.4V
• Speed (sec/ 60°):
• @7.4V: .040 sec/60°
• @8.4V: .035 sec/60°
• Torque (oz/in):
• @7.4V: 92.44 oz-in
• @8.4V: 104.93 oz-in
• Torque (kg/cm):
• @7.4V: 6.66 kg-cm
• @8.4V: 7.56 kg-cm
• Dimensions: 40x40.5x20 mm
• Weight: 71.5 g
• Range: Auto Adaptive FREQUENCY RANGE (50-1000Hz)
• Center Position: 760us
• Applications: Helicopter Tail
