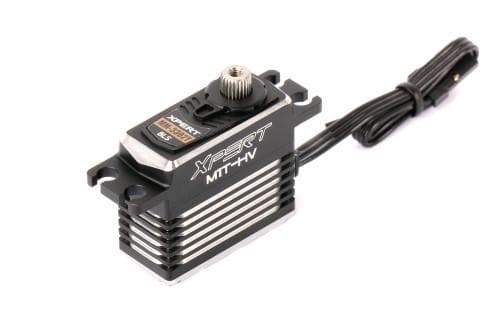

Xpert MM-3302T-HV Full Metal Mini Size Brushless Tail Servo

Xpert Servo
|
MM-3302T-HV
You will earn 139.99 points for buying this product
Price Match Guarantee
$139.99 $0.00( / )
Features: Brushless motor design provides extremely high speed, top efficiency, and low power consumption. Full aluminum case design 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability. Light weight design All Aluminum case for the best thermal dissipation and durability. Strong Metal Gear Glitch-free Sophisticated error...

Features:

  • Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
  • Full aluminum case design
  • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
  • Light weight design
  • All Aluminum case for the best thermal dissipation and durability.
  • Strong Metal Gear
  • Glitch-free
  • Sophisticated error correction
  • High-Speed, High-precision 12-bit AD converter and CPU calculation
  • Fail safe
  • Over current protection
  • Over temperature protection
  • Start sonorant
  • 760us narrow band


Specifications:

  • Type: Mini-size Tail Servo
  • Power Supply: 6.0V~8.4V
  • Speed (sec/ 60°):

@6.0V: .068 sec/60°
@7.4V: .055 sec/60°
@8.4V: .049 sec/60°

  • Torque (oz/in)

@6.0V: 118.95 oz-in
@7.4V: 146.71 oz-in
@8.4V: 166.56 oz-in

  • Torque (kg/cm)

@6.0V: 8.57 kg-cm
@7.4V: 10.57 kg-cm
@8.4V: 12 kg-cm

  • Dimensions: 33.6x15x29.5 mm
  • Weight: 40.5 g
  • Frequency: 200/333 Hz
  • Range: 50~400 Hz
  • Center Pulse Length: 760 μs
  • Applications: Helicopter Tail
Type:

Heli Servo

Vendor:

Xpert Servo

SKU:

MM-3302T-HV

Weight:

0.25 lb
