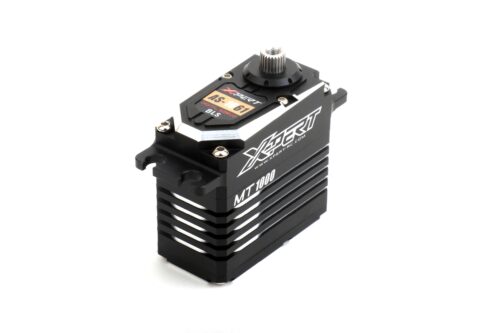

Xpert MT1000 AS-1661-HV Standard Size Servo

Xpert Servo
|
AS-1661-HV
You will earn 209.99 points for buying this product
Price Match Guarantee
$209.99 $0.00( / )
AS-1661-HV MT1000 Standard Size Aluminum Servo Features All new Mega Torque motor that produces over 1000 oz-in power for large scale airplane application. Brushless motor design provides extremely high speed, top efficiency, and low power consumption. 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability. Aluminum...

AS-1661-HV MT1000 Standard Size Aluminum Servo

Features

  • All new Mega Torque motor that produces over 1000 oz-in power for large scale airplane application.
  • Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
  • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
  • Aluminum case.

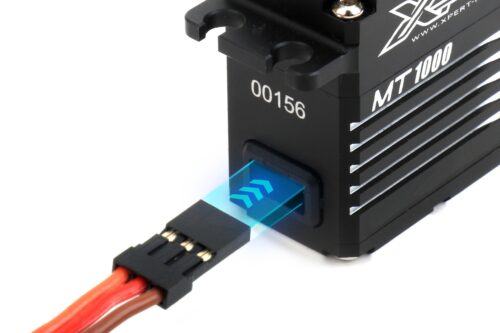

  • Quick release cable.

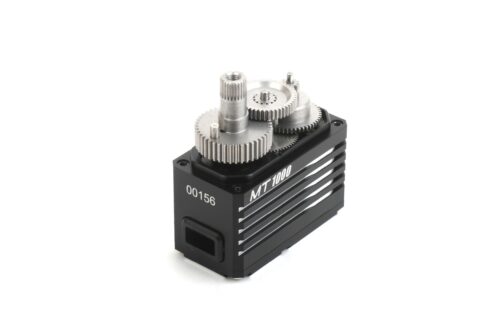

  • Super strong harden full stainless steel metal gear.

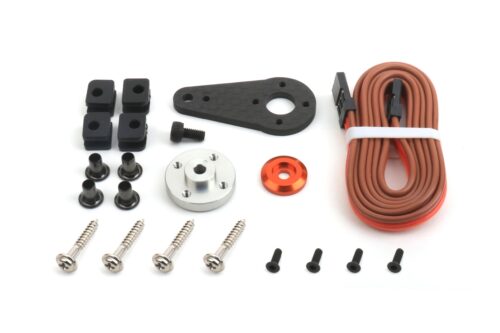

  • Carbon fiber + aluminum servo horn included.
  • Glitch-free + fail safe.
  • Sophisticated error correction.
  • High-Speed, High-precision 12-bit AD converter and CPU calculation.
  • Over current and over temperature protection.
  • Start sonorant and smooth soft start.

Specifications

TypeStandard
Product NameAS-1661-HV MT1000 Standard Size Aluminum Servo
Part NameAS-1661-HV
Power Supply4.7V~8.4V
Speed (sec/ 60°)@6.0V: .16 sec/60° @7.4V: .132 sec/60° @8.4V: .118 sec/60°
Torque (oz/in)@6.0V: 881.8 oz-in @7.4V: 1013.7 oz-in @8.4V: 1083.2 oz-in
Torque (kg/cm)@6.0V: 63.5 kg-cm @7.4V: 73 kg-cm @8.4V: 78 kg-cm
Dimensions41x21x41.4 mm
Weight85g
Center Position1520us
ApplicationsAirplane
Type:

Plane Electronics

Vendor:

Xpert Servo

SKU:

AS-1661-HV

Weight:

0.44 lb
