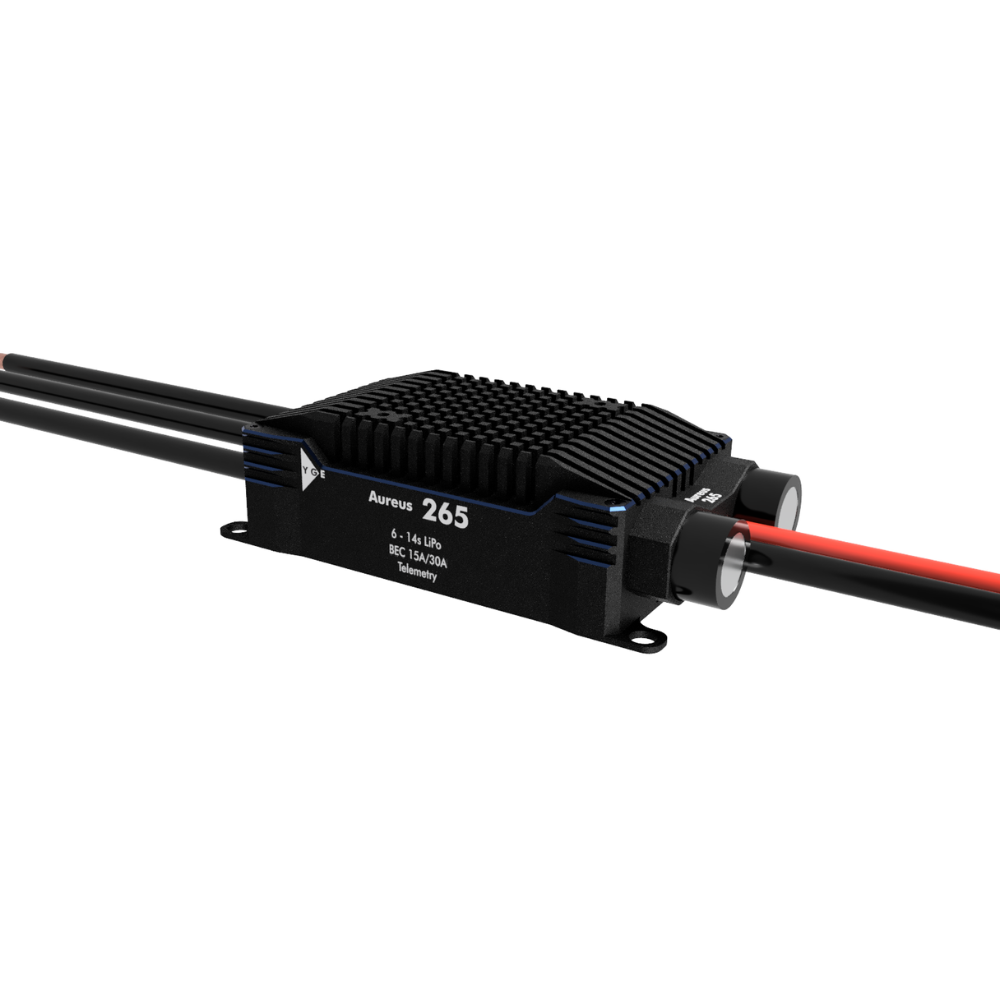

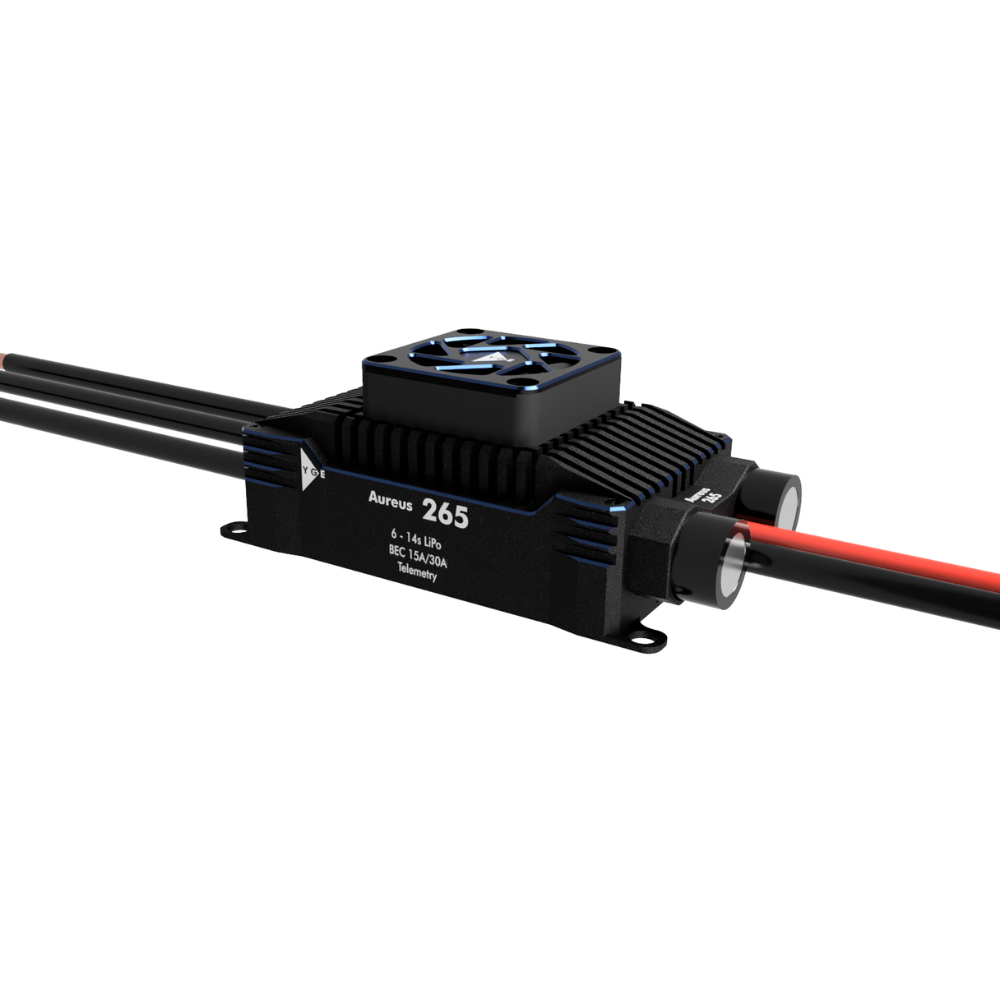

YGE Aureus 265 ESC - 5.5-12V BEC 15A / 30A

The YGE Aureus 265A is a high-performance brushless electronic speed controller designed for demanding UAV, helicopter, and RC applications. It supports high voltage setups, offers precise governor control, and includes telemetry for full system oversight.

Key Features:

• Wide input voltage: 6–14 S LiPo (up to 59 V)
• High current capability: 265 A continuous, 400 A peak
• Integrated HV-BEC: 5.5–12 V, 15 A continuous / 30 A peak
• Fully compatible telemetry: Mikado VBC, HoTT, Jeti ExBUS, Multiplex, YGE protocol
• 32-bit MCU with auto-adjusting PWM frequency
• Soft-start options including slow startup (up to 60 s) for scale helicopters
• Speed Governor mode, adjustable timing, EMK & Acro brakes
• Advanced protections: current limiting, undervoltage cutoff, over-temperature warning, anti-flash circuitry
• Supports firmware updates (USB adapter required)

Technical Specifications:

• Continuous current: 265 A; Burst: 400 A
• Voltage range: 6–14 S LiPo
• BEC: 5.5–12 V, 15 A continuous / 30 A peak
• Dimensions: 112 × 54 × 31 mm
• Weight (with cables): ~350 g
• Max RPM support: up to 240,000 RPM (2-pole)

Included in the Package:

• Rubber grommets
• Fan with connector
• Screws
• Fan cover
