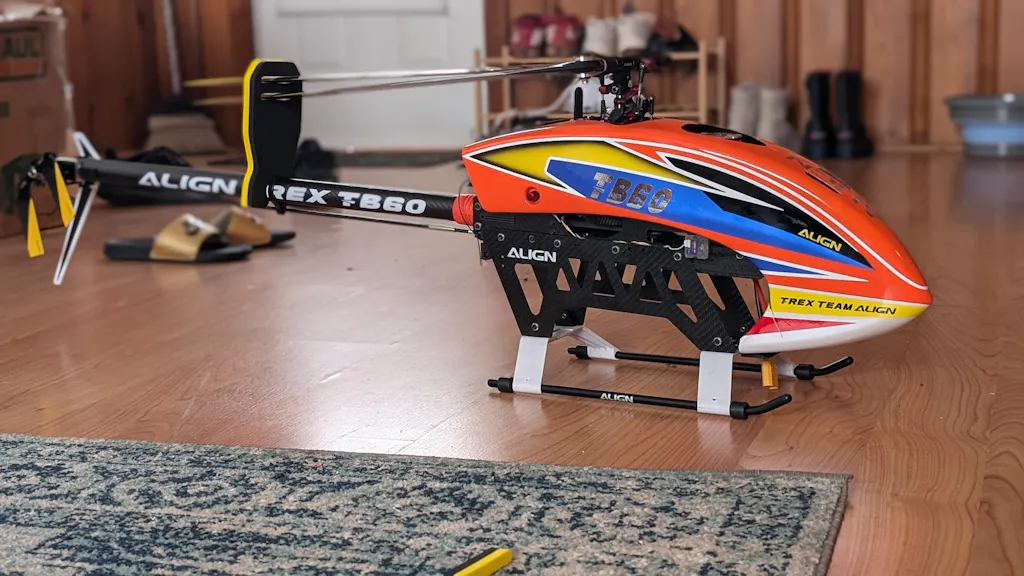

Align TB60 Helicopter Kit Only
$593.99
$0.00( / )
Specification ●Length: 1218mm●Height: 353mm●Width: 183mm●Main Blade Length: 600mm●Main Rotor Diameter: 1339mm●Tail Length: 95mm●Tail Rotor Diameter: 253mm●Motor Belt Pulley: 23T●Belt Pulley: 44T●Front Drive Main Shaft: 15T●Main Drive Gear: 62T●Autorotation Tail Drive Gear: 28T●Tail Drive Gear: 23T●Drive Gear Ratio: 7.89:1:5.04●Max RPM(approx.): 2400RPM●Weight: Approx. 1.8kg Accessories ●TB60 Kit Set x 1 set●600 Carbon...
Specification
●Length: 1218mm
●Height: 353mm
●Width: 183mm
●Main Blade Length: 600mm
●Main Rotor Diameter: 1339mm
●Tail Length: 95mm
●Tail Rotor Diameter: 253mm
●Motor Belt Pulley: 23T
●Belt Pulley: 44T
●Front Drive Main Shaft: 15T
●Main Drive Gear: 62T
●Autorotation Tail Drive Gear: 28T
●Tail Drive Gear: 23T
●Drive Gear Ratio: 7.89:1:5.04
●Max RPM(approx.): 2400RPM
●Weight: Approx. 1.8kg
Accessories
●TB60 Kit Set x 1 set
●600 Carbon Fiber Blades x 1 set
●95 Carbon Fiber Tail Blades x 1 set
●Lube Pack x 1
●An Extra set of 600 Carbon Fiber Blade (while supplies last)
Radio transmitter and electronic equipment required for assembly
●Transmitter(6-channel or more, helicopter system)
●Receiver(6-channel or more) or Remoet Receiver
●RCC-6CX Intelligent Balance Charger
●6S Li-Po 2600 ~ 5200mAh (3300mAh suggestion)
●Digital Pitch Gauge
●Multi-function Tester
●Flybarless System
●Brushless Motor x 1
●CCPM Brushless Servo x 3
●Rudder Brushless Servo x 1
●Brushless ESC x 1
●Receiver(6-channel or more) or Remoet Receiver
●RCC-6CX Intelligent Balance Charger
●6S Li-Po 2600 ~ 5200mAh (3300mAh suggestion)
●Digital Pitch Gauge
●Multi-function Tester
●Flybarless System
●Brushless Motor x 1
●CCPM Brushless Servo x 3
●Rudder Brushless Servo x 1
●Brushless ESC x 1
