Introducing SAB ILGOBLIN

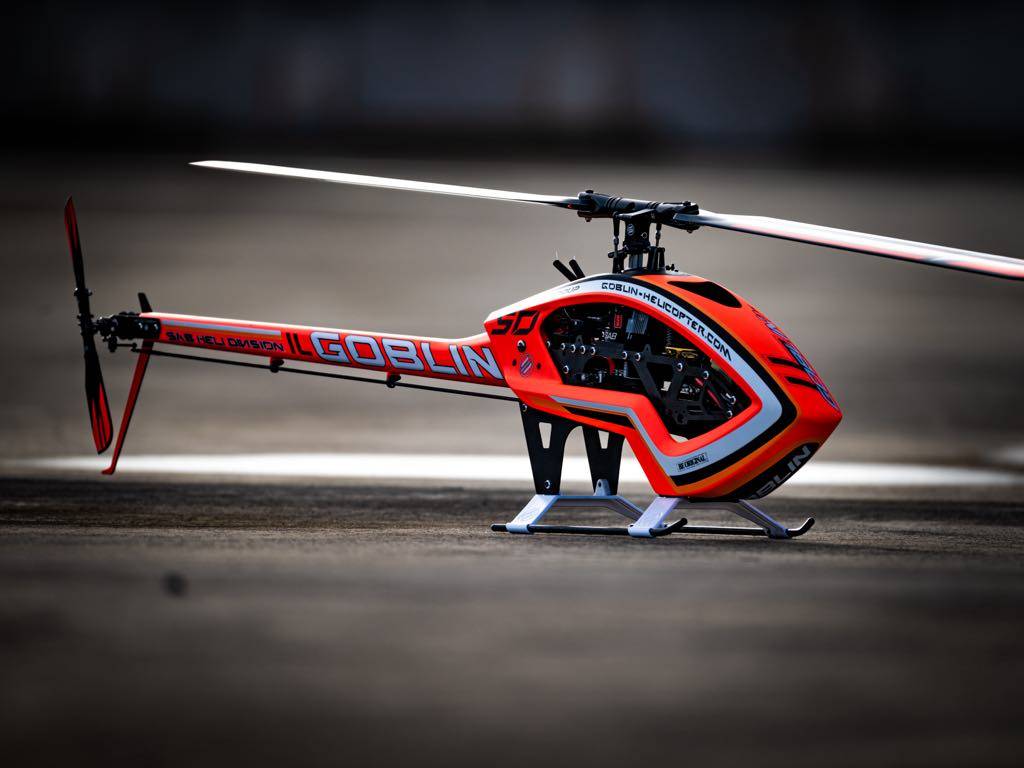

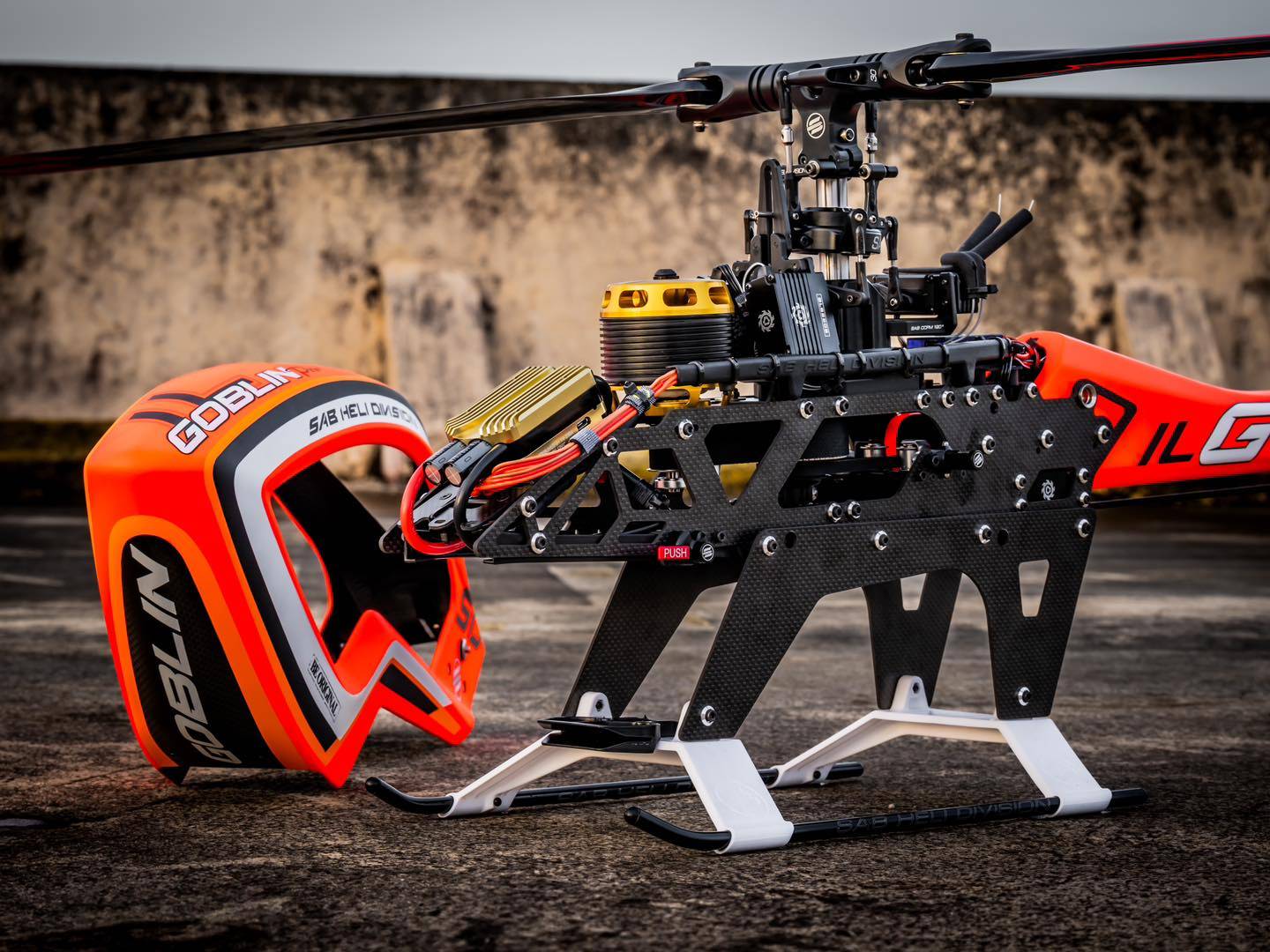

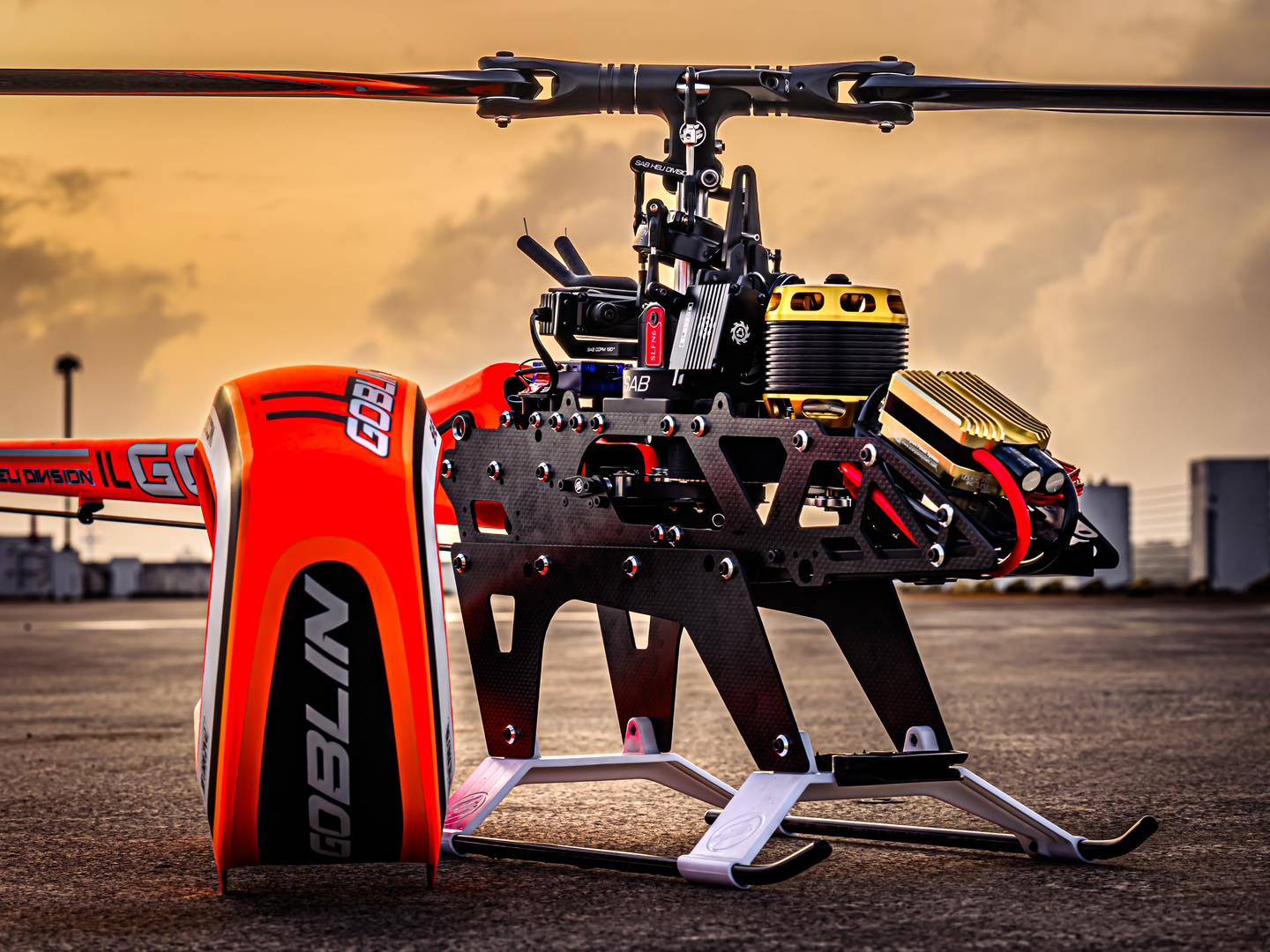

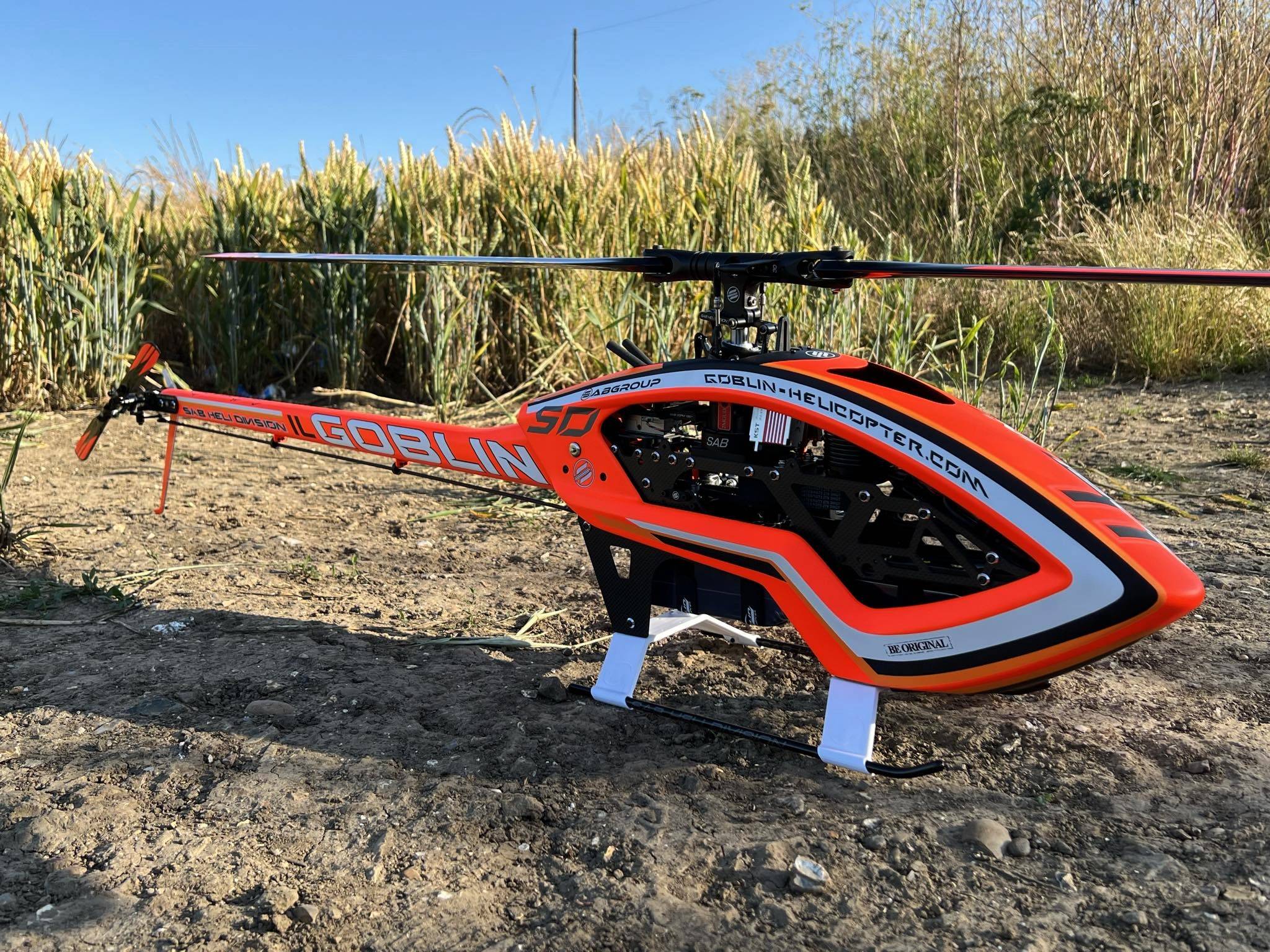

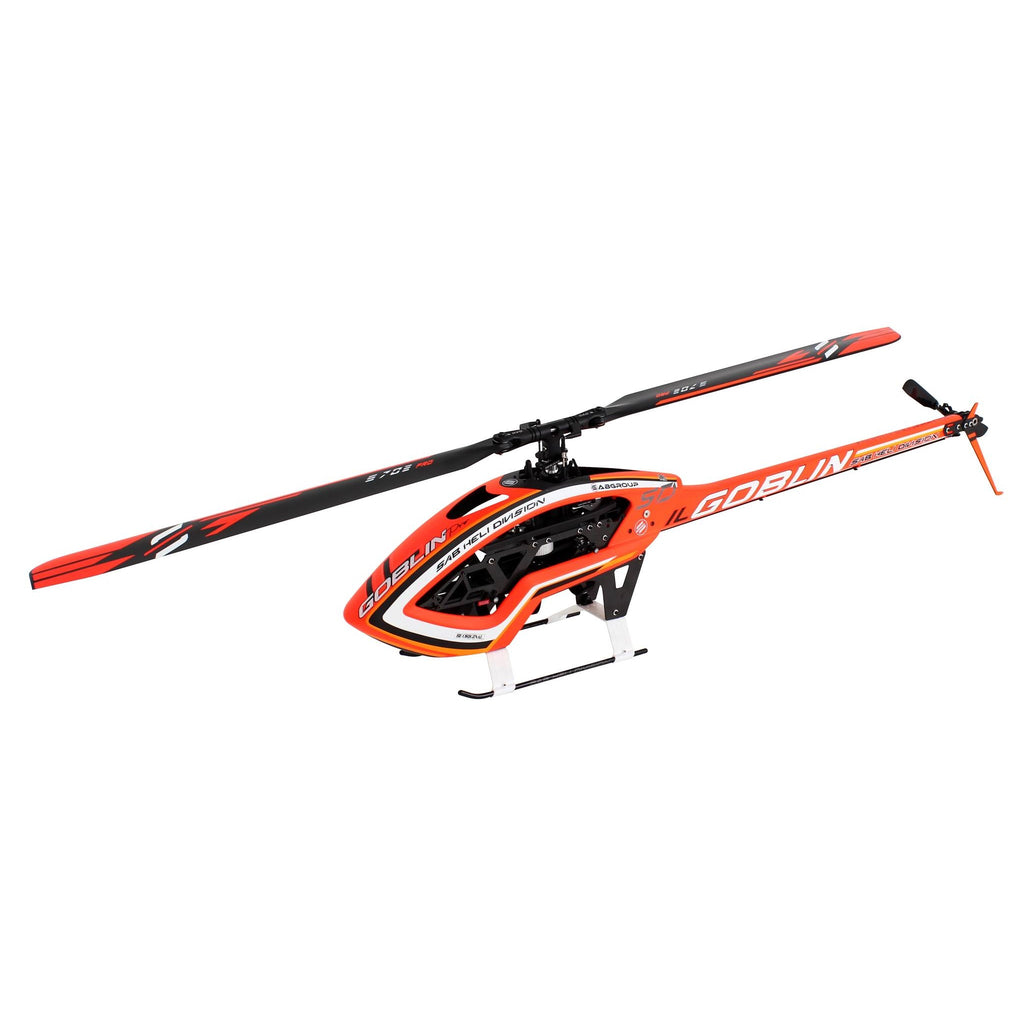

SAB ILGoblin Pro
ILGoblin PRO It represents a significant technological advancement in RC helicopters, with a complete redesign compared to previous models. Here are the main innovations: • Main transmission based on the renowned GOBLIN gearbox. • The main shaft diameter has been increased to 15 mm. • New helical gears for increased durability and strength. • New One-Way system, redesigned for optimal performance. • A fast disassembly servo mount • New design blade grip arms with an improved locking system. • Possibility of adding a pivot shaft for the spindle allowing customization of rigidity and maximum movement. • 8 mm Tail shaft with 8x16x5 bearings • The tail pulley will be available in 3 different sizes to adjust the tail ratio according to personal preferences. |

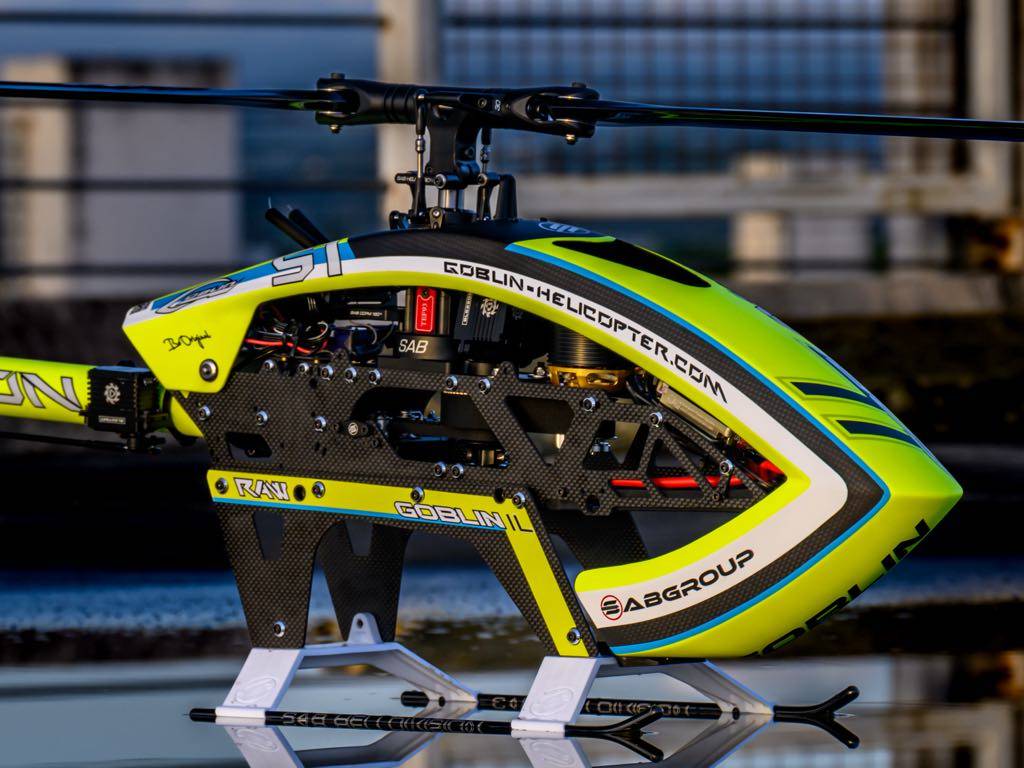

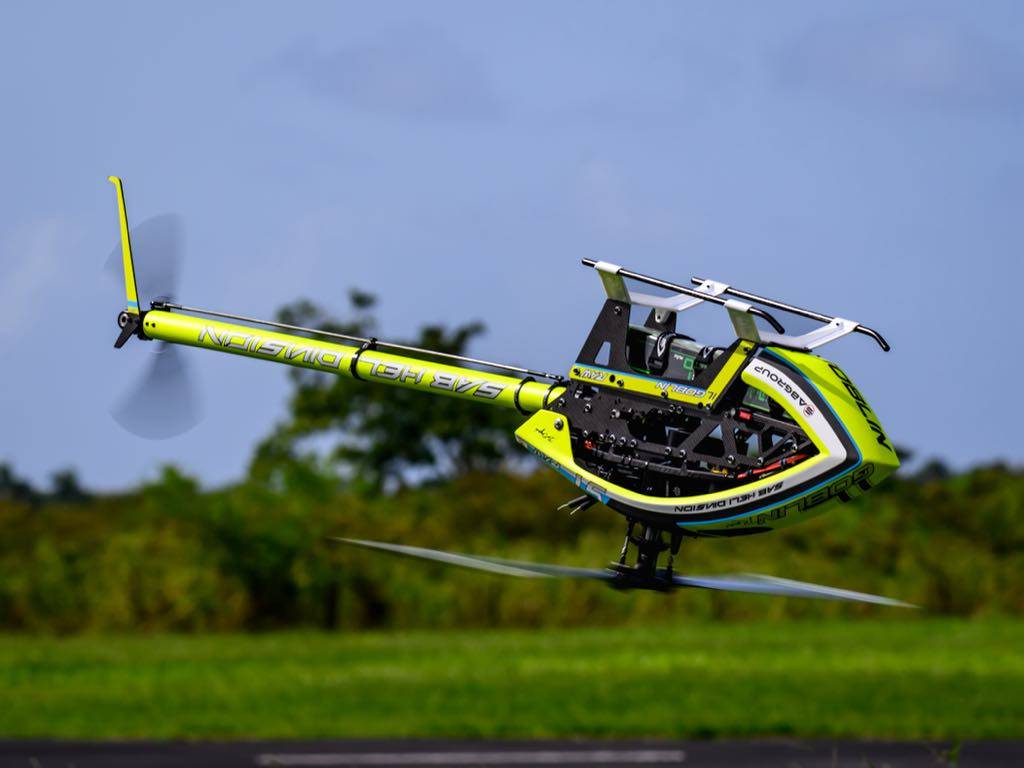

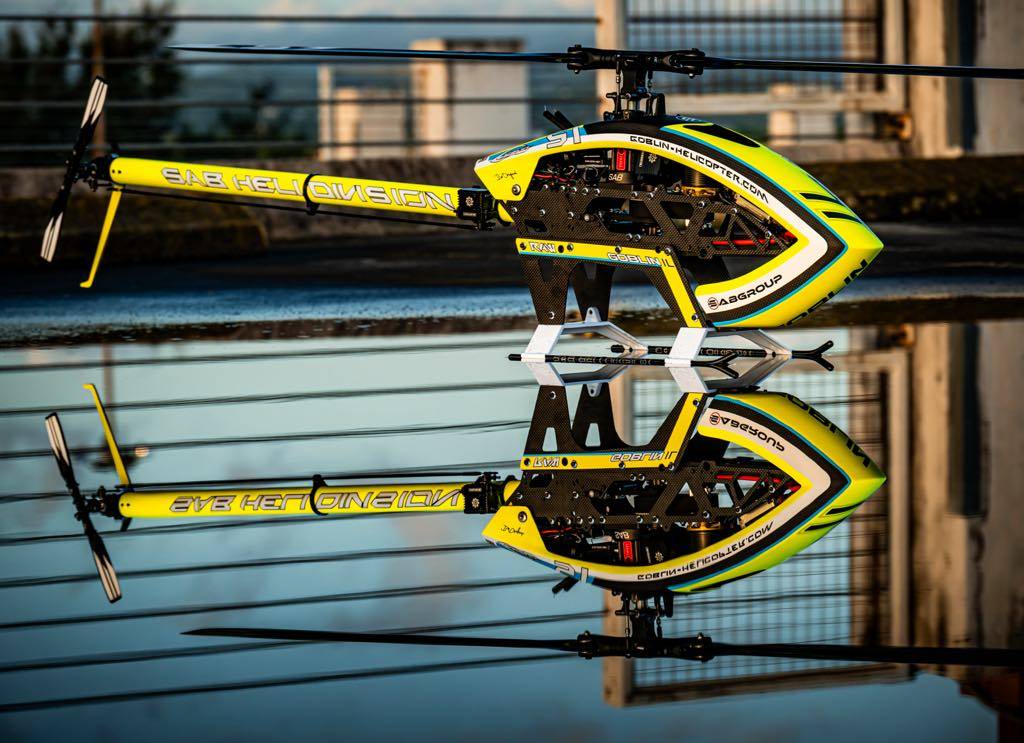

SAB ILGoblin RAW

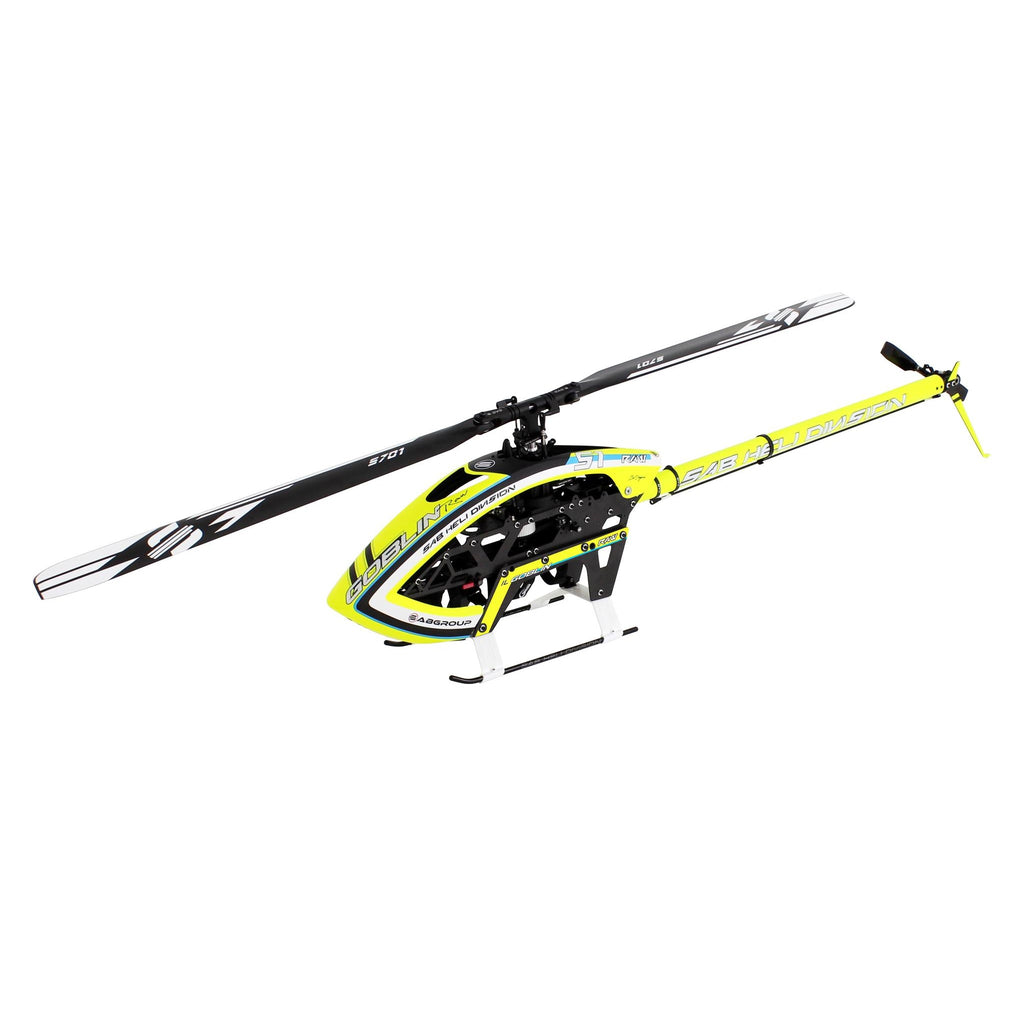

ILGoblin RAW
The revamped RAW, keeping all tried and trued designed from the original RAW with upgraded features:
• AIRFRAME weight: 2122 gr (no blades, no battery, no electronics).
• Main rotor diameter: 1576 mm (with 700 mm blades).
• Main blade length: 650 to 730 mm.
• Tail rotor diameter: 292 mm (with 110 mm tail blades).
• Tail blade length: 105 to 115 mm.
• Cyclic Servos: Standard size 40 mm.
• Tail Servo: Standard size 40 mm.
• Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1).
• Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)
• Main shaft 15 mm, Tail shaft 8 mm
• Aluminum tail boom • Motor 12S, 480/560 KV
• Battery room: 50x60x300 mm
NOW AVAILABLE AT HELIDIRECT!

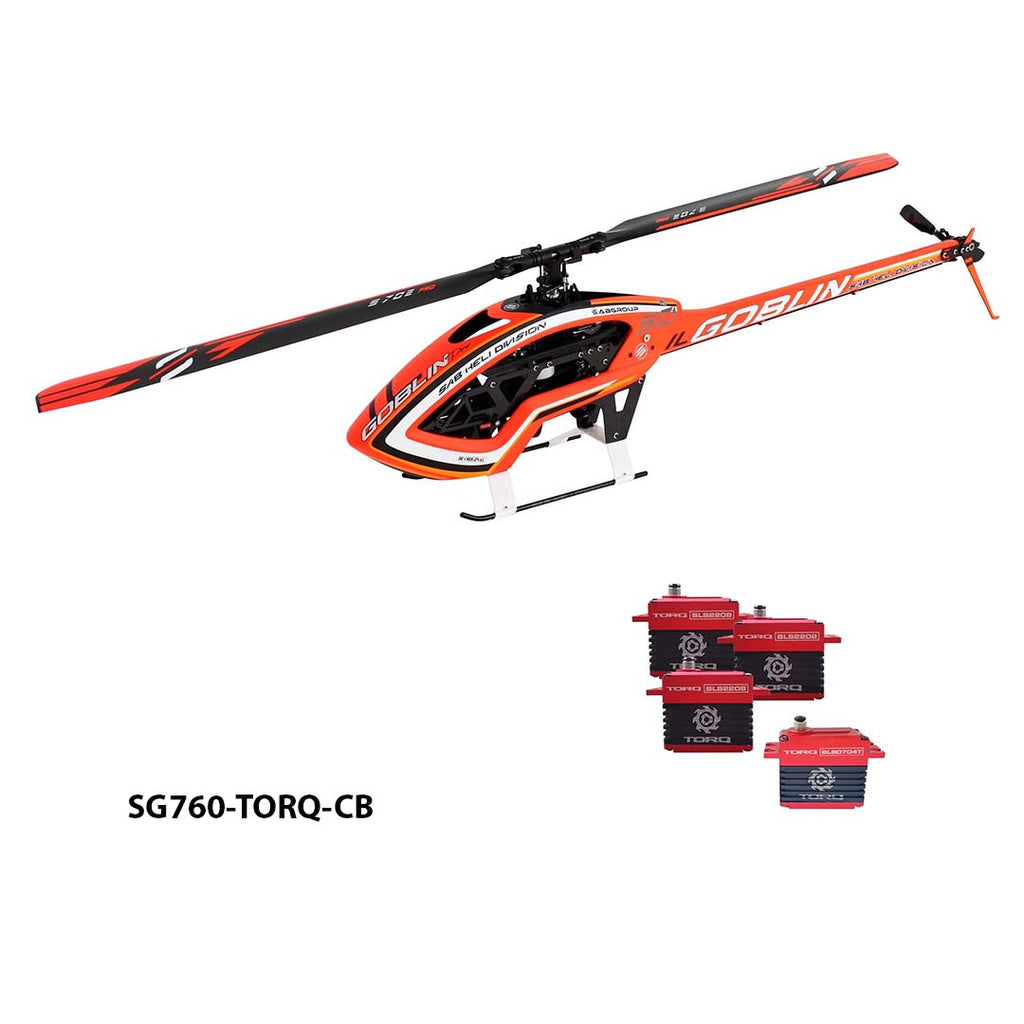

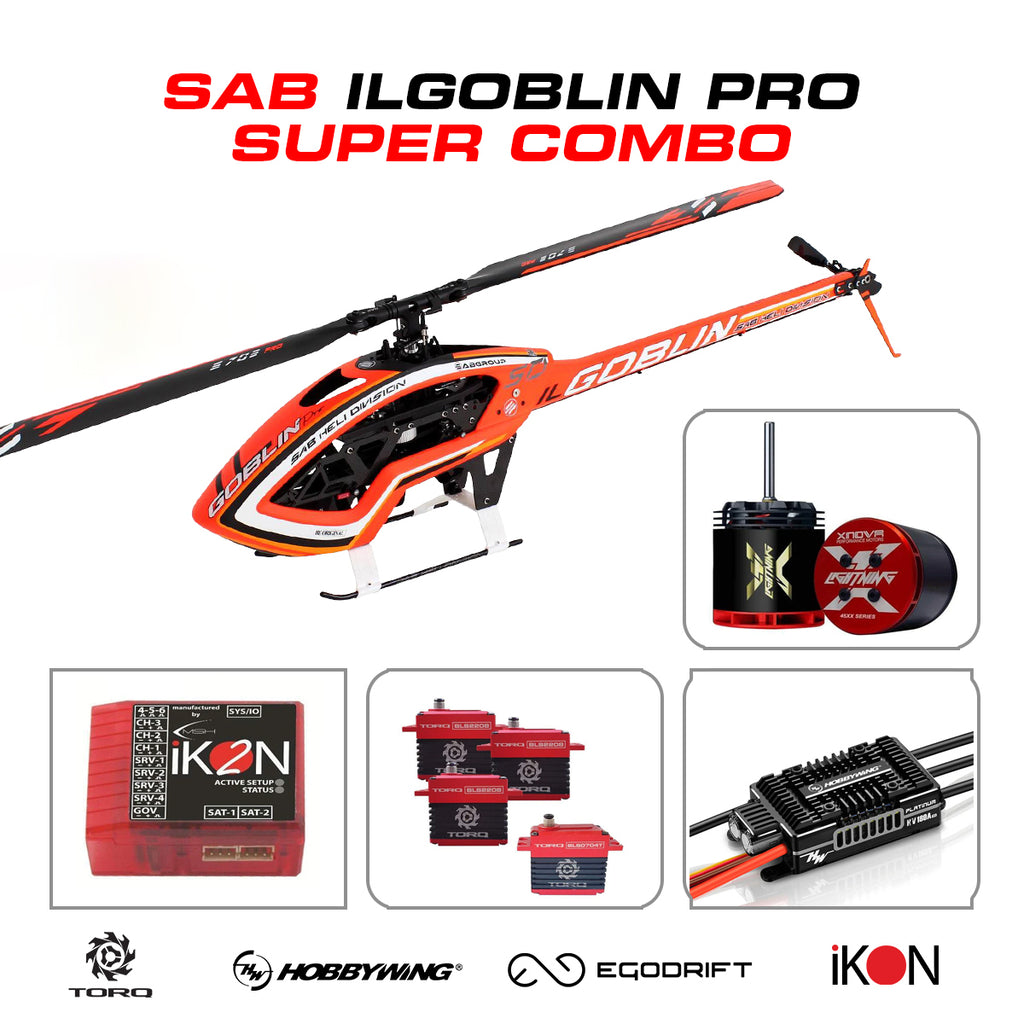

Save up on electronics and gifts with ILGoblin Super Combos!
ILGoblin Unboxing, review and 1st flight!

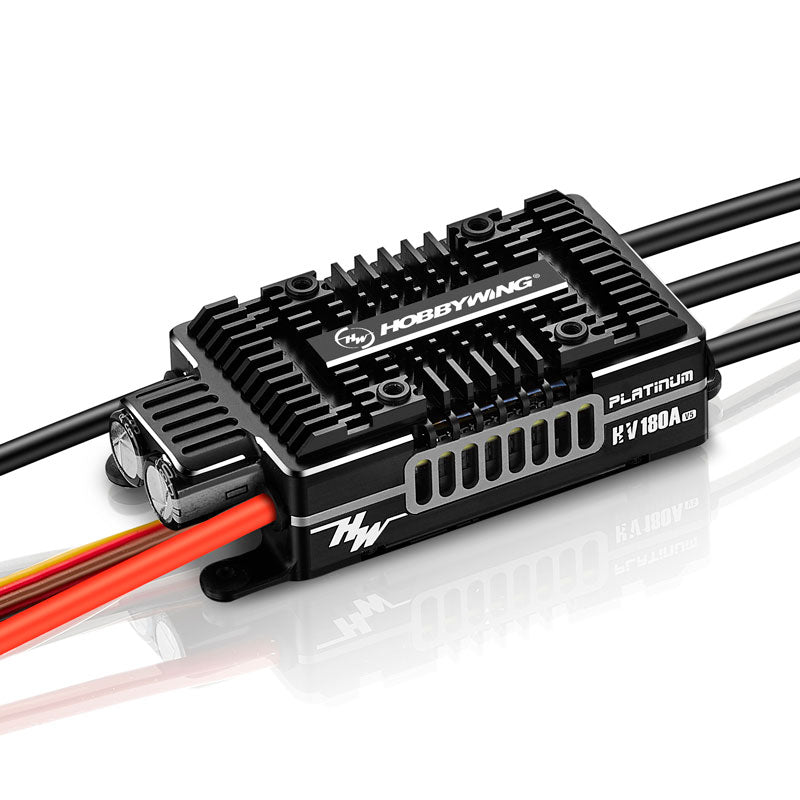

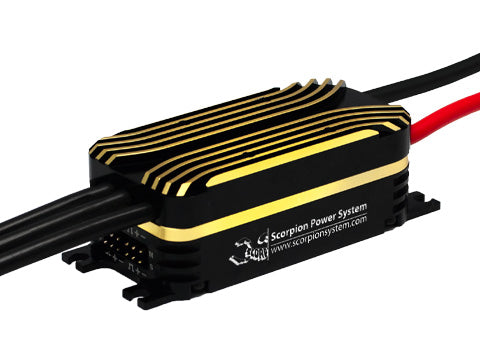

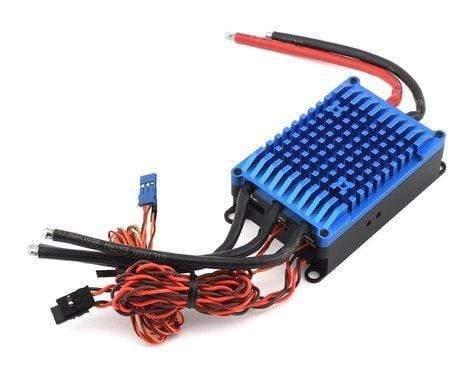

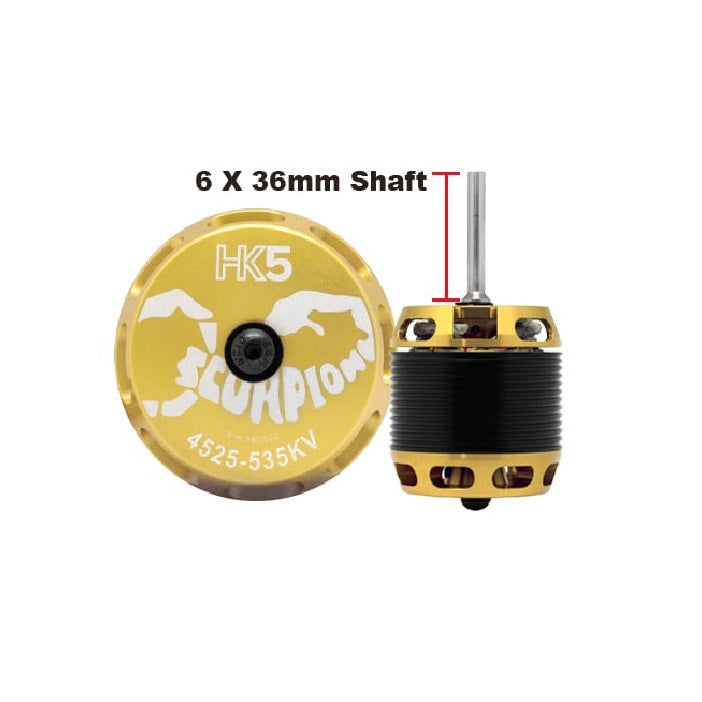

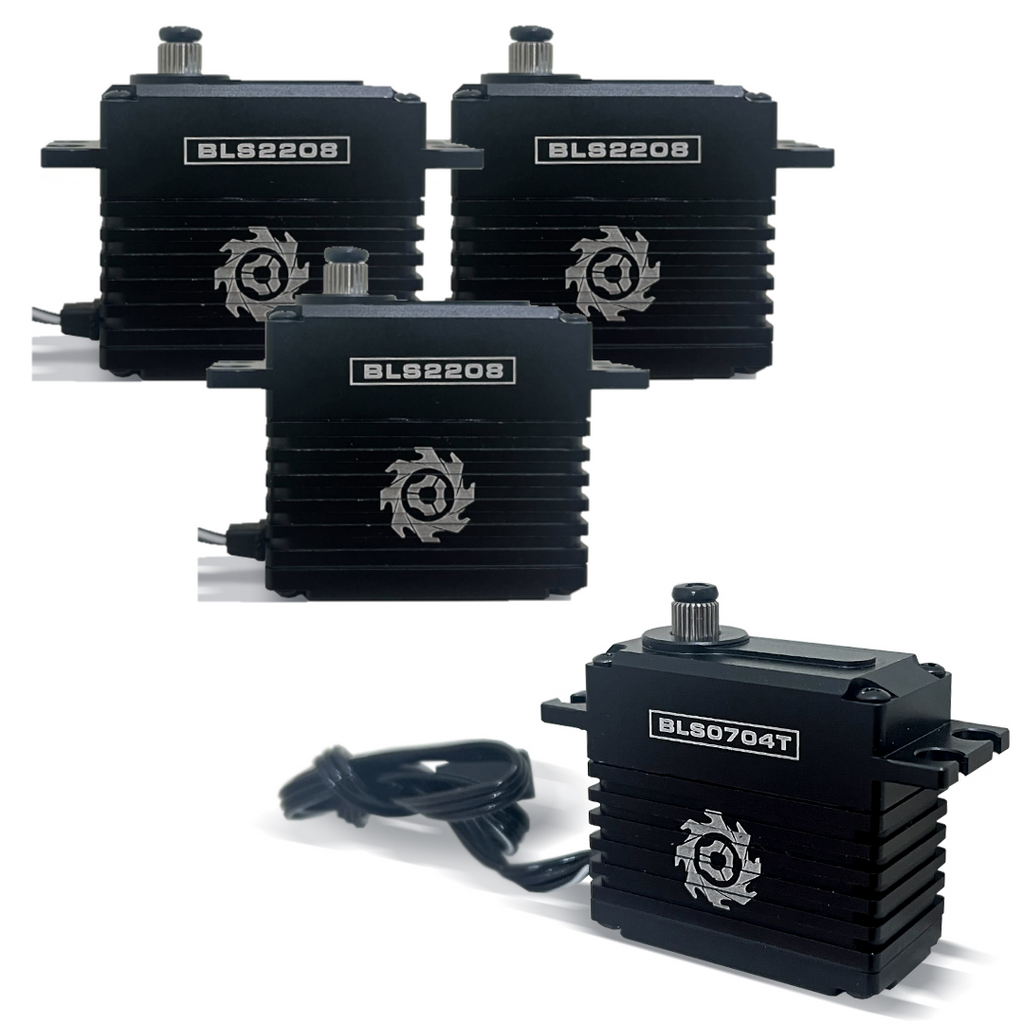

Recommended Electronics for ILGoblin PRO & RAW
