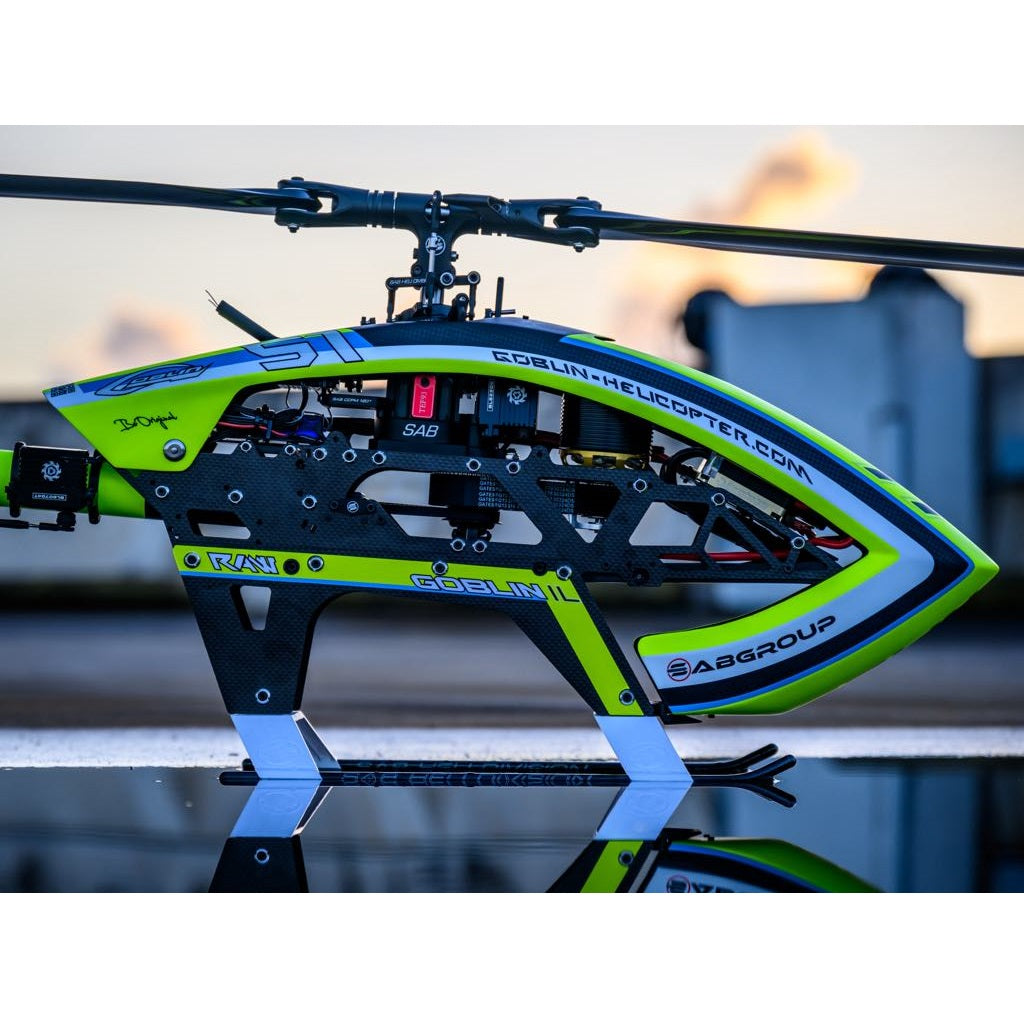

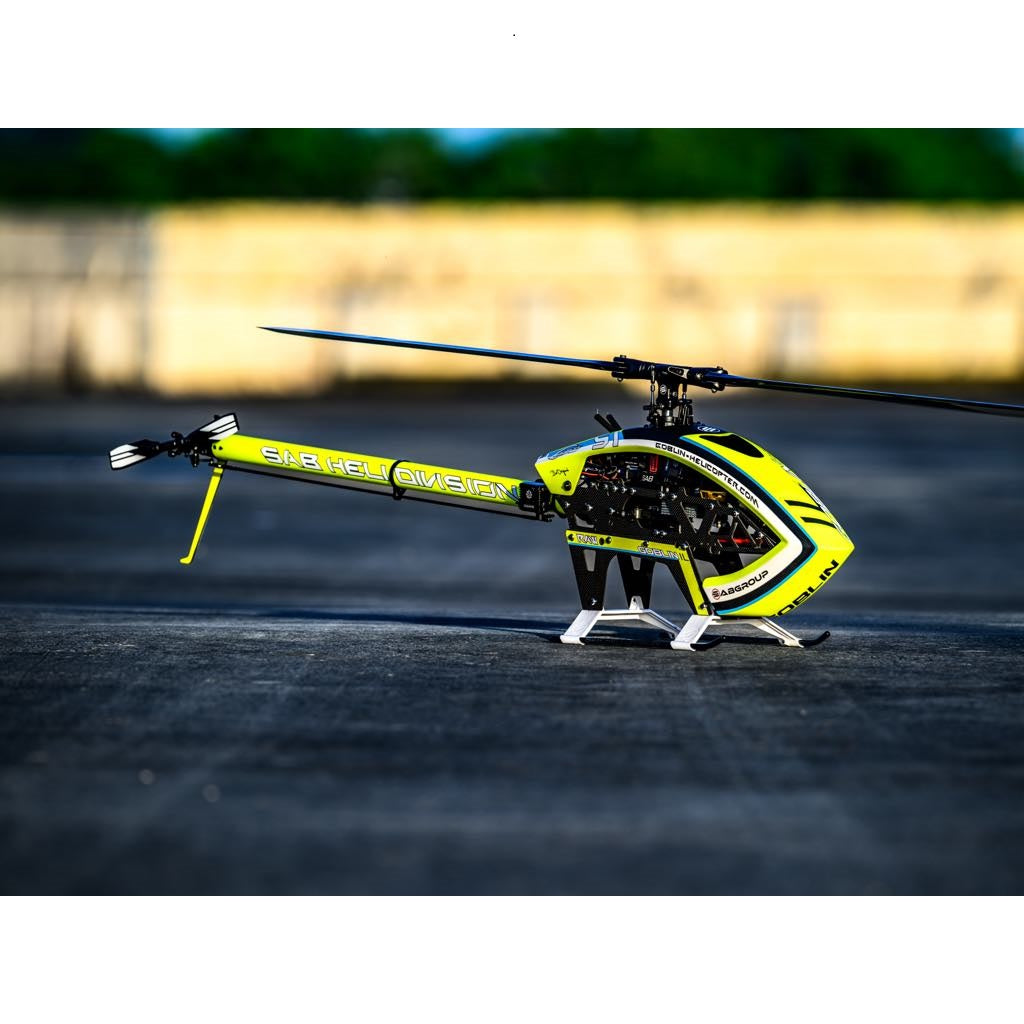

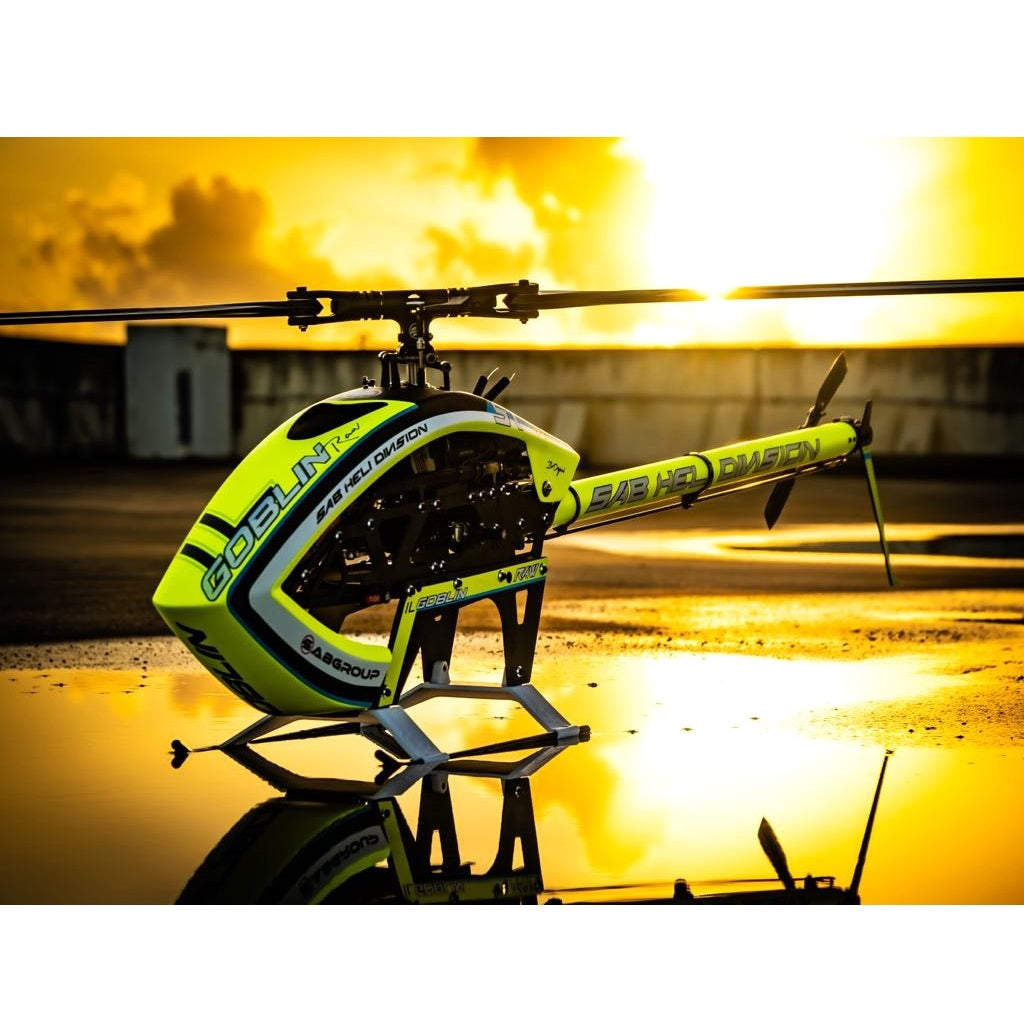

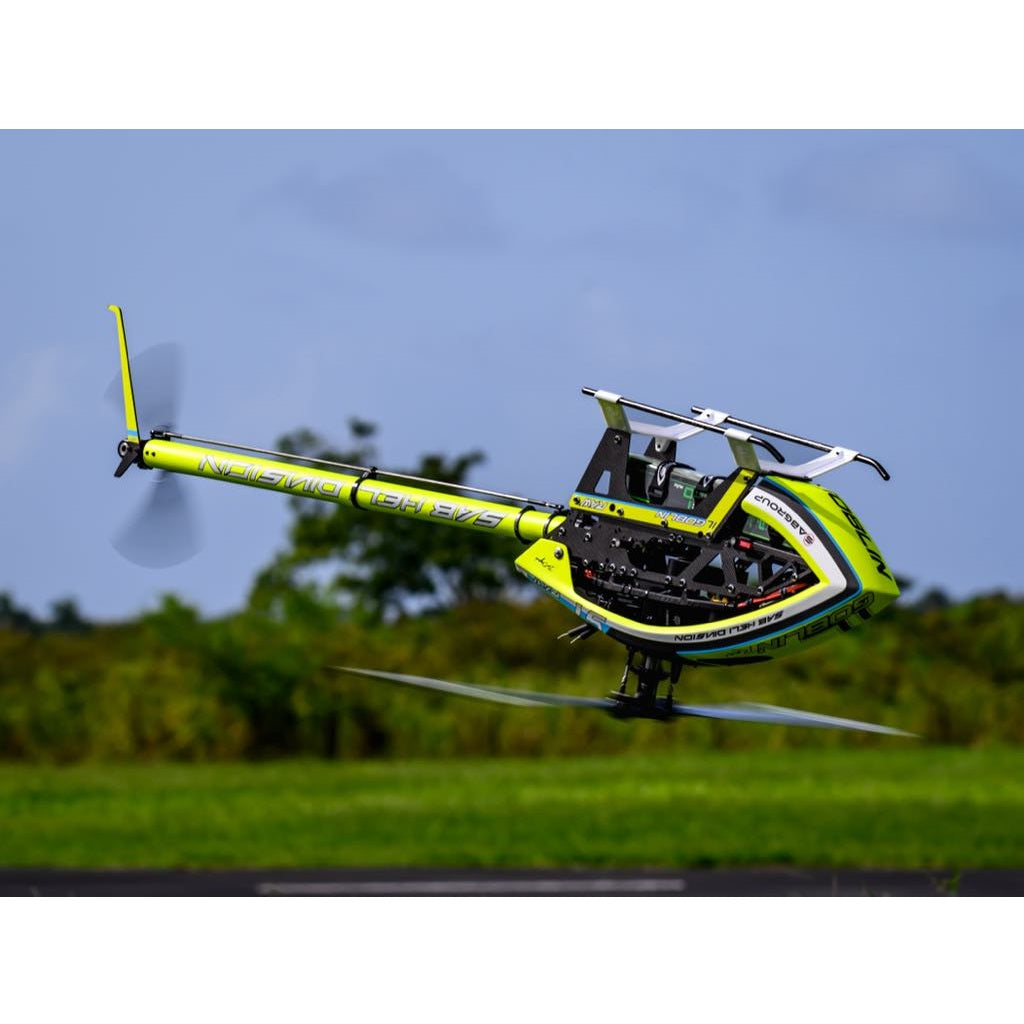

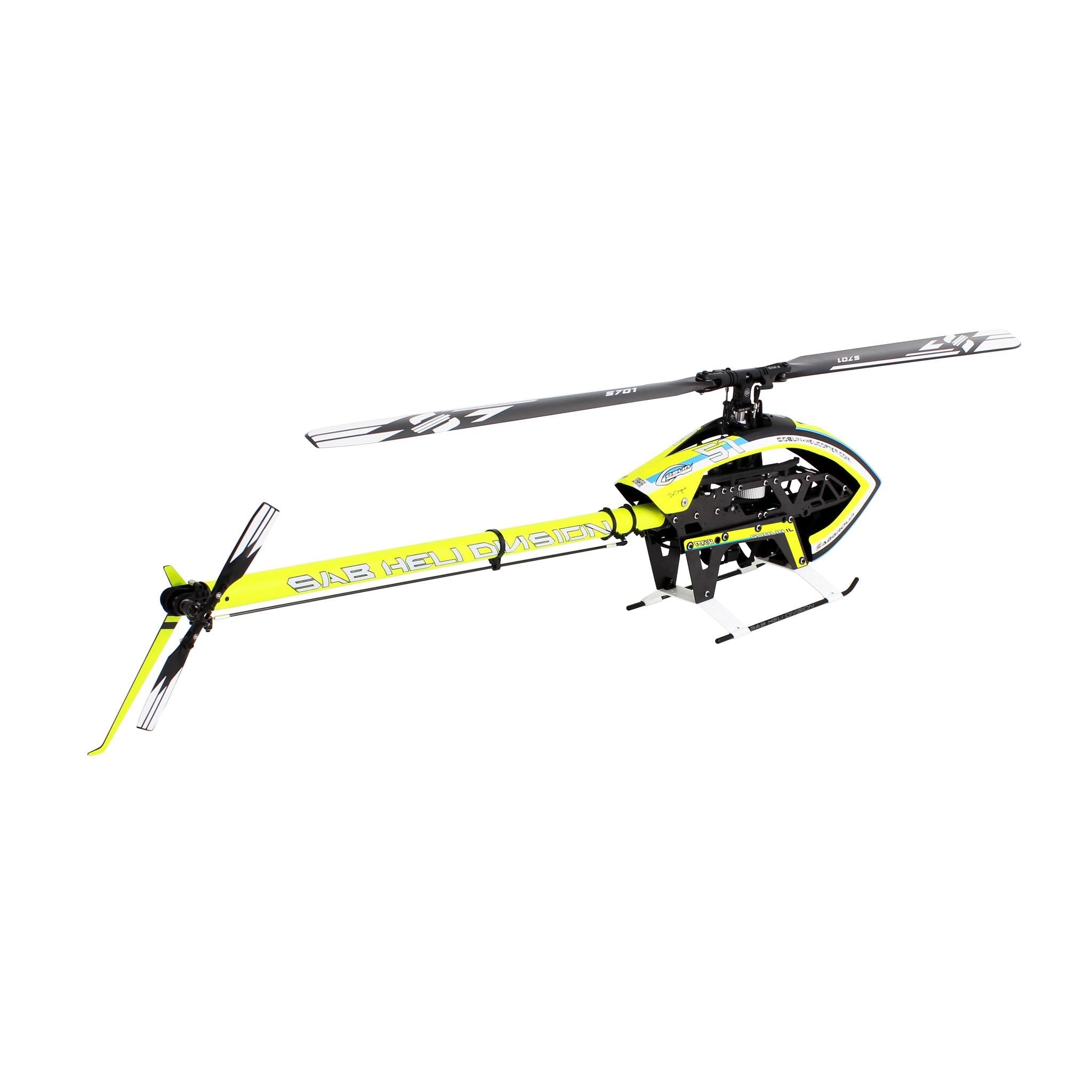

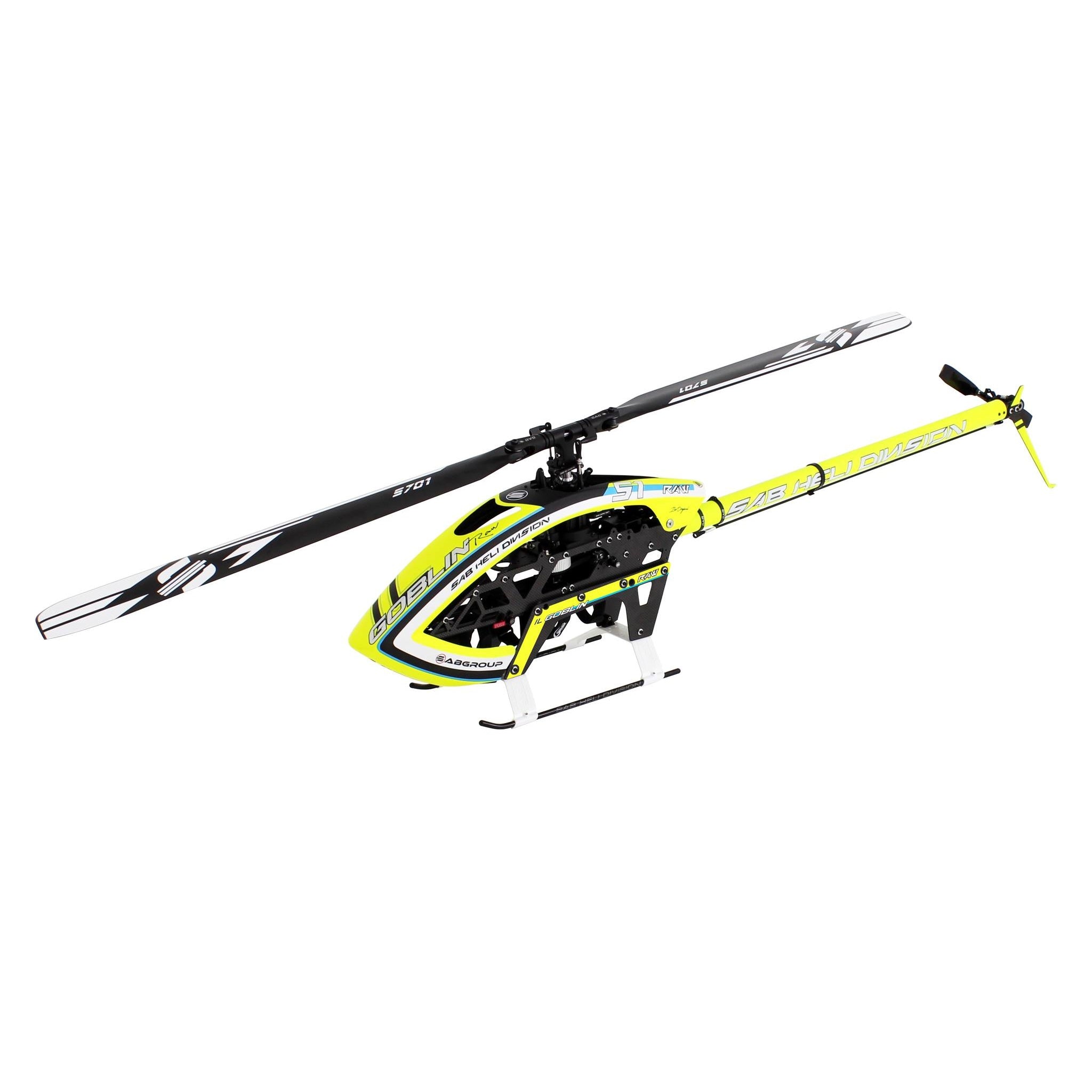

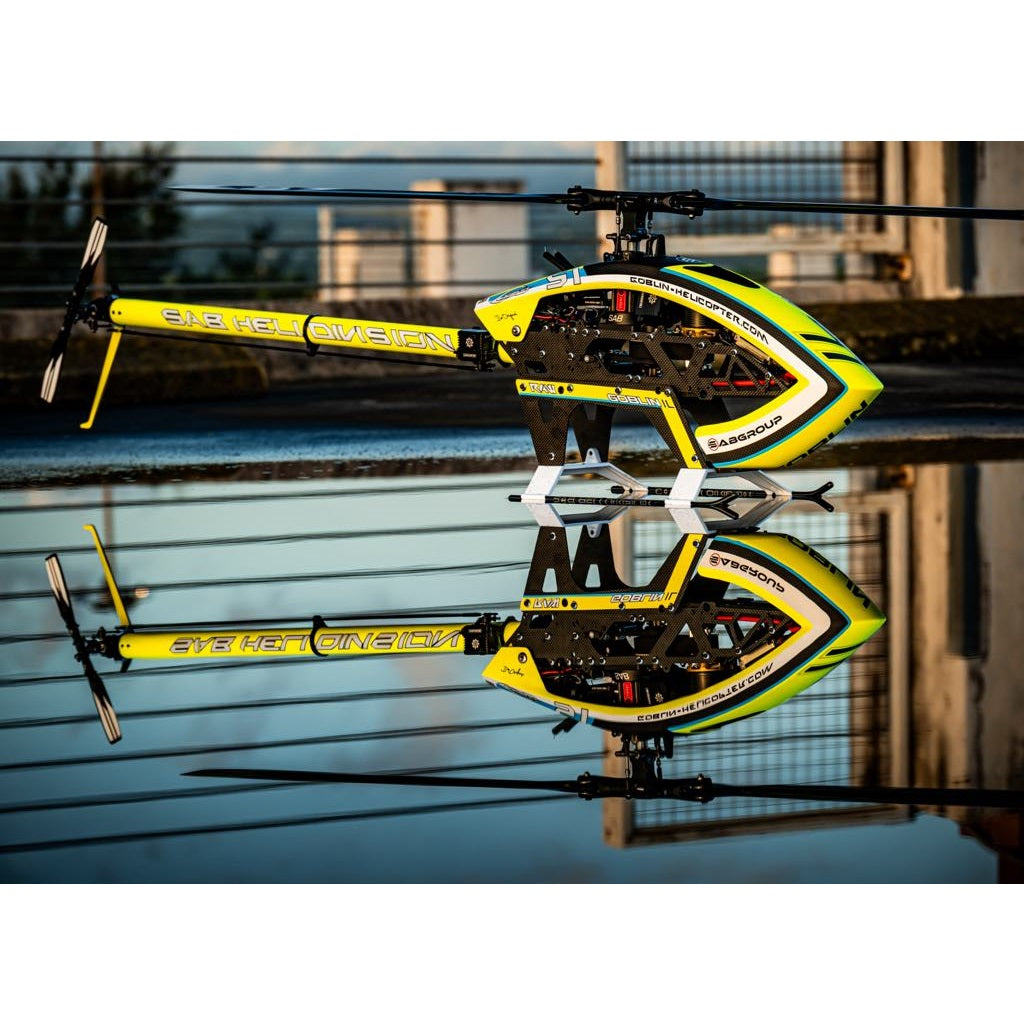

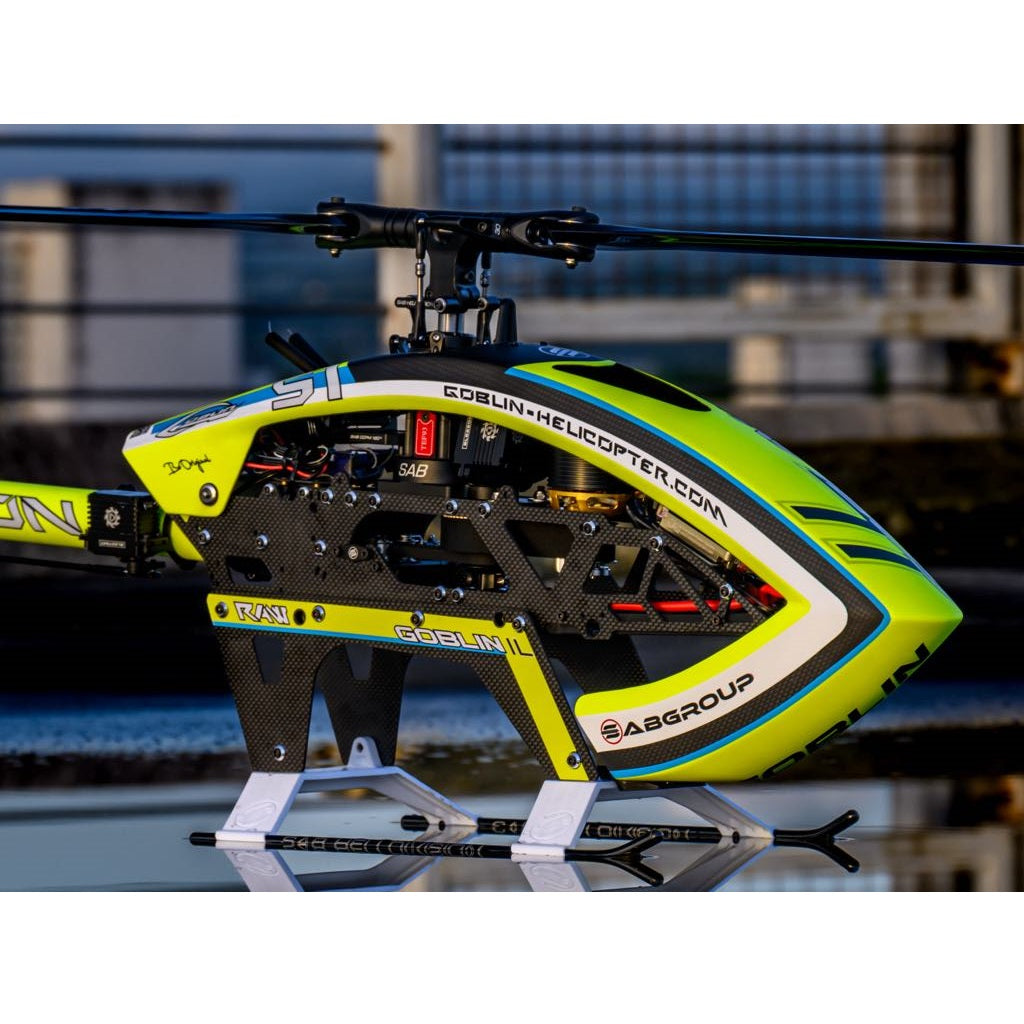

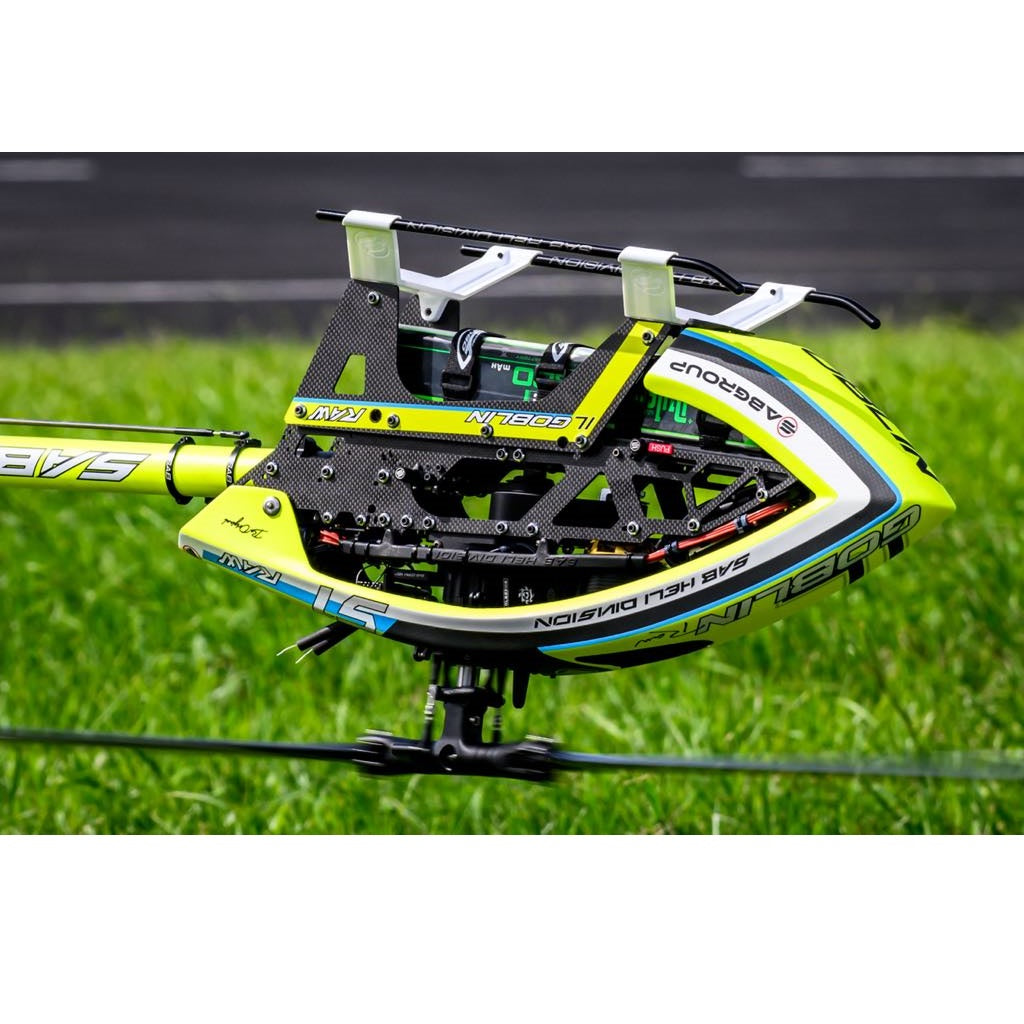

SAB ilGoblin RAW
ILGoblin RAW is a simpler version of the PRO with an aluminum tail boom, this version will have the same main components of the ilGOBLIN PRO.
Specifications:
AIRFRAME weight: 2122 gr (no blades, no battery, no electronics)
Main rotor diameter: 1576 mm (with 700 mm main blades)
Main blade length: 650 to 730 mm
Tail rotor diameter: 292 mm (with 110 mm tail blades)
Tail blade length: 105 to 115 mm
Cyclic Servos: Standard size 40 mm
Tail Servo: Standard size 40 mm
Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)
Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)
Main shaft: 15 mm, Tail shaft: 8 mm
Aluminum tail boom
Typical motor: 12S, 480/560 KV
Battery room: 50x60x300 mm
KIT Includes:
• 21T motor pulley (other pulley sizes available).
• 1 battery tray with straps.
• S701 (700 mm main blades)
• S105 (105 mm tail blades)
15mm main shaft
The main shaft diameter has been increased to 15 mm for increased rigidity.
Grip arms reference
New design that features new blade grip arms with an improved locking system.
Wider mixing arms bearings zone
New design mixing arms, easy to assemble with out any play.
Self center blades washers
Self-Centering Titanium washers that ensure automatic centering for greater precision.
New main plastic ball linkage
New design plastic ball linkage which is stronger and last longer, make manternance time less
New swashplate geometry
New Swashplate geometry maximize the precision.
New gear box
The new gearbox is lighter than previous models.
New helical gears for increased durability and strength.
Easy remove servos front and rear
A fast disassembly servo mount that allows for easier and faster maintenance on the servos.
3rd bearing support with stronger OWB
New One-Way system, redesigned for optimal performance.
3rd bearing support includes in the kit
Tail belt tensioner
Includes a belt tensioning system with an indicator for optimal control.
New tail push rod
With new tail push rod design, there is no more the need to CA/Epoxy them at all, just locktie and go fly.
8mm tail shaft
8 mm Tail shaft with 8x16x5 bearings that contribute to increase rigidity and a smoother tail.
Tail shaft and tail HUB only 1 piece
The shaft and the Hub are made from a single part in order to have maximum precision.
New battery locking system
New battery locking system make secure battery super easy.
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
SG763 |
| Weight: |
23.0 lb |
