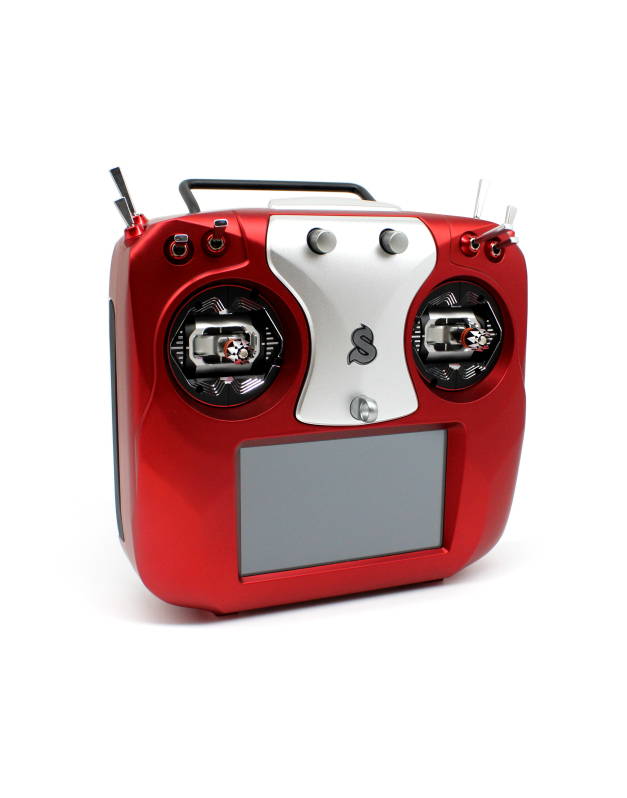

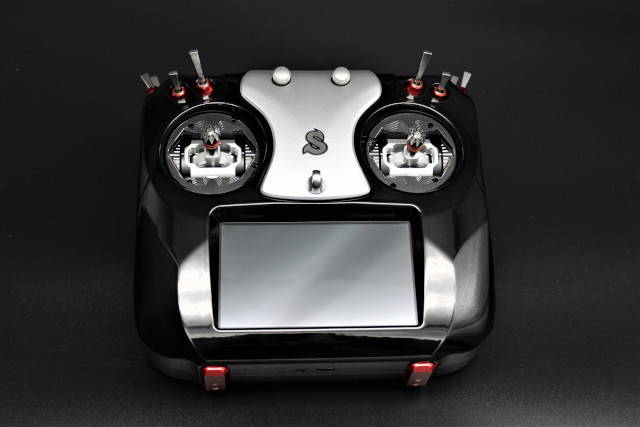

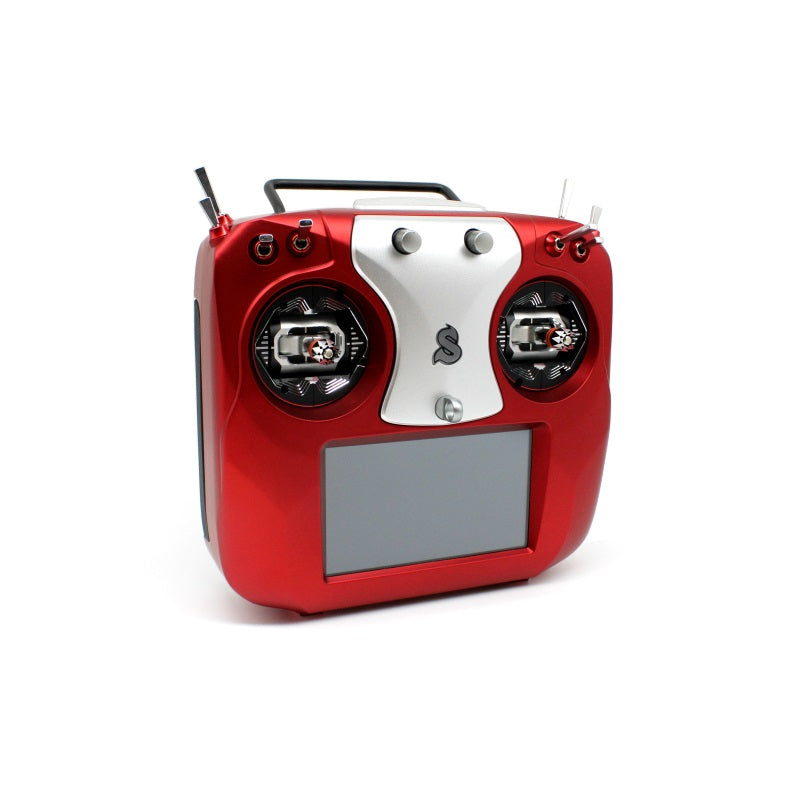

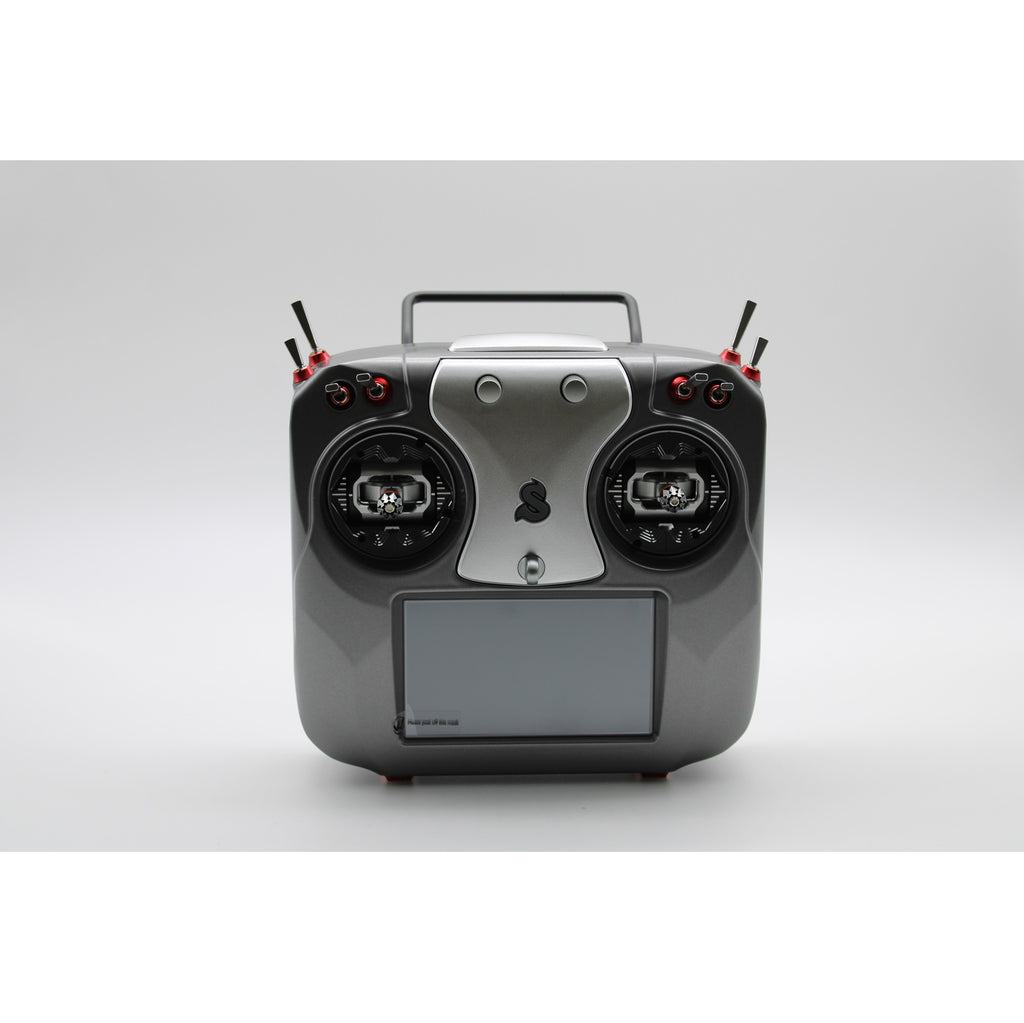

Spirit Wave Radio System
Features
Superpower
We deliver computing centre directly to your hands. Quad Core 64bit CPU running at 2.1GHz with 3D acceleration based on Vulkan technology.
Efficient
Spirit Wave hardware is based on highly optimized technology. Efficiency modes to get maximum out of battery.
Long Runner
6900 mAh battery allows hours of enjoyable flight. No compromise.

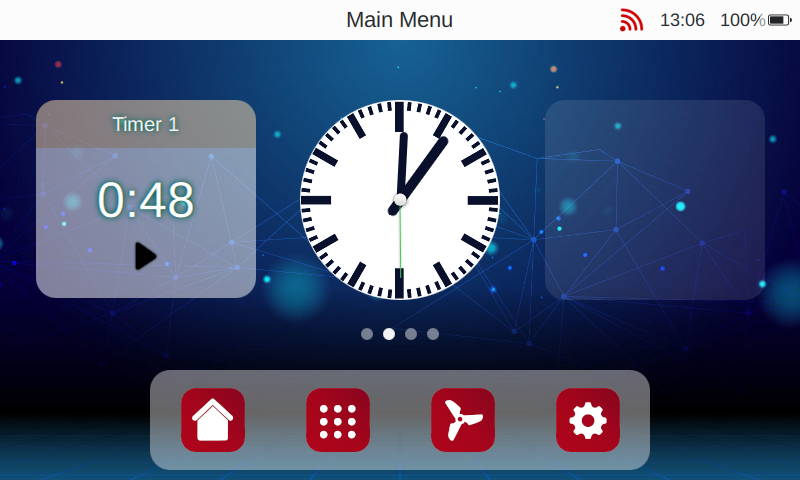

Touchscreen
High quality IPS TouchScreen with 10 finger support.
USB-C connector
Fast Charging, Super easy connection to your Computer and Simulator.
Solid Sound System
True 3W Speaker to spread audio to you.
Spirit RF
30+ Channels transmitted at 300Hz Rate together with lightning Telemetry speed. Unparalleled Multi-Path Radio System utilizing modern O-QPSK modulation.
Online
Spirit Wave has native 2.4/5Ghz Dual Band WiFi and the latest BlueTooth out of the box. Stay Online.
Updates
Perform Update to get new features Instantly! It takes just 5 seconds to fully update the radio with one single touch.
Cloud
Settings, Logs, Recordings available at the Spirit Cloud.

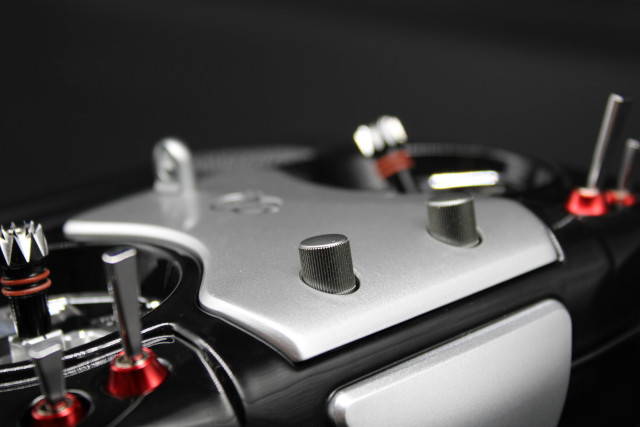

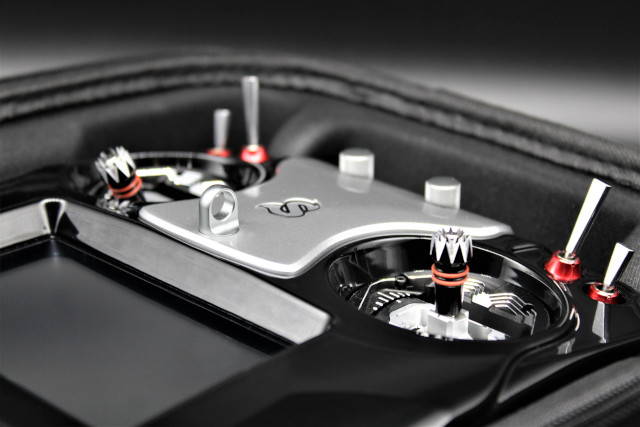

Switches
Switches must simply work. We were testing many of them until we found which really works.
Full of Sensors
9-axis Motion Sensor will determine exact position of your Radio.
Brightness
Display Brightness can be automatically adjusted thanks to embedded Light Sensor.

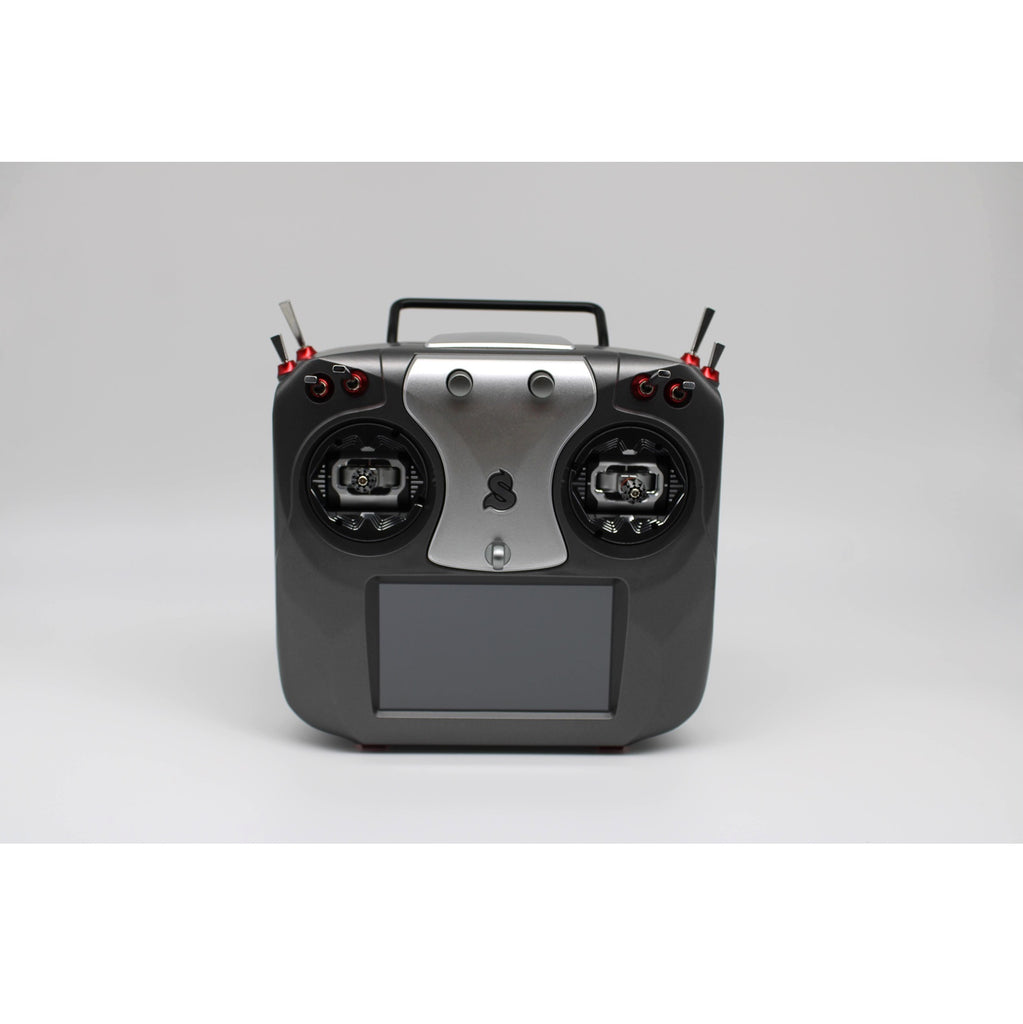

Spirit Wave Pro, what's the difference?
Wave vs Wave Pro

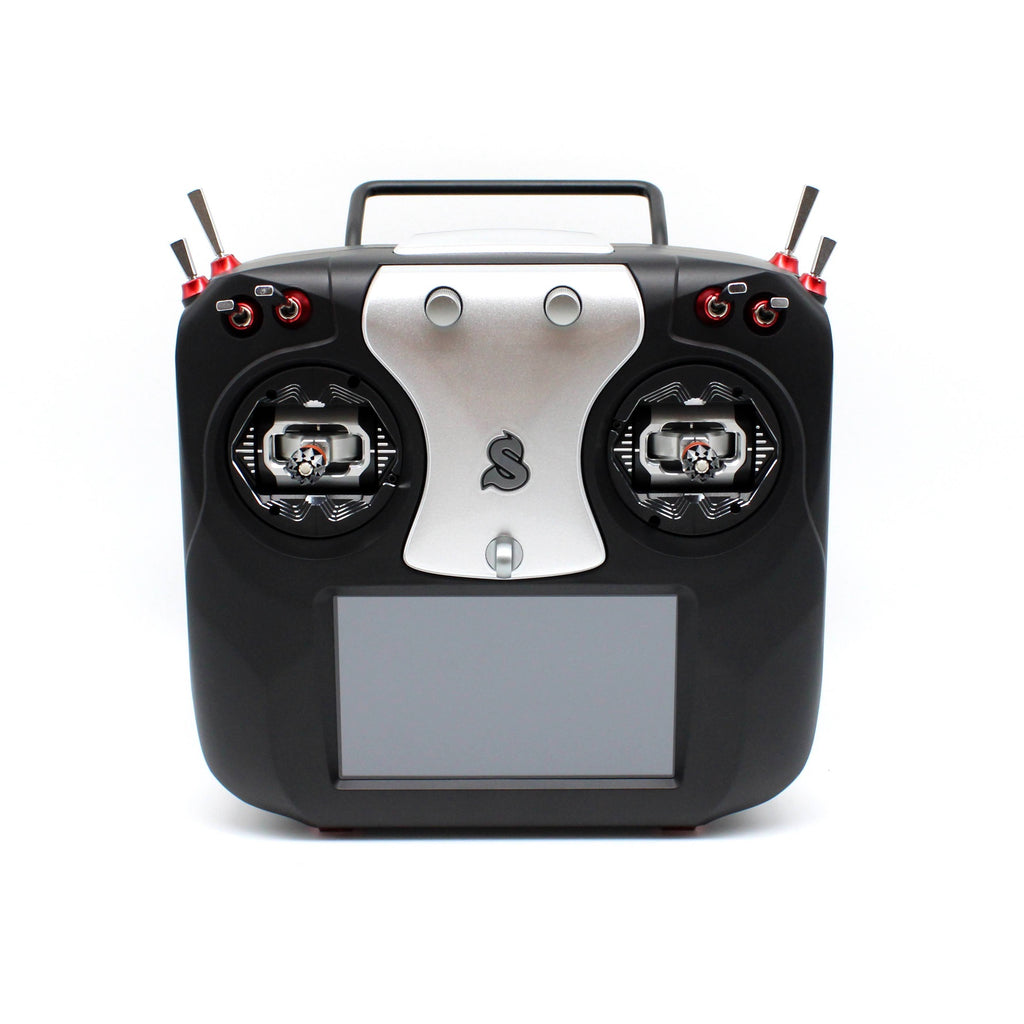

Main difference is body material. Wave body is from high quality plastic yet Wave Pro body is made of aluminium.
PRO Functions
You will get extra space for free at our Spirit Cloud for online Backup storage.
PRO Program
All Wave Pro owners will get 5-year Free replacement program for the inputs such as switches, potentiometers, sliders and gimbals.
Spirit Wave Radio is powered by Spirit OS, with a great deal of features, appstore, and cloud drive!
Available Now!
Main Body | Wave Plastic | Wave Pro Aluminium |
| Radio Parts | Aluminium | Aluminium |
| Color | Black/Silver Grey/Silver Red/Silver | Black/Silver Grey/Silver |
| Weight | 865g | 1110g |
| CPU | 4x 64bit ARM | 4x 64bit ARM |
| Battery | 6900mAh | 6900mAh |
| Model Memory | Unlimited | Unlimited |
| Motion Sensor | 9-Axis | 9-Axis |
| Wireless Bands | 2.4 / 5Ghz | 2.4 / 5Ghz |
| Wireless Standard | b/g/n/a/ac | b/g/n/a/ac |
| Charging port | USB-C | USB-C |

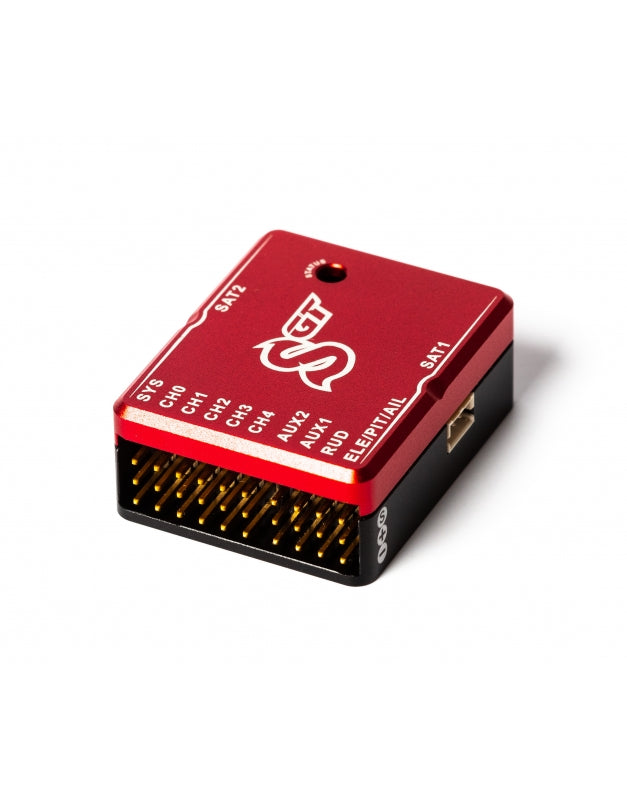

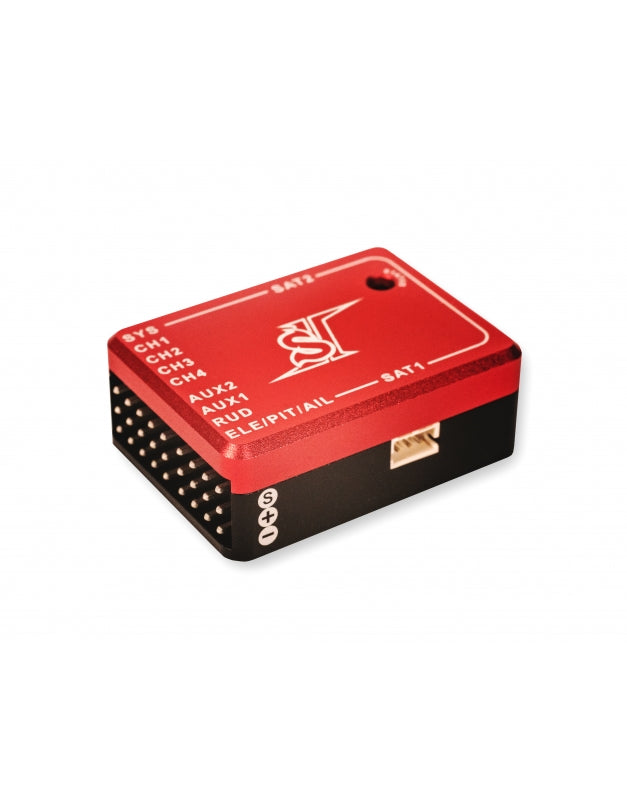

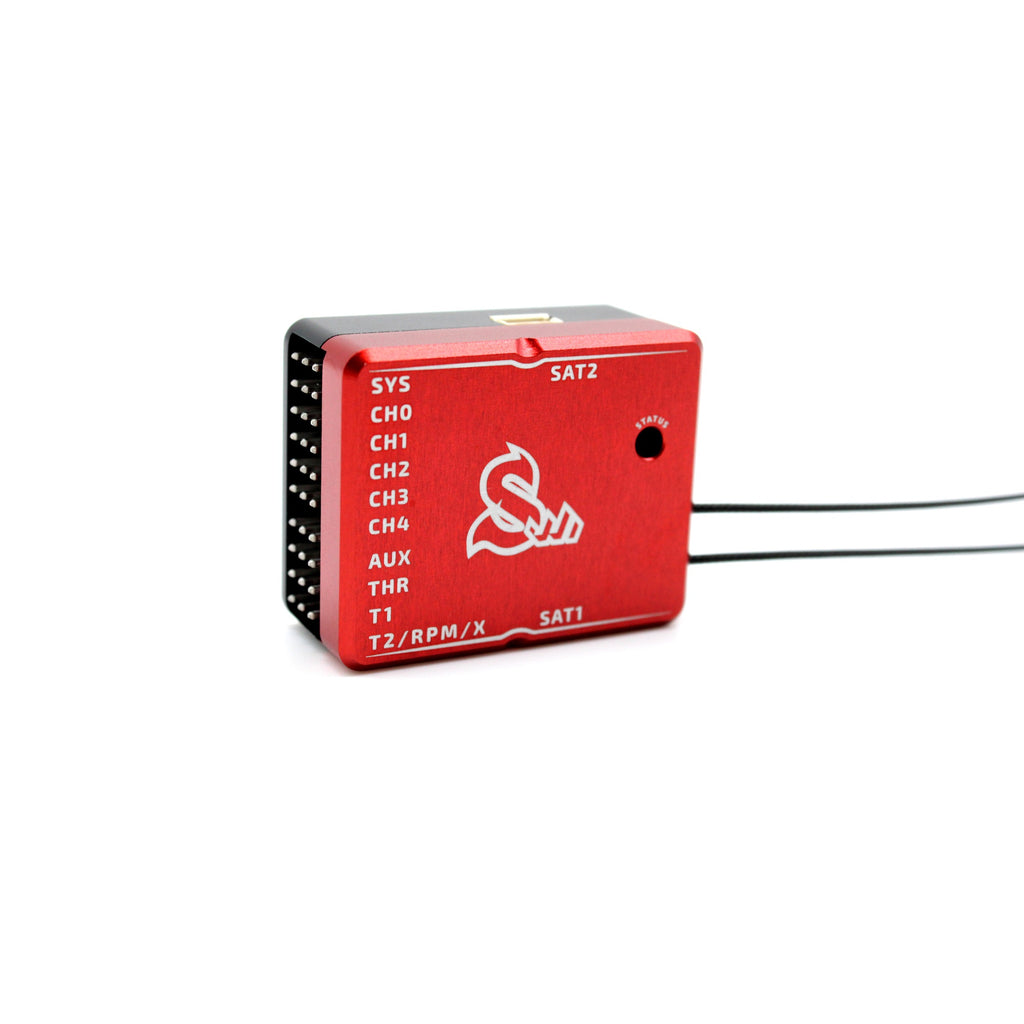

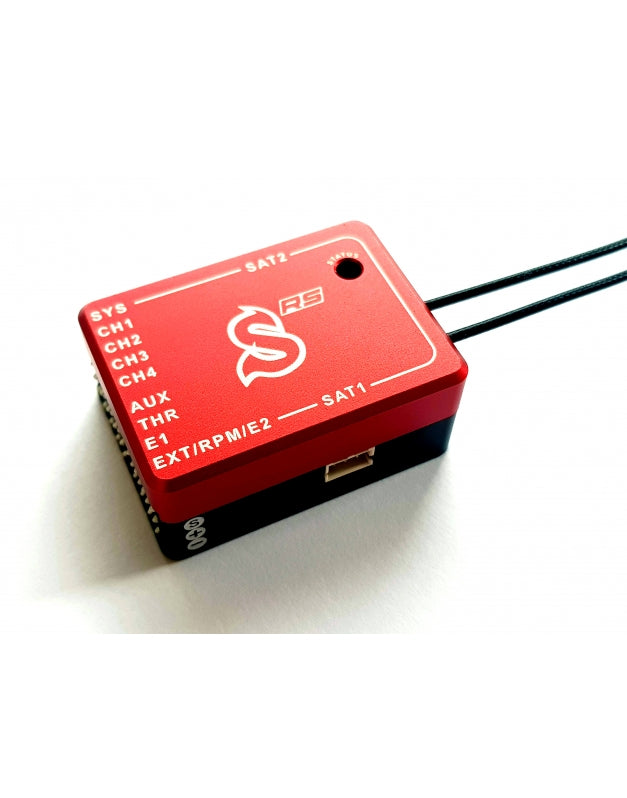

| Connects with | Spirit FBL Spirit Aero Spirit RX | Spirit FBL Spirit Aero Spirit RX |
| RF System | Spirit | Spirit |
| RF Modulation | O-QPSK FHSS | O-QPSK FHSS |
| RF Link Speed | ~300Hz | ~300Hz |
| Full Localisation | ✔ | ✔ |
| 2nd RF module | ✔ | ✔ |
| Carry Bag | ✔ | ✔ |
| Unique Trim Mode | ✔ | ✔ |
| External Audio | ✔ | ✔ |
| Cloud | ✔ | ✔ |
| Remote Support | ✔ | ✔ |
| App Store | ✔ | ✔ |
| PRO Cloud | ✘ | ✔ |
| PRO Program | ✘ | ✔ |
| Preorders | Ready | Ready |
| Availability | 2024 | 2024 |
