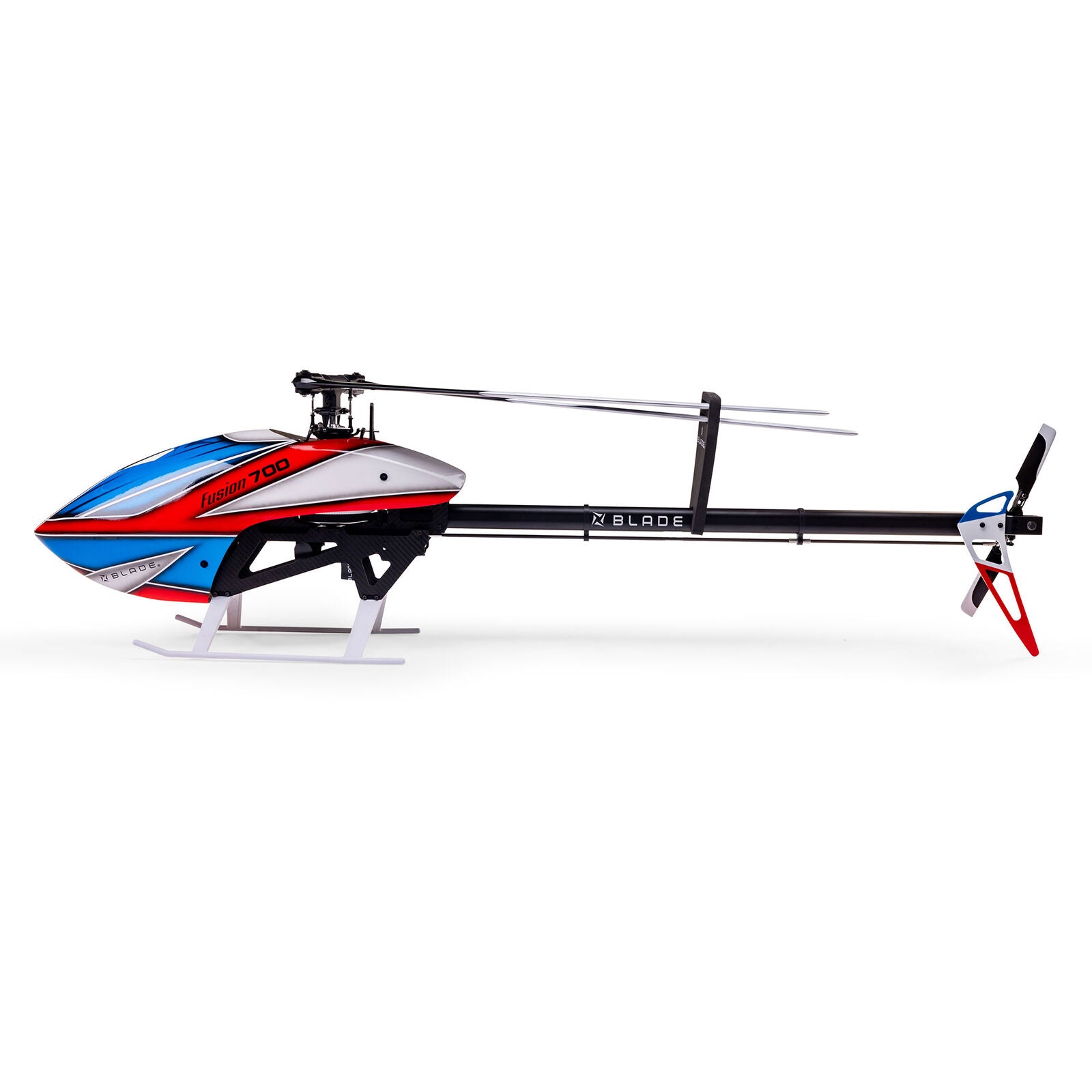

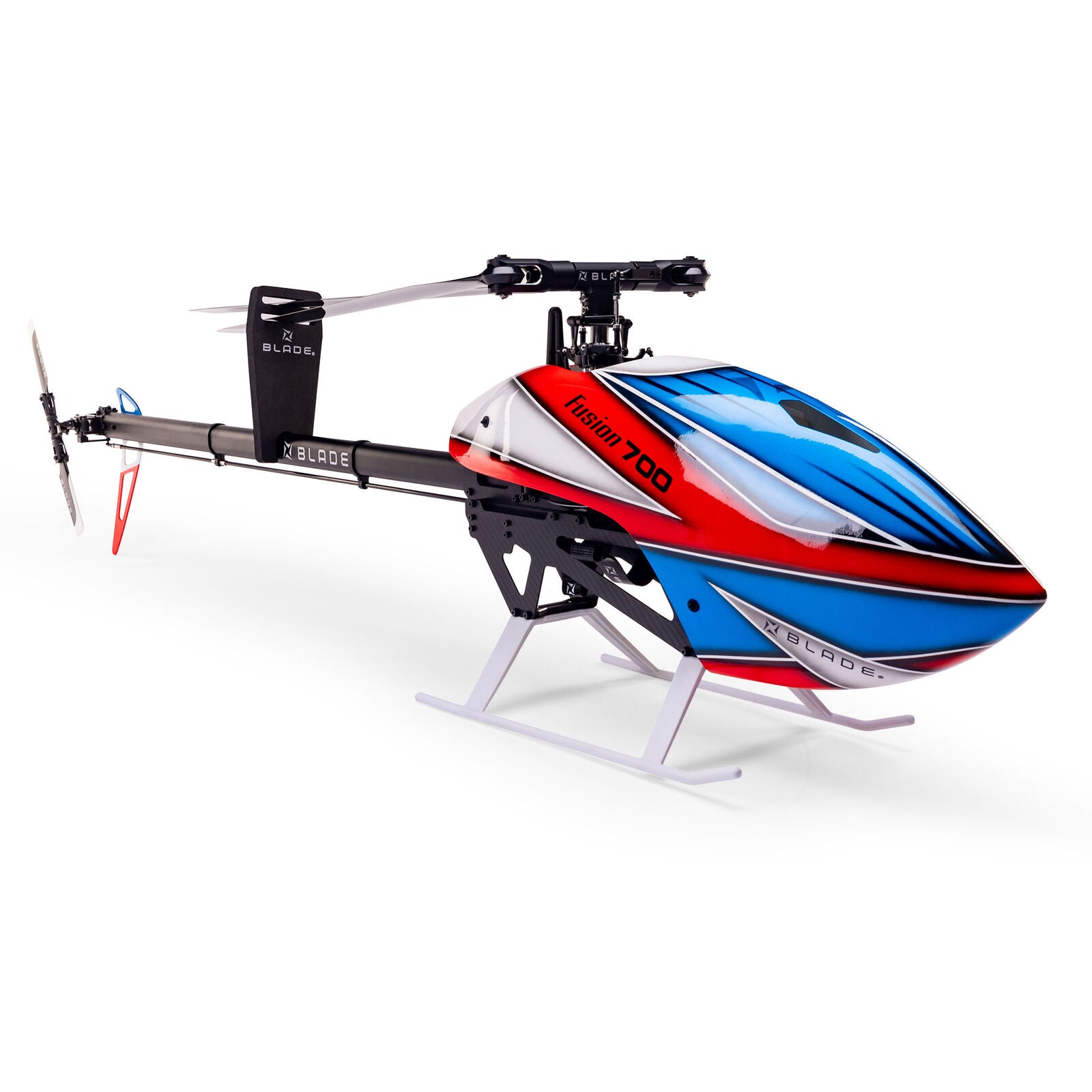

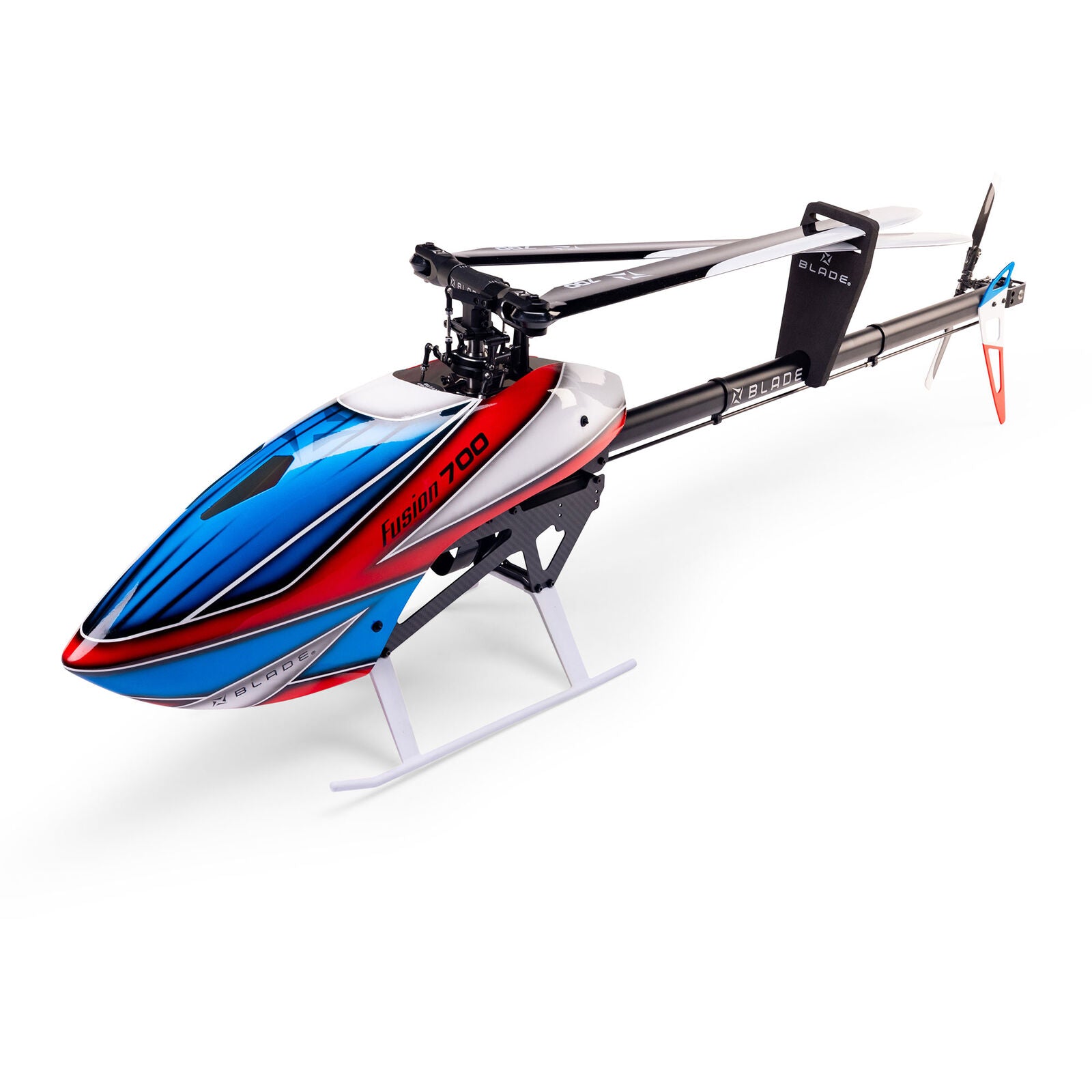

Blade Fusion 700 Kit with Motor and Blades

Blade
|
BLH13075
You will earn 849.99 points for buying this product
Price Match Guarantee
$849.99 $0.00( / )
Product Details In The Box (1) Blade Fusion 700 Helicopter Kit (1) Spektrum Avian 4735-540Kv 10-Pole Brushless Outrunner Motor (included) (1) Blade 700mm Carbon Fiber Main Rotor Blade Set (included) (1) Blade 105mm Carbon Fiber Tail Rotor Blade Set (included) (1) Foam Blade Holder (included) (1) Blade Fusion 700 Kit...

Product Details

In The Box
  • (1) Blade Fusion 700 Helicopter Kit
  • (1) Spektrum Avian 4735-540Kv 10-Pole Brushless Outrunner Motor (included)
  • (1) Blade 700mm Carbon Fiber Main Rotor Blade Set (included)
  • (1) Blade 105mm Carbon Fiber Tail Rotor Blade Set (included)
  • (1) Foam Blade Holder (included)
  • (1) Blade Fusion 700 Kit Manual
Needed to Complete
  • (1) Full-range 6+ channel Transmitter
  • (1) Flybarless Control System with Built-In and/or External Receiver
  • (1) 120A+ 12S Brushless Helicopter Compatible ESC
  • (3) High-Torque Standard Sized Cyclic Servos
  • (1) High-Speed Standard Sized Tail Servo
  • (2) 6S 22.2V or (1) 12S 44.4V 4000–5000mAh LiPo battery with EC5 or IC5 Connector
  • (1) Compatible Lipo Charger

Overview

TAKE IT TO THE TOP

Like the Fusion series models that came before it and are still available with spare parts support since 2018, the top-of-the-line Blade® Fusion 700 blends the lines between convenience and capabilities, plus quality and value. The extremely strong carbon fiber and aluminum airframe is ready to pair with the included blades and motor, and popular 12S battery setups, to deliver exhilarating performance with power to spare. Now you can make the dream of owning a 700-sized helicopter with cutting-edge capabilities – along with incredible durability and reliability – a reality!

THE PINNACLE OF PERFORMANCE

Designed with nearly two decades of engineering and development experience, the Fusion 700 offers the pinnacle of Blade helicopter performance. It packs modern-day high-performance features into a high-quality, rugged, and reliable airframe that’s ready to deliver pro-level flight performance for sport, precision, and aggressive 3D flying. The extremely durable carbon fiber and aluminum airframe design assembles quickly, plus it’s easy to maintain and repair. The Delrin® helical main gear is driven by the included 4735-540Kv brushless outrunner motor that delivers incredible torque and performance with popular 12S or two pieces of 6S 4000-5000mAh LiPo battery setups. A belt-driven tail assembly featuring machined aluminum construction ensures locked-in tail performance on every flight. So whether you’re an intermediate pilot moving up to your first-ever 700-sized model, or you’re already a world-class 3D pilot, the Fusion 700 delivers an unmatched combination of convenience, capabilities, quality, and value!

The Fusion 700 is available as a kit that includes the motor plus carbon fiber 700mm main rotor and 105mm tail rotor blades that you can complete with the ESC, servos, flight controller, and receiver you choose. It’s also available in two money-saving Super Combos that include top-of-the-line Spektrum components including H6350 and H6360 brushless servos, an updated and upgraded FC6350HX flybarless control system, a DSMX compatible receiver, and your choice of a 120-amp or 200-amp high voltage Smart ESC. Both combos are compatible with 12S 4000-5000mAh battery setups, and the 120A ESC version is a great choice for almost everyone including those who will be performing 3D aerobatics. And the 200A ESC version offers plenty of headroom for world-class pilots who perform the most aggressive 3D maneuvers possible!

An optional 4730-350Kv motor, along with different tooth count tail drive pulleys and longer 115mm tail rotor blades, are available separately for those who prefer scale, sport, and low head speed 3D (LH3D) style flying with longer flight times. There’s also an optional orange-painted canopy plus carbon fiber tail fin and black landing gear available for those who prefer a different look.

In addition to offering combos and optional parts that allow you to equip and customize the Fusion 700 the way you like, we also know how important spare parts support and long-term availability are. The full line of spare parts for the Fusion 700 are competitively priced and, along with the helicopter itself, will be available for many years to come – just like the Fusion 360, 480, and 550 helicopters and parts have been since as far back as 2018.


Videos

Features

  • Also available in money-saving “Super Combos” including top-of-the-line Spektrum servos, a flight controller, receiver, plus a Smart ESC
  • An all-new design to offer the perfect fusion of convenience, performance, and value
  • Includes carbon fiber 700mm main rotor and 105mm tail rotor blades
  • Includes a 4735-540Kv brushless outrunner motor that delivers incredible torque and power
  • Optional lower Kv motor, different tooth count tail pulleys and longer tail blades for low head speed 3D (LH3D) and other styles of flying

Blade Fusion 700 RC Helicopter Kit Features

  • Extremely strong and durable carbon fiber and aluminum airframe design
  • High-strength steel 15mm main shaft and 10mm spindle with metal head components
  • Ovalized aluminum tail boom eliminates the need for boom supports
  • 8mm wide belt for the driven tail featuring adjustable tension
  • High-strength steel 6mm tail shaft paired with a metal bell crank and grips
  • Efficient Delrin® helical main gear paired with a steel pinion for quiet and reliable performance
  • Compatible with popular and common 12S 4000–5000mAh LiPo battery setups
  • Aluminum tail case with a metal tail drive pulley
  • 5mm diameter carbon fiber tail pushrod for precise tail control
  • Orange-painted canopy, carbon fiber tail fin and black landing gear available separately to customize and personalize the look

Skill Level 4 – Advanced Experience Required

Skill Level 4 aircraft, like this one, are suitable for RC pilots who already have experience with and the skills to assemble, set up, and fly similar class models. And although this is a perfect first-ever 700-sized model for intermediate pilots, you should have the experience and skills necessary to successfully assemble, set up, and fly other helicopter models like the Blade Fusion 480 and 550 before attempting to fly the Fusion 700.

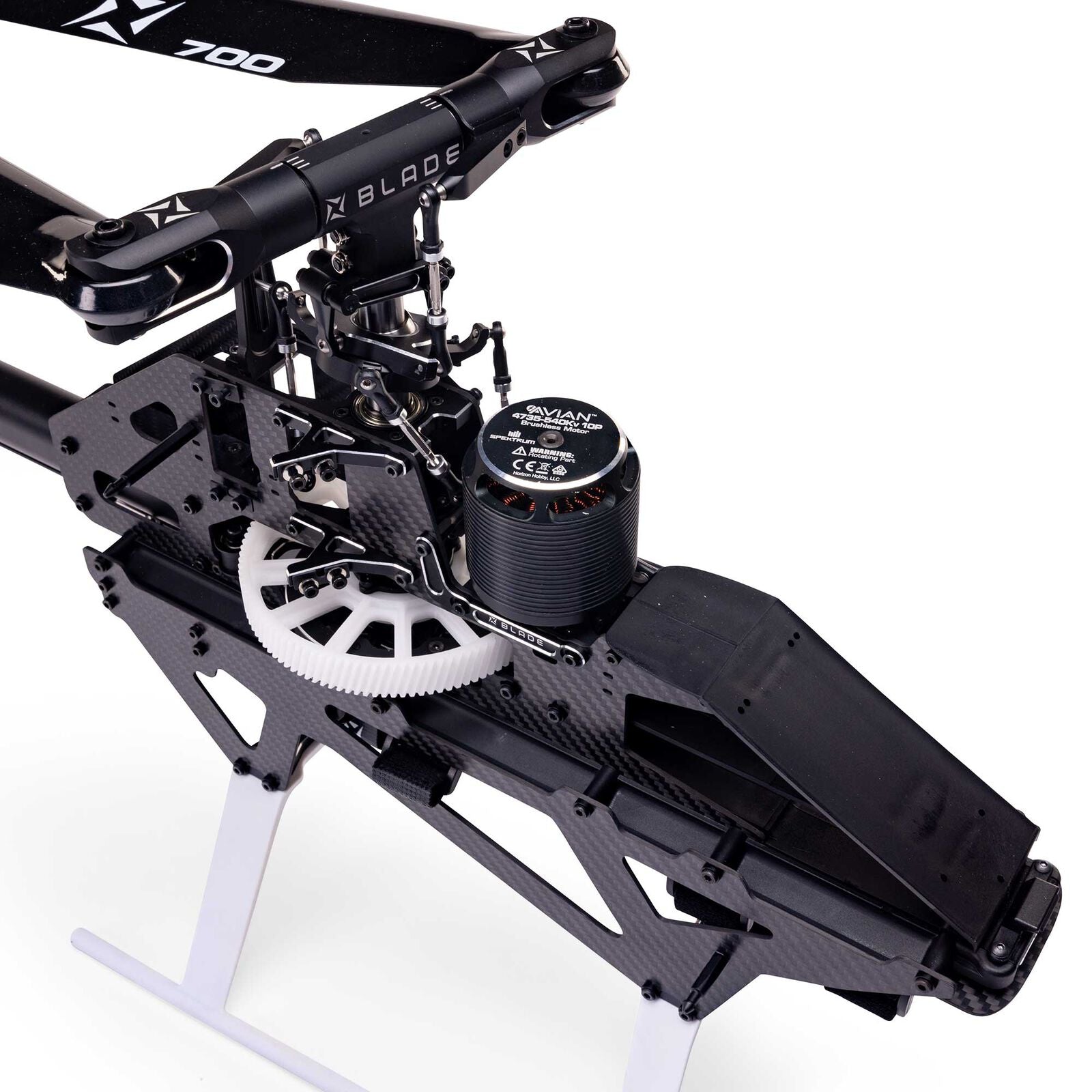

Mechanics Features

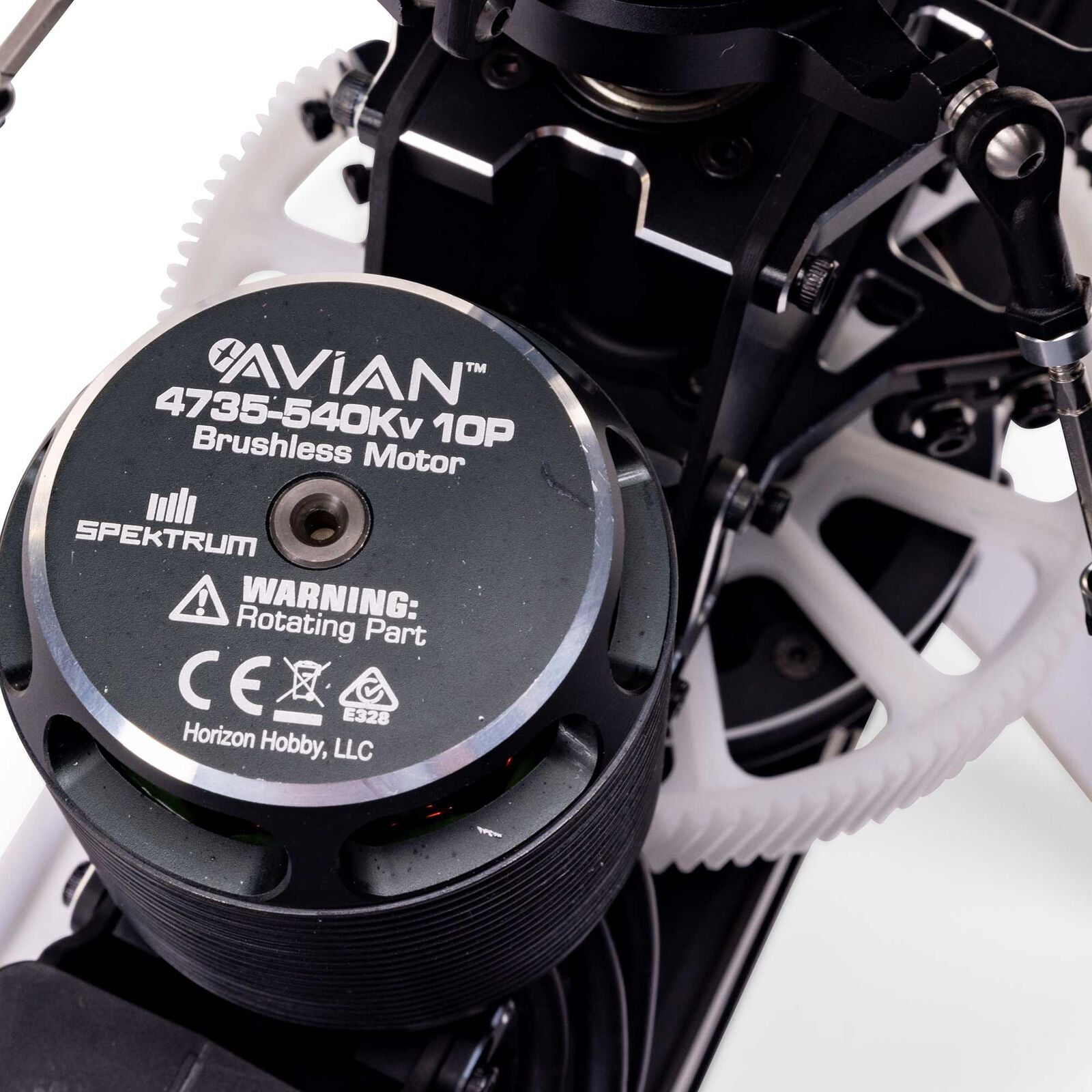

  • Includes a 4735-540Kv outrunner motor compatible with popular 12S battery setups

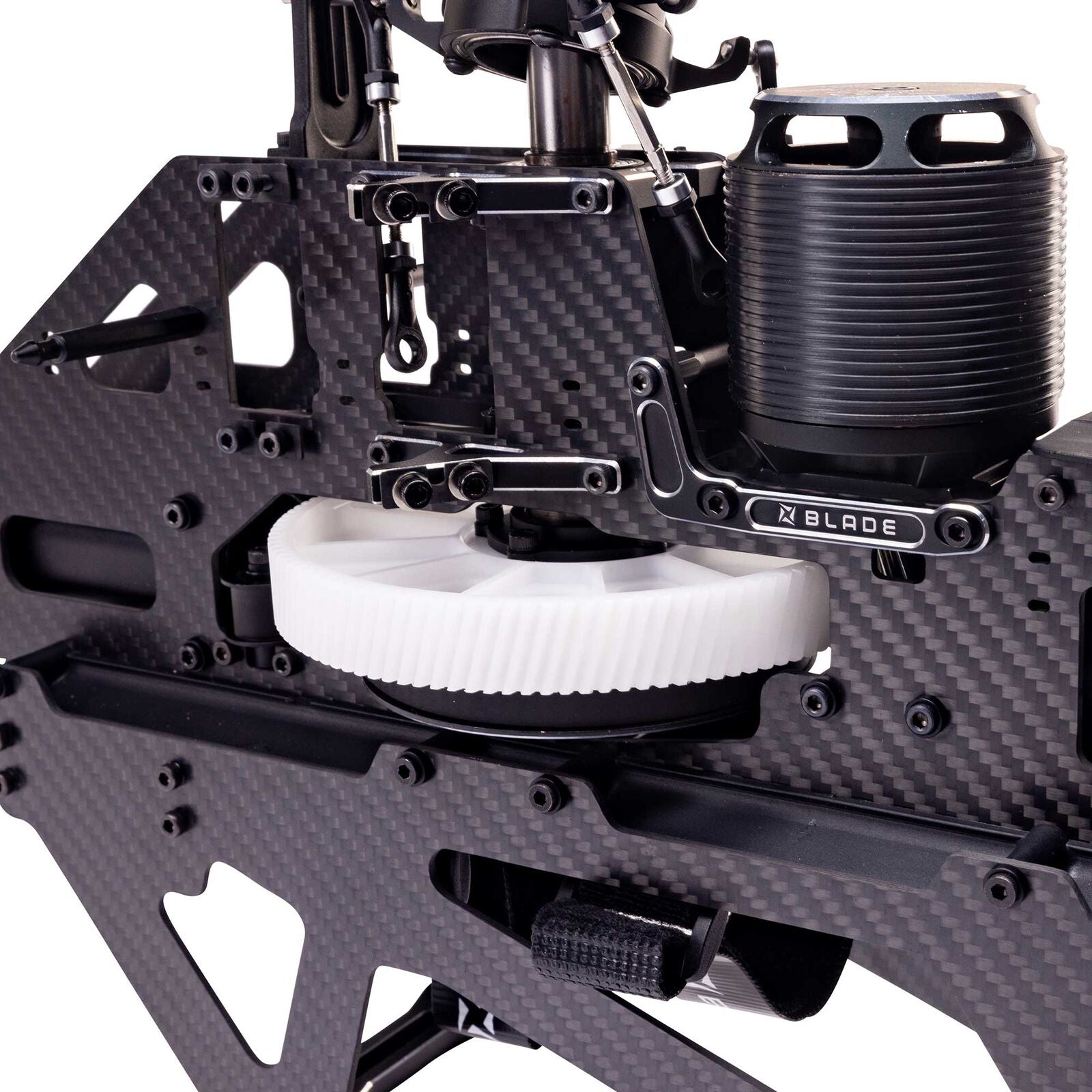

  • Precision machined Delrin® helical main gear with 11- and 12-tooth pinion gears

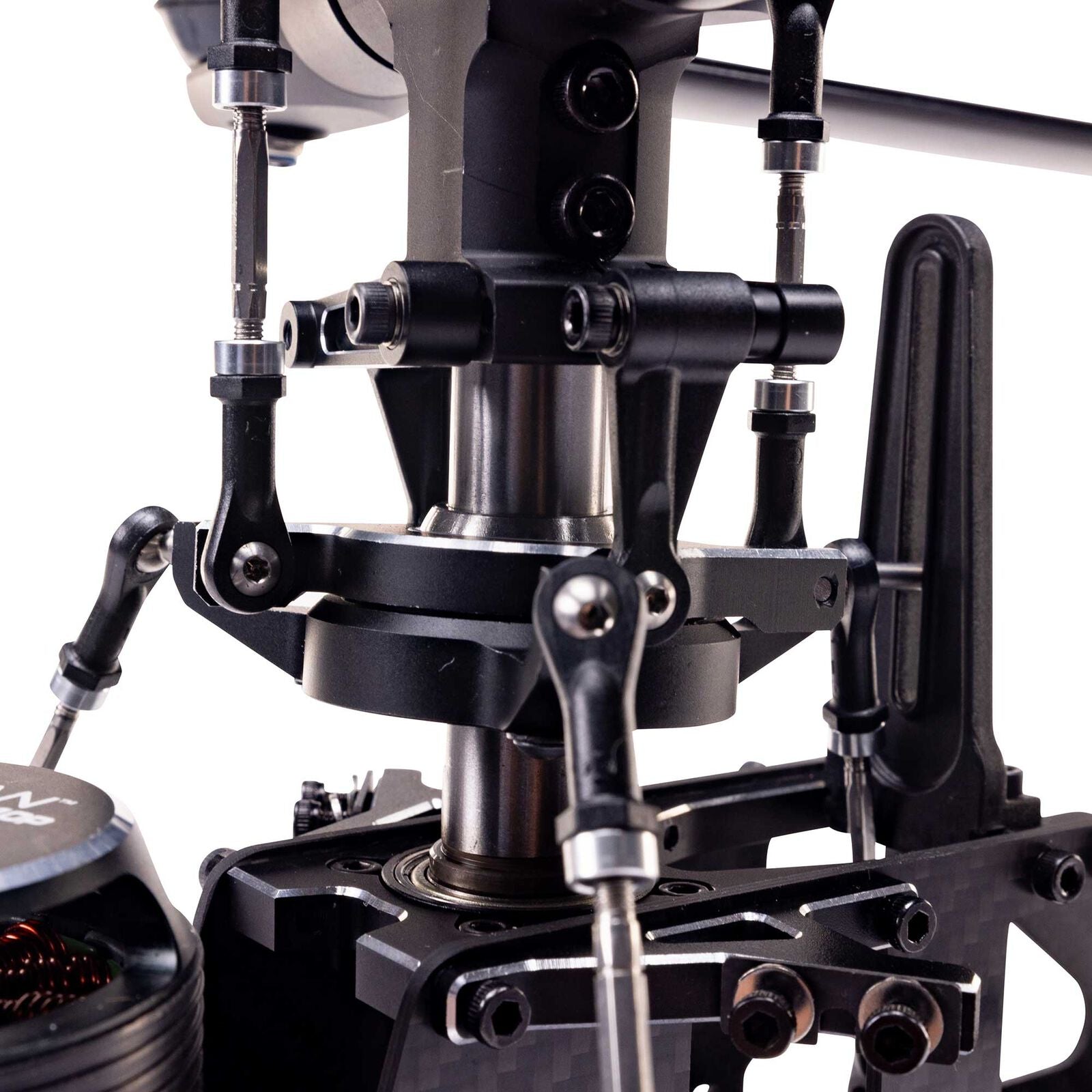

  • Black anodized aluminum swashplate and other components
  • Includes 700mm carbon fiber main rotor blades
  • Sprag autorotation clutch and machined rotor head dampers with o-rings
  • High-strength steel 15mm main shaft and 10mm spindle/feathering shaft

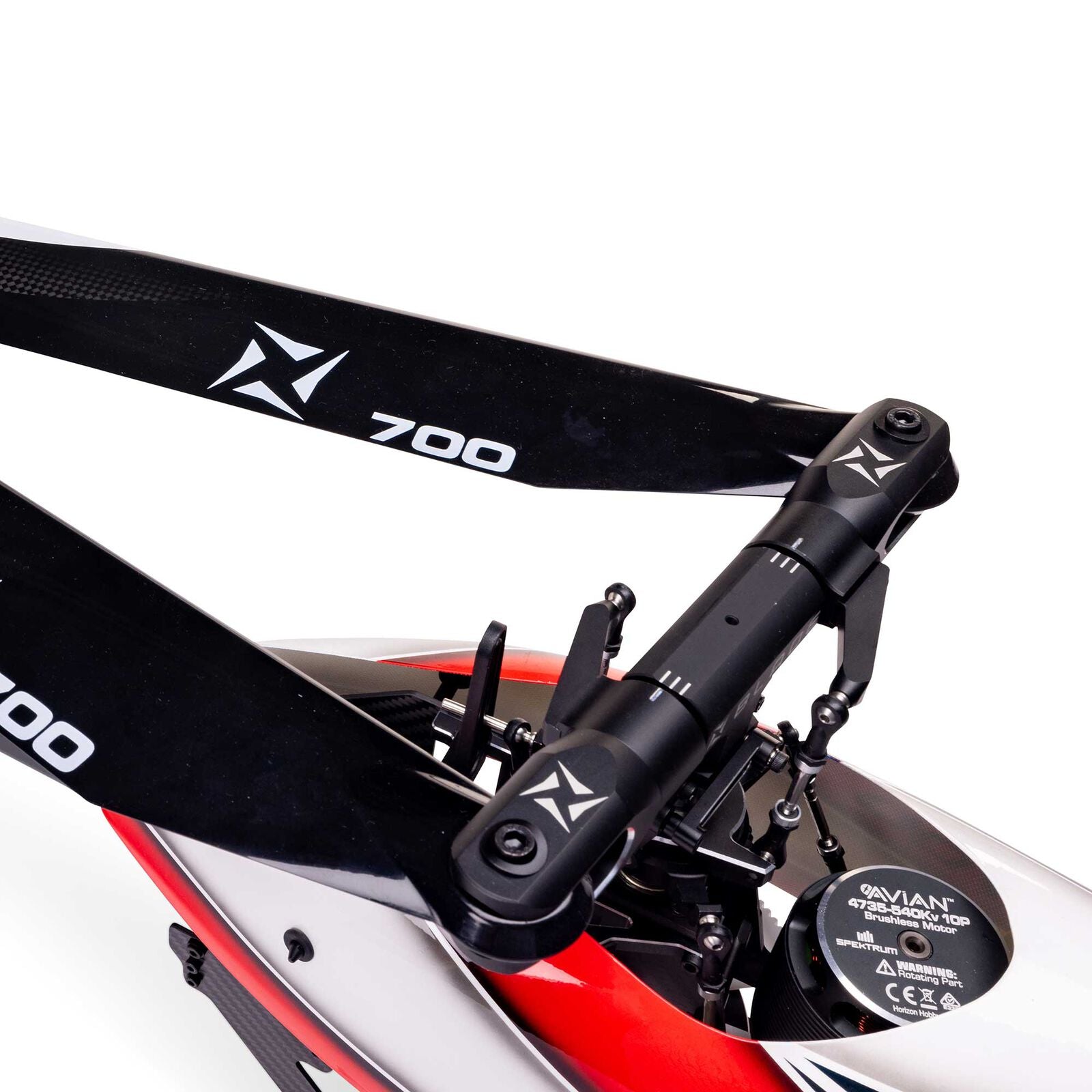

  • Aluminum blade grips with zero pitch indicator marks
Frame Features

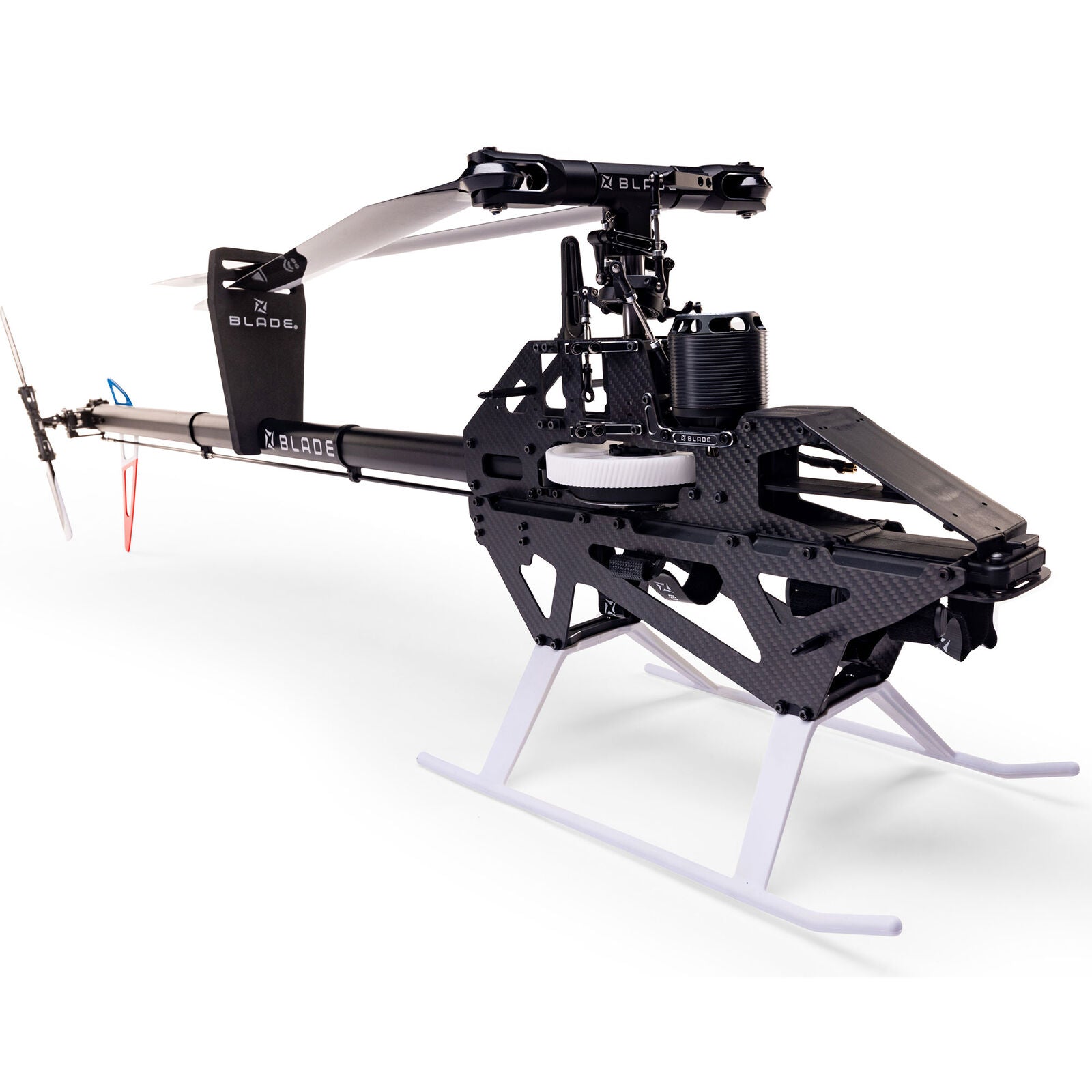

  • All-metal and 2mm thick carbon fiber construction

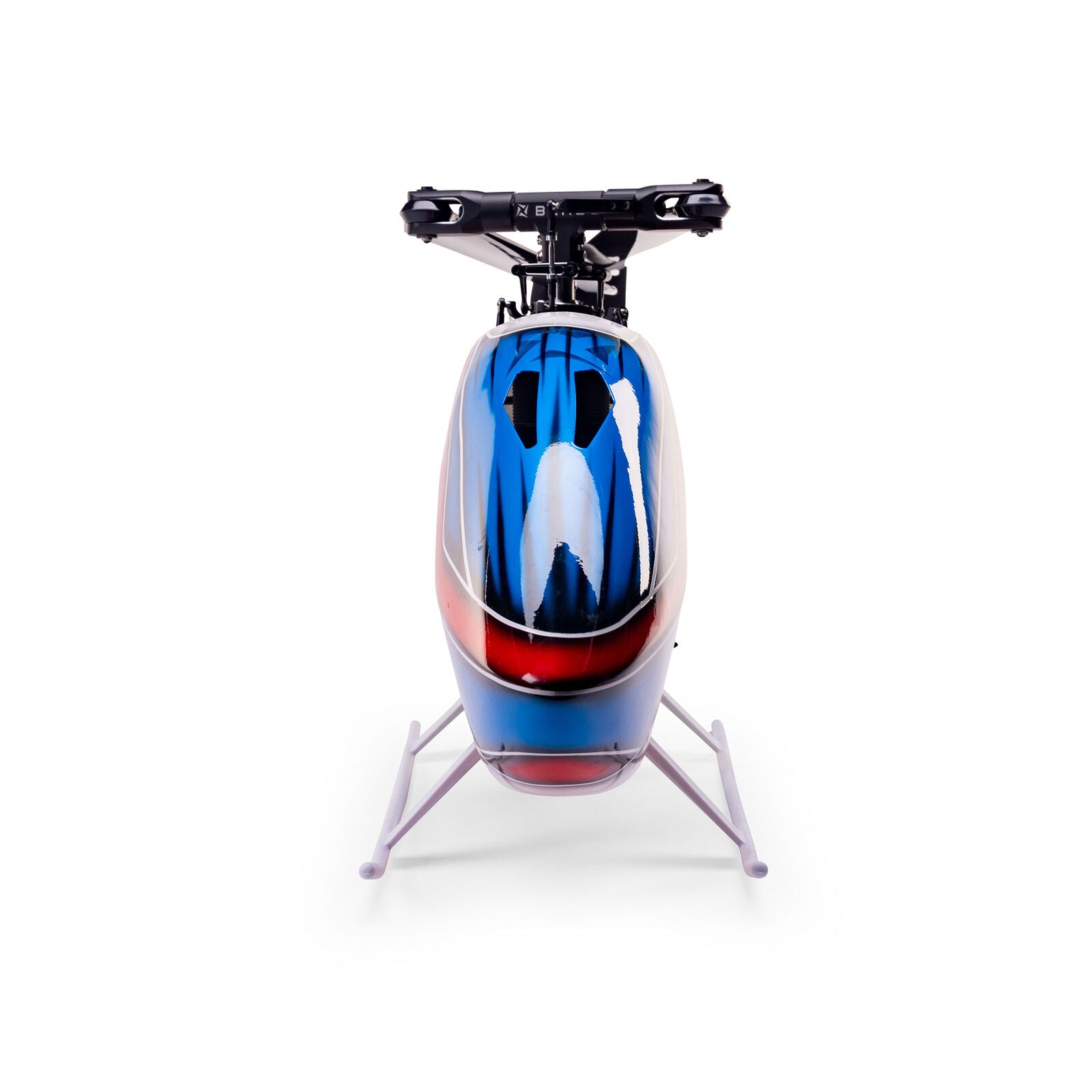

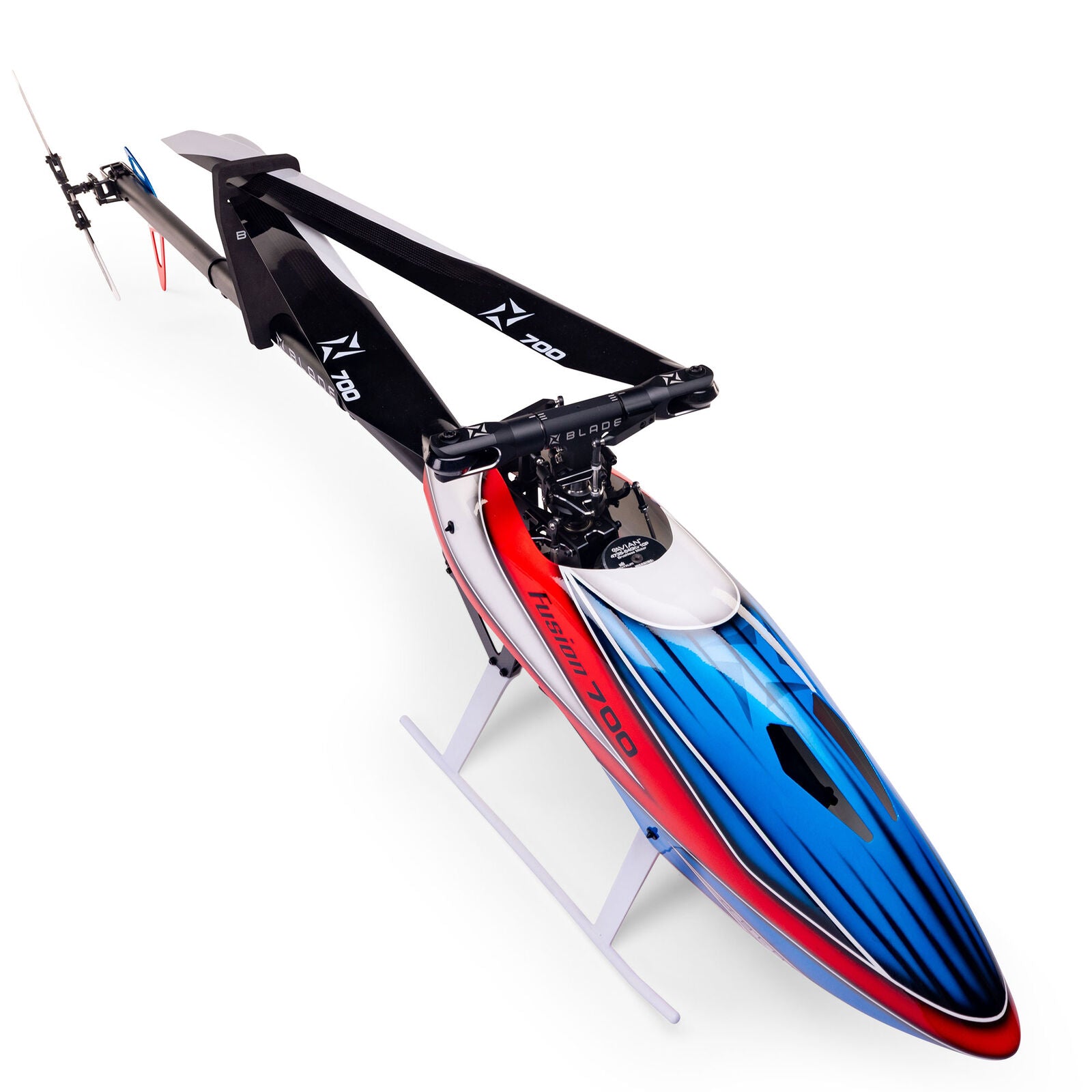

  • 2-piece white molded landing gear plus a painted fiberglass canopy for excellent visibility
  • Reinforced machined aluminum main shaft bearing block assembly
  • Sliding carbon fiber battery tray with positive locking mechanism

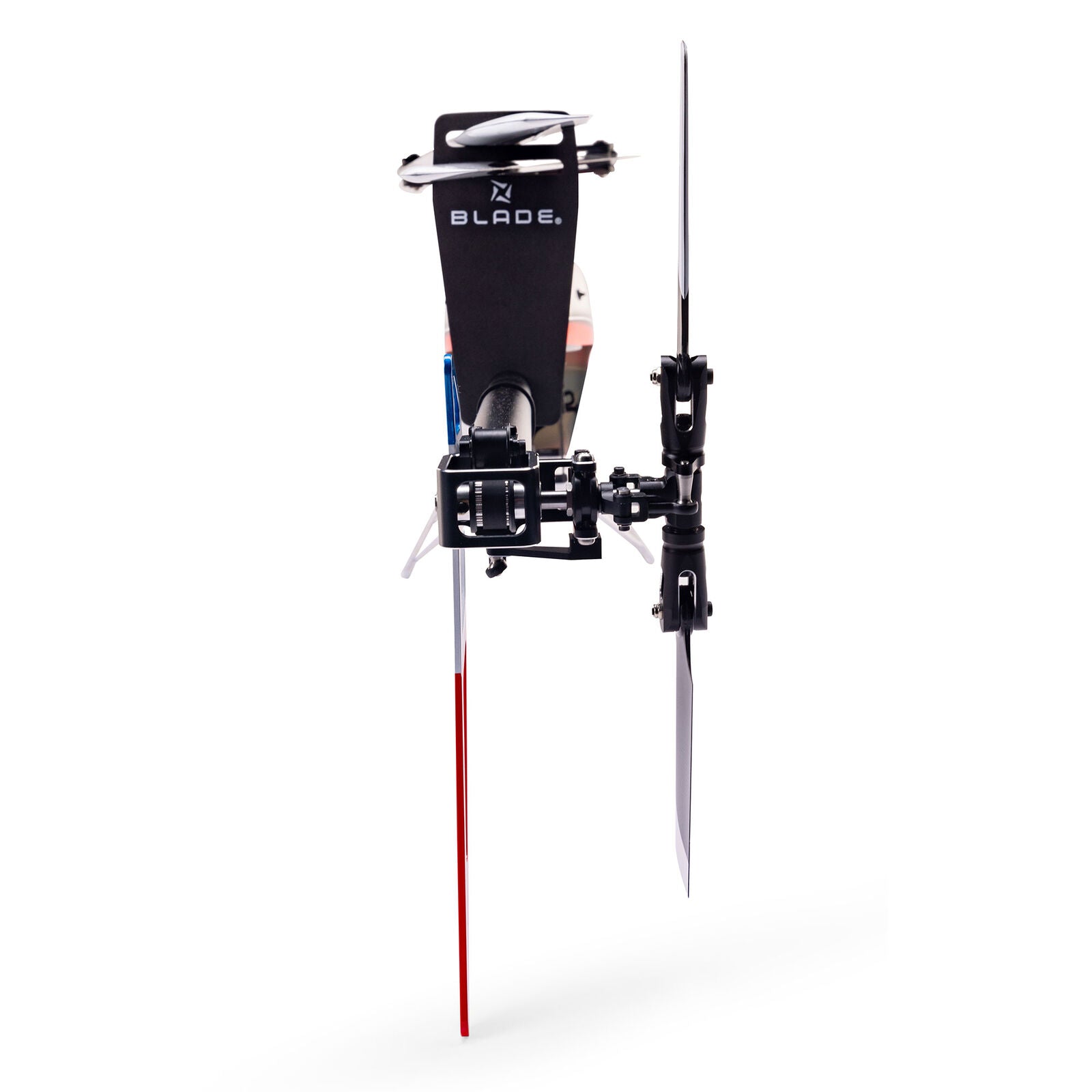

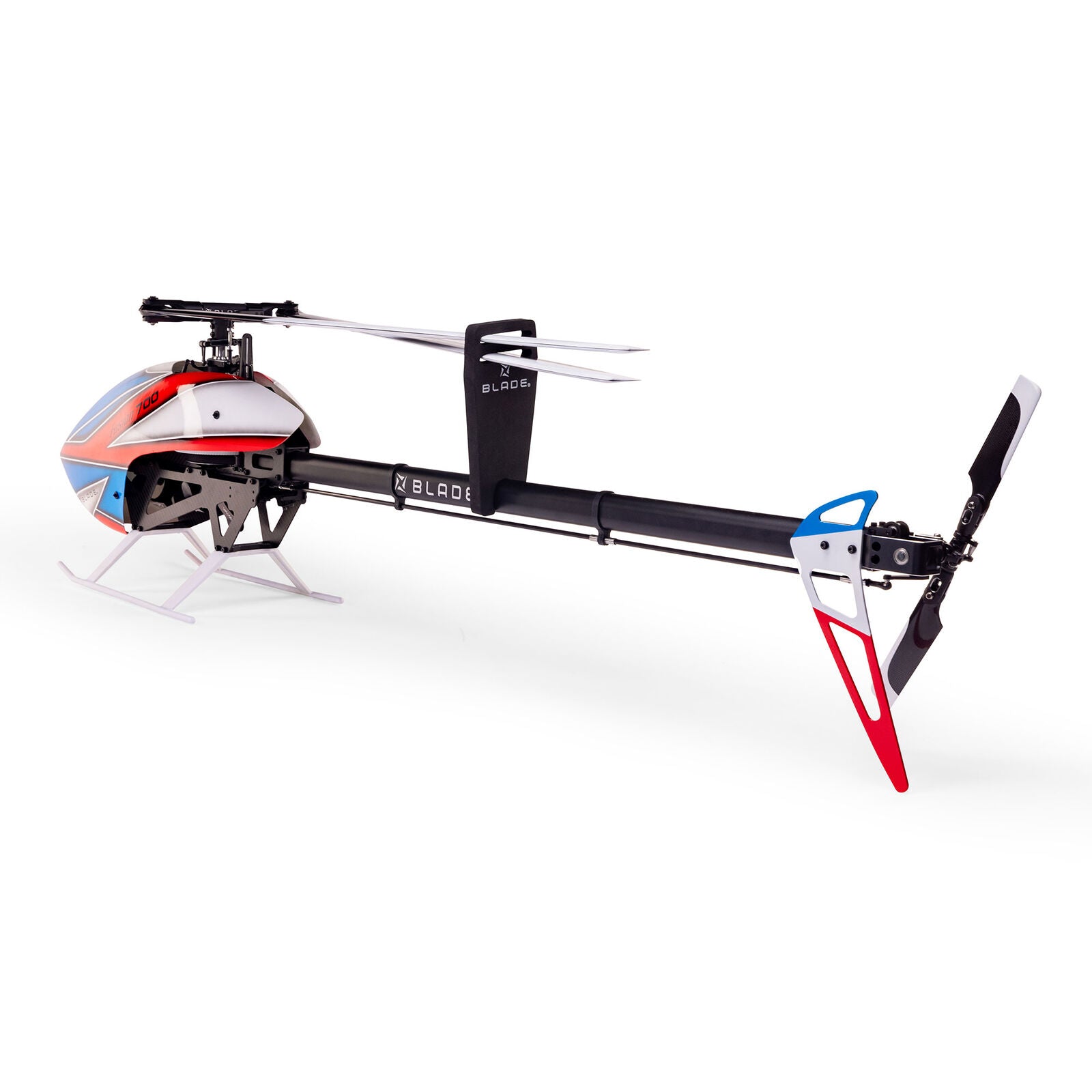

Tail Features
  • Ovalized aluminum tail boom for added strength and rigidity without boom supports
  • Machined aluminum tail case and separate painted vertical fin for improved visibility
  • 8mm wide drive belt with adjustable tension drives a large aluminum pulley
  • Includes 105mm carbon fiber tail rotor blades
  • Belt-driven tail rotor for lower weight, less parts, and easier maintenance
  • 6mm high-strength steel tail shaft with metal bell crank, hub, and grips
  • 5mm carbon fiber tail pushrod with ball links for precise control
  • Hidden tail servo for added protection and a sleek look

Product Specs

Approximate Assembly Time: 5-7 Hours
Battery: Sold Separately
Gear Ratio: 9.33-10.18
Main Frame Material: Carbon Fiber
Motor Size: 4735-540Kv 10-Pole
Product Length: 54.5" (1384 mm)
Completion Level: Kit
Main Blade Material: Carbon Fiber
Main Rotor Diameter: 62" (1575 mm)
Product Height: 14.88" (378 mm)
Recommended Motor Battery: 12S 44.4V 4000mAh to 5000mAh LiPo (SPMX-1091)
Tail Blade Material: Carbon Fiber
Tail Rotor Blade Length: 4.13" (105 mm)
Main Motor Type: Brushless
Main Rotor Head Type: Collective Pitch Flybarless
Product Width: 8.5" (216 mm)
Tail Rotor Diameter: 11.5" (292 mm)
Tail Drive: Belt Drive
Main Rotor Blade Length: 27.56" (700 mm)
Speed Control: Sold Separately
Power Type: Electric
Servos: Sold Separately
Skill Level: Level 4
Swashplate Type: 120 Degree CCPM
Canopy/Body Material: Fiberglass
Product Weight: With recommended battery: 12.5lb (5670g)
Charger: Sold Separately
Receiver: Sold Separately
Type:

Helicopter Kit

Vendor:

Blade

SKU:

BLH13075

Weight:

16.0 lb


Product Spare Parts


Electronics

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
D. T.S.
Great Job Blade

Have done a few flights now and all I can say it is a very nice model. It is as smooth as silk and fly's perfectly. No shakes or wags.... I am really surprised I got it all right the first time. Using the Avian 120 ESC and the FC6250hx. I only real hick up I had there is a misprint in the manual.. the motor timing setting in the ESC needed to be 15 degrees not 5 It would come up to head speed and the ESC would shut down then start back up. Changed the setting to 15 degree's and it solved the problem. Completely satisfied with the build experience and quality of product.
