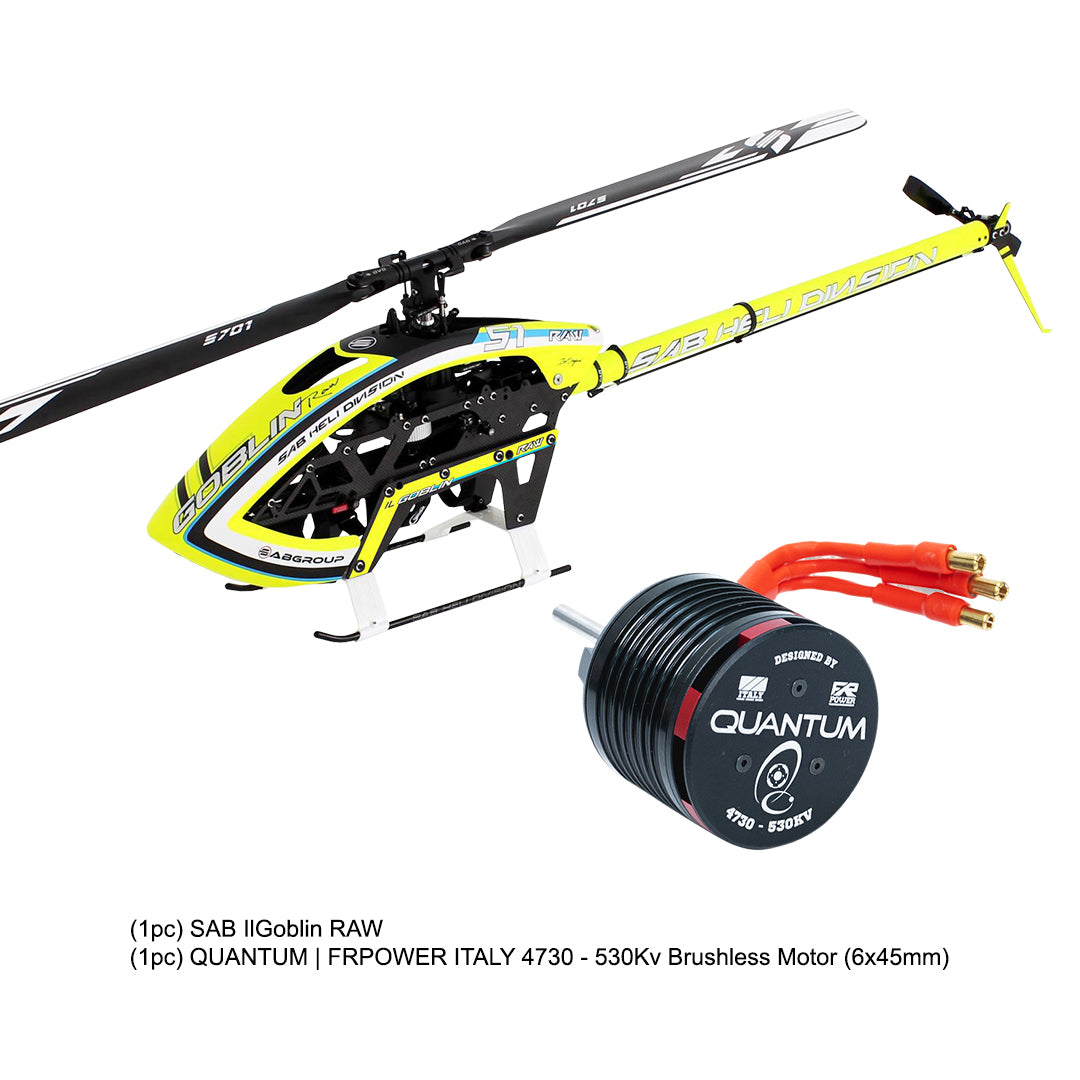

SAB ilGoblin RAW Combo With Quantum 4730 - 530KV Brushless Motor

I. QUANTUM | FRPOWER ITALY Motor 4730-530KV Brushless Outrunner Motor

The QUANTUM | FRPOWER ITALY Motor 4730-530KV brushless outrunner motor is a high-performance power solution engineered for electric-powered RC Helicopter and other high-efficiency hobby applications DESIGNED by Fabrizio Russo FRPOWER From ITALY. With a KV rating of 530, this motor delivers a balanced mix of torque and RPM, making it suitable for hardcore 3D RC Helicopter configurations that require smooth and responsive throttle control. Hence, with the new cooling fins design will help the motor running more efficient.

*** Specifications:
Stator Diameter: 47 mm (185 in)
Stator Thickness: 30 mm (1.18 in)
Number of Stator Arms: 12
Number of Magnet Poles: 10
Motor Wind: 5+4 Turn Delta
Motor Wire: 2 Strand 1.0 mm
Motor Kv: 530 KV (RPM/Volt)
No-Load Current (lo/10V): 2.29 Amps
Motor Resistance (Rm): 0.O11 Ohms
Max Continuous Current: 150 Amps
Max Continuous Power: 7500Watts
Weight: 550 Grams
Outside Diameter: 58.5 mm
Shaft Diameter: 6mm
Body Length: 58.7 mm
Overall Shaft Length: 110 mm
Max Lipo Cells: 12S
Max Peak Current (2s): 270 Amps
Max Peak Power (2s): 13500 Watts
Motor Timing: 5°-8° (Suggested Auto Timing]

*** Package Includes:
Quantum 4730-530kv Brushless Motor
5.5mm male connector * 3 (already installed)
5.5mm female connector * 3

II. SAB ilGoblin RAW:
*** Specifications:
AIRFRAME weight: 2122 gr (no blades, no battery, no electronics)
Main rotor diameter: 1576 mm (with 700 mm main blades)
Main blade length: 650 to 730 mm
Tail rotor diameter: 292 mm (with 110 mm tail blades)
Tail blade length: 105 to 115 mm
Cyclic Servos: Standard size 40 mm
Tail Servo: Standard size 40 mm
Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)
Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)
Main shaft: 15 mm, Tail shaft: 8 mm
Aluminum tail boom
Typical motor: 12S, 480/560 KV
Battery room: 50x60x300 mm

*** KIT Includes:
• 21T motor pulley (other pulley sizes available).
• 1 battery tray with straps.
• S701 (700 mm main blades)
• S105 (105 mm tail blades)
