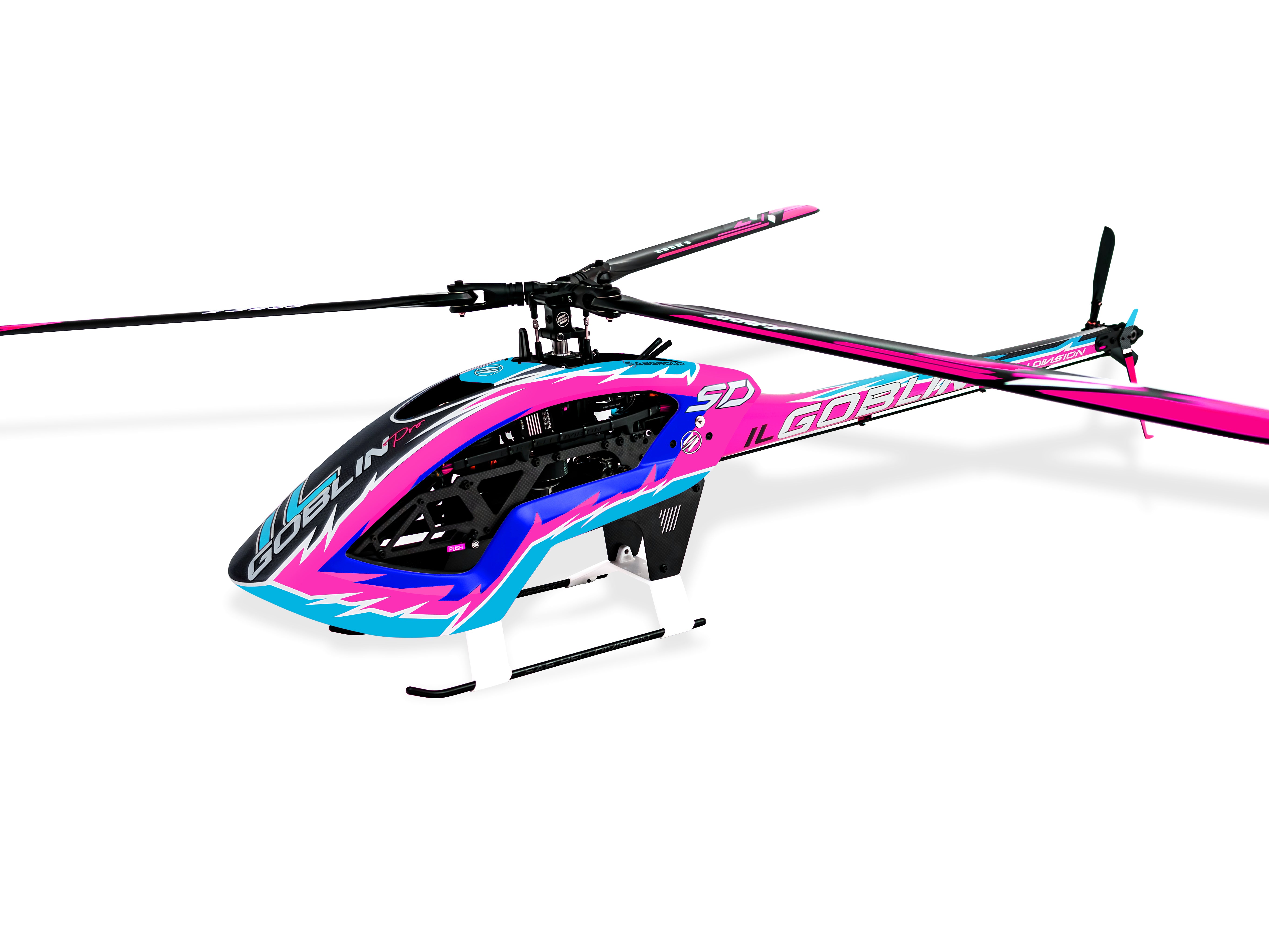

System X Community SAB IlGoblin PRO Triami Kit - Pink

System X Community presents The new ilGoblin PRO Tri-Blade SXC style with a cherry on top

Please download the manual sheet HERE

Learn more and get additional support about SystemX HERE

Here are the main innovations:

Upgraded Features:

• 3 main blades and 3 tail blades rotors
• H2084-S Aluminum Tail Belt Tensioner: Bearings keep the tail belt fitted on the tail pulley, increase grip, anti-slip belt.
• 3 items: H0406-S Bell Crank Clever + H2097-S Aluminum Tail Slider 8mm + H2205-S Bell Crank Lever Mount  : Control the tail pitch slider on both sides, ensuring smooth sliding and reducing play ('2-phase').

• H2207-S Swashplate Leveler 15mm : must have tool for building kit
• HA050-S SAB HELI DIVISION Futaba servo arm : Durable + Breakable Servo Arms for both performance and servos saving.

• HC717-S Titanium Special Screws : Maximum strength and save weight
• Additional H2083-25-S Aluminum Tail Pulley Z25 D8 : to optimize the tail ratio at lower head speed (recommended for 1900 RPMs and less)
• Canopy and Tail Boom in special color scheme with gloss finish
• White Landing Pipes matches the color scheme

Main transmission:

• The main transmission is based on the renowned GOBLIN gearbox, now further improved.
• The main shaft diameter has been increased to 15 mm for increased rigidity.
• New helical gears for increased durability and strength.
• New One-Way system, redesigned for optimal performance.
• A fast disassembly servo mount that allows for easier and faster maintenance on the servos.
• The new gearbox is lighter than previous models.

Rotor head:

• New design HPS3 center hub: The new HPS3 D15 center hub builds on the renowned SAB HPS3 system, featuring an updated design expertly optimized by Kyle Stacy for enhanced performance and aesthetics.

• Separate HPS3 spindles shaft: Using the trust worthy spindle shaft that SAB been using on all 3 blades models, never an issue.

Tail rotor:

• HPS3 tail system with 8mm tail shaft: Maximize the tail authority even at very low head speed

• S1103 tail blades: The tail blades using now is 110mm- 3 blades, with newest profile design which make the tail more silent


• The tail pulley will be available in 3 different sizes to adjust the tail ratio according to personal preferences.

Tail boom:

• Made with high-pressure molding technology and its weight is only 180 gr.
• Includes a belt tensioning system with an indicator for optimal control

Canopy and blades:

• With its unique design, you do not have to remove the canopy to change the batteries, they can be inserted from the rear with integrated connectors.
• The blades in the kit are the new S6823, with new profile and dynamic performance, color-matched to the canopy.
• The tail blades are S1103 with a new design for improved performance.

Specifications:

• AIRFRAME weight: 2272 gr (no blades, no battery, no electronics)

• Main rotor diameter: 1560 mm (with 682 mm main blades)

• Main blade length: 682 mm (3 Blades)

• Tail rotor diameter: 292 mm (with 110 mm tail blades).
• Tail blade length: 110 mm (3 Blades)

• Cyclic Servos: Standard size 40mm.
• Tail Servo: Standard size 40mm.
• Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1).
• Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1).
• Main shaft 15 mm, Tail shaft 8 mm.
• Molded carbon tail boom.
• Motor 12S, 480/560 KV.
• Battery room: 50x60x300 mm.

KIT Includes:

• 21T motor pulley (other pulley sizes available).
• 2 battery trays with integrated connectors.
• S6823-P (682 mm main blades).
• S1103-P (110 mm tail blades).
