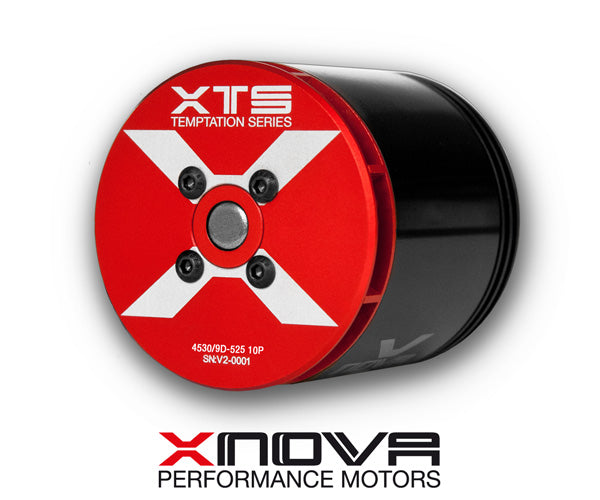

Xnova XTS 4530-525KV 4+5YY (1,5mm Thick Wire) - Shaft A
$379.99
$0.00( / )
Xnova brushless high performance outrunner motor designed for extrem 3D 700-800mm helicopter where highest power to weight ratio is important. Recommended for specially 12S. High quality Neodym Magnets. Heat resistant up to 150 degrees C. Specialized wires,heat resistant up to 300 degrees C. Precisely balanced. High performance sheet metal stator....
%20-%20Shaft%20A){kind=link}
Xnova brushless high performance outrunner motor designed for extrem 3D 700-800mm helicopter where highest power to weight ratio is important. Recommended for specially 12S.
- High quality Neodym Magnets. Heat resistant up to 150 degrees C.
- Specialized wires,heat resistant up to 300 degrees C.
- Precisely balanced.
- High performance sheet metal stator.
- High quality NMB bearings. (2 on top 1 at bottom)
- Marked leading effiency up to 93%.
- Cooler running.
- Superb quality and machining of CNC parts.
- Improved torque and power output.
- 1.5 mm thick wire.
| Slots & Poles | 12n10p |
| Winding T | 4+5 YY with 1.5mm thick wire |
| rpm/V | 525 |
| Volt (V) | 10 | 20 | 30 | 40 |
| Io(A) | 1.4 | 2 | 2.8 | 3.5 |
| Rm (mohm) | 12 | 12 | 12 | 12 |
| Weight (without connector) (g) | 535 |
| Body Length (no shaft) mm | 60.5 |
| Diameter (mm) | 55.7 |
| Shaft Length (mm) (Details pictures) | | 38 | 27 |
| Shaft Dia. (mm) | 6 | 8 |10 |
| Mounting Holes CTC Distance (mm) | 30 |
| Mounting Screw | 4x07 |
| Max Eff. Curr. | 34.16 | 57.74 | 83.67 | 108.01 |
| Max Eff. | 91.80 | 93.07 | 93.31 | 93.52 |
| Kt (Nm/A | 0.0199 |
| Km (Nm/sqrt(w)) | 0.1816 |
| Max Continuous Power(Watts) | 5600 |
| Peak Continuous Power(Watts) (5 sec) | 11000 (2sec) |
| Max cont. current (A) | 150 |
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
XTS-XN4530525-A |
| Weight: |
2.0 lb |
