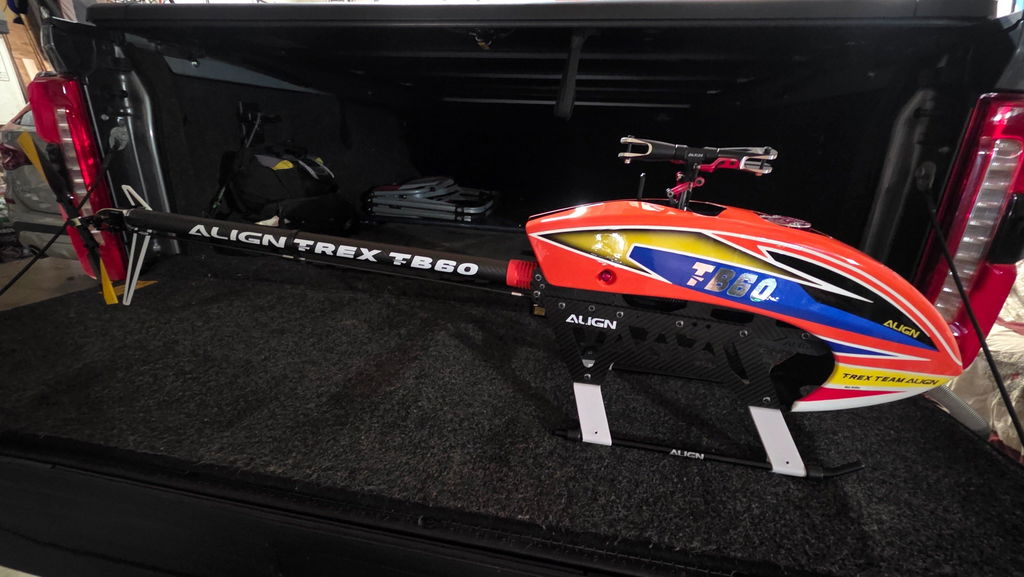

Align TB60 Helicopter Combo (6S)

Vendor: Align
|
SKU: RH60E26XT
Availability: Back-Order
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Price Match Guarantee
$1,259.99
$1,259.99
ETA: 06/30/2026
The order quantity exceeds the stock!
Align TB60 Helicopter Combo (6S) - HeliDirect

Align TB60 Helicopter Combo (6S)

$1,259.99
ETA: 06/30/2026
Align TB60 Helicopter Combo (6S) - HeliDirect
Align TB60 Helicopter Combo (6S) - HeliDirect
Align TB60 Helicopter Combo (6S) - HeliDirect

Align TB60 Helicopter Combo (6S)

$1,259.99

Related Products

Description

Standard equipment

●RCE-BL150A Brushless ESC x 1
●750MX Brushless Motor(930KV/4236) x 1
●DS830M High Voltage Brushless Servo x 3
●DS835M High Voltage Brushless Servo x 1
●MICROBEAST² Flybarless System x 1



Specification

●Length: 1218mm
●Height: 353mm
●Width: 183mm
●Main Blade Length: 600mm
●Main Rotor Diameter: 1339mm
●Tail Length: 95mm
●Tail Rotor Diameter: 253mm
●Motor Belt Pulley: 23T
●Belt Pulley: 44T
●Front Drive Main Shaft: 15T
●Main Drive Gear: 62T
●Autorotation Tail Drive Gear: 28T
●Tail Drive Gear: 23T
●Drive Gear Ratio: 7.89:1:5.04
●Max RPM(approx.): 2300RPM
●Weight(w/o Batteies): Approx. 2.8kg


Accessories

●TB60 Kit Set x 1 set
●600 Carbon Fiber Blades x 1 set
●95 Carbon Fiber Tail Blades x 1 set
●750MX Brushless Motor(930KV/4236) x 1
●DS830M High Voltage Brushless Servo x 3
●DS835M High Voltage Brushless Servo x 1
●RCE-BL150A Brushless ESC x 1
●MICROBEAST² Flybarless System x 1
●Lube Pack x 1



Radio transmitter and electronic equipment required for assembly

●Transmitter(6-channel or more, helicopter system)
●Receiver(6-channel or more) or Remoet Receiver
●RCC-6CX Intelligent Balance Charger
●6S Li-Po 2600 ~ 5200mAh x 1 (suggest 3300mAh or above, combines power and endurance)
●Digital Pitch Gauge
●Multi-function Tester







Read More
Additional Information
Vendor: Align
SKU: RH60E26XT
Barcode: 4713413733064
Availability: Out Of Stock
Product Type: Helicopter Kit
Weight: 9.04 lb
