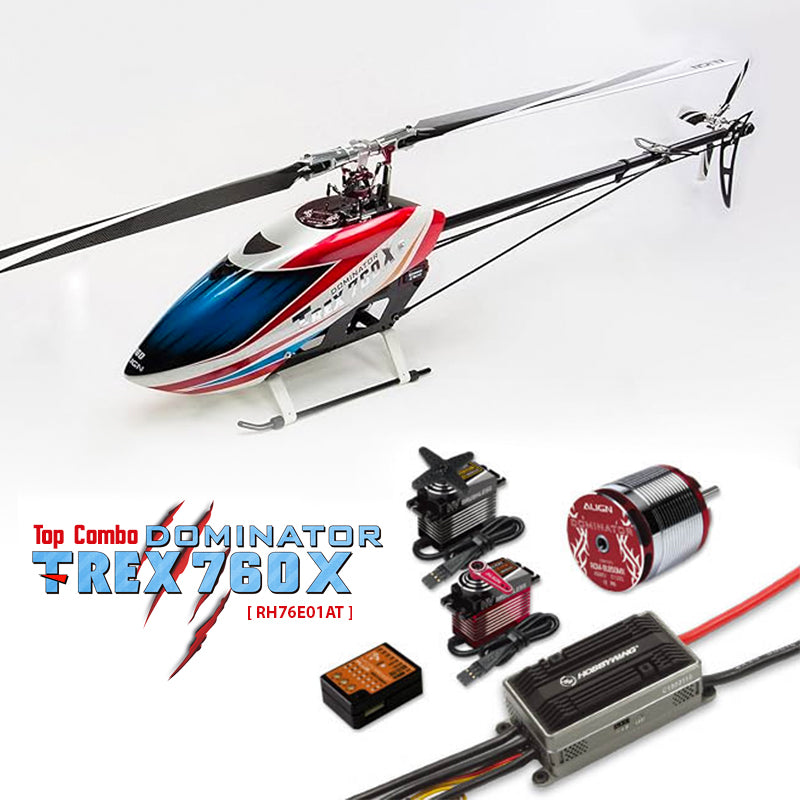

Align T-REX 760X Top Combo
The brand new Align T-REX 760X features with new body length and new 760 main blade for F3C/3D flight design providing the outstanding performance than other series will give you the different flying feeling.
The new 700FL rotor head system can use new F3C rotor holder arm and 3D rotor holder arm. F3C rotor holder arm effectively doubles the flight stability with excellent and precise control accuracy not only has more advantages in the static flight also provide the perfect controlling feel in 3D flight. 3D rotor holder arm suitable for extreme 3D flight provides the more direct and faster control response. Main rotor grip arm and linkage rod is at 90-degree angle symmetrically, allow to keep the best precise flight performance. Also the new 760 main blade features with better flight stability and superior lift making the T-REX 760X in the control feel and stability better than other models. Utilized the three tail blade set as standard accessory feature with excellent controlling feel and superior tail authority allowing you to enjoy the flying no matter F3C or 3D flight.
T-REX 760X introduced the advanced engineered narrow body design efficiently decreases gear abrasion, machine deformation, increases power, and extends flying durability. The unique Split-Type Main Frame design, made of composite material side plates, is engineered using our proprietary embedding technology, which strengthens the entire structure and provides better accessibility for servicing the T-REX 760X. This extraordinary design includes a progressive lightweight landing skid making the T-REX 760X the leader in this class. The lightweight structure design which significantly reduce the body weight can effectively increase your flight time.
The T-REX 760X is equipped with the new 850MX motor which is highly efficient with superior power, excellent torque, low current draw, and is the most advanced motor approved by World RC Champions. The new designed motor cooling mount plate can reduce the motor operating temperature up to 20°C (68°F). The helicopter’s high quality design is accented with precision machined red and silver metal parts. The brand new Platinum HV 200A V4 ESC supplies extreme power. The ESC includes a superior governor and BEC. The NEW DS820M/DS825M high voltage brushless servos are more efficient and outperform other servos in this class. To protect these servos the new high-end CNC aluminum case function as a heat sink allowing the servos to operate at a lower temperature.
T-REX 760X introduced many new design with top equipment providing excellent performance allowing any flying style no matter F3C or 3D flight. If you don’t have any big helicopter, T-REX 760X must your best choice.
The 700EFL Flybarless Rotor Head System utilizes extreme low CG design to effectively reduce resistance during 3D maneuvers while increasing flight responsiveness and precision. In addition, the high quality of the helicopter design is accented with red anodized and stainless color precision machined metal parts.
Two new holder arms with CNC cutting provide a neat and smooth lines and appearance, showing out of the ordinary.
After thinking again and again and numerous washes to practice the essence, gestate a new F3C holder arm, effectively doubling the flight stability, and the excellent fine control accuracy; not only in the static flight has more advantages in the dynamic flight also has more outstanding control feeling. The 3D holder arm has excellent rigidity and toughness, suitable for extreme 3D flight, features with more direct and faster response, also enhance the flight stability, allowing to stimulate the infinite possibilities.
Align Advanced Metal Swashplate firmly connects to rotor grips preventing rotor head disengagement during intense flight. Two linkage ball mounting holes provided to improve control of system movement. A resolution hole or larger movement reaction hole can be selected based on your flying preference or style.
Main Rotor Grip Arm and Linkage Rod is at 90-degree angle symmetrically, allow to keep the best precise flight performance.
New extended 760 carbon fiber main blades effectively improve the flying stability and power performance. Enhance the power for better control and redefine your flying experience. And it features new airfoil and printed graphics, increased rigidity and extended length, effectively increases anti-torsion strength during flight.
Integration of CNC Aluminum alloy and POM Polyacetal which can lower friction between the linkage ball and the Metal Anti Rotation Bracket. In addition, this new design increases the efficiencies and accuracy of the servos.

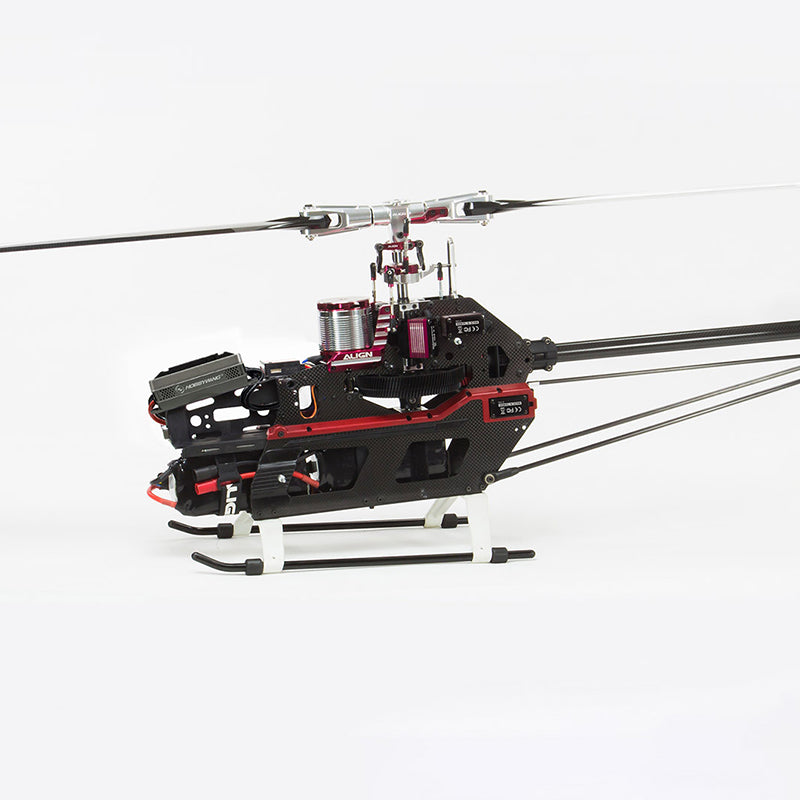

Engineered Narrow Body Design efficiently decreases gear abrasion and machine deformation. The Align T-Rex 700X newly designed narrow body is more powerful and has longer flying durability.
New 3K Main frame embedded with battery mounting rails with patented spring loaded latching mechanism. Brand new CG adjustable CNC Aluminum Battery Mount with movable latch design allow to adjust CG for different battery size, as well as providing great protection for the battery and convenient way for mounting.
Designed specifically for helicopters, utilizing a brushless motor for fast speed, high torque, and super efficient reaction time, allowing the Align 700X to perform faster with precision. The brand new DS820M high voltage brushless servo is equipped with a new CNC machined aluminum case. This new aluminum case exhibits top of the line servo aesthetics while providing a heat sink function for the best protection of the servo.
Innovative Servo Embedded Mount. Servo mount manufactured using the latest composite material technology to integrate carbon fiber and POM (polyacetal), which efficiently strengthen its protective function and reduces abrasion of signal wires.
Composite material side plates engineered by exclusive embedding technology, which strengthens the entire structure and eases serviceability.
Highly enhance structural strength, effectively increase the torsional capability.
The high-end Microbeast PLUS 6-axis gyro with 32-bit high-speed processor is much precise and superior in programming and computing allow for significant handling performance and delicate response. In addition, the Microbeast PLUS gyro is vibration-reducing improvement and strongly reduce the effects of the vibration to flying performance.
Our new 850MX motor inherited features from the previous 800MX such as high efficiency, superior power, excellent torque, low current draw, and a low operating temperature. The 850MX is capable of maintaining a more consistent torque and head speed through continuous 3D maneuvers. This is a particularly designed for 3D flights.
The CNC Plate is designed to strengthen the Align 700X frame while efficiently acting as a heat sink to efficiently dissipate motor heat. (This can lower motor temperature up to 20 degrees Celsius during flight).
Landing skid is tilted 5 degree forward which improves crash worthiness.
The brand new 700E three tail blade set is specially made from aerospace grade aluminum alloy with precise mechanical process, highly enhance structural rigidity and precision. Total 3 tail blades design allow to achieve superior tail-lock performance and excellent controlling feel. For those who is addicted to 3D flying, you must convert to the three tail blade set and enjoy the amazing powerful flight performance.
Use with HOBBYWING Platinum HV 200A V4 Brushless ESC:
1.The innovative "duo" stacking structure allows all components on both sides of the printed circuit boards to quickly conduct heat to the aluminum case.
2.High-performance 32-bit processor combined with advanced algorithm makes the motor speed-governing excellent for different conditions. With the adjustable sensitivity of speed-governing, every pilot can find the most suitable settings for his helicopter.
3.Platinum-HV-200A makes the motor start extremely soft and avoids tail-drift issues of helicopter.The start-up time is adjustable within 8 to 25 seconds, this will definitely create a perfect starting point for every flight.
4.The built-in switch mode BEC with a continuously adjustable output voltage, range from 5V to 8V(step: 0.1V). It is certain to put out the power you need for rapid, precise steering servo operation.
5.A high quality, and high voltage MOSFET with a great current endurance guarantees the ESC’s safety especially in a extremely high power demanding situation.
6.Built-in spark proof circuit effectively eliminates sparks produced at the “powering-on” moment and prolongs the connector's lifespan.
7.Support ASBOX multi function programmer set up.
8.Innovative Heat Dissipation Structure:The innovative "duo" stacking structure allows all components on both sides of the printed circuit boards to quickly conduct heat to the aluminum case.
Brand new tail blade designed to sustain optimal tail authority performance under high head speed and extreme flight conditions.
Standard equipment
•760X Painted Canopy x 1•3D Holder Arm x 1
•F3C Holder Arm x 1
•Progressive Lightweight Landing Skid x 1
•700 PRO Carbon Fiber Vertical Stabilizer x1
•Main Blade Holder x 1
Electric equipment
•Platinum HV 200A V4 Brushless ESC x 1•850MX Brushless Motor(490KV/4535) x 1
•DS820M High Voltage Brushless Servo x 3
•DS825M High Voltage Brushless Servo x 1
•Microbeast PLUS Flybarless System x 1
Specification
•Length: 1390mm•Height: 360mm
•Width: 195mm
•Main Blade Length: 760mm
•Main Rotor Diameter: 1702mm
•Tail Rotor Diameter: 287mm
•Motor Drive Gear:12T
•Main Drive Gear:112T
•Auto rotation Tail Drive Gear: 102T
•Tail Drive Gear: 23T
•Drive Gear Ratio: 9.33:1:4.43
•Weight(w/o Battery): Approx. 3750g
Accessories
•T-REX 760X Kit Set x 1 set•760 Carbon Fiber Blades x 1 set(2pcs)
•105mm Carbon Fiber Tail Blades x 1 set(3pcs)
•850MX Brushless Motor(490KV/4535) x 1
•DS820M High Voltage Brushless Servo x 3
•DS825M High Voltage Brushless Servo x 1
•Platinum HV 200A V4 Brushless ESC x 1
•Microbeast PLUS Flybarless System x 1
Radio transmitter and electronic equipment required for assembly:
•Transmitter(6-channel or more, helicopter system)•Receiver(6-channel or more)
•6S Li-Po 4500 ~ 6000mAh x 2
•Digital Pitch Gauge
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
RH76E01AT |
| Weight: |
19.5 lb |
