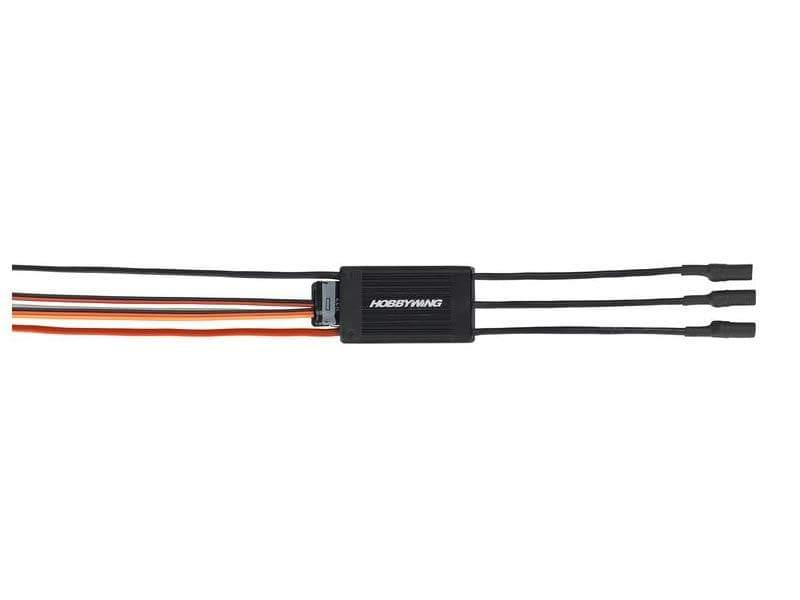

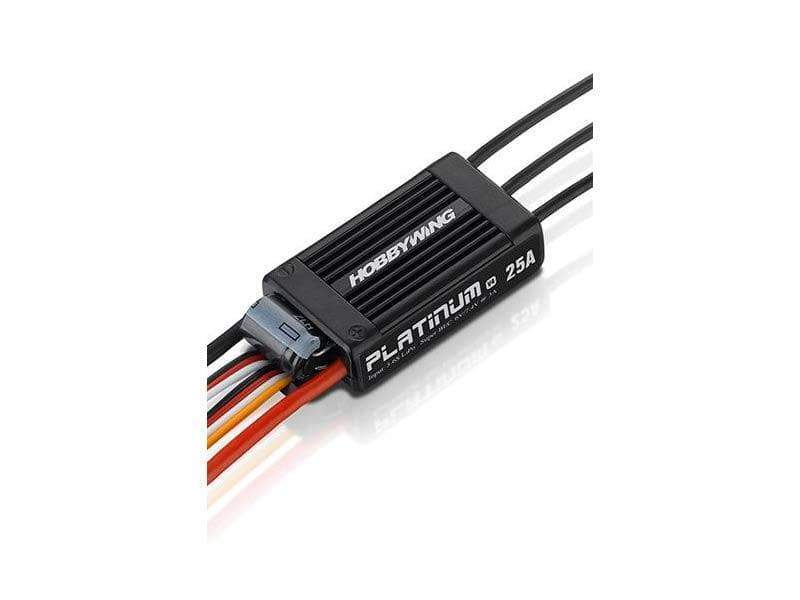

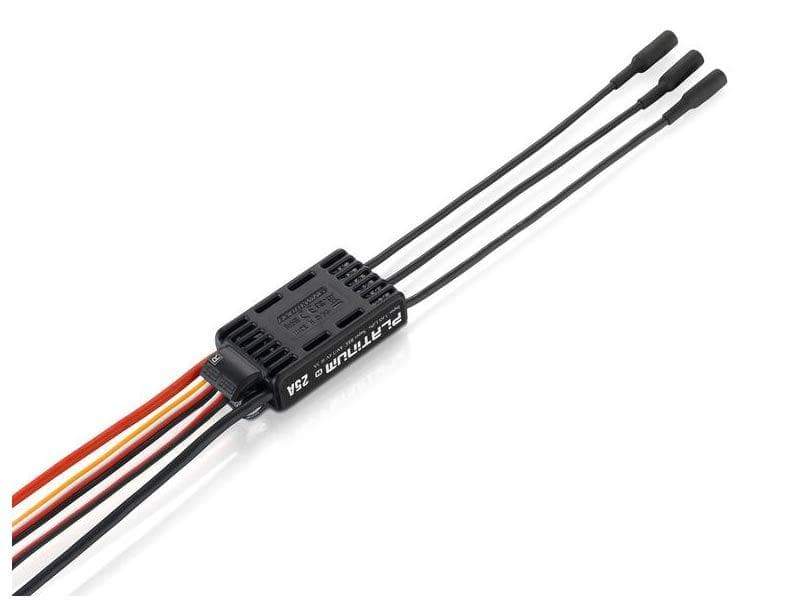

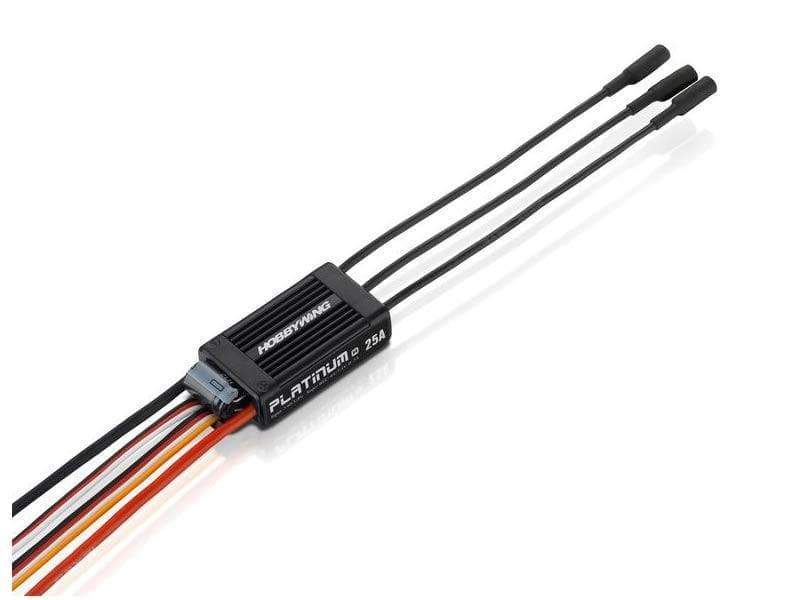

HobbyWing Platinum 25A V4 ESC
Perfect for Oxy heli 2 upgrade
- 3-6S LiPo
- Built-in BEC 5V-8V (default 5V)
- Firmware upgrade and programming via WiFi Express module or LCD program box (purchase separately)
| Model | Platinum 25A ESC V4 |
| Input Voltage | 3-6S LiPo |
| Cont./Peak Current (10s) | 25A/40A |
| Application | > 450 heli or a small fixed wings aircraft |
| (Switch-mode) BEC | Switch Mode:6V/7.4V,3A |
| Separate Programming Port | For connecting LCD Program Box/WIFI Express |
| Throttle Signal/BEC Output/RPM Signal Transmission Wire(s) | White Throttle Signal Wire/Red & Black BEC Output Wires/ Yellow RPM Signal Transmission Wire |
| Input Wires | Red-16AWG-100mm*1/Black-16AWG-100mm*1 |
| output wires | Black-18AWG-75mm*3 |
| Output connectors | 3.5mm Gold Connectors (Female) |
| Weight/Size | 27g / 47x22x10mm |
Download
Users_manual_Platinum25A.pdf HOBBYWING Governor function explained (PDF)
Product Spare Parts
Customer Reviews
This is a good light speed controller to install, but i don’t know if it can connect for both dual rate motor.
I love the hobbywing ecs. I have this 25amp esc on a blade 300x modified to spin 270 mm blades with high voltage servos and tail. I am using beastx FBL. Doing pitch pumps caused me to lose control of the servos. The BEC is only rated at 3 amps.
Seems good quality installed in Oxy2 but removed because on ANOTHER bad program box I think heli direct will take care of ten issues usually always have
I have one of these installed in a very light 300 sized helicopter (spins 315mm main blades). Works well for the sport type flying that I do with this helicopter. Would probably opt for something with a higher rating if I were able to fly hard 3D, but who I am I joking...... I cannot fly that hard if I wanted to! This ESC is light, small, inexpensive, and easy to set up. A winner in this application!
Easy setup and perfect size for my Oxy 2
Easy to set up.
